Description
DS18 PRO-X10M
The PRO-X10M is a 10″ professional midrange loudspeaker engineered to deliver clear and powerful midrange frequencies with high efficiency and reliable performance. Its robust motor structure and optimized cone design provide focused vocal clarity and smooth midrange response, making it ideal for pro audio systems, PA setups, custom car audio installations, and other audio builds that require strong midrange presence.
Specifications
| Specification | Value |
|---|---|
| SKU | PRO X10M |
| Nominal Diameter | 10 inch 256 mm |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 300 Watts |
| Max Power Handling | 600 Watts |
| Sensitivity | 96 dB |
| Frequency Response | 100 Hz to 5 kHz |
| Recommended Hi Pass | 120 Hz |
| Sold In | — |
CONSTRUCTION SPECIFICATIONS
| Specification | Value |
|---|---|
| Voice Coil Diameter | 50.8 mm 2 inch |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | — |
| Basket Material | Steel |
| Magnet Material | — |
| Magnet Weight | 40 oz |
THIELE AND SMALL PARAMETERS
| Parameter | Value |
|---|---|
| Vas | 84.93 L |
| Xmax | 9.8 mm |
| Fs | 76.3 Hz |
| Qms | 15.28 |
| Qes | 0.886 |
| Qts | 0.841 |
| Re | 5.2 ohms |
MEASUREMENTS AND PACKAGING
| Specification | Value |
|---|---|

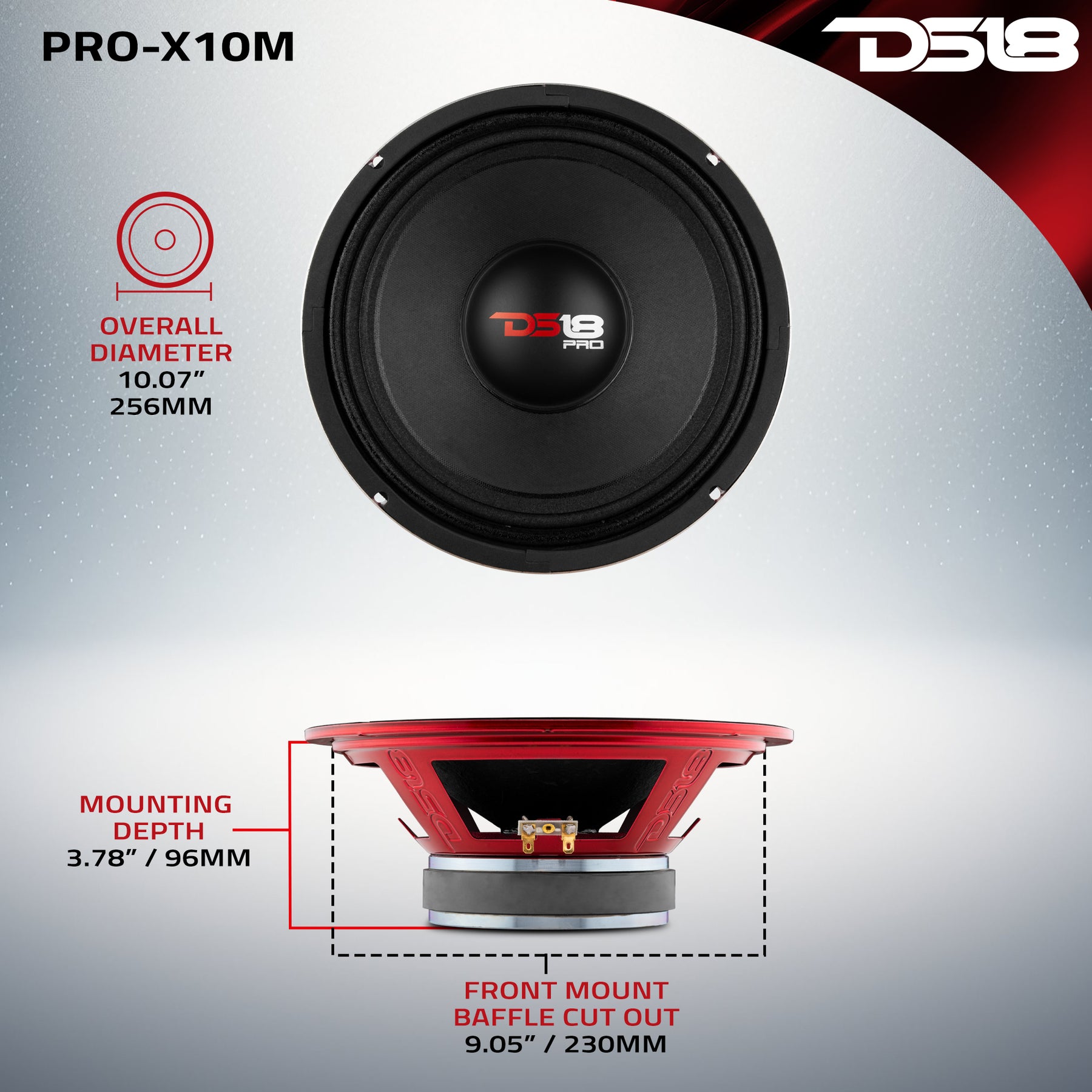

| Overall Diameter | 10 inch 256 mm |
| Front Mount Baffle Cutout | 9 inch 230 mm |
| Mounting Depth | 3.77 inch 96 mm |
| Overall Depth | 4 inch 103 mm |
| Product Weight | 8 lbs |
| Product Dimensions | 10.75 x 10.75 x 4.5 in |
| Master Carton Weight | 34 lbs |
| Master Carton Dimensions | 22 x 11.75 x 10 in |
| Master Carton Quantity | 4 |
Product Overview
10” Mid-Range Loudspeaker 300 Watts 8-Ohms
Experience the power and clarity of the DS18 PRO-X10M, the ultimate mid-range speaker for audiophiles and music lovers everywhere. These speakers pack a serious punch with their strong midrange and crystal-clear high frequencies, delivering a concert-like sound quality without any distortion.
But the real magic of the DS18 PRO-X10M lies in its ability to handle extreme volume levels without sacrificing sound quality. With a high sensitivity of 96dB, you can crank up the volume to max and still enjoy crystal-clear audio with every note. And with a frequency response of 70Hz to 5KHz, you’ll notice richer and more accurate tones that will take your music to the next level.
Not only do these loudspeakers deliver a top-notch audio experience, but they’re built to last. With a maximum power handling of 600W and an RMS power handling of 300W, they’re more than capable of handling consistent and heavy usage. And with a mounting depth of just 3.77”, they’re easy to install in your car or home audio system.
Upgrade to the DS18 PRO-X10M 10” Mid-Range Loudspeaker today and experience the power and clarity of a true audiophile-grade speaker. Order now and prepare to be blown away by the concert-like audio experience that these speakers provide!
