Description
DS18 PRO-X10.4M

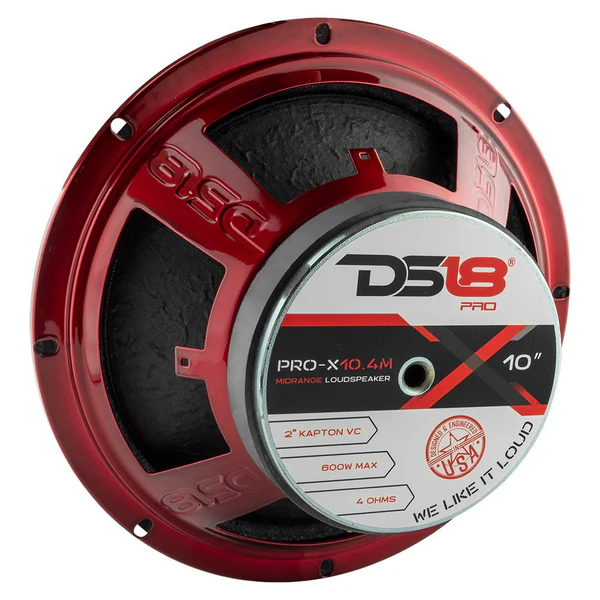

The PRO-X10.4M is a 10″ professional midrange loudspeaker engineered to deliver clear, detailed midrange frequencies with high efficiency and reliable performance. Its optimized cone design and robust motor structure provide strong vocal clarity and smooth midrange response, making it ideal for pro audio systems, PA setups, and custom car audio installations where enhanced midrange output and presence are needed.
Specifications
| Specification |
Value |
| SKU |
PRO X10 4M |
| Nominal Diameter |
10 inch 254 mm |
| Nominal Impedance |
4 ohms |
| RMS Power Handling |
300 W |
| Maximum Power Handling |
600 W |
| Sensitivity 1w 1m |
96 dB |
| Frequency Response |
70 Hz to 5 kHz |
| Recommended Hi Pass Crossover |
100 Hz |
| Sold In |
Piece |
CONSTRUCTION SPECIFICATIONS
| Specification |
Value |
| Voice Coil Diameter |
2 inch 50.8 mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Basket Material |
Steel |
| Magnet |
Ferrite 40 oz |
THIELE AND SMALL PARAMETERS
| Parameter |
Value |
| Vas |
23.34 L 0.824 ft3 |
| Xmax |
9.8 mm |
| Fs |
81 Hz |
| Qms |
5.776 |
| Qes |
0.887 |
| Qts |
0.769 |
| Re |
3.3 ohms |
MEASUREMENTS AND PACKAGING
| Specification |
Value |

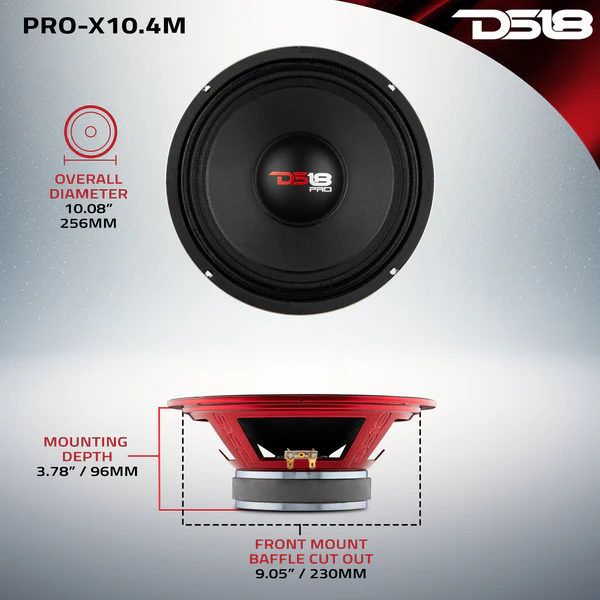

| Overall Diameter |
10 inch 256 mm |
| Front Mount Baffle Cutout |
9 inch 230 mm |
| Mounting Depth |
3.77 inch 96 mm |
| Overall Depth |
4 inch 103 mm |
| Product Weight |
8.5 |
| Product Dimensions |
10.75 x 10.75 x 4.5 |
| Master Carton Weight |
35 |
| Master Carton Dimensions |
22.25 x 11.5 x 9.75 |
| Master Carton Quantity |
4 |
Product Overview
10” Mid-Range Loudspeaker 300W RMS 4-Ohm
Step into the world of powerful, high-quality sound with DS18’s PRO-X10.4M 10” Mid-Range Loudspeaker! The PRO-X10.4M delivers a concert-like audio experience without any distortion, making it an excellent choice for audiophiles and music enthusiasts alike.
With a high 96dB sensitivity, the PRO-X10.4M lets you crank up the volume without any sound distortion. The 70Hz to 5KHz frequency range provides richer and more accurate tones that any audiophile will immediately notice, making these loudspeakers an excellent choice for those who want to experience music the way it was meant to be heard.
The DS18 PRO-X10.4M can handle up to 300 W RMS, making it capable of handling consistent and heavy usage. The 40 Oz ferrite magnet and 2” voice coil make for a powerful combination, ensuring that every beat is heard and handled efficiently.
Whether you’re listening to your favorite album or enjoying a live concert, the DS18 PRO-X10.4M will take your audio experience to the next level. Its compact size and 3.77” mounting depth make it easy to install in your car, truck, or home, while its powerful performance ensures that you’ll enjoy high-quality sound for years to come.
DS18’s PRO-X10.4M is a high-quality midrange loudspeaker that delivers crystal-clear audio and powerful performance. Its high sensitivity, wide frequency range, and impressive power handling make it an excellent choice for audiophiles and music enthusiasts who want to enjoy loud, clear music without any distortion. Order your DS18 PRO-X10.4M today and experience the thrill of powerful, high-quality sound!
