Name: DS18 PRO-W10.4SNEO
SKU: PRO-W10.4SNEO
Availability: InStock

Description

DS18 PRO-W10.4SNEO

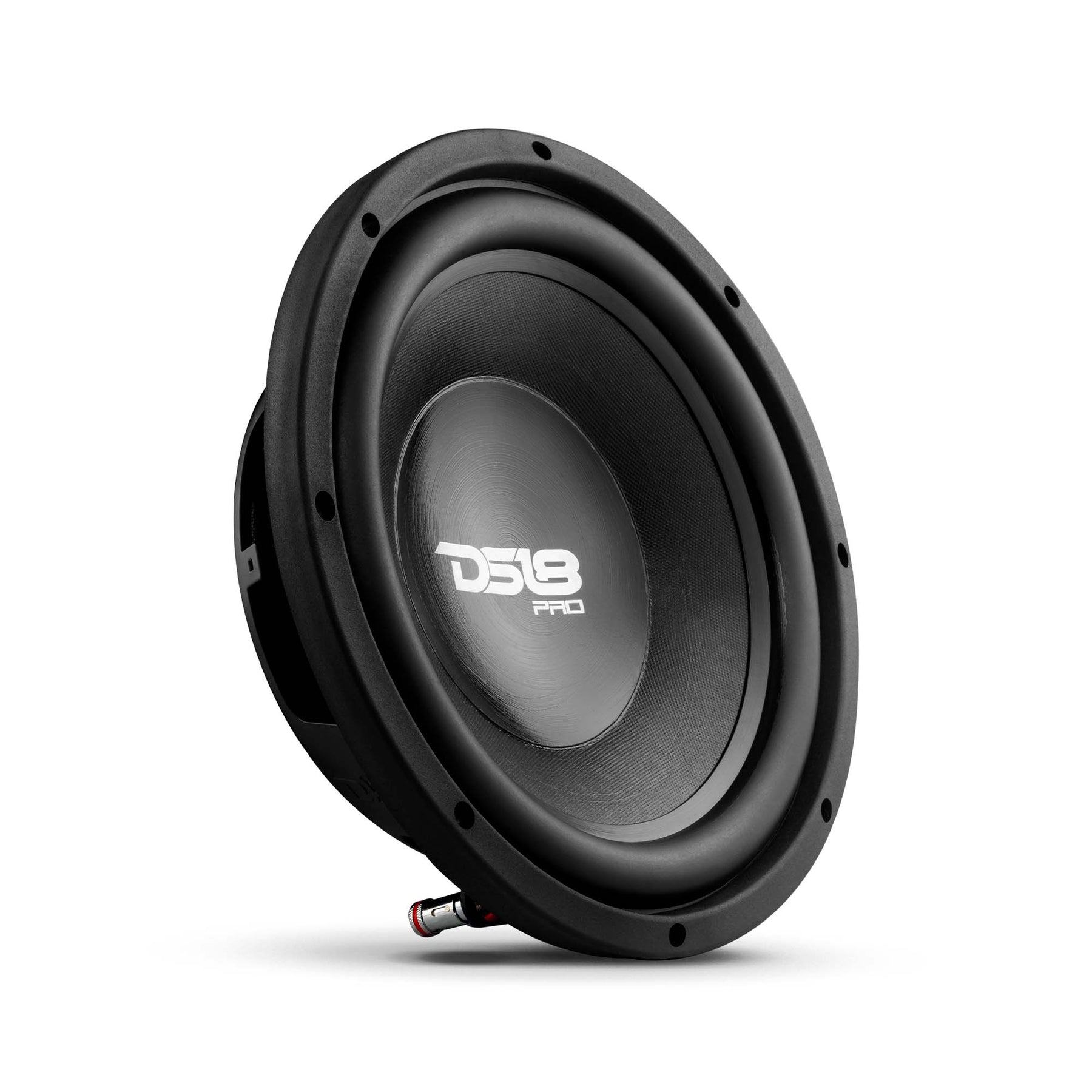

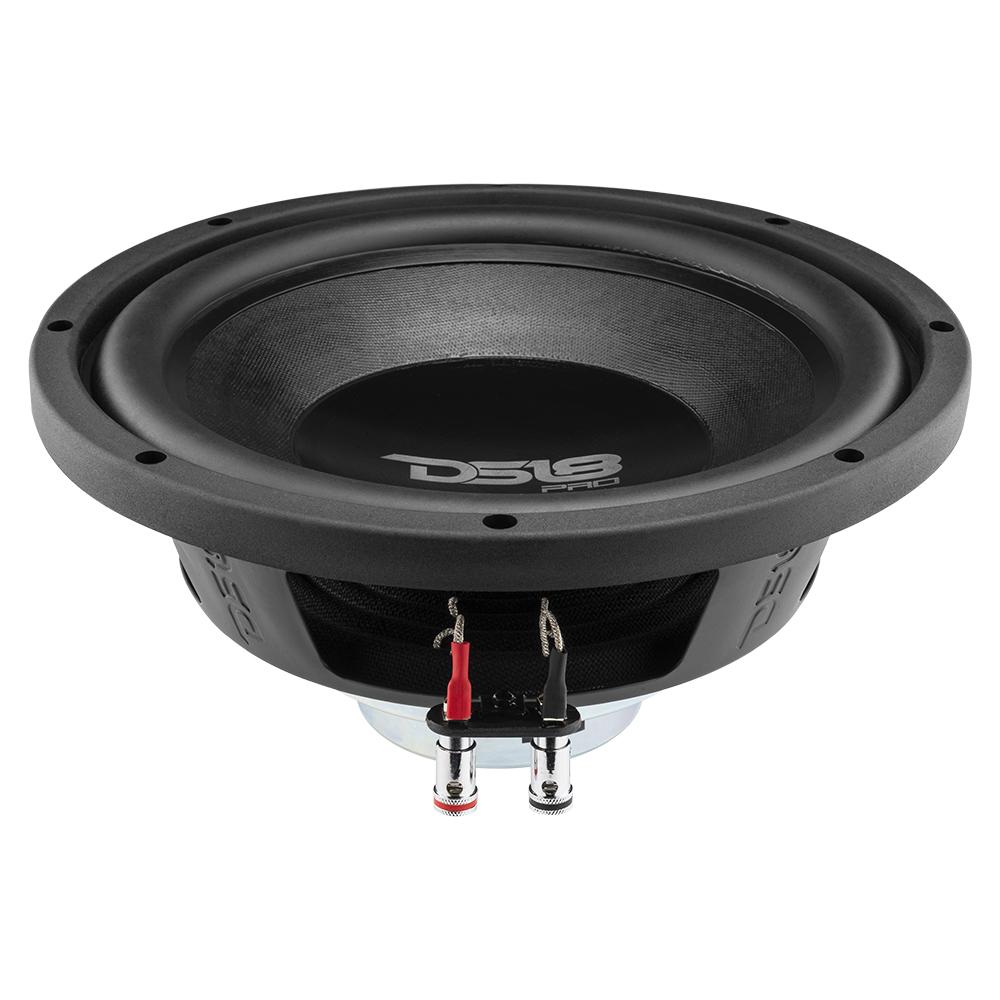

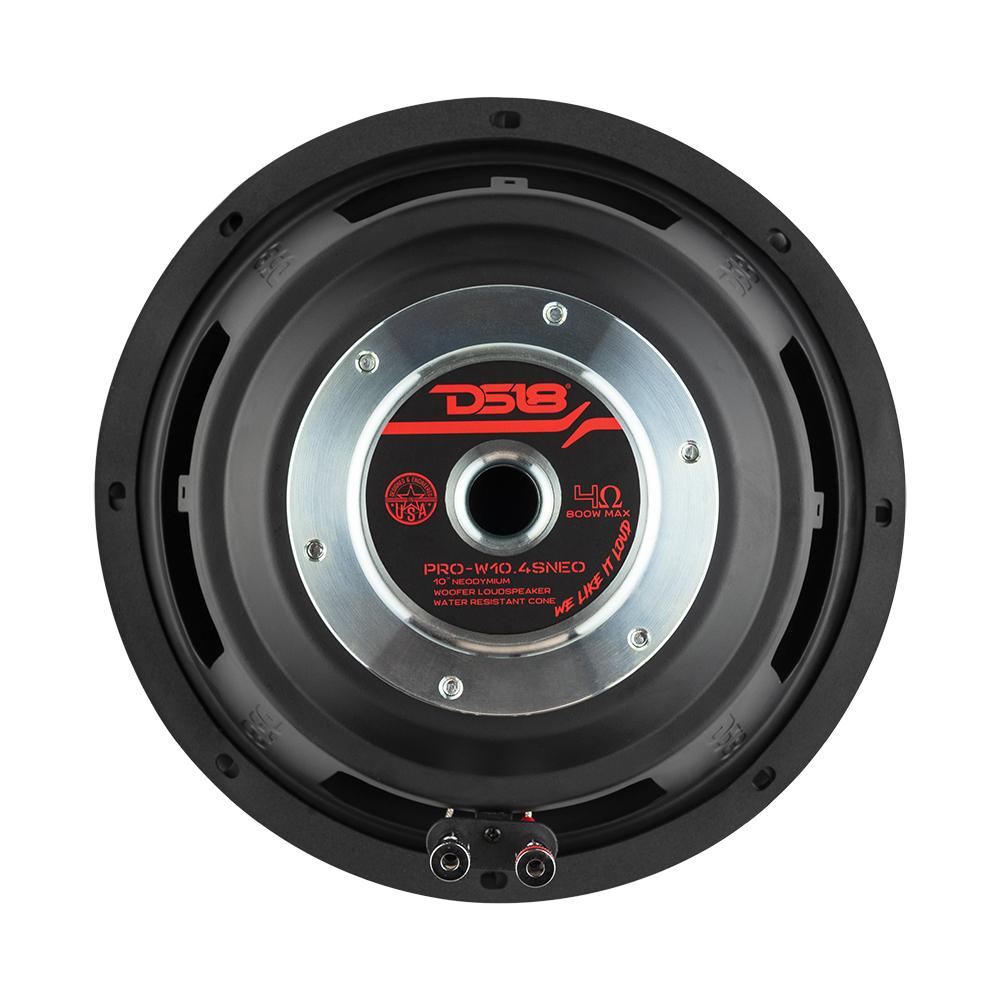

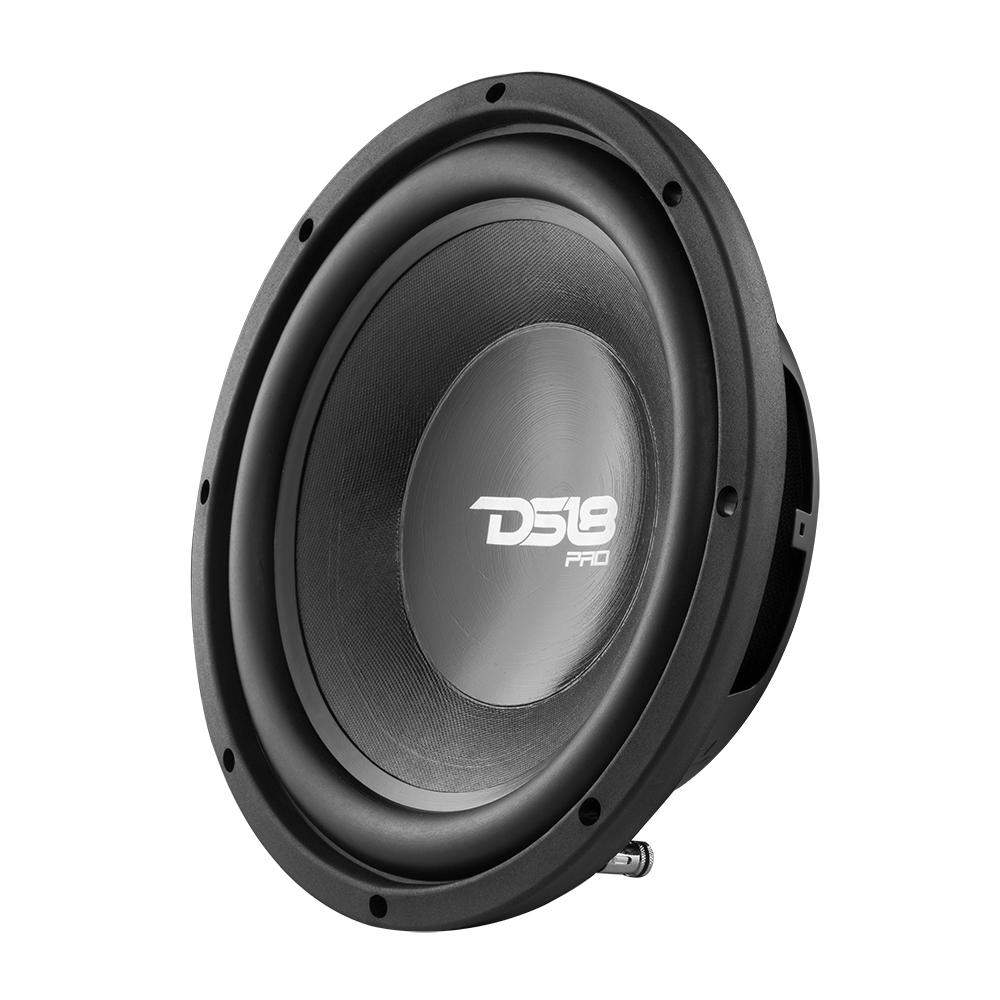

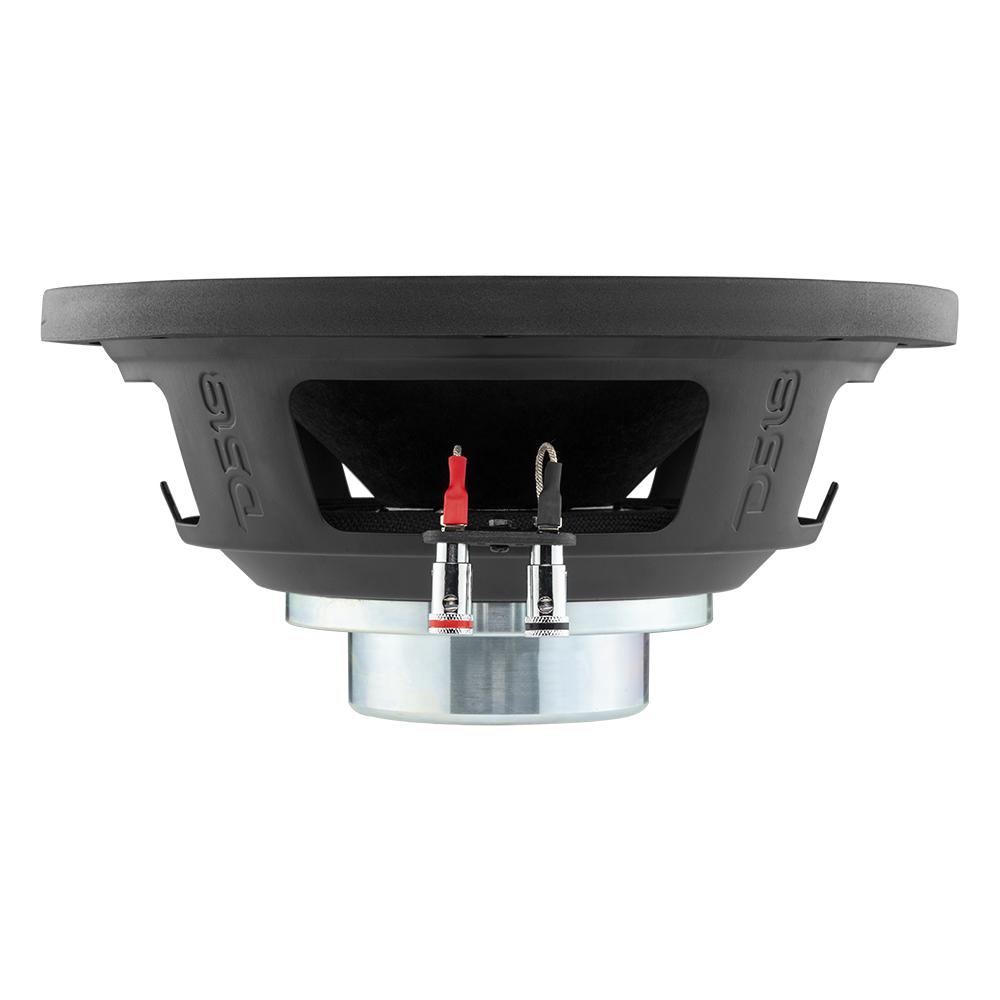

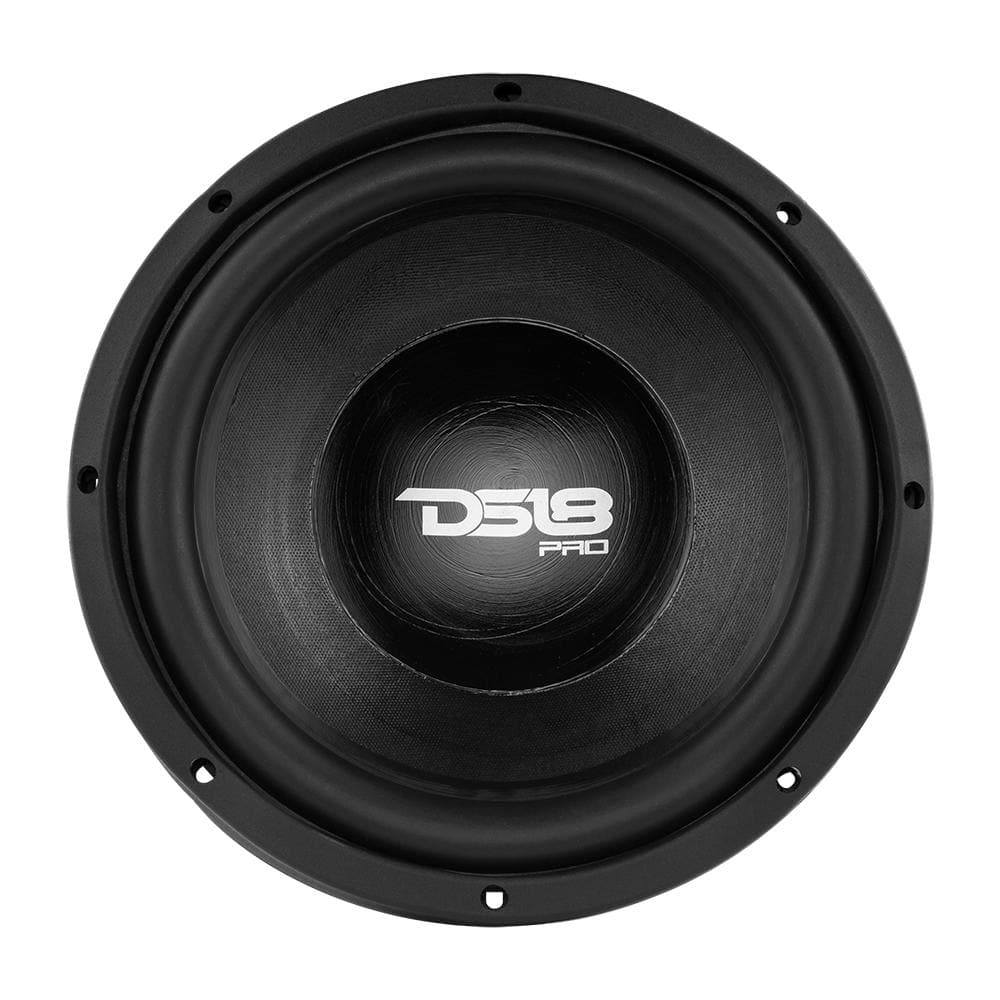

The PRO-W10.4SNEO is a 10″ professional woofer with a neodymium magnet, designed for high-output pro audio and PA systems. Its low impedance configuration ensures strong bass reproduction with high efficiency, making it suitable for concert setups, custom car audio systems, and high-performance SPL applications. The speaker features a robust motor and high-temperature voice coil for reliable performance under demanding conditions.

Specifications

Specification	Value
SKU	PRO-W10.4SNEO
Nominal Diameter	10″ (254 mm)
Nominal Impedance	4 ohms
RMS Power Handling	400 W
Max Power Handling	800 W
Sensitivity (1w/1m)	91 dB
Frequency Response	40 Hz – 5 kHz
Recommended Low-Pass Crossover	180 Hz

Motor & Cone Specifications

Specification	Value
Voice Coil Diameter	2.5″ (65.5 mm)
Voice Coil Former Material	TIL
Winding Material	SV
Cone Material	Water-resistant paper
Dust Cap Material	Water-resistant paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Matte Black
Magnet Material	Ferrite
Magnet Weight	8.8 oz
Displacement Volume	1.8 L / 0.0635 ft³

Thiele & Small Parameters

Parameter	Value
Equivalent Volume (Vas)	23.43 L / 0.827 ft³
Free Air Resonance (Fs)	40 Hz
Mechanical Q (Qms)	5.171
Electrical Q (Qes)	0.5
Total Q (Qts)	0.38
Moving Mass (Mms)	91.85 g
Compliance (Cms)	0.16 mm/N
BL Factor	12.95
Voice Coil Inductance (Le)	0.4578 mH
Diaphragm Area (Sd)	352.99 cm²
DC Resistance (Re)	3.2 ohms
Efficiency Bandwidth Product (EBP)	80

Recommended Enclosures

Enclosure Type	Specification
Sealed Internal Volume	1.4 ft³
Sealed Box Output Response (F3)	53 Hz
Ported Internal Volume	1.5 ft³
Port Size (W × H × Length)	3″ × 3″ × 5.6″ (76 × 76 × 142 mm)
Port Tuning Frequency (Fb)	45 Hz
Ported Box Output Response (F3)	38 Hz

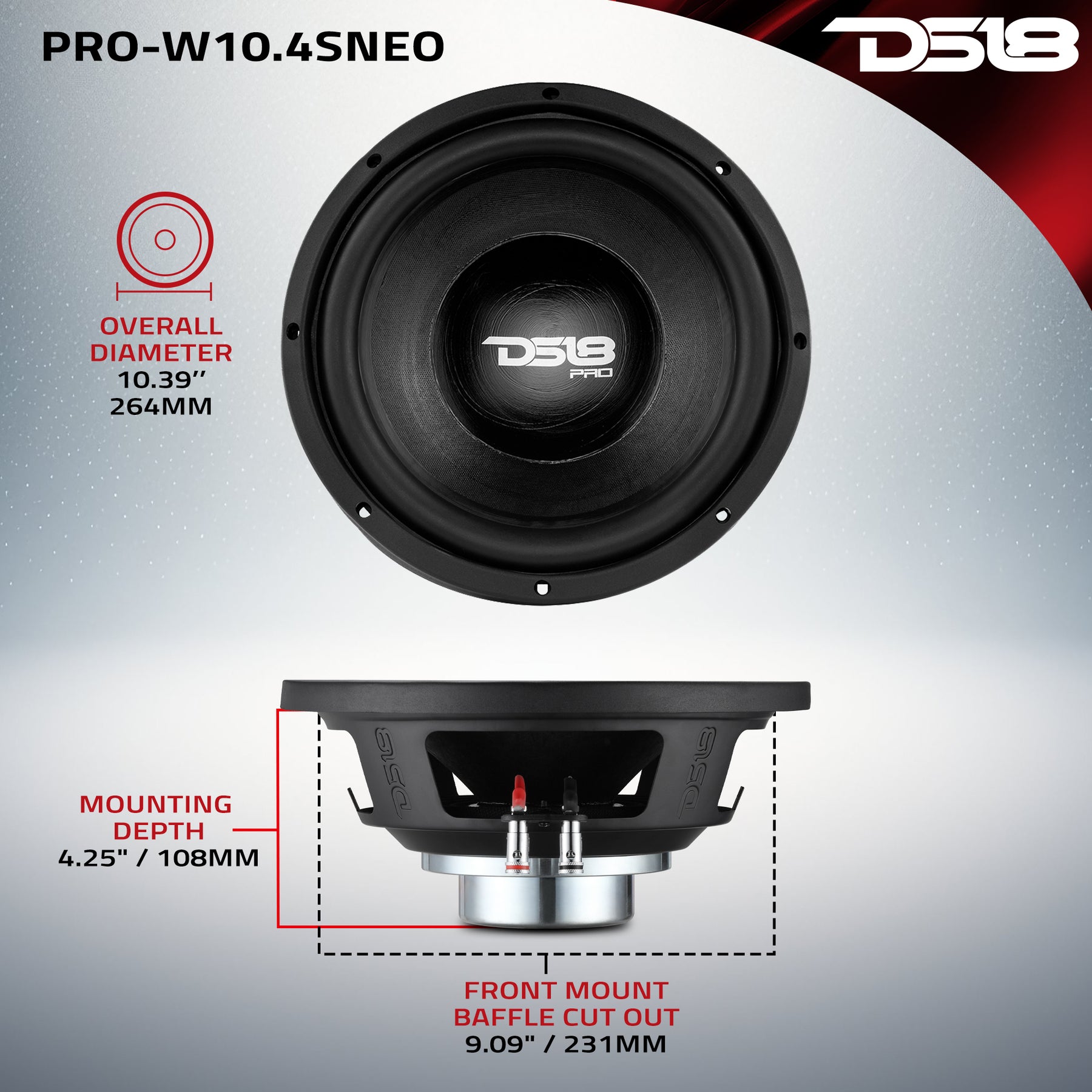

Measurements & Packaging

Specification	Value
Overall Diameter	10.4″ (264 mm)
Overall Depth	4.8″ (122 mm)
Front Mount Baffle Cutout	9.1″ (231 mm)
Mounting Depth	4.25″ (108 mm)
Motor Diameter	3.42″ (87 mm)
Product Dimensions (L × W × H)	10.87 × 10.87 × 5.5 in
Product Weight	7 lbs
Master Carton (M/C) Dimensions (L × W × H)	22.5 × 12 × 11.5 in
Master Carton (M/C) Weight	29.5 lbs
Master Carton Quantity	4
Sold In	Single

Product Overview

10″ Water Resistant Motorcycle & Powersports Woofer 800 Watts 4-Ohm Svc

Experience the power of superior sound on your motorcycle with DS18’s PRO-W10.4SNEO!
DS18’s PRO-W10.4SNEO is a full-size water-resistant woofer that withstands the harshest elements without compromising on build quality. Unlike traditional speakers, this hybrid marvel features a unique design that incorporates a water-resistant cone, ensuring zero corrosion or deformation caused by water exposure.
We’ve gone the extra mile to guarantee longevity and unrivaled performance. The magnet and basket have been expertly coated to resist corrosion, ensuring that your woofer remains in pristine condition even in challenging environments. Crafted from lightweight, water-resistant paper, the cone is supported by a robust rubber surround, preventing water from penetrating the inner workings of the woofer.
DS18’s PRO-W10.4SNEO boasts an impressive power handling capacity of 400 watts RMS and a peak power of 800 watts, ensuring that every beat is delivered with precision and impact. Equipped with a 2.5″ voice coil, this woofer is designed to withstand the demands of high-performance audio systems. The voice coil’s former material and winding material ensure reliable operation and optimal performance. In addition to its remarkable water resistance and impressive power handling, the DS18 PRO-W10.4SNEO also features a neodymium motor structure, taking its performance to a whole new level. The neodymium motor structure gives the PRO-W10.4SNEO enhanced efficiency and responsiveness, resulting in tighter, more controlled audio reproduction. With a sensitivity of 88dB and a frequency response ranging from 40Hz to 5KHz, every note and every beat is delivered with clarity and depth.
Amplify your experience with our single voice coil 2-ohm and 4-ohm versions, allowing you to optimize your ohm load according to your amplifier’s specifications.
Experience the ultimate combination of power, durability, and unrivaled performance with DS18’s PRO-W10.4SNEO. Its superior design and exceptional features make it a must-have for motorcycle riders and powersports enthusiasts seeking an audio solution that can withstand the rigors of the road.
