Description
DS18 PRO-TWX1/BK
The PRO‑TWX1/BK is a high‑compression 3.8‑inch neodymium super bullet tweeter pair designed to deliver loud, crisp, and detailed high‑frequency sound in car audio systems. Built with a 1‑inch aluminum voice coil, ferrite magnet and aluminum bullet housing, this tweeter set handles 60 W AES, 120 W RMS (program), and up to 240 W peak power with a high 103 dB sensitivity and 4‑ohm impedance, producing clear treble from 3.5 kHz to 20 kHz that cuts through any mix. Its compact design and shallow mounting depth make installation easy in custom audio builds or upgrades to factory systems, while the built‑in capacitor crossover helps protect the tweeters and optimize high‑frequency performance.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWX1/BK |
| Nominal Diameter | 3.8″ / 96 mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 60 W |
| Program Power Handling | 120 W |
| Peak Power Handling | 240 W |
| Sensitivity (1W/1M) | 103 dB |
| Frequency Response | 3.5 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2 kHz |
| Sold In Pair or Single | Pair |
Body / Features
| Parameter | Details |
|---|---|
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black / Machined |
| Bullet Material | Aluminum |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 Oz |
Product Overview
1” PRO Aluminum Super Bullet Tweeter VC – 240 Watts with Capacitor Crossover Included(Pair)
Get pristine sound from 3.5kHz up to 20kHz with the PRO-TWX1. Its 1-inch aluminum voice coil and aluminum diaphragm work in harmony to reproduce with breathtaking clarity.
Power Handling that Impresses
With 60W AES power handling, 120W program power, and a peak of 240W, these tweeters punch well above their size, delivering loud, distortion-free highs that cut through any mix with 103dB sensitivity.
Iconic Super Bullet Design
The sleek aluminum bullet housing not only protects the voice coil but also helps project sound further and clearer. This unique shape maximizes efficiency and sound dispersion, ensuring your highs soar above the noise.
Effortless Installation

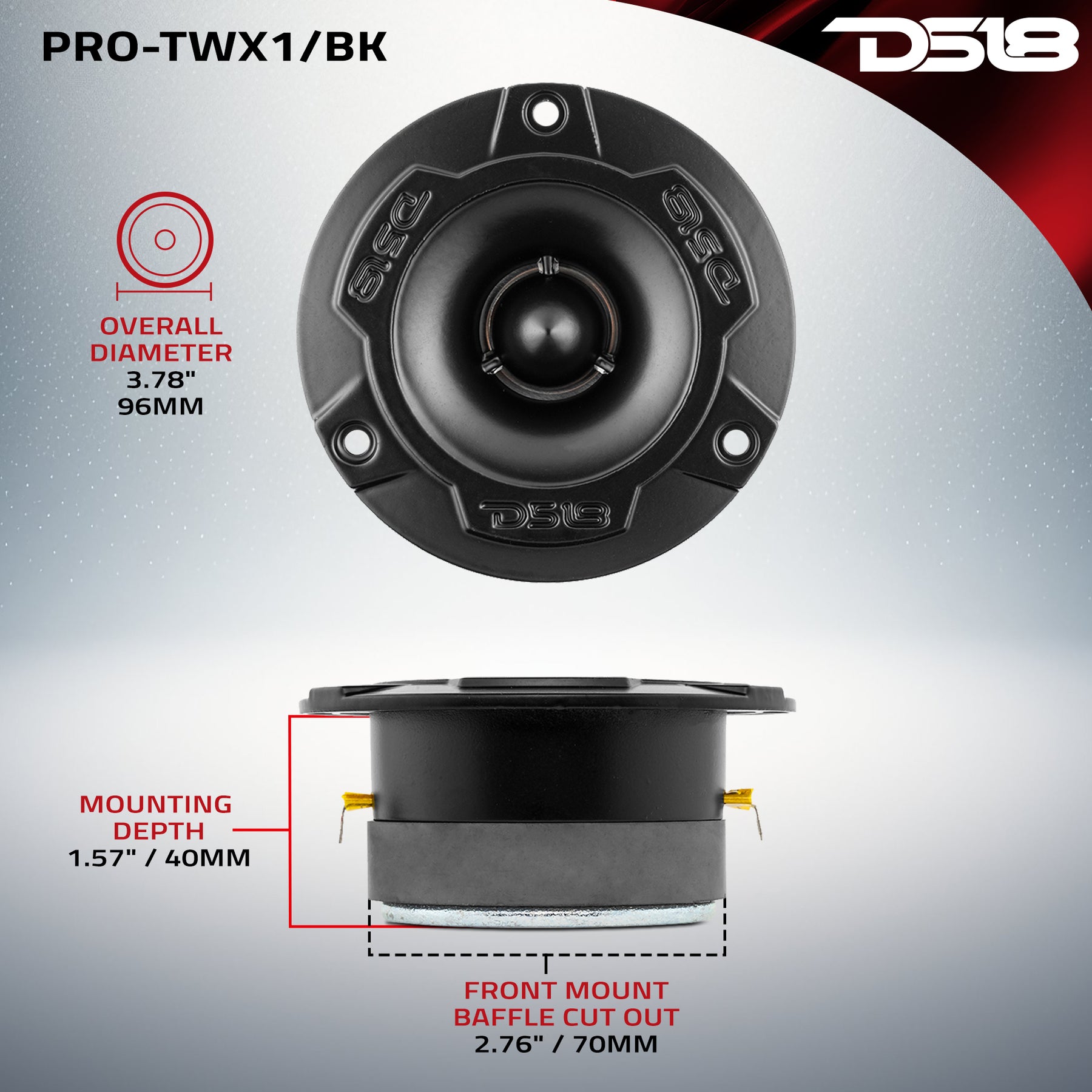

The PRO-TWX1 comes with a built-in capacitor crossover for optimal frequency management. With a recommended high-pass crossover of 2kHz and a shallow 1.57” mounting depth, installation is quick and fits most setups.

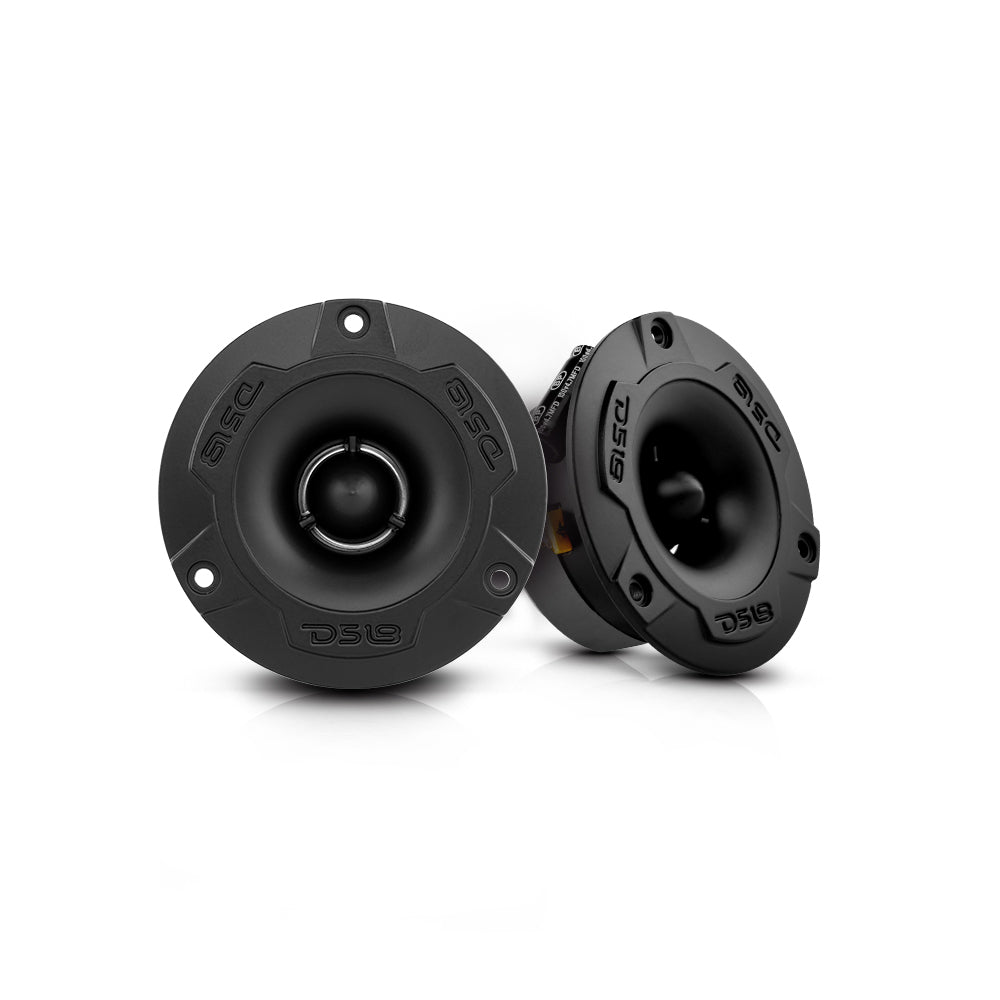

Pair-Ready for Stereo Excellence
Sold in pairs, the PRO-TWX1 is ready to upgrade your sound system with professional-grade, precision-engineered tweeters that bring every detail to life
