Description
DS18 PRO-TWN5

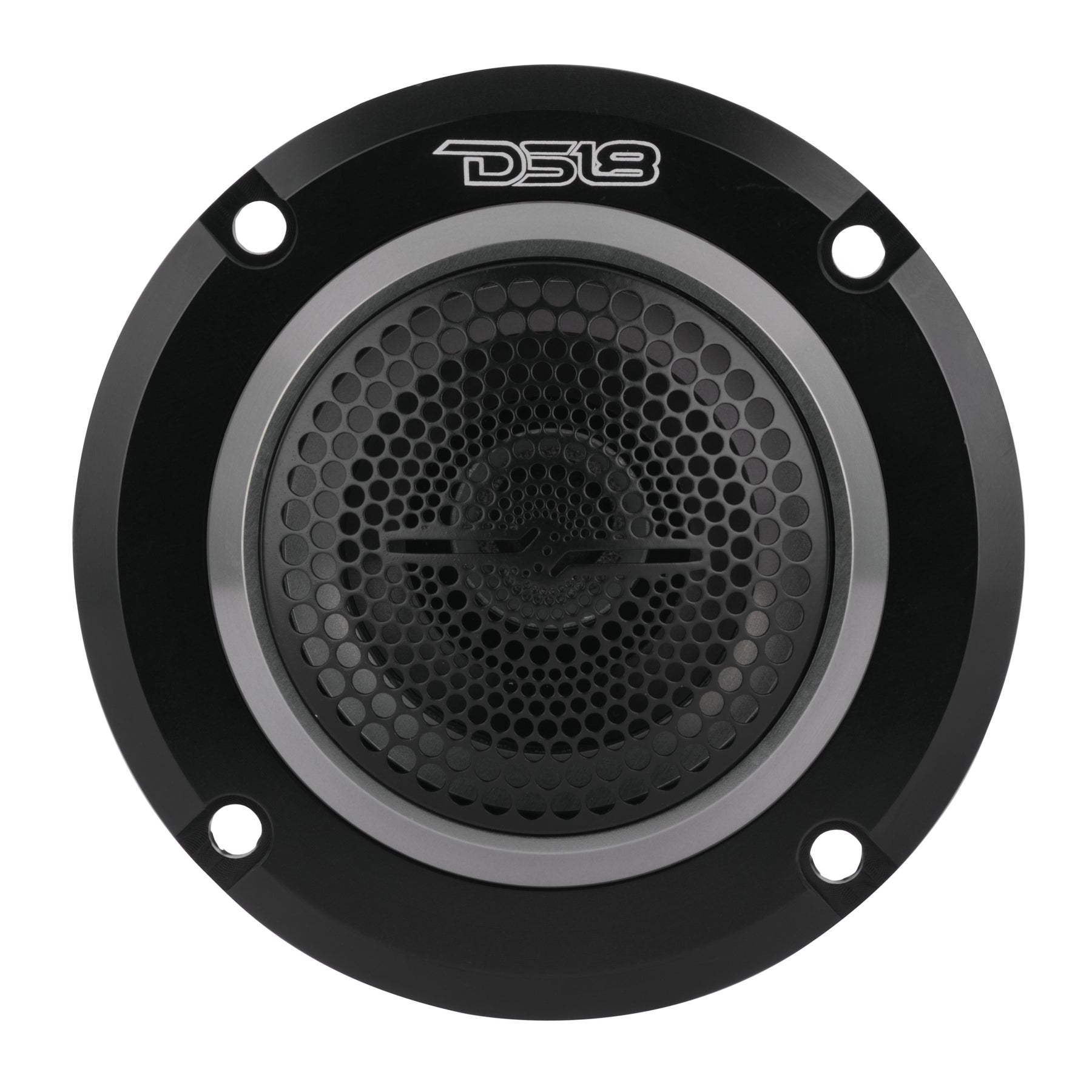

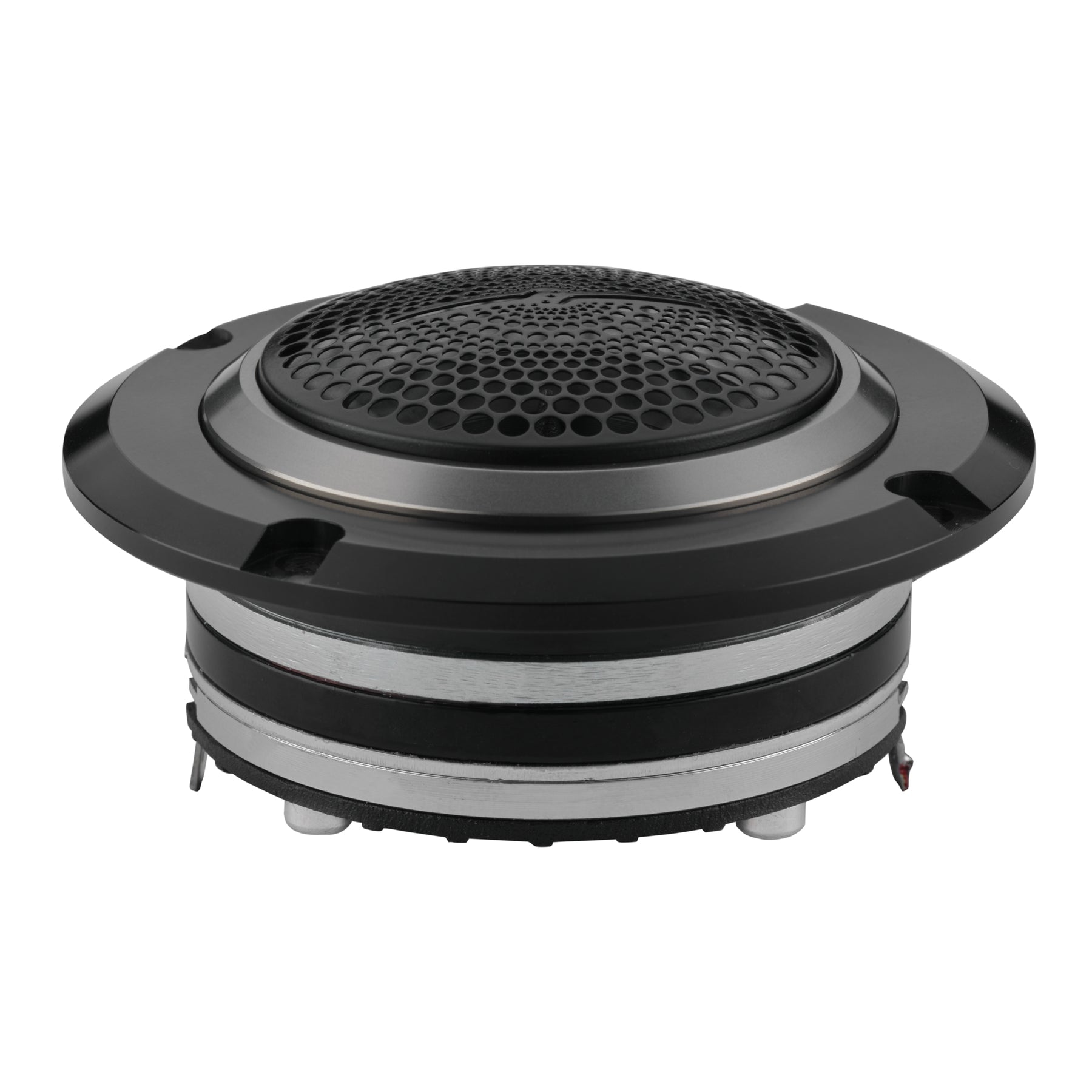

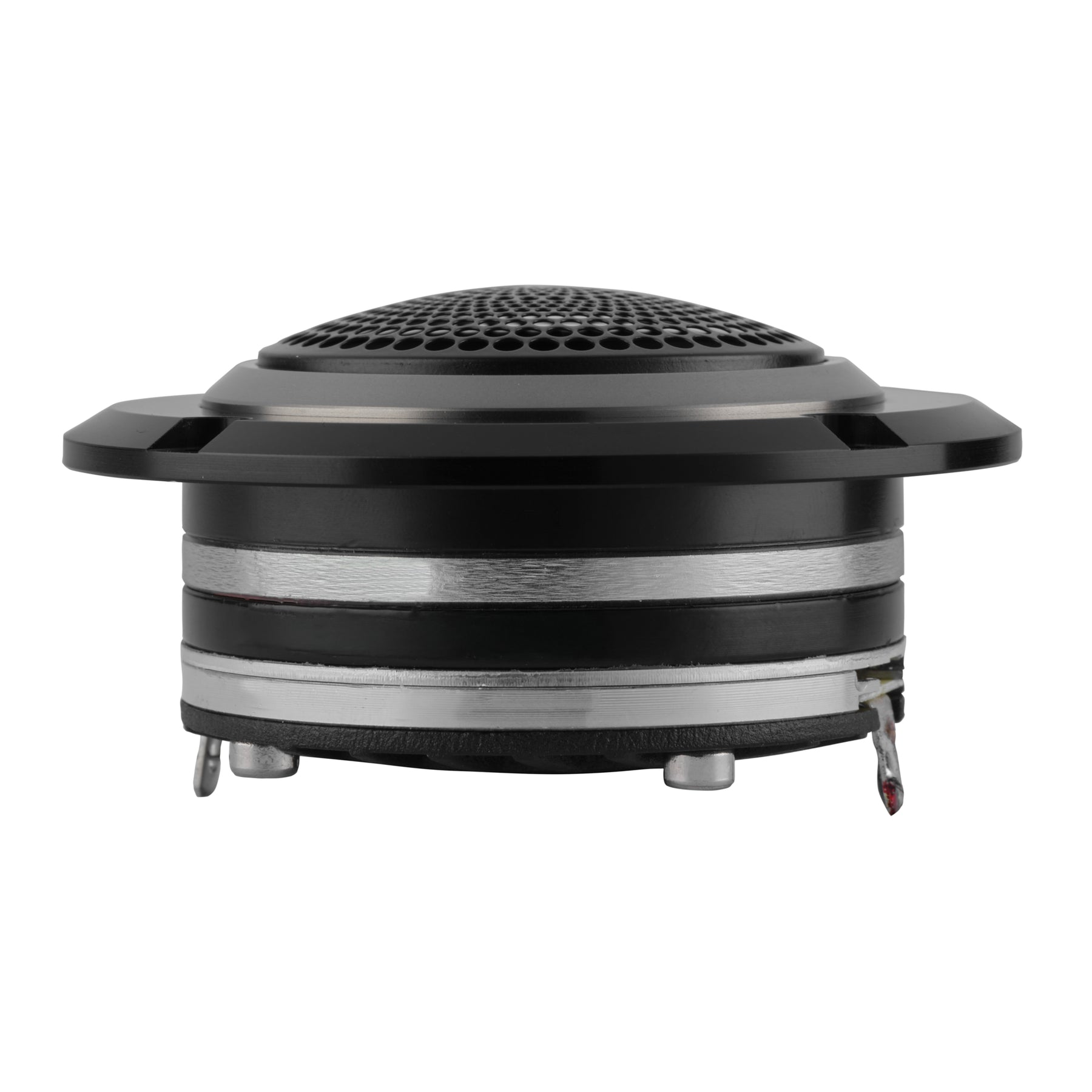

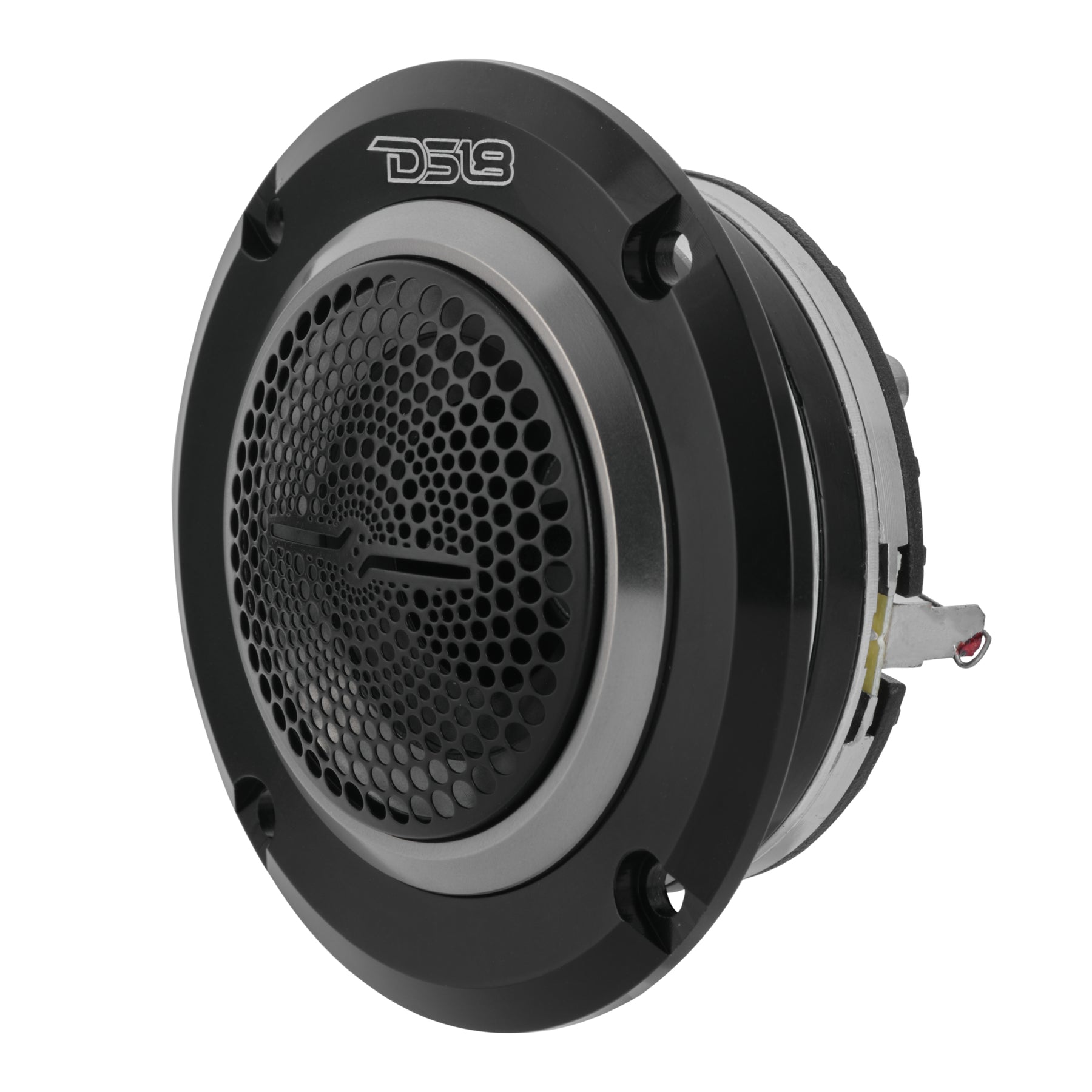

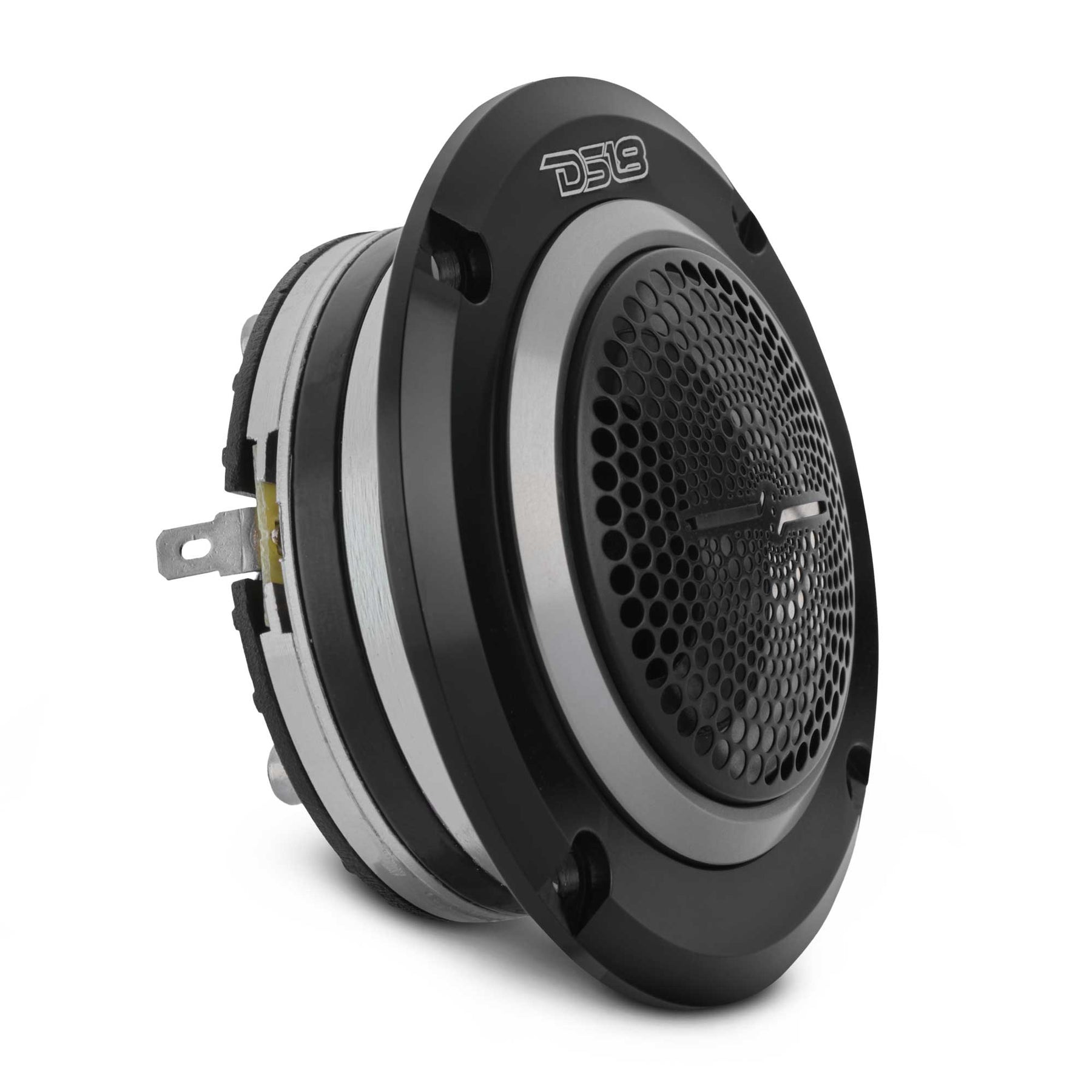

The PRO-TWN5 is a high-performance 3.6-inch high-compression neodymium hybrid driver/tweeter designed to deliver powerful and extremely detailed high-frequency sound in car audio systems. Featuring a robust 1.5-inch voice coil, neodymium magnet, and a precision-engineered diaphragm, it offers 200 W RMS (400 W peak) power handling and high sensitivity for loud, clear treble without distortion. Its frequency response spans approximately 1.5 kHz to 20 kHz, capturing every crisp high note with accuracy. A built-in bass blocker protects the tweeter from lower frequencies and ensures longevity, while the compact design fits easily into most custom car audio setups. The PRO-TWN5 is ideal for audiophiles who want sharper highs and enhanced detail in their sound system.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWN5 |
| Nominal Diameter | 3.6″ |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 100 W |
| Program Power Handling | 200 W |
| Peak Power Handling | 400 W |
| Sensitivity (1W/1M) | 107 dB |
| Frequency Response | 1.5 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2 kHz |
Motor / Body
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1.5″ / 37.8 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Size | 2.75″ × 0.2″ |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |

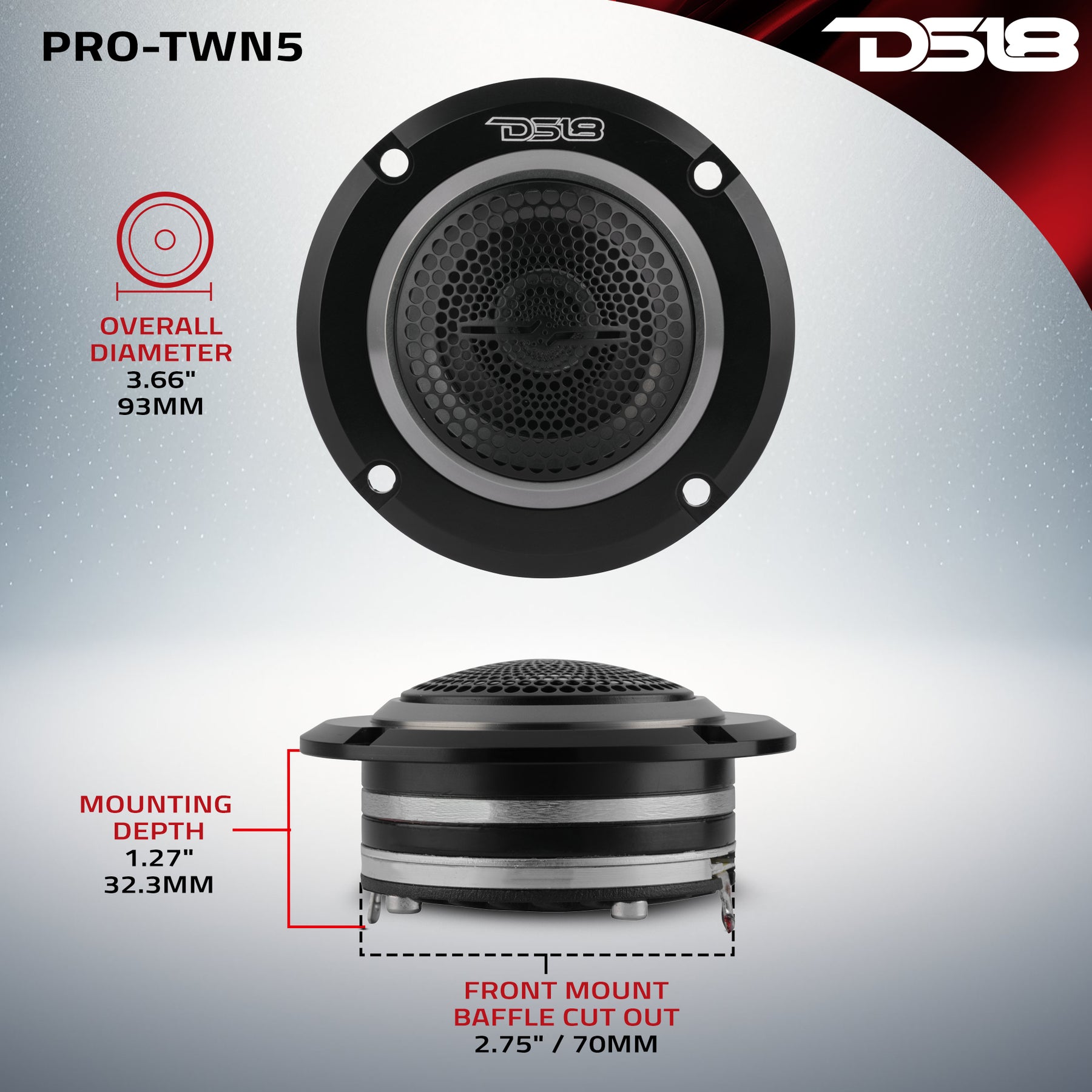

Measurements & Shipping
| Parameter | Details |
|---|---|
| Overall Diameter | 3.66″ / 93 mm |
| Overall Depth | 2″ / 52.2 mm |
| Front Mount Baffle Cutout | 2.75″ / 70 mm |
| Mounting Depth | 1.27″ / 32.3 mm |
| Gross Single Unit Weight | 1.5 lb |
| Single Unit Box Dimensions (W × L × H) | 4.5 × 4.0 × 2.4 Inches |
| Units per Master Carton | 20 |
| Gross Master Carton Weight | 31 lb |
| Master Carton Dimensions (W × L × H) | 21.7 × 10.2 × 6.3 Inches |
Product Overview
3.6″ High Compression Neodymium Hybrid Driver/Tweeter
Get powerful highs again with DS18’s PRO-TWN5!
This 3.6-inch high compression hybrid tweeter brings professional quality clarity and volume thanks to its robust 1.5″ PEN voice coil and a lightweight neodymium magnet.
Exceptional Sensitivity and Range
With a sensitivity rating of 107 dB, this tweeter gets impressively LOUD at lower power levels. Its frequency response from 1.5kHz to 20kHz captures every crisp high note with precision and clarity.
Built-In Protection

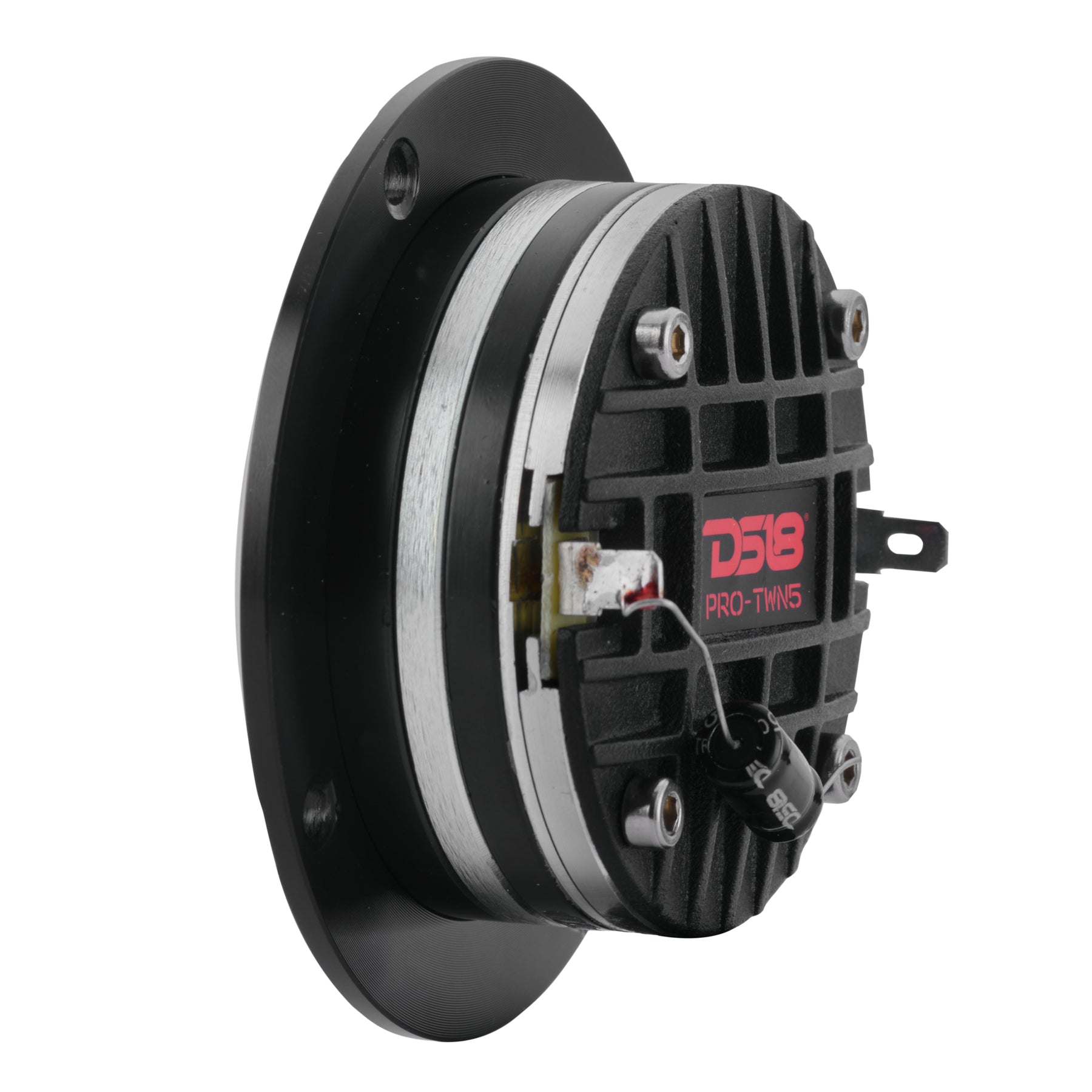

Each PRO-TWN5 comes with an included bass blocker to shield your tweeter from damaging low frequencies, for guaranteed longevity and enhanced sound quality.
Easy to Install
Installation is simple thanks to its compact 1.27″ mounting depth and 2.75″ mounting cutout, fitting seamlessly into most setups.
Upgrade your audio system with DS18’s PRO-TWN5 today and experience the ultimate in tweeter performance!
