Description
DS18 PRO-TWN2

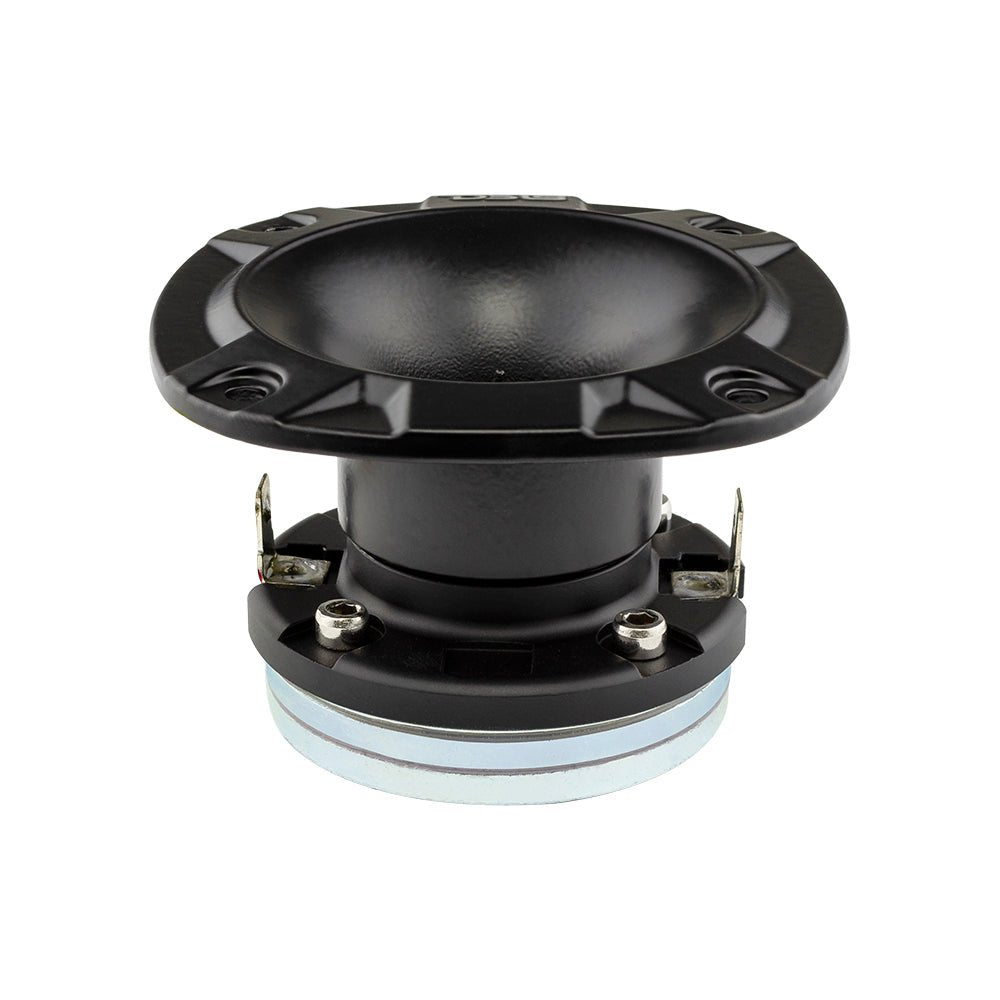

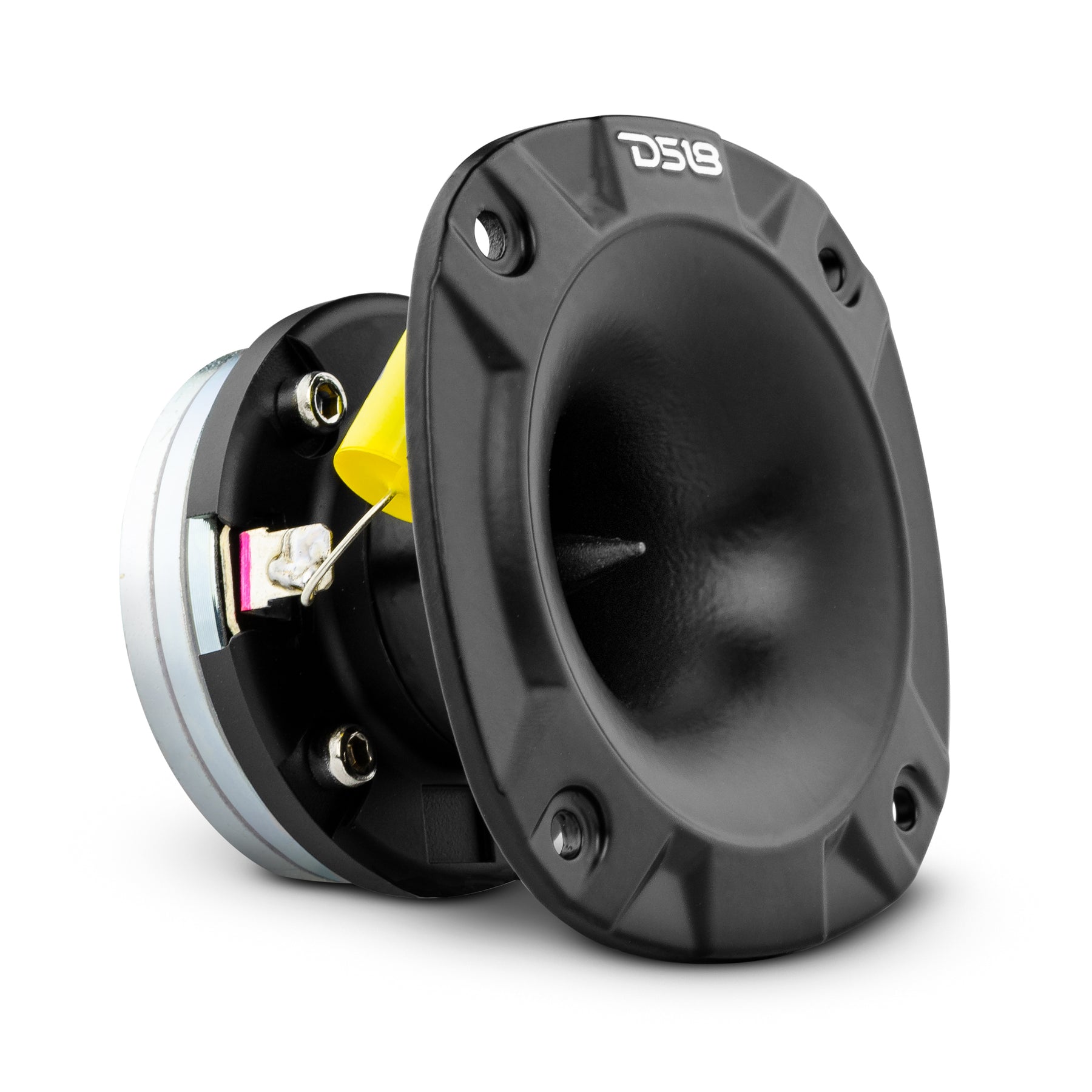

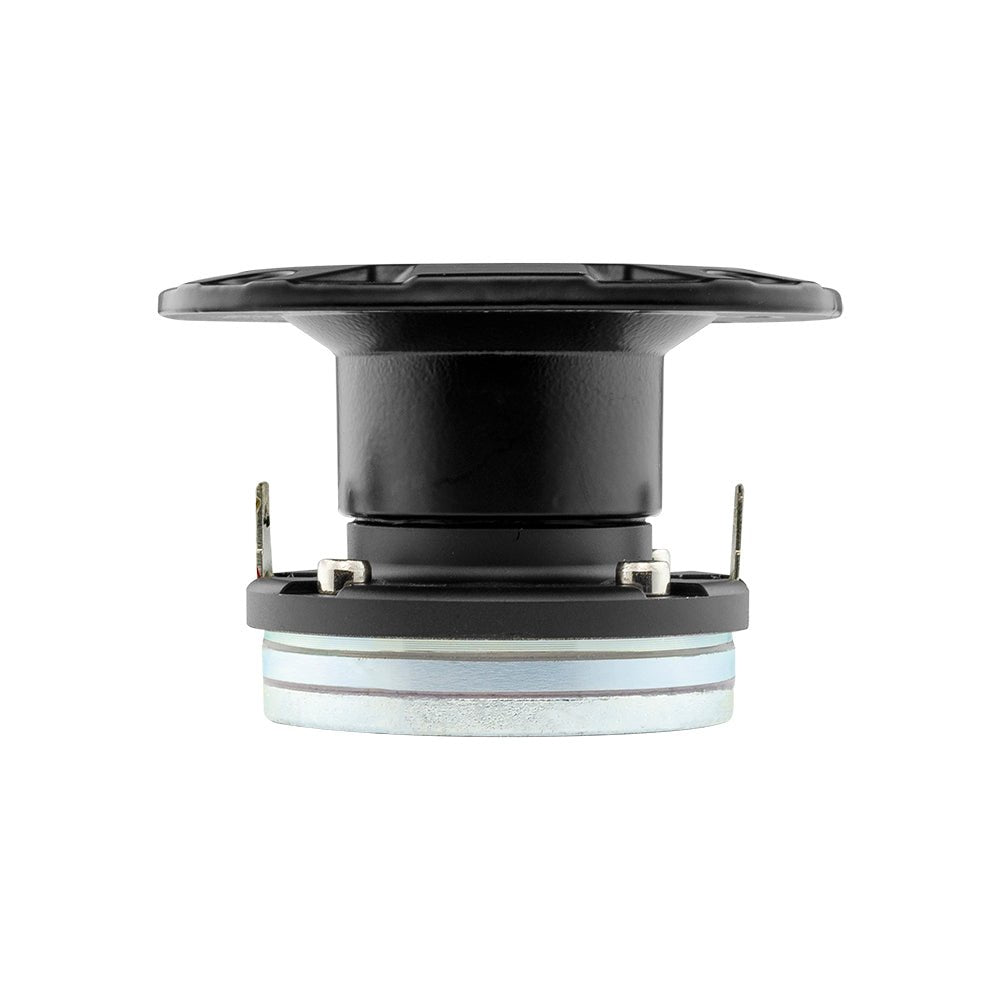

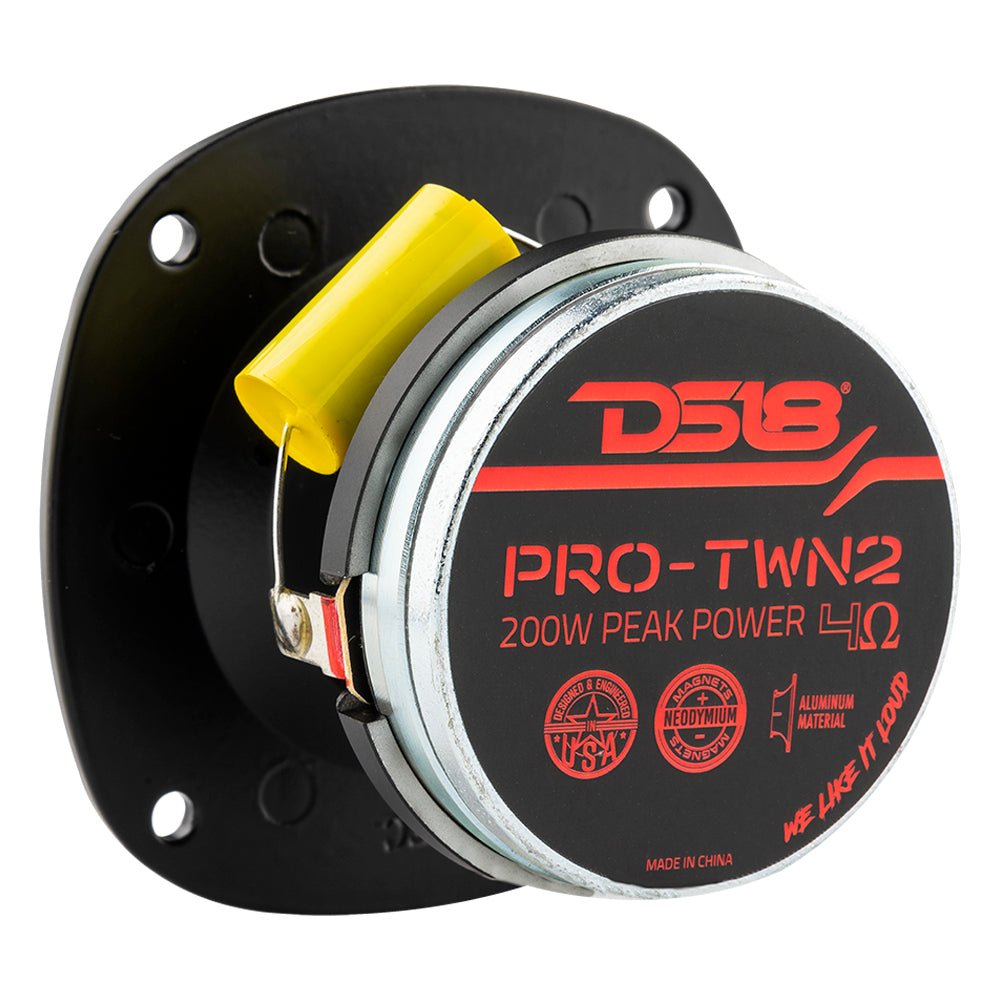

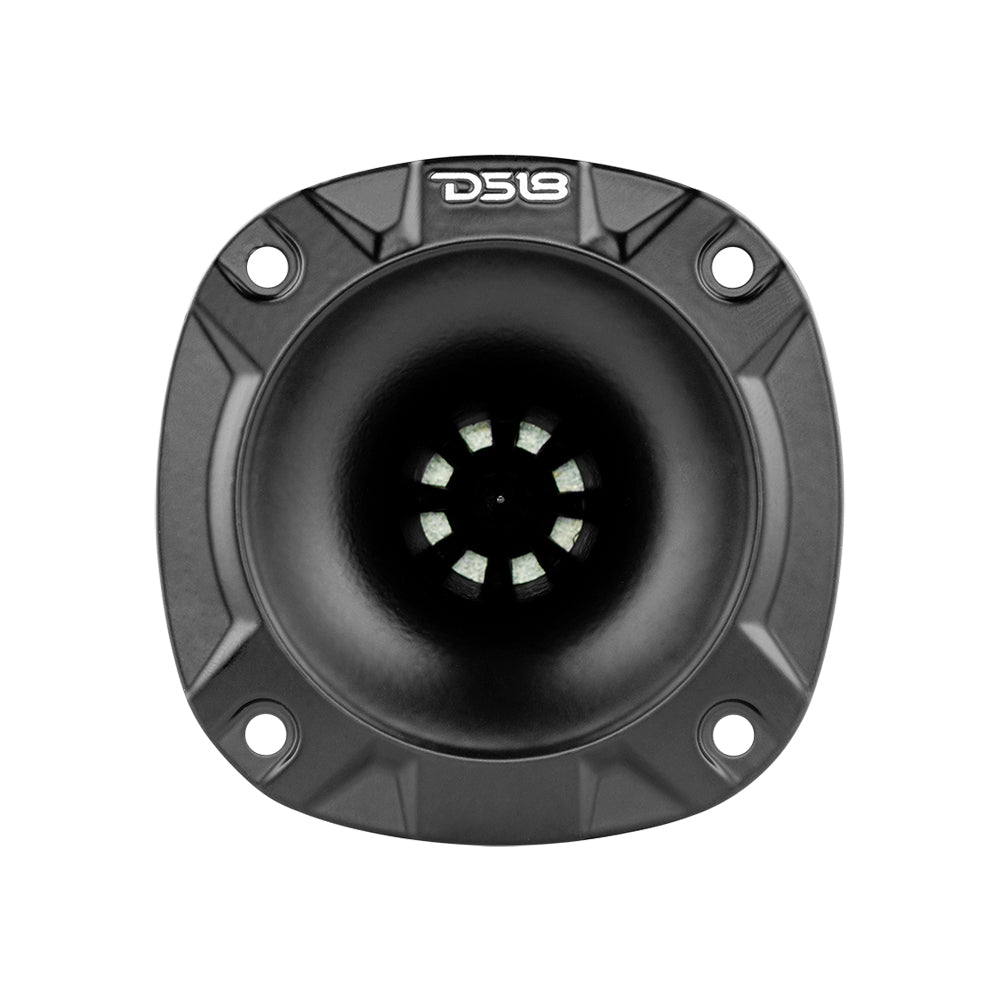

The PRO‑TWN2 is a high‑compression 3‑inch neodymium hybrid driver/tweeter designed to deliver powerful and precise high‑frequency sound for car audio systems. Featuring a 1‑inch phenolic voice coil, lightweight neodymium magnet, and robust aluminum housing, it offers 100 W RMS (200 W peak) power handling with 108 dB sensitivity for loud, clear highs with minimal distortion. With a wide frequency response from approximately 1 kHz to 20 kHz, the PRO‑TWN2 improves vocal clarity and treble detail, making music sound more dynamic and immersive. It includes a built‑in bass blocker to protect the tweeter from low frequencies and is easy to install in custom setups or as an upgrade to factory audio.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWN2 |
| Nominal Diameter | 3″ |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50 W |
| Program Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Sensitivity (1W/1M) | 108 dB |
| Frequency Response | 1 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 2 kHz |
| Pair or Single | Single |
Motor / Body
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Composite Polyimide |
| Magnet Material | Neodymium |
| Magnet Size | 2.2 × 0.15″ / 56 × 4 mm |
| Magnet Weight | 1.86 Oz |
| Body Material | Aluminum |
Measurements & Shipping
| Parameter | Details |
|---|---|
| Overall Diameter | 3.15″ / 80 mm |
| Overall Depth | 2.06″ / 52.2 mm |
| Front Mount Baffle Cutout | 2.4″ / 61 mm |
| Mounting Depth | 2.4″ / 47.2 mm |
| Product Weight | 1 lb |
| Product Dimensions | 3.25 × 3.25 × 2.5 Inches |
| Master Carton Weight | 10.5 lbs |
| Master Carton Dimensions | 10.75 × 7.25 × 6 Inches |
| Master Carton Quantity | 12 |
| Sold In | Piece |
Product Overview
3” High Compression Neodymium Hybrid Driver/Tweeter 200W 1” Phenolic 4-Ohm VC
Designed with the audiophile in mind, the PRO-TWN2 combines cutting-edge technology, exceptional craftsmanship, and unparalleled performance to redefine your listening experience.
DS18’s PRO-TWN2 boasts an extremely durable design that seamlessly integrates into any car interior, creating an aesthetic that is both elegant and captivating. With its compact dimensions, this tweeter effortlessly fits into super tweeter enclosures, allowing you to achieve a truly immersive soundstage without compromising on space.
But don’t be fooled by its small size. The PRO-TWN2 packs a punch that belies its stature. Featuring a phenolic 1-inch voice coil, this neodymium-powered tweeter can handle a staggering 100 watts RMS and 200 watts peak power. With a frequency response spanning from 1kHz to 20kHz, the PRO-TWN2 captures the full spectrum of sound with remarkable precision. Prepare to be blown away as the crisp highs bring your music to life like never before.
One of the standout features of the PRO-TWN2 is its neodymium magnet, which not only enhances the efficiency of the tweeter but also significantly reduces its weight. This technological marvel ensures optimal performance and effortless installation, without sacrificing power or compromising on sound quality. It’s the perfect blend of strength and finesse.
Your listening pleasure is our utmost priority, which is why we’ve included a bass blocker with every PRO-TWN2 tweeter. This invaluable addition provides an extra layer of protection, shielding your tweeter from potentially damaging frequencies. Now you can push the boundaries of sound without worrying about equipment fatigue, giving you peace of mind to get LOUD!
