Description
DS18 PRO-TWN1
The PRO‑TWN1 is a high‑compression 3″ neodymium slim super bullet tweeter designed to deliver powerful, crystal‑clear high‑frequency sound for car audio systems. Built with a 1″ titanium voice coil, neodymium magnet, and durable aluminum body, it handles up to 120 W RMS (240 W peak) with an impressive 104 dB sensitivity for loud, detailed treble reproduction. Its frequency response ranges from 3 kHz to 20 kHz, making it ideal for enhancing vocals and high‑end notes without distortion. Compact and easy to install, the PRO‑TWN1 fits in tight spaces while boosting audio clarity and overall system performance.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TWN1 |
| Nominal Diameter | 3″ |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60 W |
| Program Power Handling | 120 W |
| Peak Power Handling | 240 W |
| Sensitivity (1W/1M) | 104 dB |
| Frequency Response | 3 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 3 kHz |
| Sold In | Piece |
Motor / Body
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1″ / 25.4 mm |
| Voice Coil Former Material | NSV |
| Winding Material | Pure Aluminum Round Wire |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 0.96″ × 0.27″ |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |

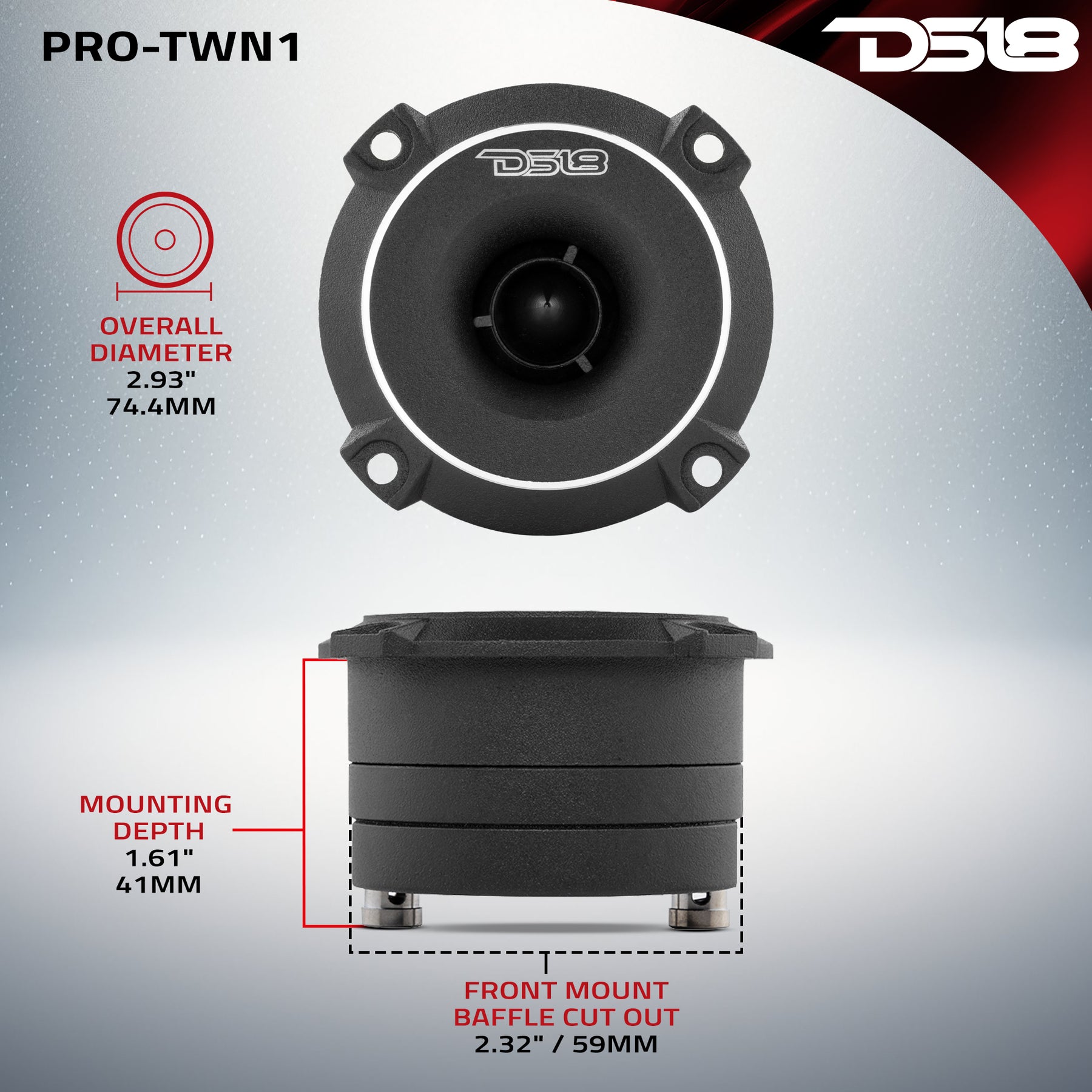

Measurements & Shipping
| Parameter | Details |
|---|---|
| Overall Diameter | 2.93″ / 74.4 mm |
| Overall Depth | 1.87″ / 47.5 mm |
| Front Mount Baffle Cutout | 2.32″ / 59 mm |
| Mounting Depth | 1.61″ / 41 mm |
| Product Weight | 1 lb |
| Product Dimensions | 3.75 × 3.175 × 2.25 Inches |
| Master Carton Weight | 35.5 lbs |
| Master Carton Dimensions | 16.5 × 8.25 × 8.25 Inches |
| Master Carton Quantity | 30 |
Product Overview
3” High Compression Neodymium Slim Super Bullet Tweeter 240W 1” Titanium 4-Ohm VC
Introducing the DS18 PRO-TWN1, a balanced fusion of power, precision, and elegance that sets the stage for an immersive car audio experience.
Small, sleek, and LOUD – these three words encapsulate the essence of DS18’s PRO-TWN1. Crafted towards perfection, the PRO-TWN1 is engineered for crystal-clear high frequency reproduction that expands your soundstage’s sensibility.
The expert construction of the PRO-TWN1 is a testament to DS18’s professional construction of all our audio components. The robust aluminum frame is meant to aid in withstanding the rigors of demanding audio environments, ensuring longevity and performance.
With its 1-inch titanium voice coils, the PRO-TWN1 effortlessly handles an impressive 120W RMS, allowing you to push the boundaries of auditory excellence. Its peak power handling of 240W, coupled with a frequency response ranging from 3KHz to 20KHz, guarantees an audio experience that transcends boundaries. The 4-ohm impedance ensures efficient power utilization and seamless integration with your existing setup, maximizing the potential of your car audio system. Equipped with cutting-edge Neodymium magnets, the PRO-TWN1 has unrivaled power handling and breathtaking sensitivity.
Embrace the PRO-TWN1’s versatility, as it seamlessly integrates into your car audio setup. Its compact size and thoughtful design allow it to fit into most spaces with minimal modification or fabrication, enabling you to achieve optimal sound distribution throughout your vehicle. Furthermore, the built-in grills provide an additional layer of protection, shielding the inner workings of this super tweeter from potential damage, so you can enjoy your music worry-free.
