Description

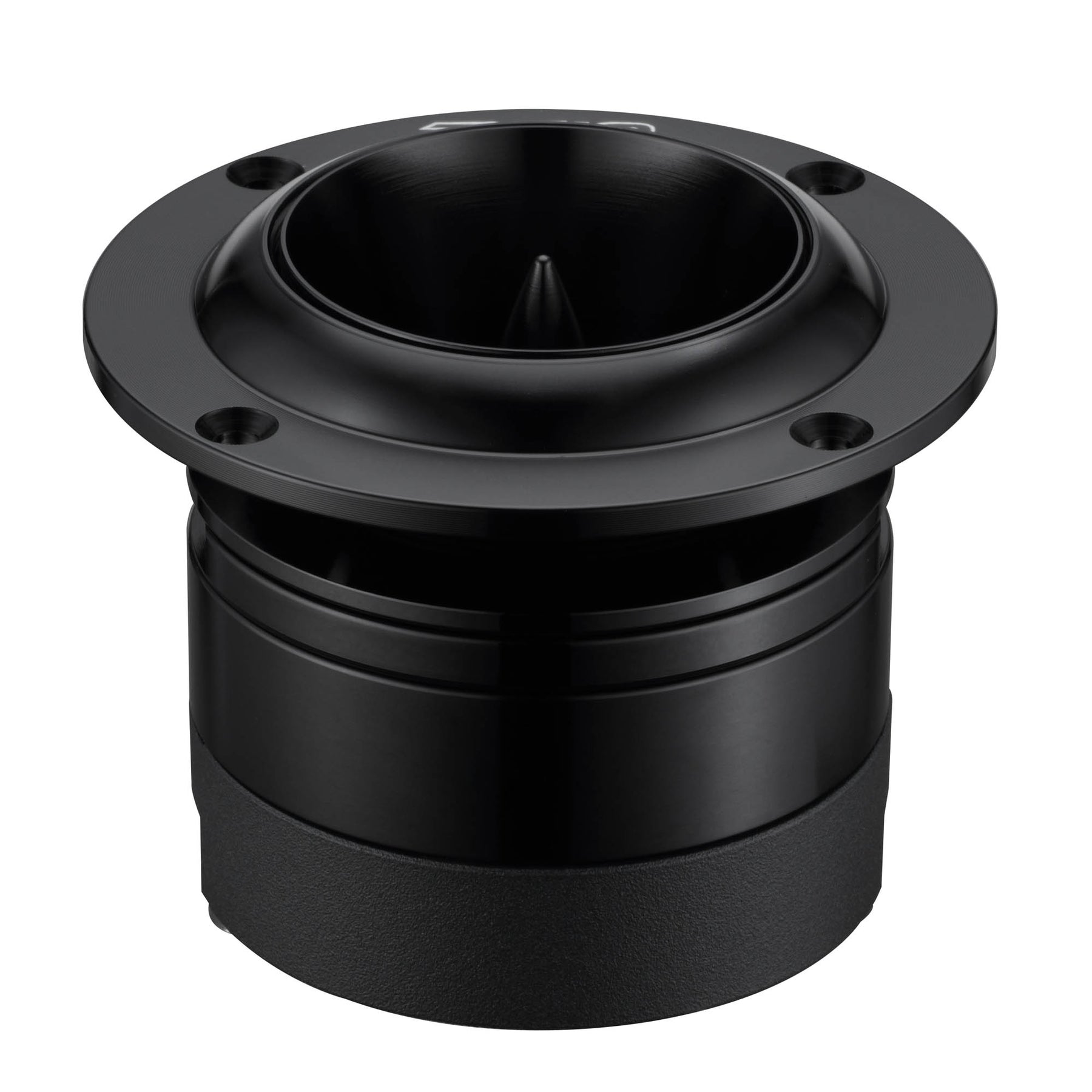

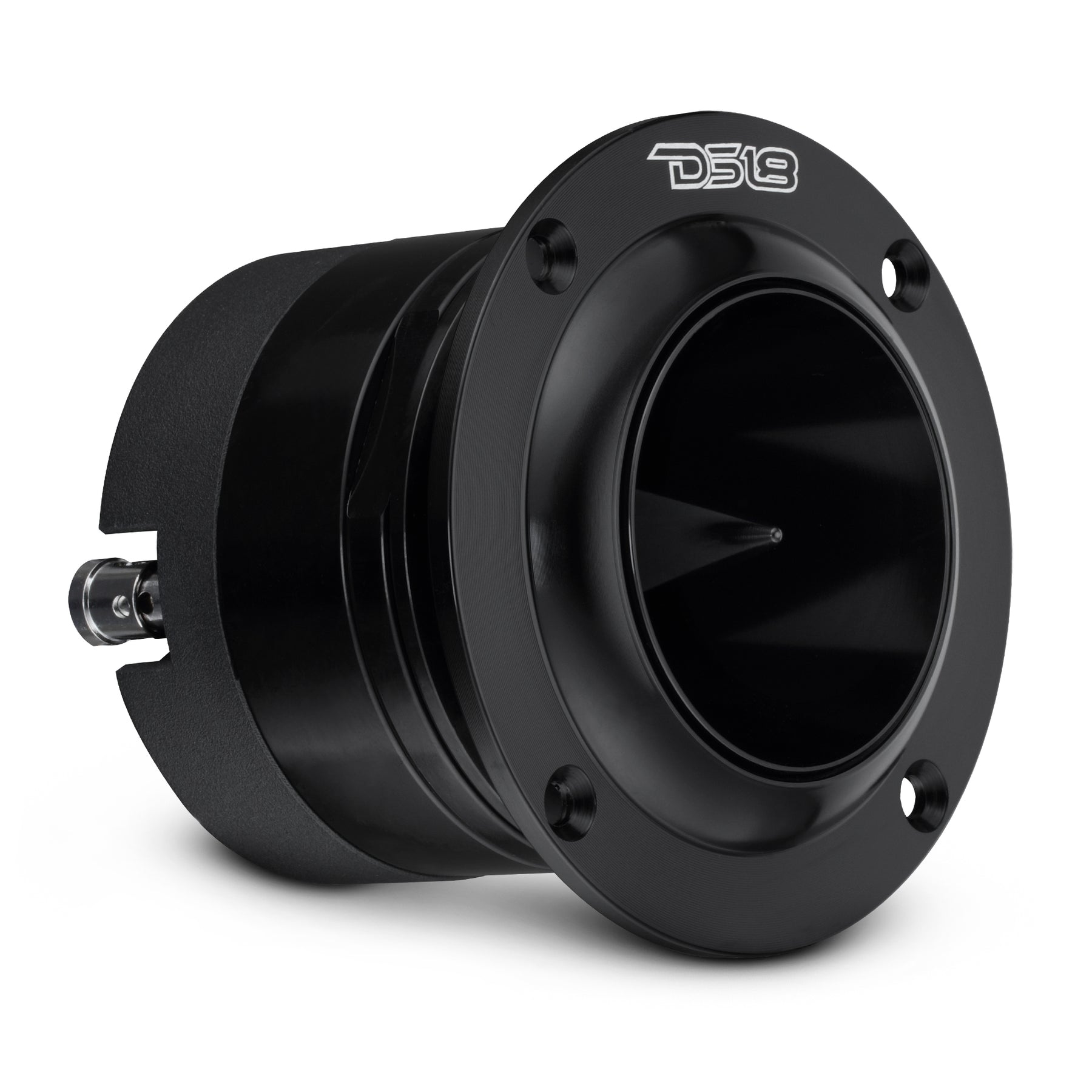

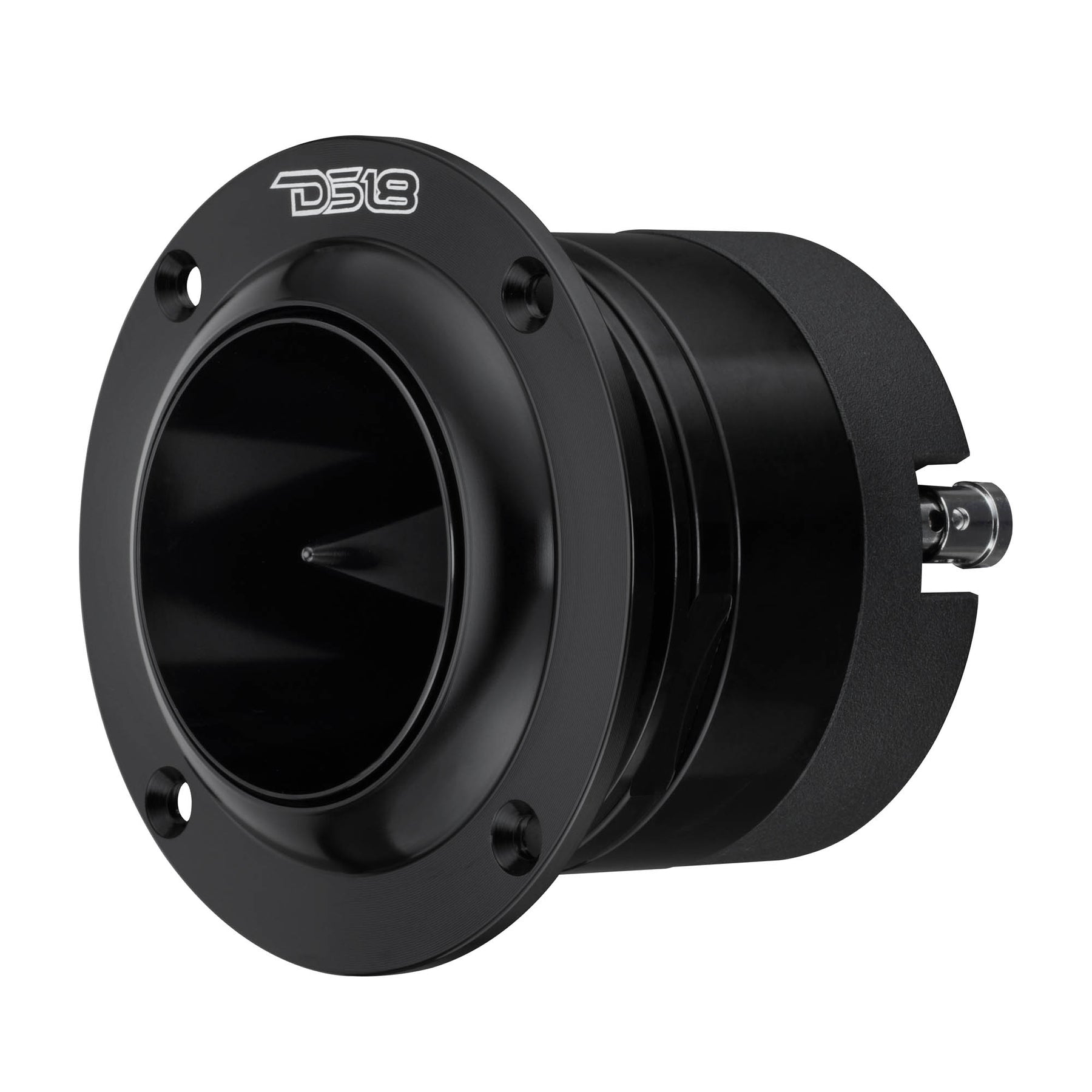

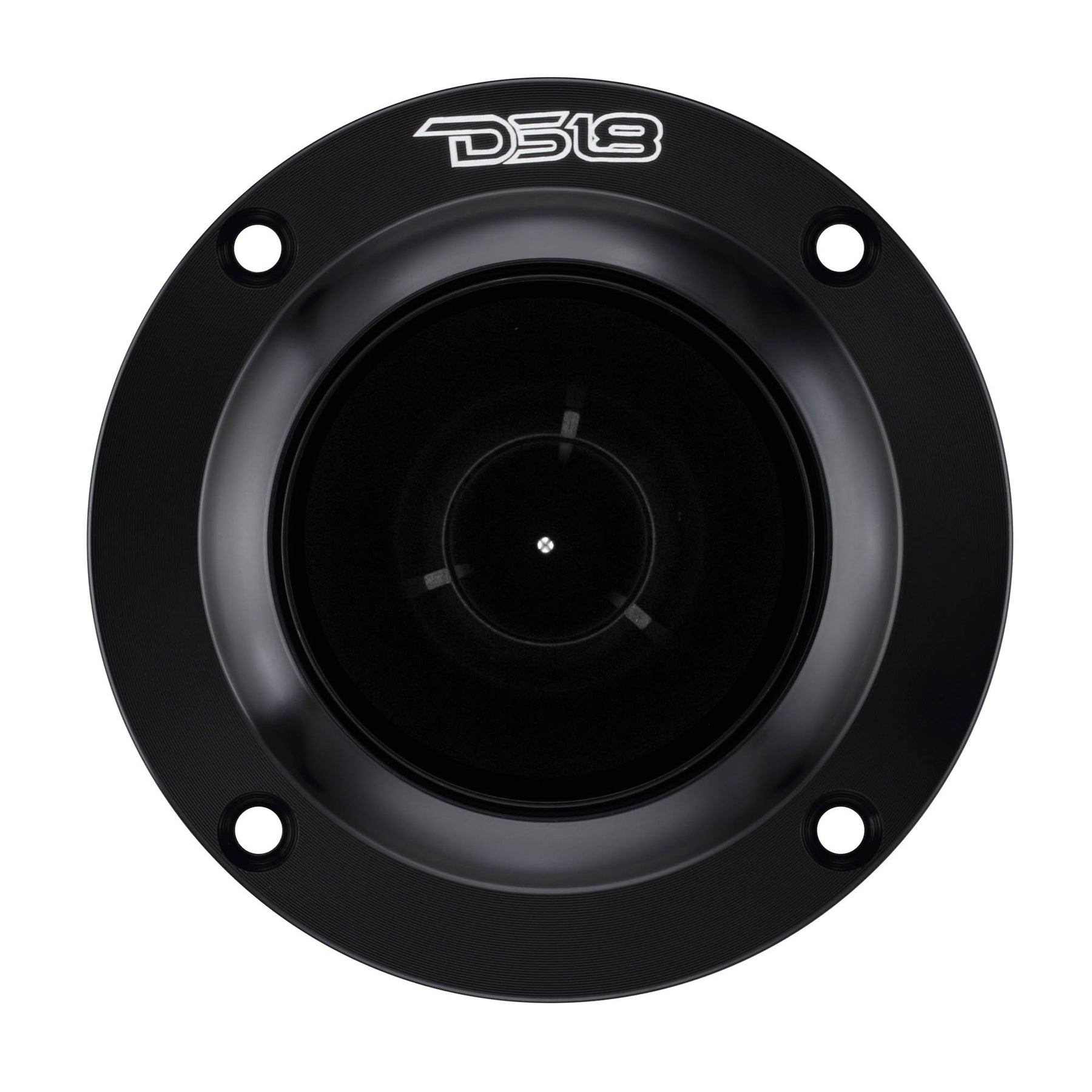

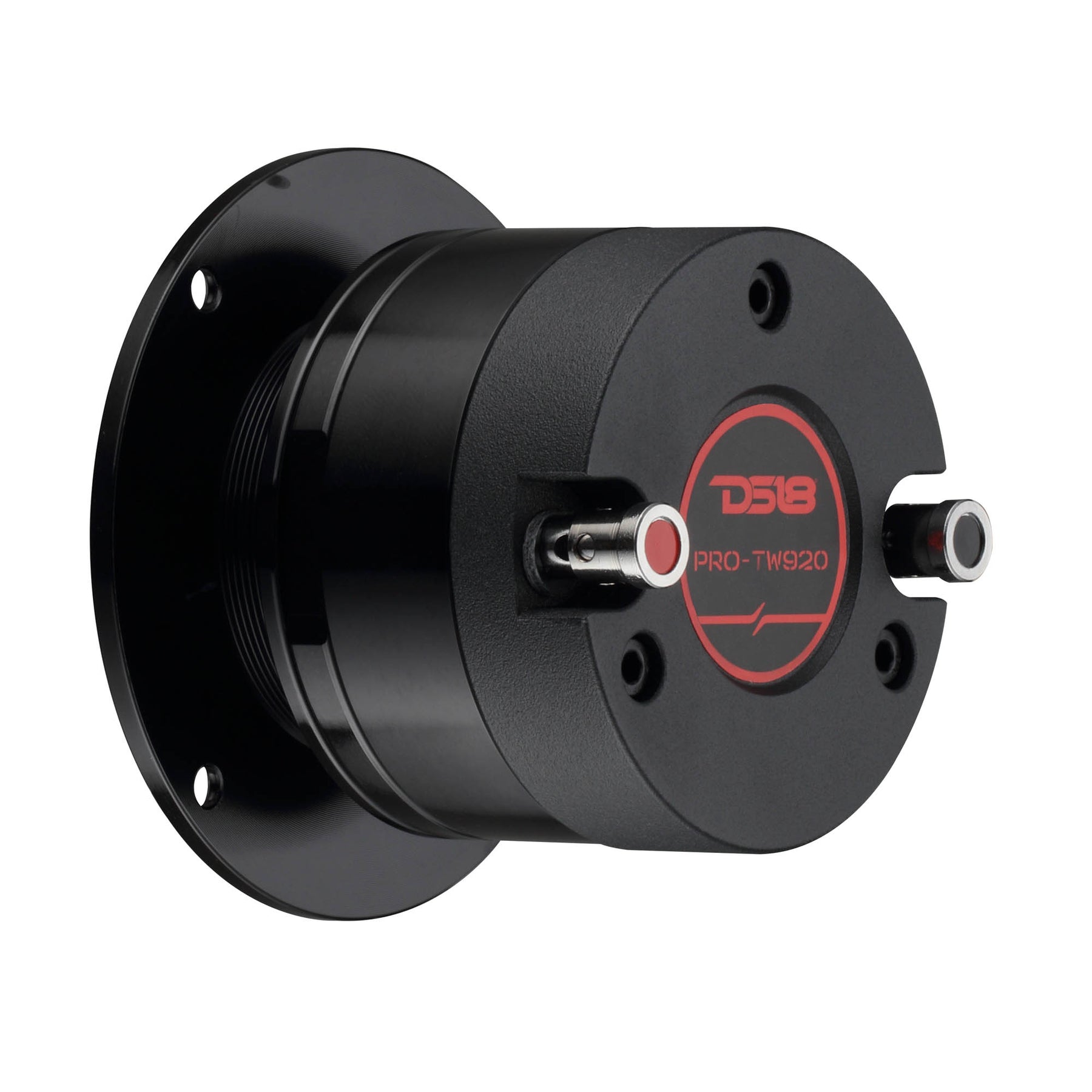

DS18 PRO-TW920
The PRO‑TW920 is a high‑compression 2.7‑inch neodymium super bullet tweeter engineered to deliver clear, powerful, and detailed high‑frequency sound for car audio and pro‑grade systems. Featuring a robust 1.4‑inch titanium voice coil, strong neodymium magnet, and durable aluminum body with CNC aluminum bullet, it handles up to 160 W RMS (320 W peak) with high 106 dB sensitivity and 4‑ohm impedance, producing crisp highs that cut through the mix with minimal distortion. Its frequency response covers roughly 2 kHz to 20 kHz, making it ideal for boosting treble, clarity, and vocal detail in racing, SPL, or custom audio builds. Adjustable surface mount hardware with included gaskets ensures a secure, flush install in A‑pillars, dash pods, or door panels.
Specifications
| Parameter | Details |
|---|---|
| SKU | PRO-TW920 |
| Nominal Diameter | 2.7″ – 3.5″ |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 80 W |
| Program Power Handling | 160 W |
| Peak Power Handling | 320 W |
| Sensitivity (1W/1M) | 106 dB |
| Frequency Response | 700 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 2 kHz |
| Sold In Pair or Single | Single |
Body / Features
| Parameter | Details |
|---|---|
| Filter (Bass Blocker) | 4.7 µF / 50 V (included) |
| Body Material | Aluminum |
| Body Color / Finish | Anodized Black |
| Bullet Material | CNC Aluminum |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 1.4″ / 35.5 mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size | 1.38″ × 0.27″ |
Product Overview
DS18’s PRO-TW920 is a high-output super bullet tweeter with a high-efficiency motor and an upgraded mounting system to deliver piercing clarity in any setup.
Max Impact
Push 80W AES, 160W program, and up to 320W peak through this 4-ohm beast. A 1.4″ titanium voice coil powered by a neodymium magnet gives you clean, distortion-free highs that cut through the mix—even in high-SPL setups.
Neodymium Motor + CNC Aluminum Bullet
The neodymium motor keeps things lightweight while delivering superior magnetic force for quicker transient response and aggressive output. Titanium diaphragm and CNC aluminum bullet ensure speed and strength in every note.
Custom Mounting
Now ships with a screw-on aluminum mounting ring and 2 rubber gasket rings (thin + thick) for a flush, rattle-free install. Adjustable mounting depth from 2″ to 2.7″ makes it perfect for A-pillars, dash pods, or door panels.
Easy to Service

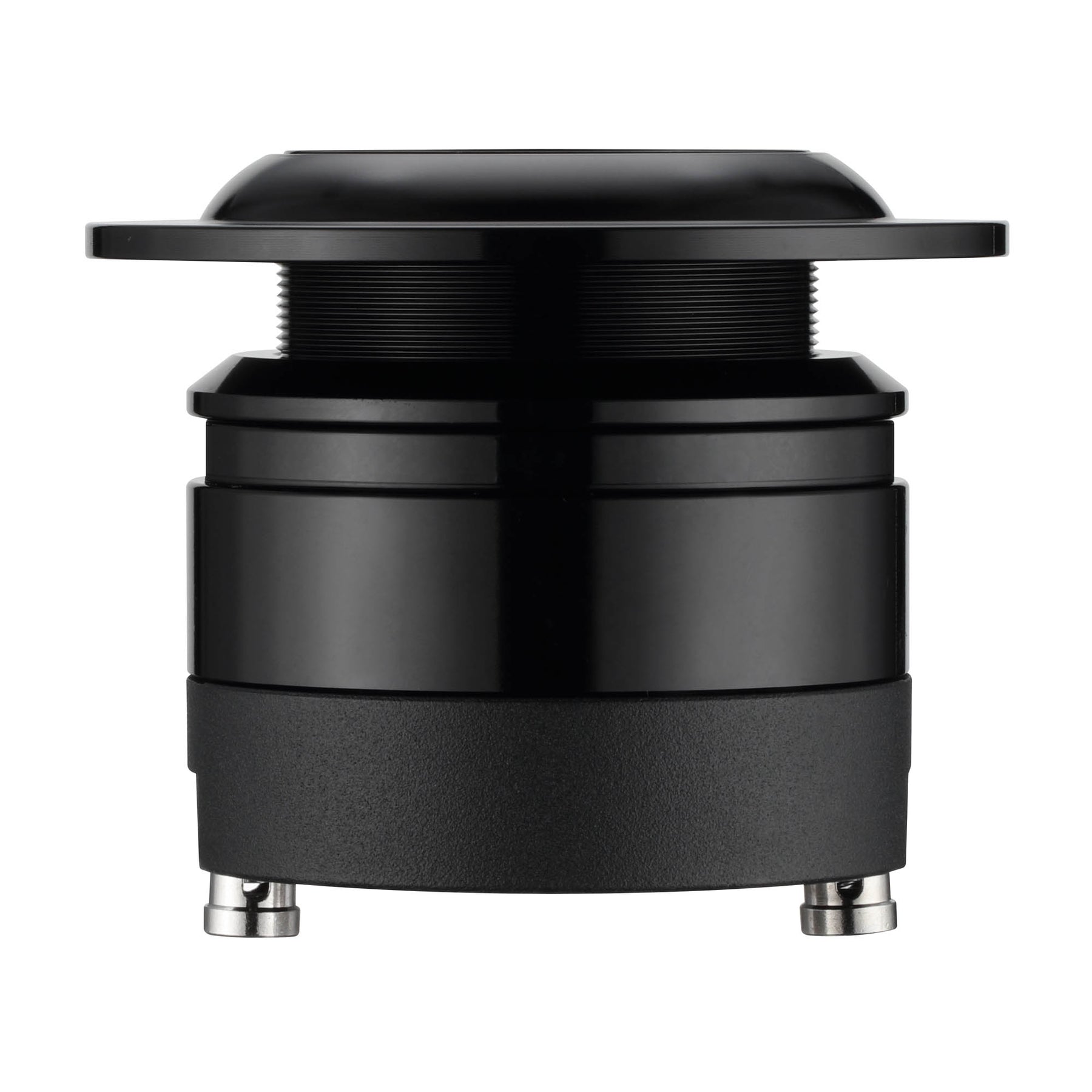

Measuring just 2.7” diameter (3.88” with ring) and 3.01” overall depth, the TW920 fits into tighter spaces without sacrificing volume. Requires a 2″ cutout for front-mount baffles.
Wide Range
Covers 700Hz–20kHz, and includes a 4.7uF/50V bass blocker for protection right out of the box. Recommended high-pass crossover: 2kHz.
Add the PRO-TW920 to your SPL system or pro build for sharp highs that slice through any mix.
