Description
DS18 PRO-GM6.4PK
The DS18 PRO-GM6.4PK is a high-power midrange and high-frequency speaker upgrade package designed for car audio enthusiasts who want loud, clear, and detailed sound from their front or rear door speakers. This complete set includes two 6.5″ PRO-GM6.4 midrange loudspeakers capable of handling strong RMS power with robust sensitivity for punchy mids, paired with two 3.78″ PRO-TWX1/BK super bullet tweeters that deliver crisp highs and excellent high-end detail. Built with high-quality ferrite magnets, a durable steel basket, and optimized frequency response, this package is ideal for enhancing factory sound systems or building a custom audio setup that sounds louder, cleaner, and more dynamic.
Specifications
| Specification | Value |
|---|---|
| Package SKU | PRO-GM6.4PK |
| Nominal Diameter | 6.5″ / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 140W |
| Max Power Handling | 480W |
| Sensitivity (1w/1m) | 92 dB |
| Frequency Response | 100Hz – 10KHz |
| Recommended Hi-Pass Crossover | 120Hz |
| Sold As | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5″ / 38.1mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 23 oz |
Thiele & Small Parameters (Speaker)
| Parameter | Value |
|---|---|
| Vas | 7.15L / 0.252 ft³ |
| Xmax | N/A |
| Fs | 102Hz |
| Qms | 11 |
| Qes | 0.729 |
| Qts | 0.684 |
| Mms | 8.384 g |
| Cms | 0.289 mm/N |
| BL | 4.95 |
| Le | 0.411 mH |
| Sd | 132.73 cm² |
| Re | 3.3 Ohm |
Speaker Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 6.57″ / 167mm |
| Overall Depth | 2.7″ / 69mm |
| Baffle Cutout | 5.7″ / 145mm |
| Mounting Depth | 2.5″ / 64mm |
| Motor Diameter | 4.33″ / 110mm |
General Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 3.8″ / 96mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 60W |
| Program Power | 120W |
| Peak Power | 240W |
| Sensitivity (1w/1m) | 103 dB |
| Frequency Response | 3.5KHz – 20KHz |
| Recommended Hi-Pass Crossover | 2KHz |
| Sold As | Pair |
| Filter (Bass Blocker) | N/A |
| Body Material | Aluminum |
| Body Finish | Black |
| Faceplate Finish | Black / Machined |
| Bullet Material | Aluminum |
| Voice Coil Diameter | 1″ / 25.4mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 oz |
Tweeter Measurements
| Measurement | Value |
|---|---|
| Overall Diameter | 3.78″ / 96mm |
| Overall Depth | 1.78″ / 45mm |
| Baffle Cutout | 2.76″ / 70mm |
| Mounting Depth | 1.57″ / 40mm |
| Motor Diameter | 2.76″ / 70mm |
Shipping Information
| Specification | Value |
|---|---|
| Gross Single Unit Weight | 10.5 lb |
| Single Box Dimensions (W x L x H) | 17.75 x 9 x 3.5 in |
| Units per Master Carton | 4 |
| Gross Master Carton Weight | 44.5 lb |
| Master Carton Dimensions (W x L x H) | 18.5 x 18.5 x 8.25 in |
Product Overview

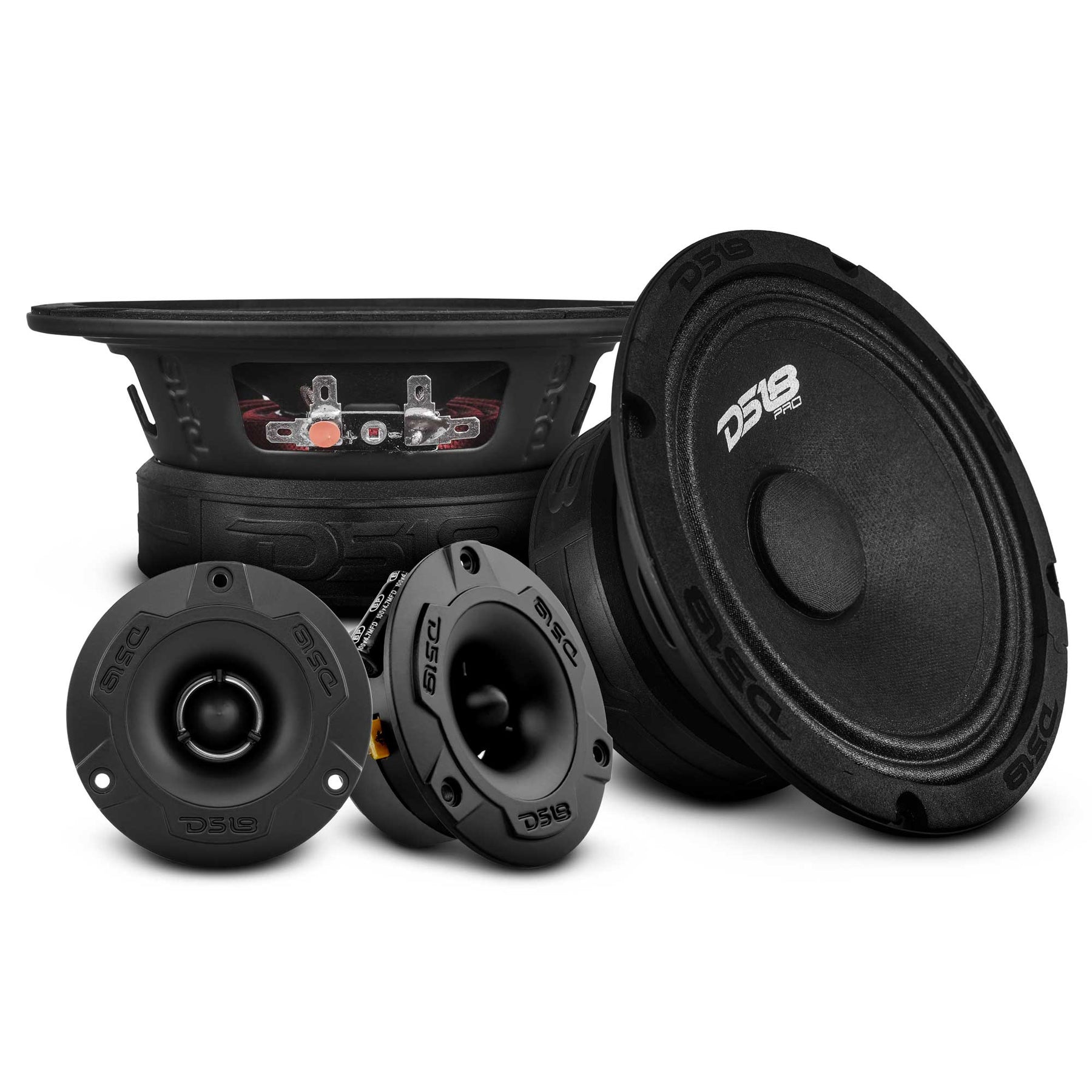

Loudspeakers and Tweeters Package Including a Pair of PRO-GM6.4 + a Pair of PRO-TW1X/BK
Discover the power of DS18 PRO-GM6.4PK Loudspeakers and Tweeters Package – the ultimate audio upgrade for audio enthusiasts seeking an instant upgrade.
This package features two of our top-selling speakers meticulously selected for their durability and ability to handle high RMS power, for maximum loudness and unrivaled performance: the PRO-GM6.4 midrange speakers and the PRO-TW1X/BK super tweeters.

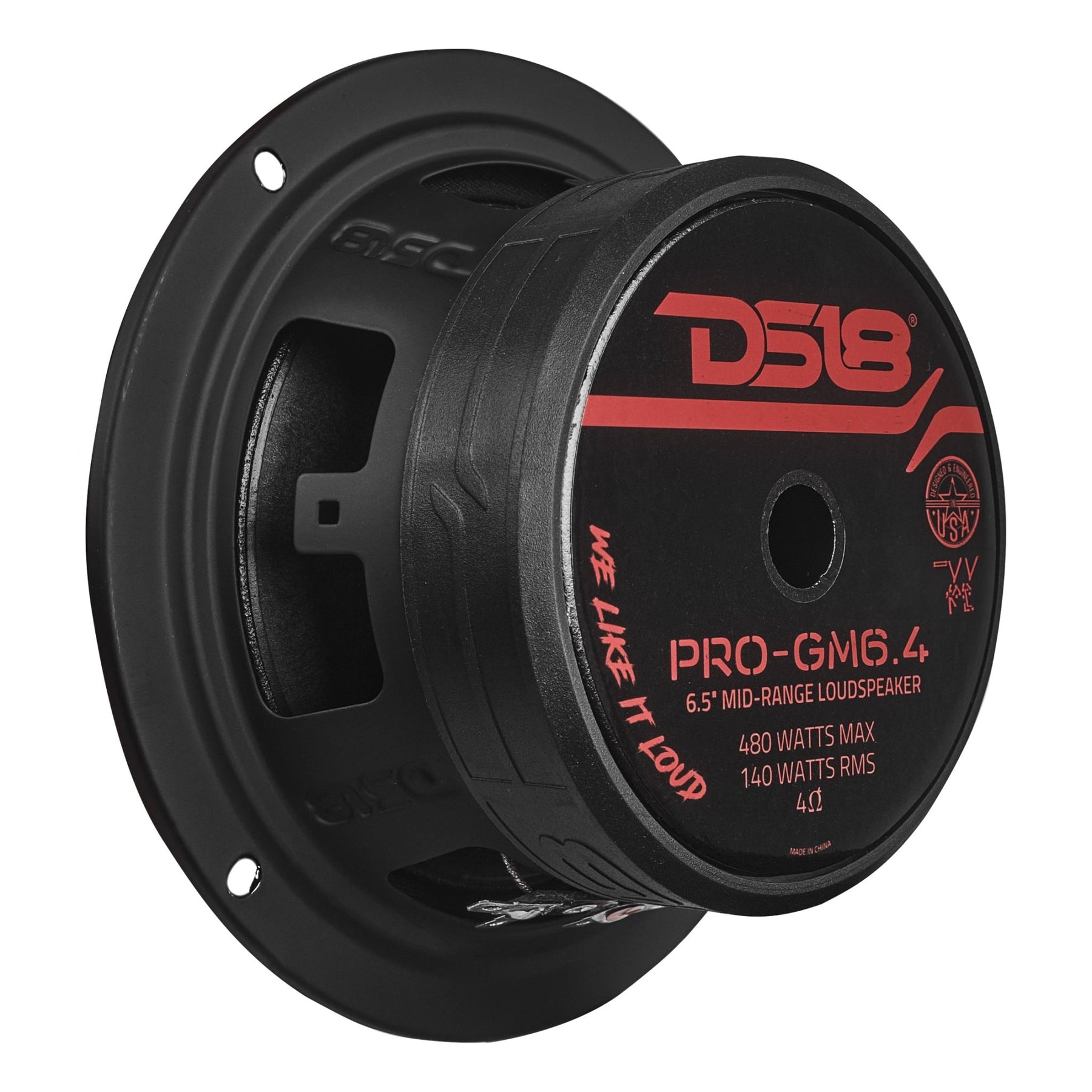

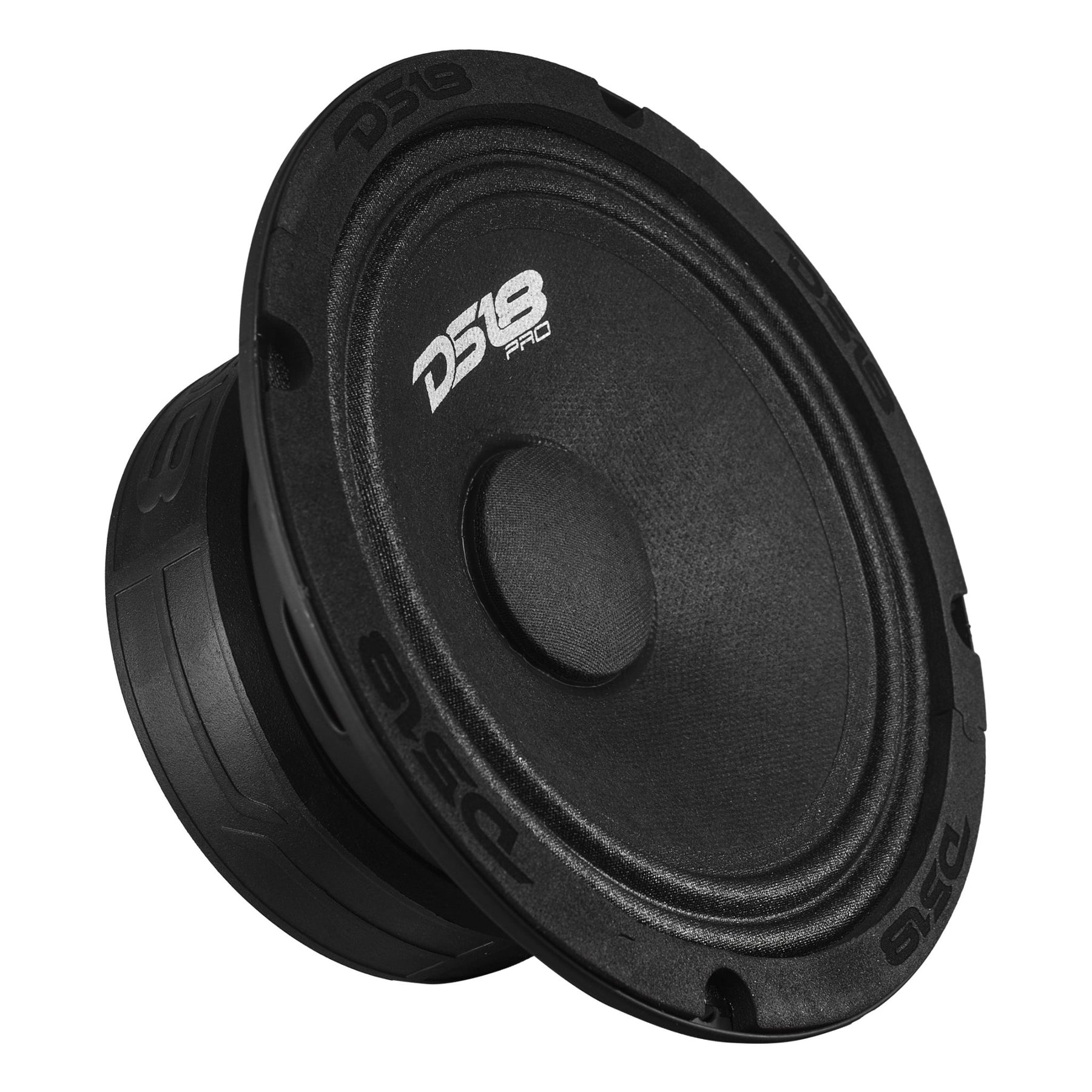

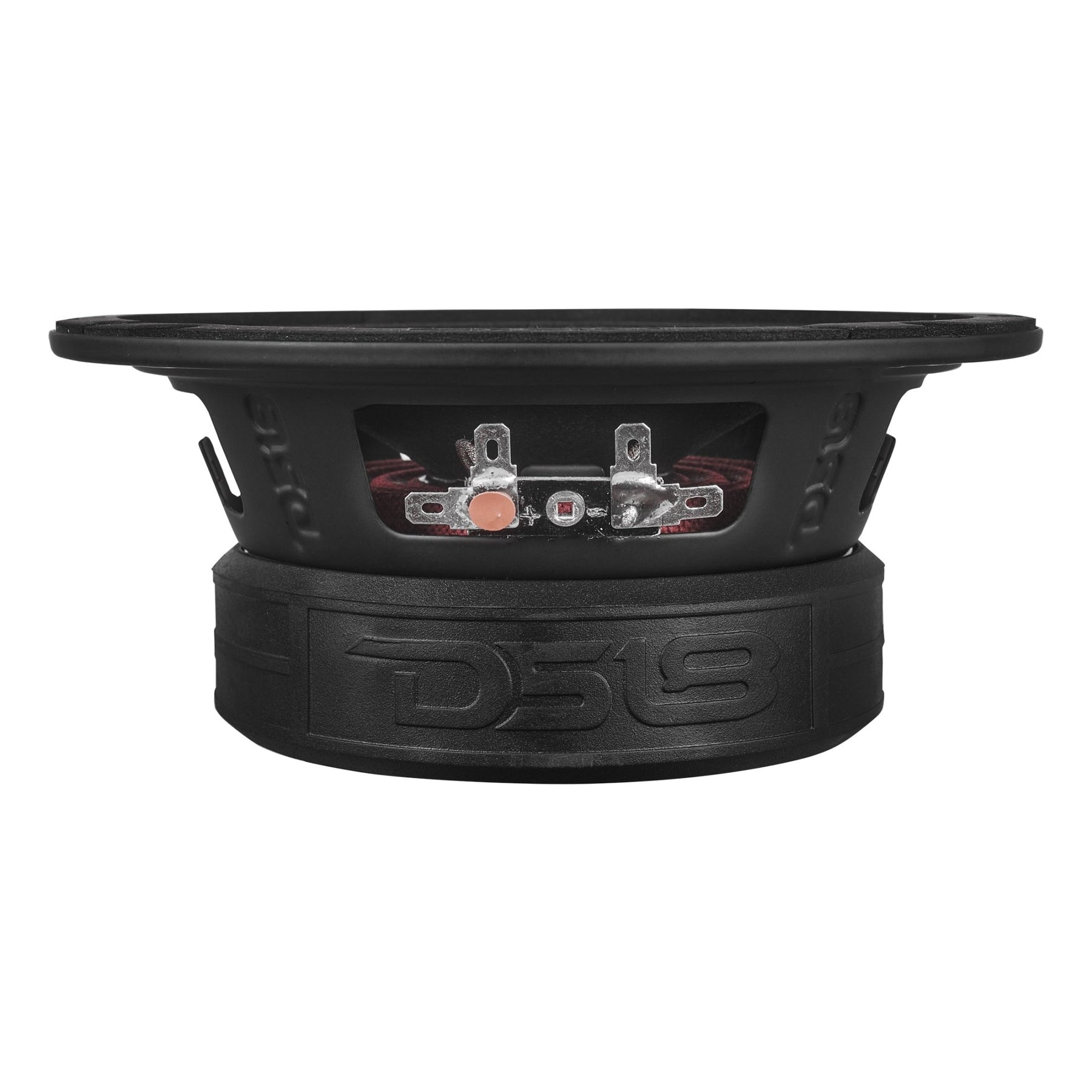

The PRO-GM6.4 midrange speakers come equipped with 1.5-inch voice coils capable of handling a remarkable 480W MAX power. With their impressive 92dB sensitivity, these speakers deliver mind-blowing sound even on lower power, while efficiently handling MAX Wattage. A nominal impedance of 4 ohms allows these speakers to seamlessly integrate into a wide range of builds, ensuring compatibility and optimal performance. The PRO-GM6.4 speakers have a frequency response that spans from 98Hz to 10KHz, covering a broad range of tones: from the deep growl of a bass guitar to the delicate strumming of an acoustic melody, these speakers reproduce each note with stunning accuracy and precision.

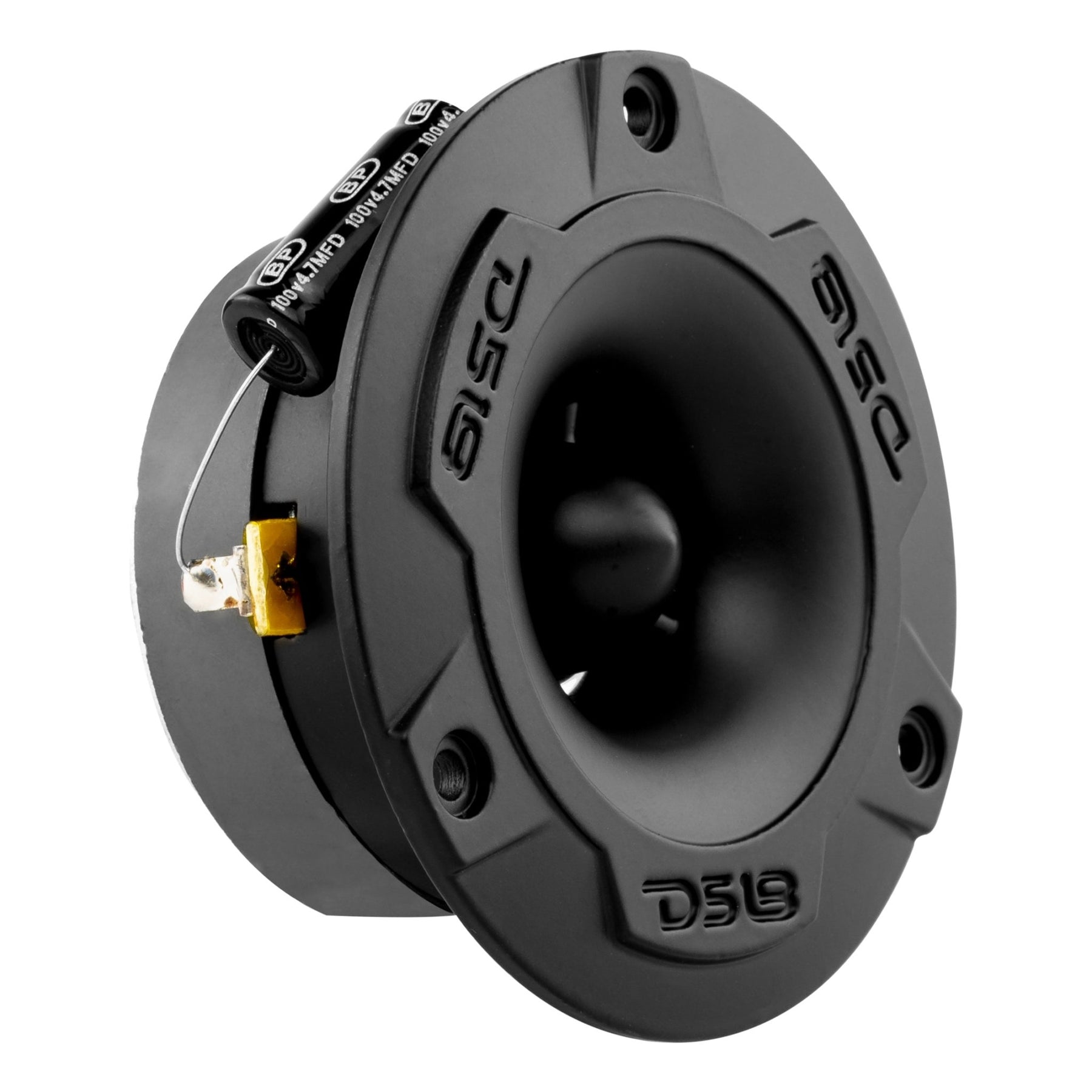

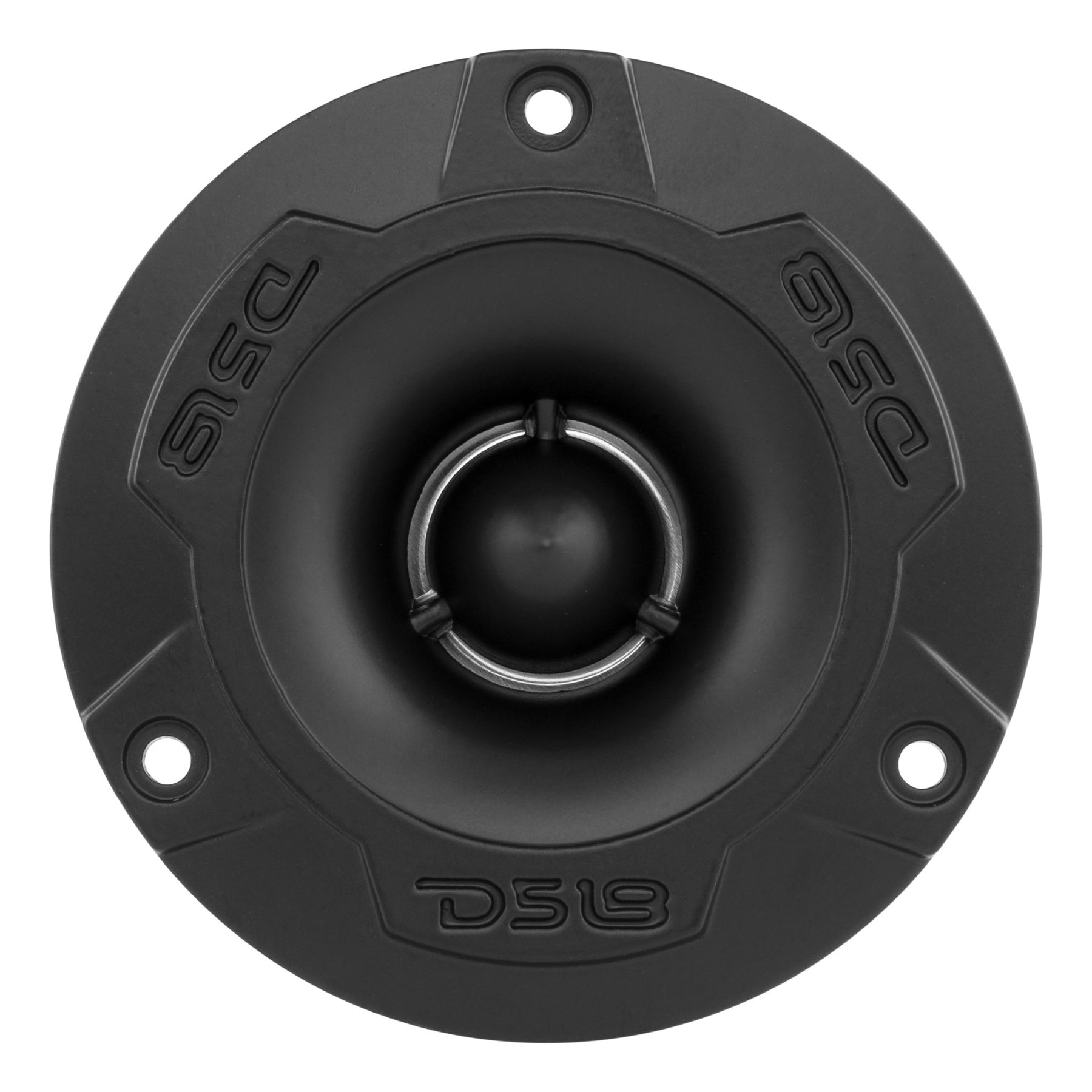

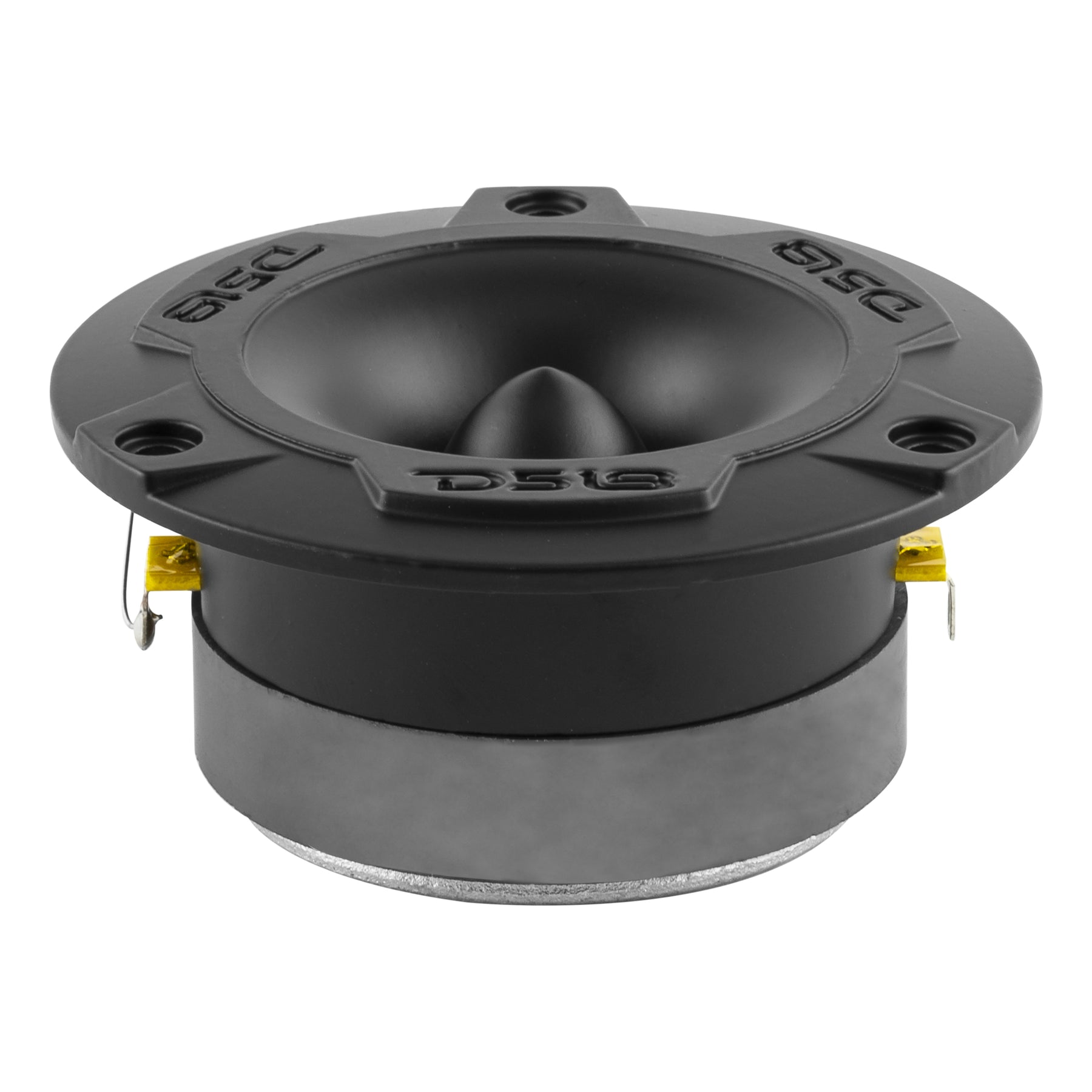

Complementing the midrange speakers are the PRO-TW1X/BK super tweeters, which are bound to leave you in awe. These compact yet immensely powerful tweeters handle an impressive 120 watts RMS each, ensuring crystal-clear highs that will elevate your listening experience to new heights. With their 4-ohm impedance and small footprint, these super tweeters effortlessly pair with any amplifier and add a dynamic element to your audio system.
Immerse yourself in the richness and depth of sound that only DS18’s PRO-GM6.4PK can deliver.
