Description

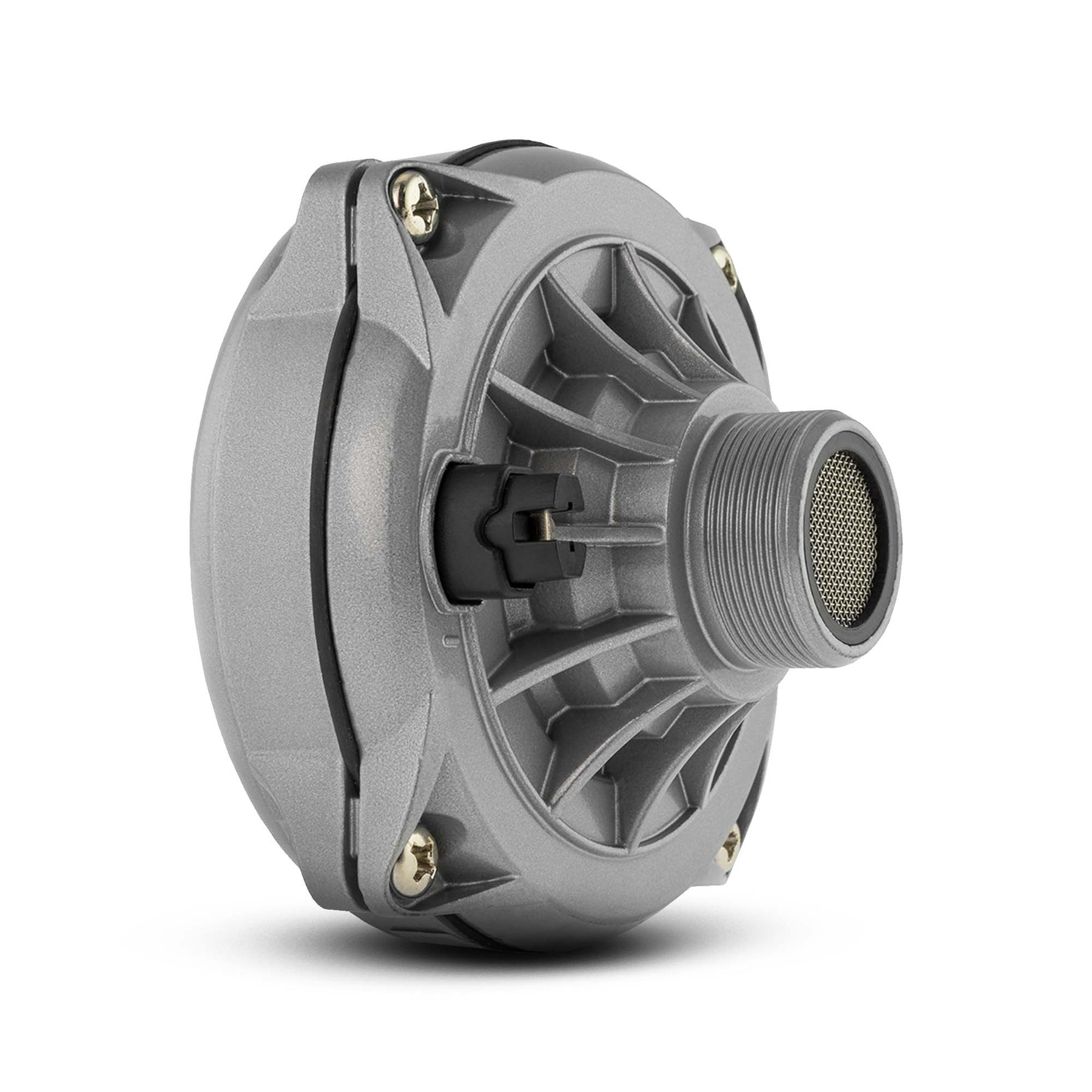

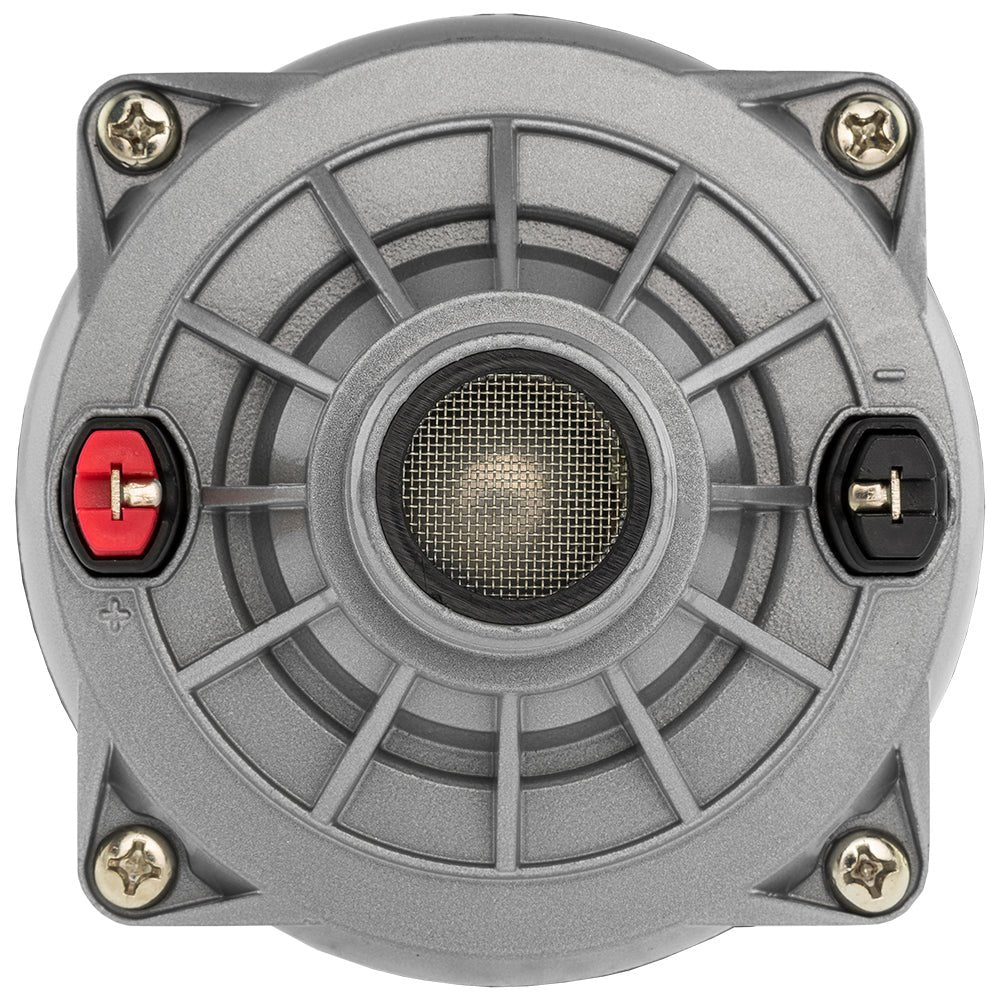

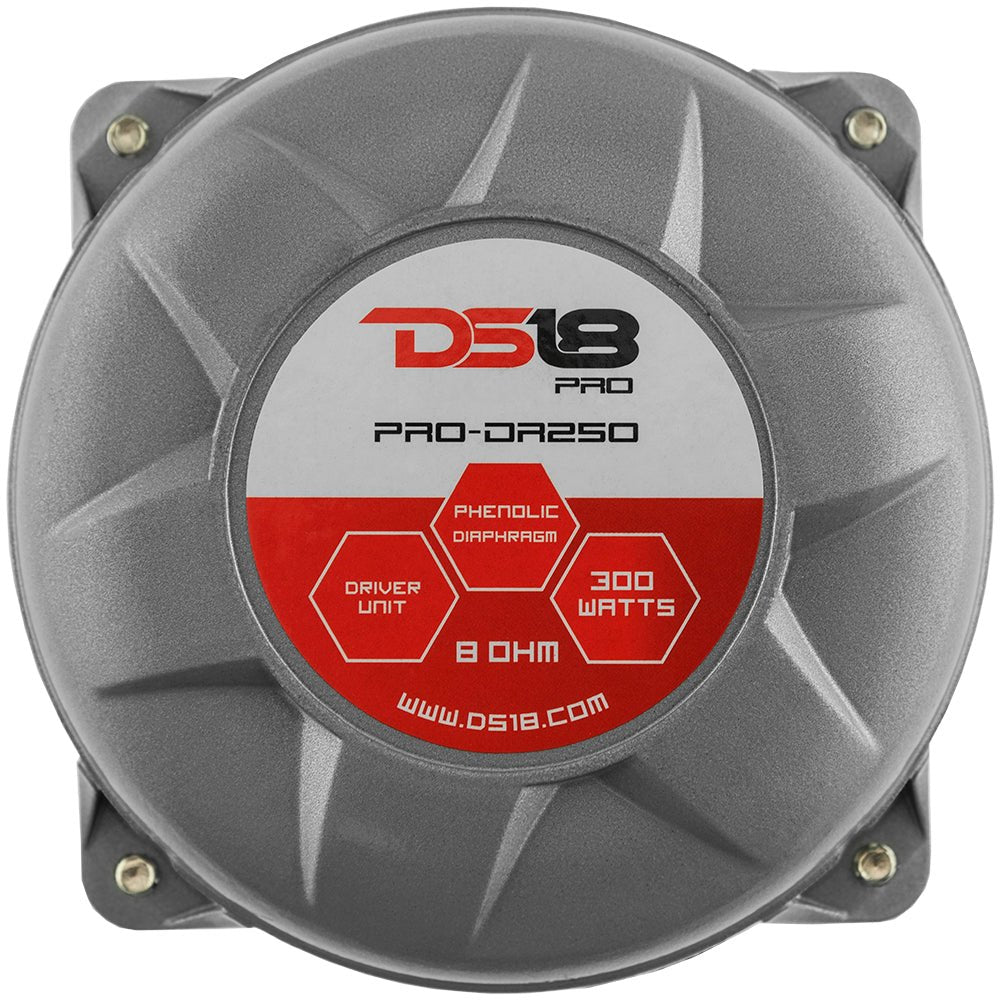

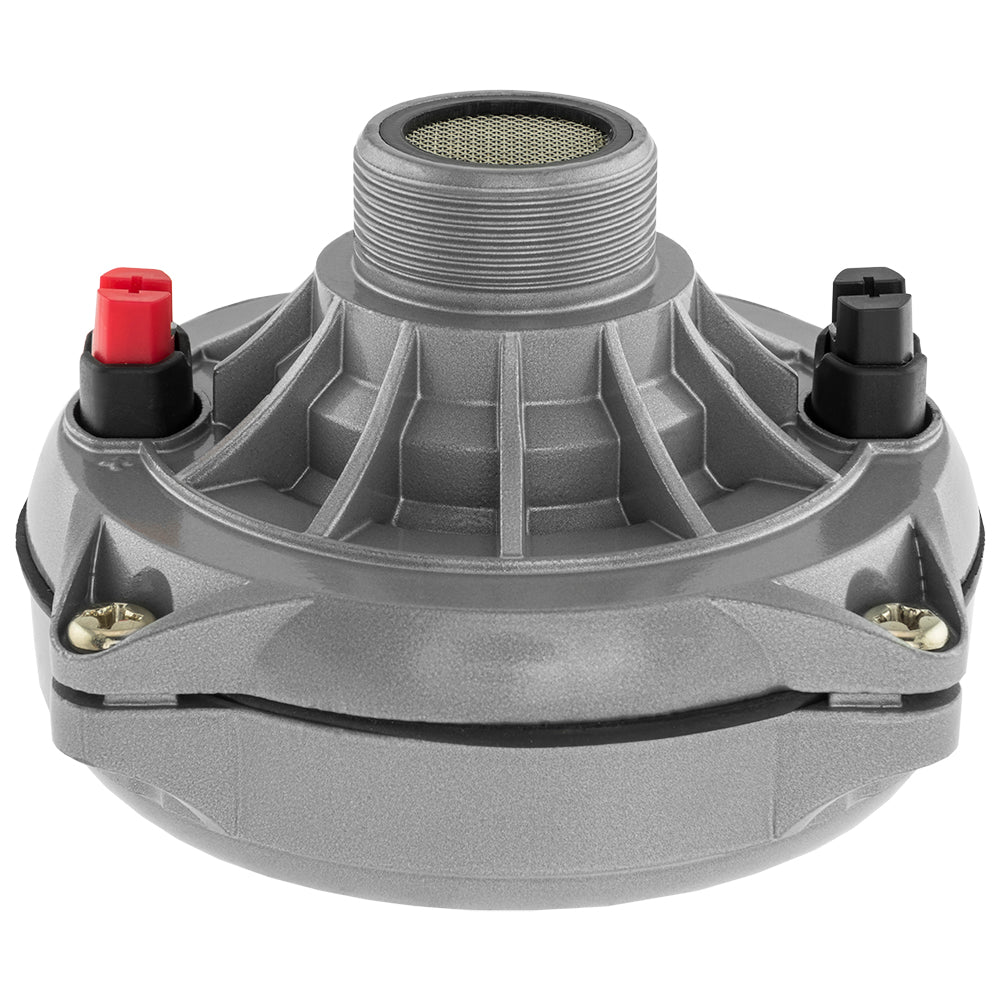

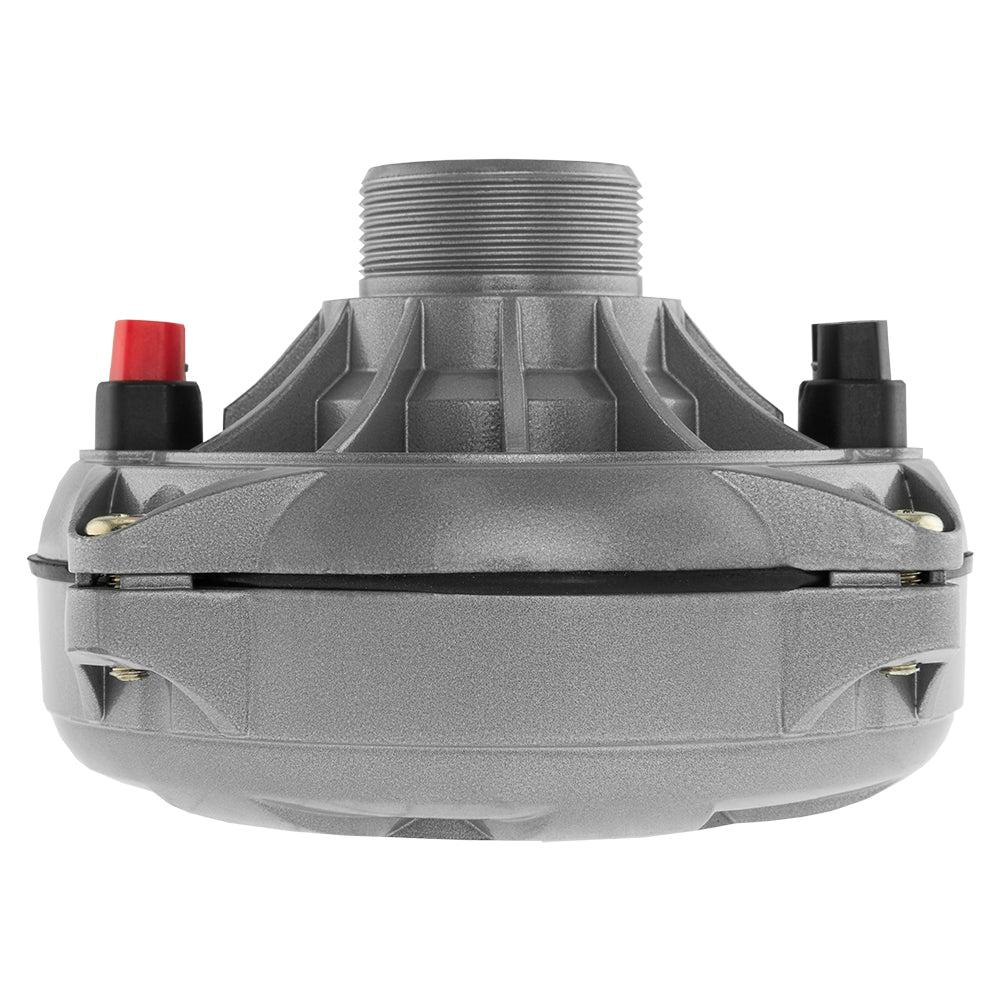

DS18 PRO-DR250
The PRO-DR250 is a high-performance compression driver designed to deliver clear, powerful, and accurate high-frequency sound for car audio and professional sound systems. Built to be used with compatible horns or waveguides, it provides excellent efficiency, strong projection, and precise treble reproduction, ensuring vocals and high-frequency details stand out even at high volume levels. Its durable construction supports reliable operation in demanding SPL and PA environments, while effective heat dissipation maintains consistent performance during extended use. The PRO-DR250 is ideal for users seeking distortion-free, professional-grade high-frequency output in high-output audio setups.
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DR250 |
| Nominal Impedance | 8 ohms |
| Throat Diameter | 1″ |
| RMS Power Handling | 200W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 94 dB |
| Frequency Response | 650Hz – 13KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 2″ |
| Voice Coil Former Material | KSV |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 10.5 oz |
| Bolt Type | Screw Down |
Measurements
| Feature | Dimensions |
|---|---|
| Overall Diameter | 4.37″ / 111 mm |
| Overall Depth | 3.83″ / 79.5 mm |
| Mounting Depth | 2.51″ / 64 mm |
| Product Weight | 3 lbs |
| Product Dimensions | 5 × 4.75 × 3.25 in |
| Master Carton Weight | 37 lbs |
| Master Carton Dimensions | 15 × 11.25 × 8 in |
| Master Carton Quantity | 12 |
| Sold In | Piece |
Product Overview
1” Throat Twist On Compression Driver with 2” Throat Phenolic VC 200W 8-Ohm
Proudly engineered and designed in the USA, DS18’s PRO-DR250 is a high powered compression driver that transcends the boundaries of high-frequency excellence. This 1″ Throat Twist On Compression Driver with a formidable 2″ Throat Phenolic Voice Coil will make your system soar.
Unleash the full spectrum of your high-frequency audio with power handling ratings of 200W RMS and 300W MAX. With Power Ratings that high you can feel the music being reproduced by your system. Feel the energy of every note, every crescendo, and every delicate whisper as the PRO-DR250 effortlessly handles both nuanced melodies and thundering beats.
The PRO-DR250’s impressive frequency response of 650Hz to 13KHz guarantees that no note, no matter how high, escapes your ears. Experience the brilliance of sound across the spectrum, from the intricate highs to the nuanced mids, all the way to the balanced upper limits.
Embrace power without compromise. The High Strength Ferrite magnet drives the PRO-DR250’s capabilities to the edge, ensuring that every note bursts forth with authority, while its robust construction guarantees long-lasting performance in the face of intense musical landscapes.
Seamlessly integrate the PRO-DR250 into your existing setup. Its 8-ohm impedance strikes a perfect balance, enabling it to work harmoniously with a wide range of amplifiers and configurations, ensuring that your audio remains distortion-free and true to the original composition.
The road ahead is filled with soundstages that will blow you away, and the PRO-DR250 is your ticket to this unparalleled audio journey.
