Description

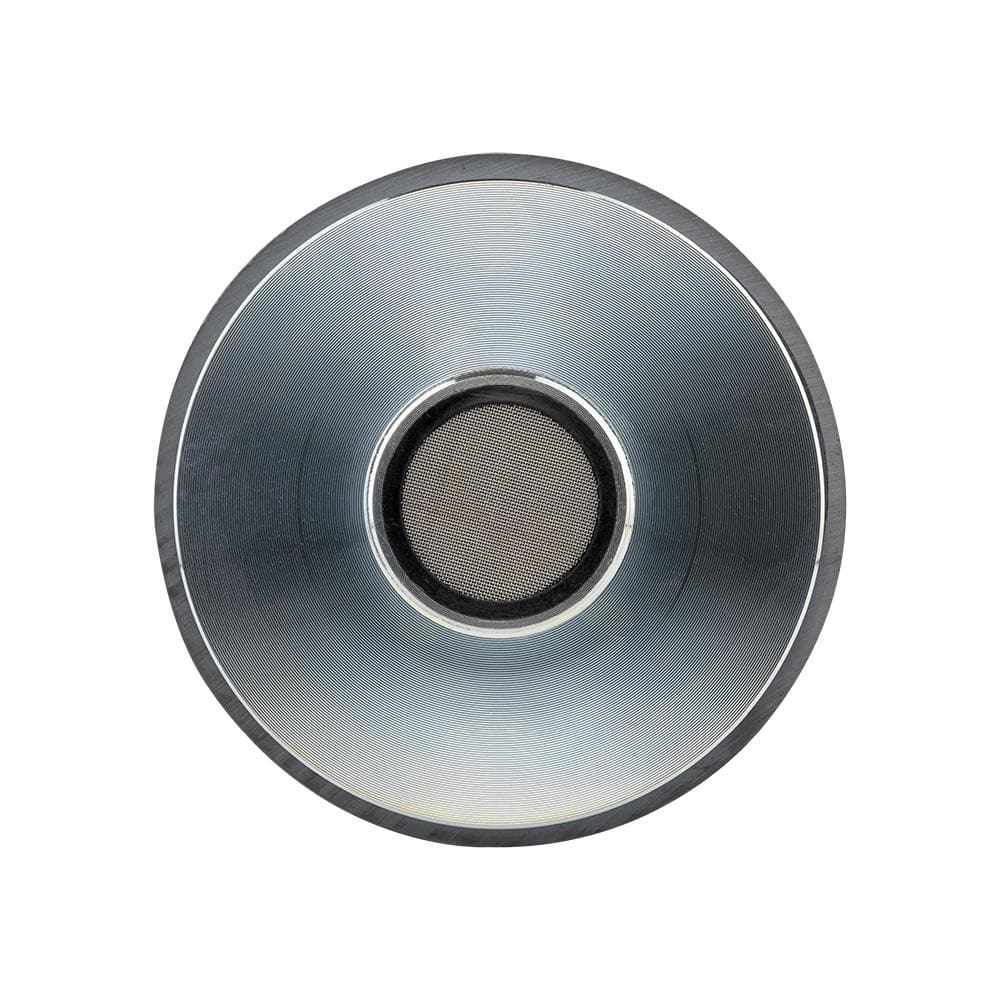

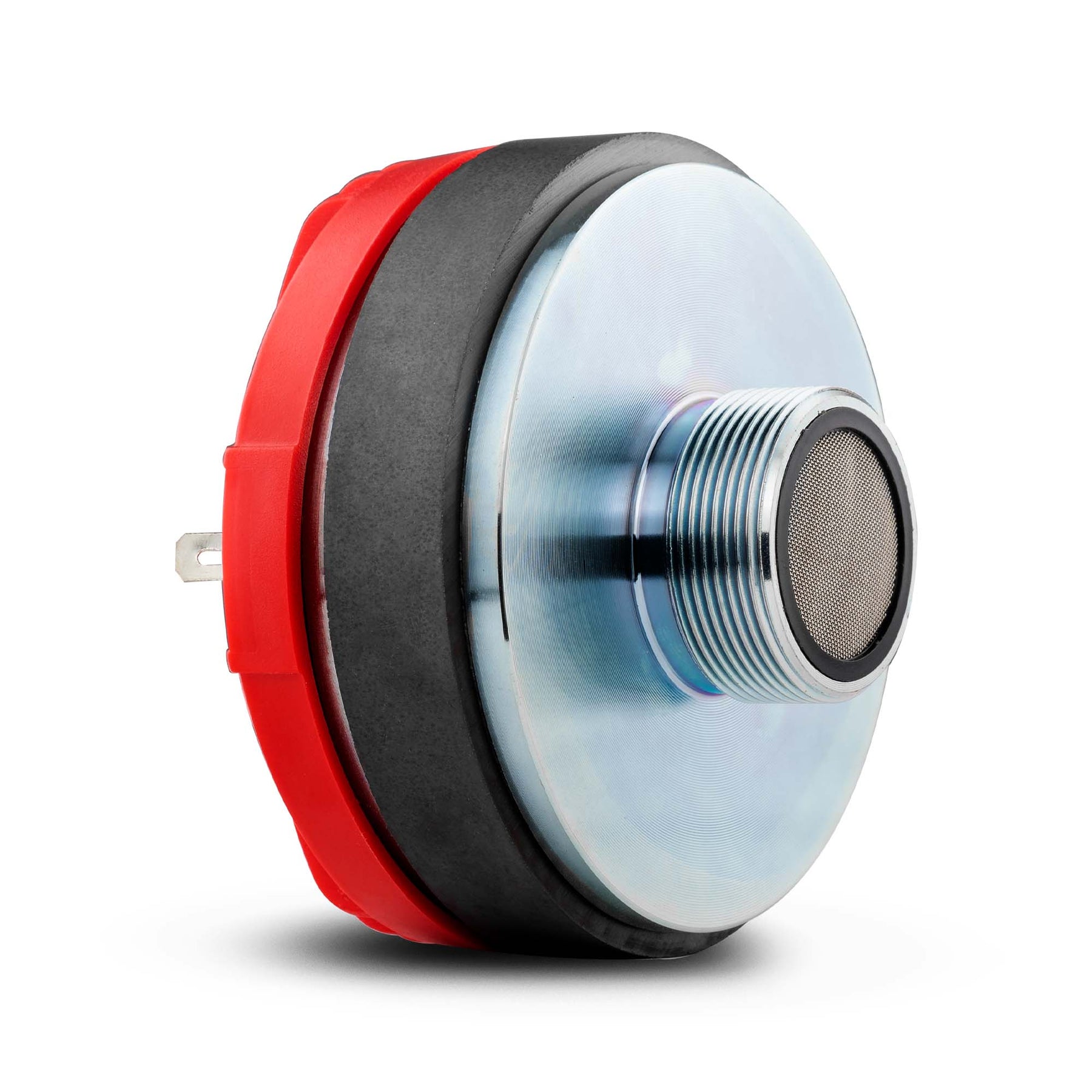

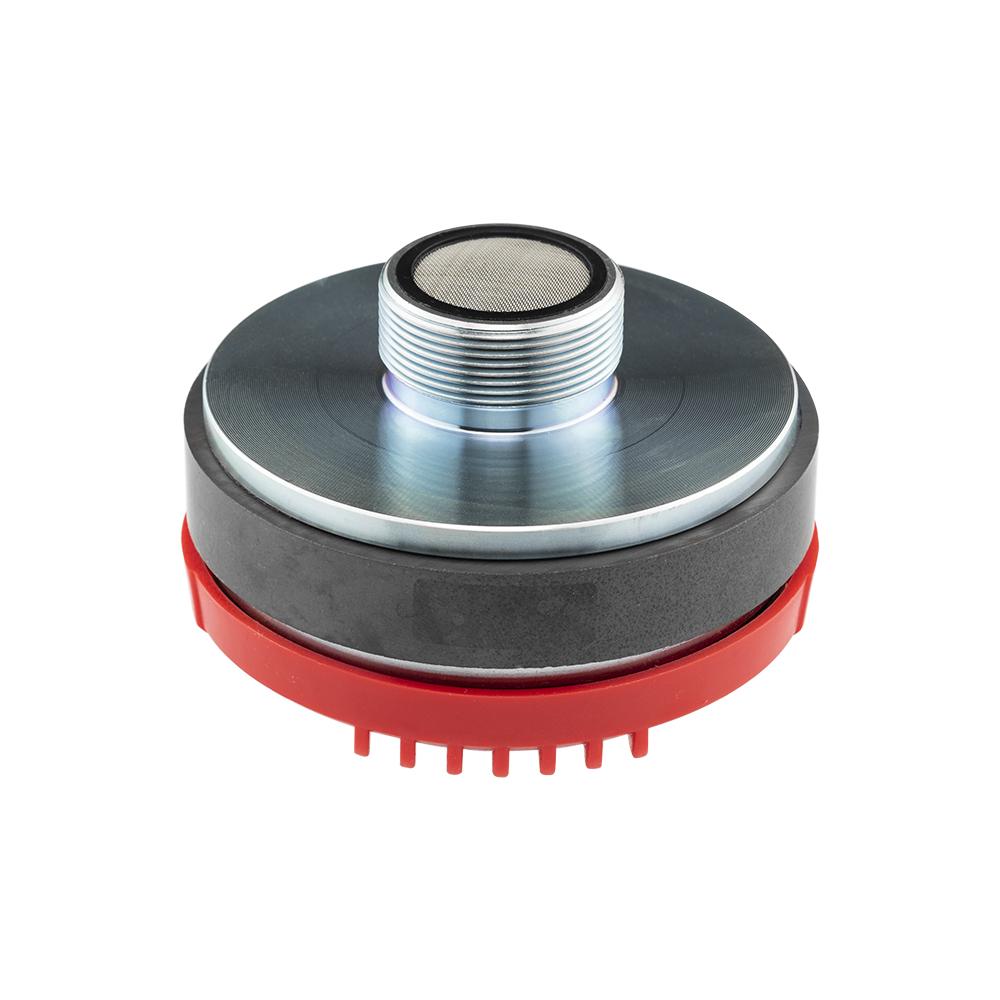

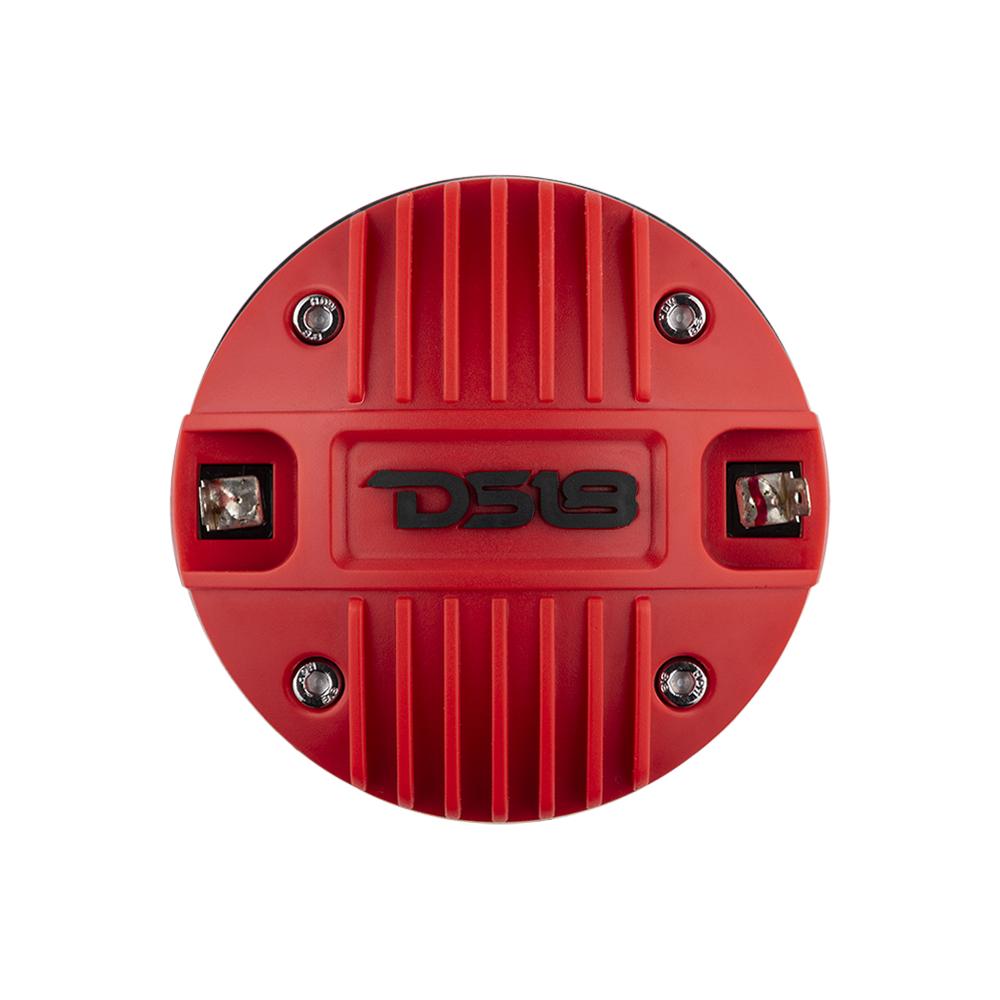

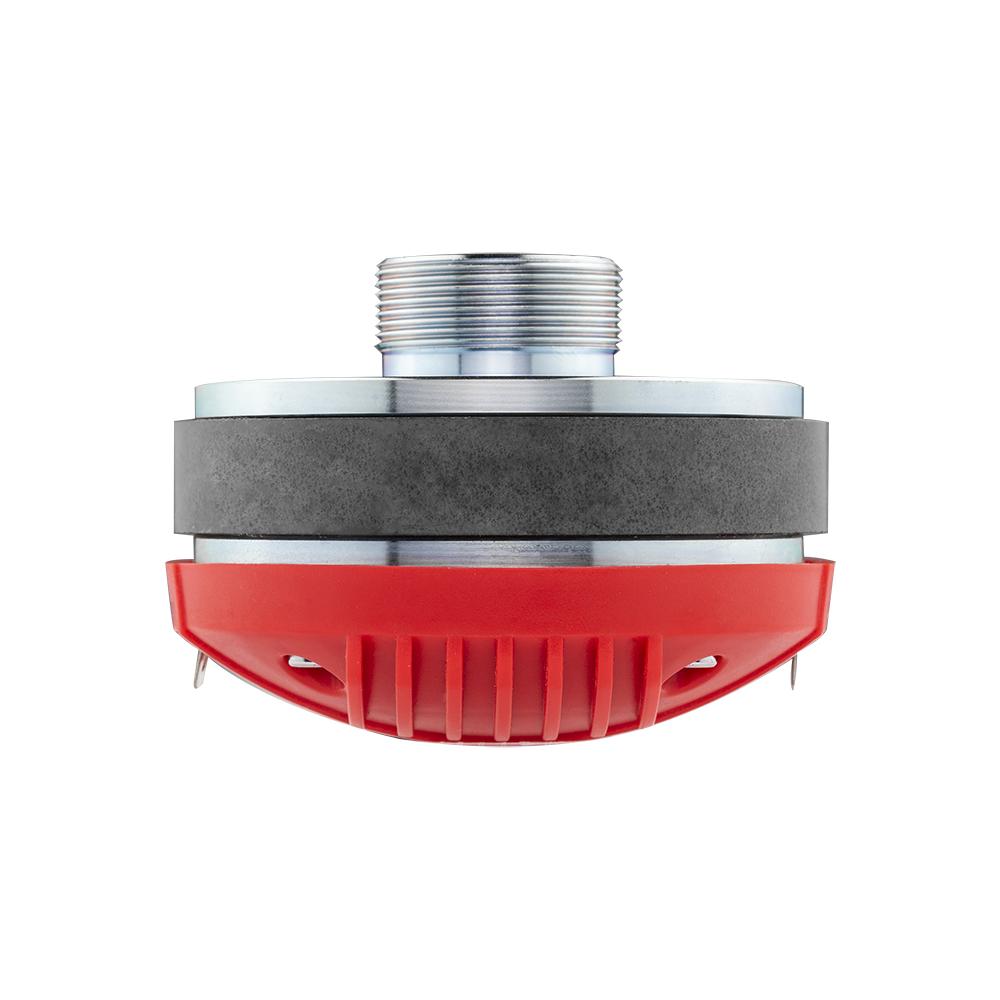

DS18 PRO-DR1.354
The PRO-DR1.354 is a high-output compression driver designed to deliver clear, powerful, and efficient high-frequency sound for car audio and professional sound systems. Built to work with compatible horns and waveguides, it provides excellent sound projection and strong treble presence, making vocals and high details stand out even at elevated volume levels. Its durable construction supports stable performance in demanding SPL and PA environments, while efficient heat management helps maintain consistent sound quality during long listening sessions. The PRO-DR1.354 is an ideal choice for users seeking loud, crisp, and distortion-free high-frequency reproduction.
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DR1.354 |
| Throat Diameter | 1″ |
| Installation Type | Screw-On |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 80W |
| Program Power Handling | 160W |
| Peak Power Handling | 320W |
| Sensitivity (1w/1m) | 103 dB |
| Frequency Response | 500Hz – 20KHz |
| Recommended Hi Pass Crossover | 1 KHz |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 1.35″ |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 16 oz |
Measurements
| Feature | Details |
|---|---|
| Overall Diameter | 3.54″ / 90 mm |
| Overall Depth | 2.51″ / 64 mm |
| Bolt Pattern / Type | M34 / 1.34″ |
| Mounting Depth | 1.61″ / 41 mm |
| Product Weight | 2 lbs |
| Product Dimensions | 4.5 × 4 × 3 |
| Master Carton Weight | 54 lbs |
| Master Carton Dimensions | 16.5 × 9.75 × 9.5 |
| Master Carton Quantity | 24 |
| Sold In | Piece |
Product Overview
1” Twist On Throat Compression Driver with 1.35” Titanium VC 320W 4 Ohm
DS18’s PRO-DR1.354 is a must have in any audio system – this game changing 1” Twist On Throat Compression Driver is designed to bring soaring highs to any vehicle’s sound system.
Your system reaches new heights with the PRO-DR1.354’s impressive power handling capabilities. The PRO-DR1.354 effortlessly manages an astounding 160W Program power and an awe-inspiring 320W MAX power. Its raw strength envelops your ears in a cascade of unfiltered, unparalleled sound.
Give in to the charm of the PRO-DR1.354’s impressive high sensitivity, clocking in at a remarkable 103 dB. This translates to mesmerizing audio clarity that lets you soak in the vibes without using your systems full power limitations. Ranging from 500Hz to 20KHz, these drivers will indulge your senses with exhilarating highs, infusing every note with electrifying energy.
Think of the titanium diaphragm as the heartbeat of the PRO-DR1.354 – the very soul of the driver, ensuring every beat, every note is as vivid and timeless as your favorite melodies.
The PRO-DR1.354 steps up as a high-powered DS18 high-frequency driver, embracing the essence of innovation to create sound projection like no other. Its friendly compatibility with all DS18 screw-on throats let you dial in a look that’s as unique as your groove.
Built with an unshakable commitment to top-notch quality, the PRO-DR1.354 comes with high-grade terminals that lock in your connections, making sure they smoothly blend into your audio setup. And the cherry on top? Swapping out voice coils is a breeze, a clear nod to our promise of making your passion towards audio easier.
