Description

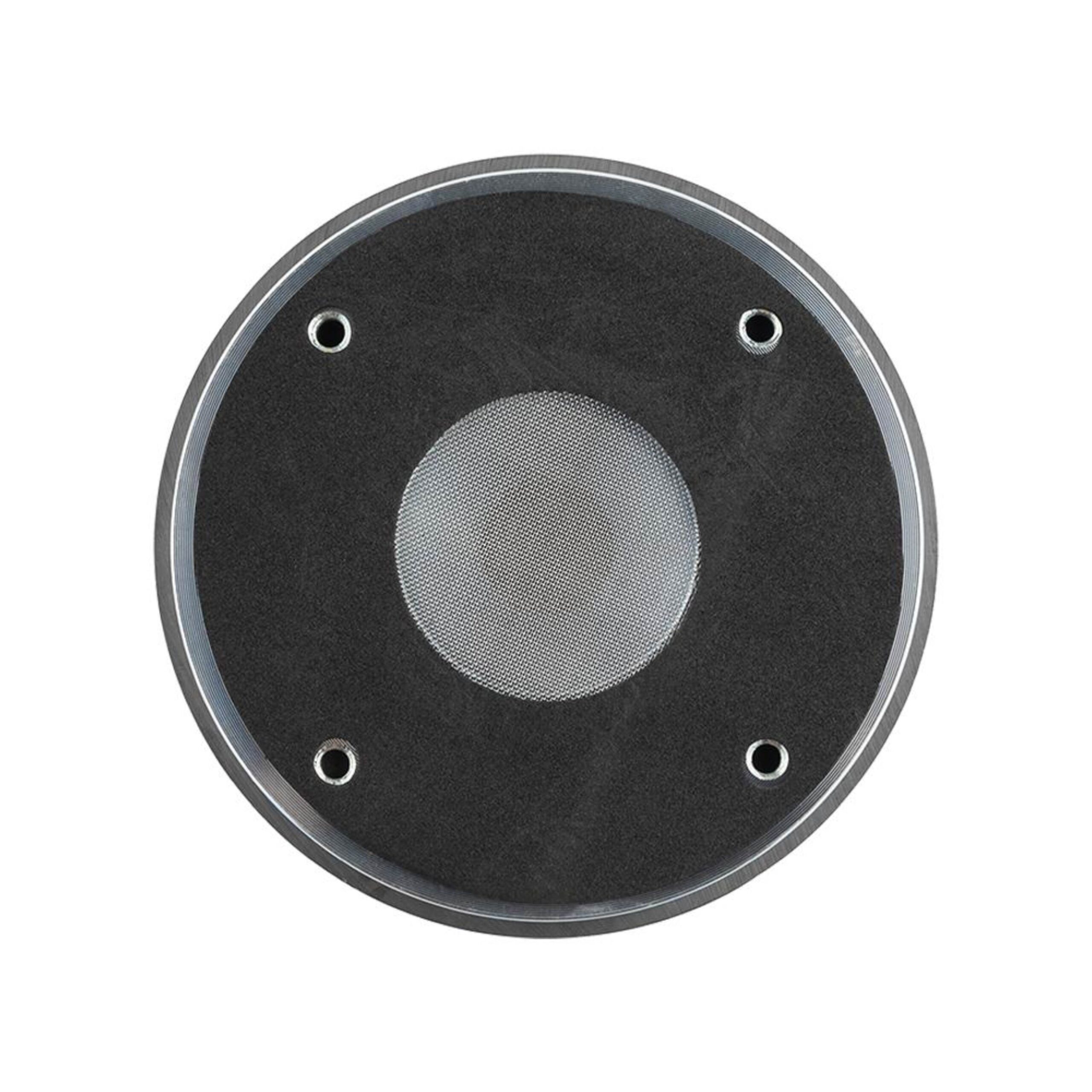

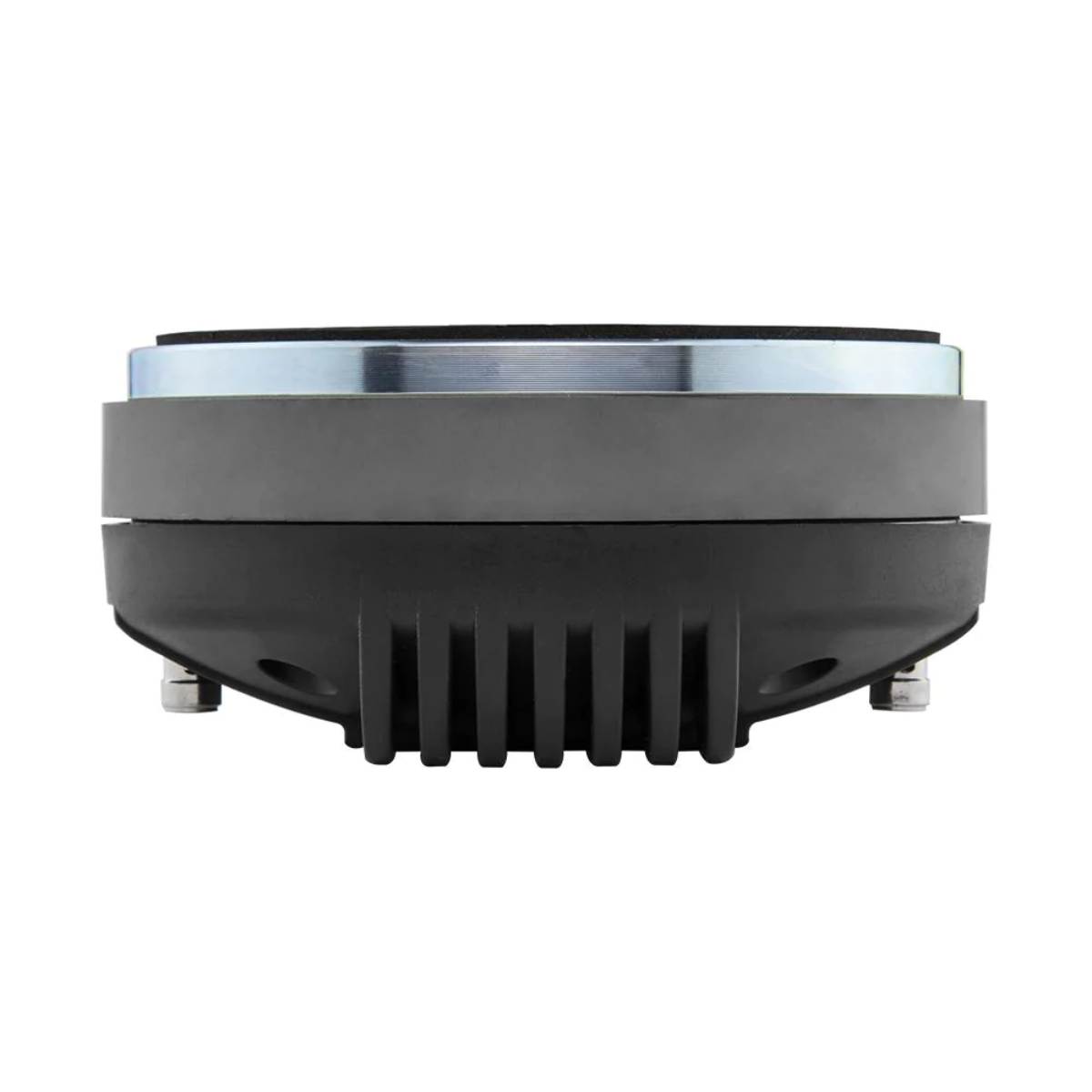

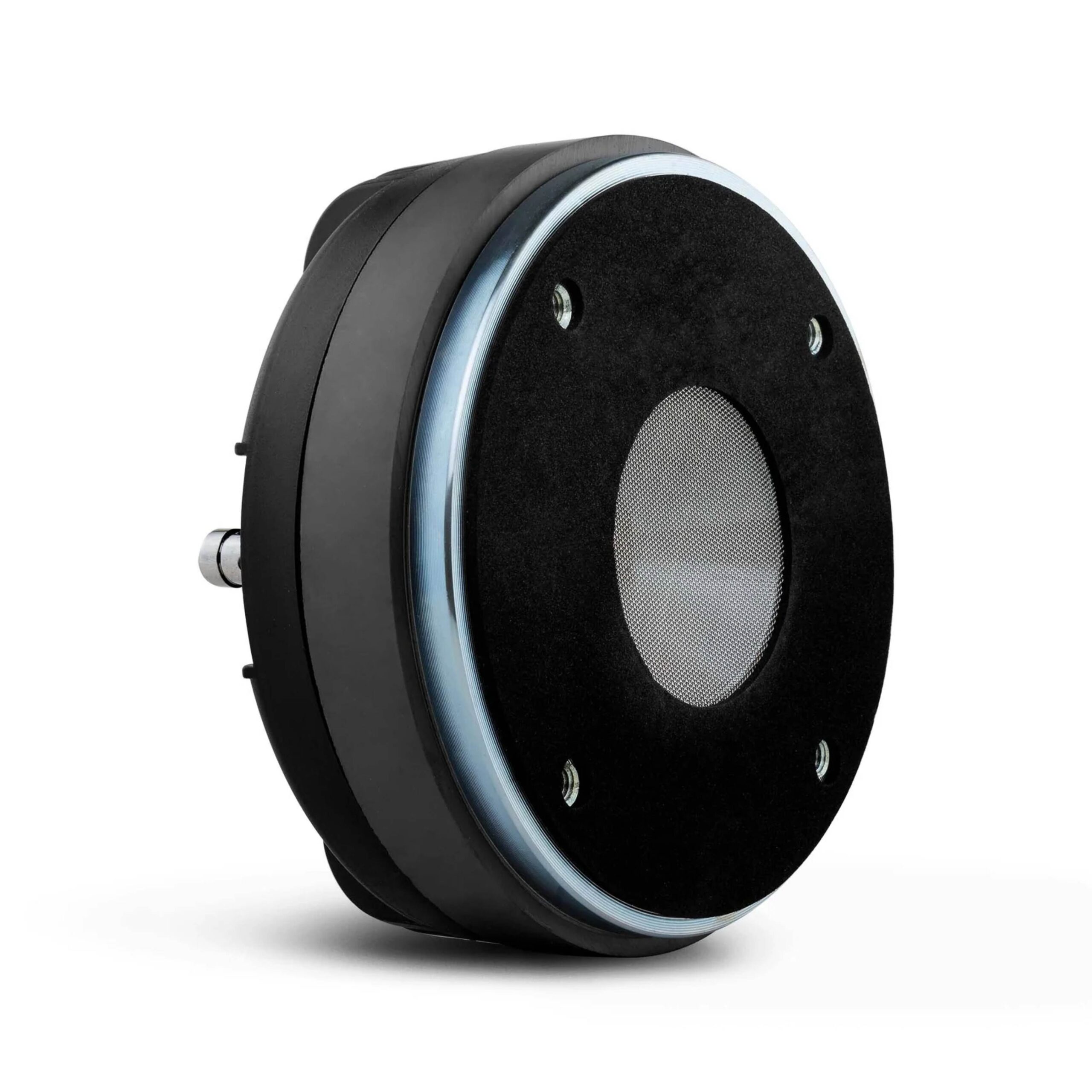

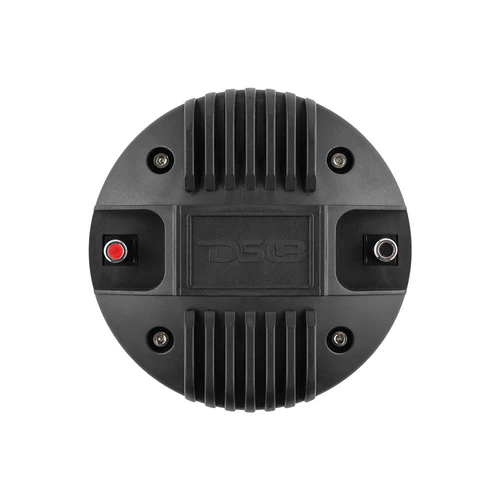

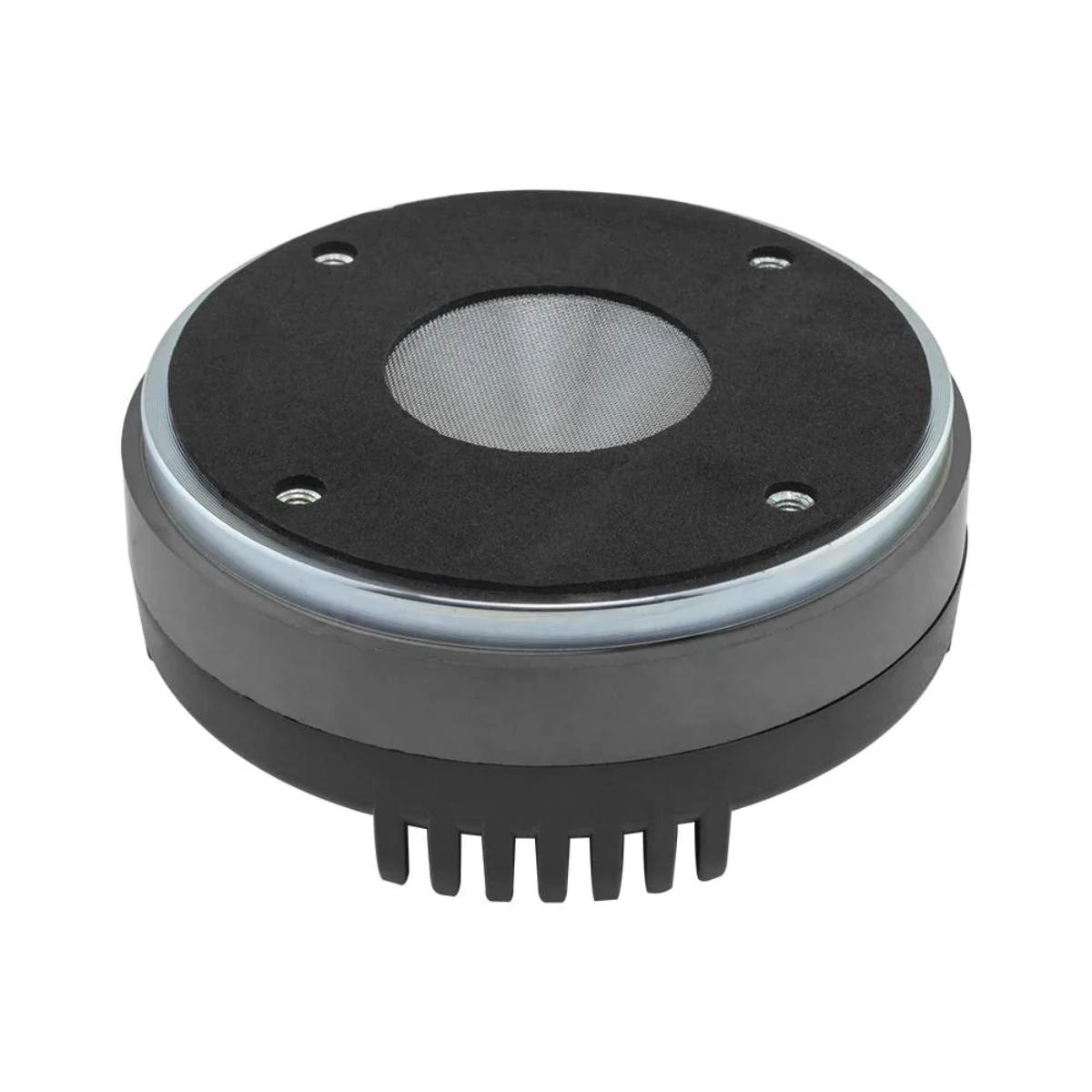

DS18 PRO-DPL1PH
The PRO-DPL1PH is a high-performance 2-way coaxial driver designed to deliver clear, balanced, and full-range audio for car audio and professional sound systems. Featuring a high-frequency tweeter integrated with a midrange driver, it reproduces crisp treble, detailed mids, and a well-defined low-end in a single compact unit. Engineered for high efficiency and strong sound projection, the PRO-DPL1PH performs reliably in SPL builds, PA setups, and demanding audio environments. Its durable construction ensures long-lasting performance, making it an ideal choice for users seeking a compact, all-in-one speaker solution with excellent full-range sound quality.
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DPL1PH |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 160W |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 500Hz – 18KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold In | Piece |
Motor
| Feature | Details |
|---|---|
| Voice Coil Diameter | 2.03″ / 51.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Body Material | Plastic Cover |
Measurements
| Feature | Dimensions |
|---|---|
| Overall Diameter | 5.27″ / 134 mm |
| Overall Depth | 2.4″ / 61 mm |
| Bolt Pattern | 4″ / 102 mm – M6 |
| Product Weight | 6 lbs |
| Product Dimensions | 6 × 5.75 × 2.75 in |
| Master Carton Weight | 37 lbs |
| Master Carton Dimensions | 18.5 × 12.25 × 3.5 in |
| Master Carton Quantity | 6 |
Product Overview
2″ Throat Bolt On Compression Driver 2″ Phenolic VC 640 Watts 8 ohm
Crafted by the pros, for the pros: DS18’s PRO-DPL1PH is more than just a compression driver – it’s a harmonious blend of cutting-edge engineering, relentless innovation, and a passion for pushing the boundaries of auditory pleasure.
The PRO-DPL1PH is reinforced by a high-powered Ferrite motor structure, engineered to project ear-piercing soundwaves that can be heard for miles. This isn’t just loudness; it’s a level of power and precision that transcends the ordinary.
The PRO-DPL1PH features a formidable 2-inch voice coil, capable of gracefully handling 160W AES and reaching peaks of 640W for audio that leaves a lasting impact. The Kapton voice coil former and phenolic diaphragm material work in perfect harmony, ensuring every soundwave produced is nothing short of perfection – crisp, clear, and captivating.
Crafted for versatility, the PRO-DPL1PH is a perfect match for all DS18 4-bolt throats. Mounting depths? No longer a concern. With compatibility spanning all sizes and dimensions, this driver allows you to tailor your system’s setup to your unique preferences – a tailor-made experience for every car audio enthusiast.
Every element of the PRO-DPL1PH, down to its machined black and aluminum body, exudes elegance and precision – a visual testament to the prowess that resides within. And as the music takes over, the 2-inch kapton voice coil former dances to the rhythm of your favorite tunes, for an immersive audio experience like no other.
