Description

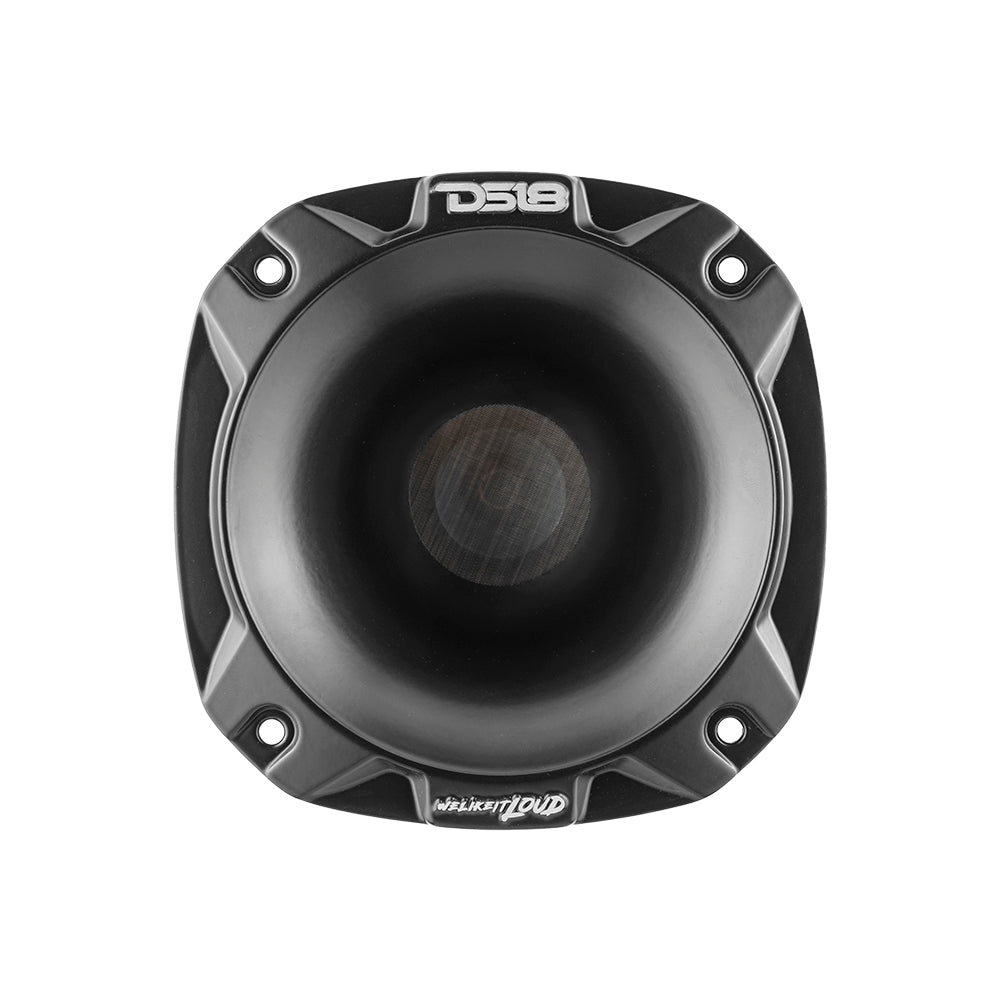

DS18 PRO-DKH1XS
The PRO-DKH1XS is a compact extra-small high-frequency horn diffuser designed for use with compression drivers in car audio SPL and professional PA systems. It is not a speaker and does not produce sound on its own; instead, it controls and directs high-frequency output from a compatible driver to deliver sharper, louder, and more focused highs. Built with a durable, lightweight structure, the PRO-DKH1XS offers excellent sound projection and clarity while fitting easily into tight mounting spaces. Its bolt-on design ensures secure installation, making it ideal for aggressive SPL builds, custom door panels, and professional audio setups where space and performance both matter.
Specifications
General Specs
| Feature | Details |
|---|---|
| SKU | PRO-DKH1XS |
| Nominal Impedance | 8 Ohm |
| AES Power Handling | 160 W |
| Program Power Handling | 320 W |
| Peak Power Handling | 640 W |
| Sensitivity (1w/1m) | 114 dB |
| Frequency Response | 630 Hz – 20 KHz |
| Recommended Hi-Pass Crossover | 900 Hz |
| Sold In | Piece |
Motor (PRO-D1X)
| Feature | Details |
|---|---|
| Voice Coil Diameter | 2.03″ / 51.5 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Body Material | Aluminum |
Horn Specifications (PRO-HA52/BK)
| Feature | Details |
|---|---|
| Nominal Diameter | 6.5″ / 165 mm |
| Throat Diameter | 2″ / 50.8 mm |
| Sound Coverage | 57° Rounded |
| Body Material | Aluminum |
| Color / Finish | Black Satin |
Measurements
| Feature | Details |
|---|---|
| Overall Diameter | 6.37″ / 162 mm |
| Overall Depth | 6″ / 154.7 mm |
| Mounting Depth | 5.74″ / 145.8 mm |
| Mounting Hole Diameter | 5.7″ / 145 mm |
| Bolt Pattern / Type | Ø 6.33″ / 161 mm × 4 – 0.21″ / 5.5 mm |
| Product Weight | 8.5 lbs |
| Product Dimensions | 7 × 7 × 6.5 in |
Shipping / Master Carton Info
| Feature | Details |
|---|---|
| M/C Quantity | 4 |
| M/C Weight | 34.5 lbs |
| Master Carton Dimensions | 14.75 × 14.25 × 7.25 in |
Product Overview

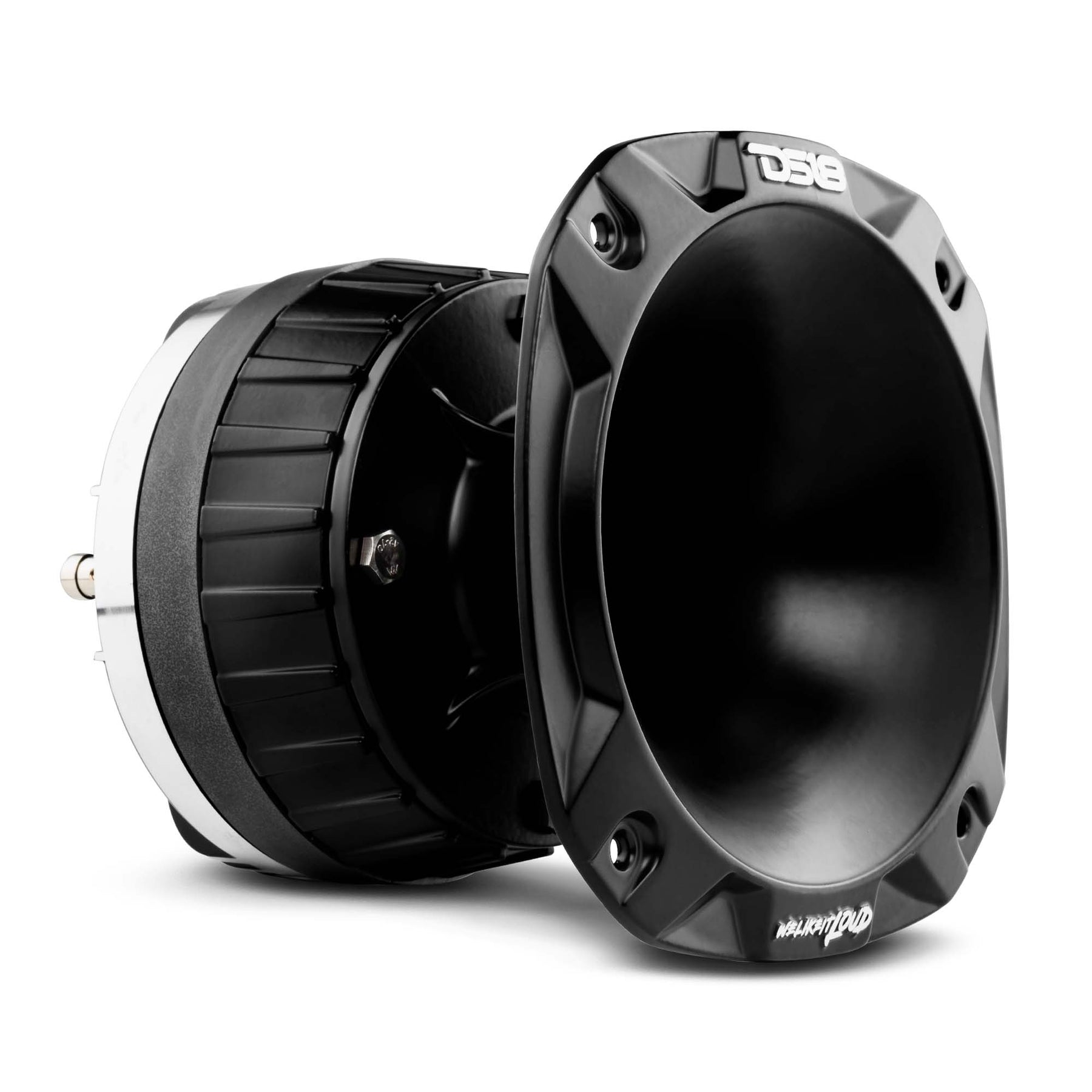

2″ Driver With Spacer And Short Horn Kit 320 Watts 2″ Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
Introducing DS18’s PRO-DKH1XS, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, DS18’s DKH1XS combines a 2″ bolt-on throat compression driver and a PRO-HA102/BK horn, to help deliver a rich, powerful, and immersive sound experience.
Built with a titanium voice coil and diaphragm, DS18’s PRO-DKH1XS is capable of handling Peak Powers of up to 640W, making it one of the most powerful compression drivers in the market. The PRO-DKH1XS is not just about power, but also about delivering crystal clear and distortion-free sound. With a sensitivity of 115 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1XS guarantees an EXTREMELY LOUD and exceptional listening experience.

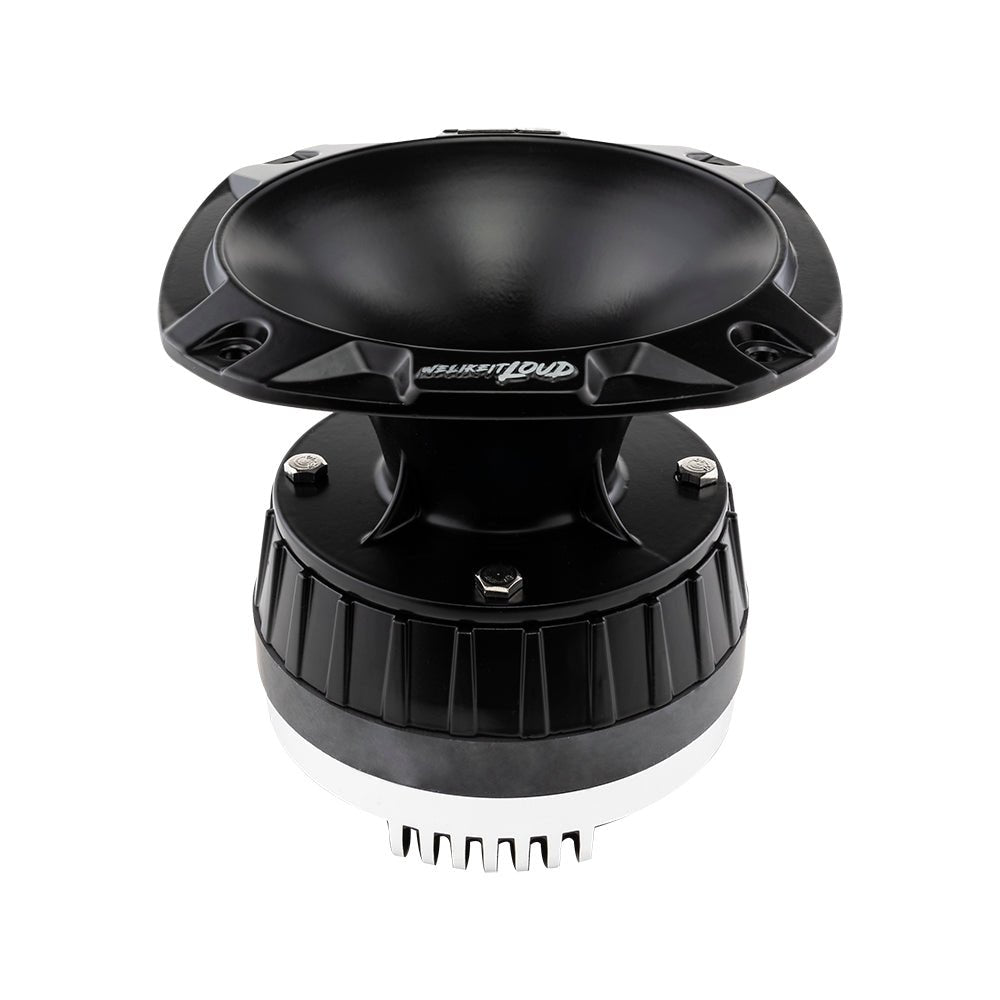

Everyone is looking for louder horns and what they can do to tweak them. DS18’s DKH1XS takes all the guesswork out of finding yours. This full-size driver combines DS18’s DKH1 with the included dB spacer to increase the driver’s overall sensitivity. Plus, our newly redesigned shorty throat so you only need 4.9 inches of depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency.
The DS18 PRO-DKH1XS is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03″ voice coil ensures that the product operates efficiently and reliably, even at high volumes and extended playtimes.
Whether you’re a professional audio installer or a car enthusiast, DS18’s PRO-DKH1XS is the perfect addition to your sound system. The PRO-DKH1XS is bolt on so you can spend less time in installation, and more time enjoying your system.
