Description
Rockford Fosgate Punch P3V2-69C3
The P3V2‑69C3 is a 6″ × 9″, 3‑way coaxial/component speaker set from Rockford Fosgate’s Punch P3 series, designed to deliver balanced full‑range sound with a strong mid/bass foundation and clear highs — a good upgrade over typical stock 6×9 speakers. It uses a mica‑reinforced polypropylene cone with a Santoprene rubber half‑roll surround for the woofer, and includes a ¾″ Tetolon inverted‑dome tweeter, offering a mix of robust lows/mids and detailed treble. Each speaker is rated for 75 W RMS / 150 W peak, has an impedance of 4 Ω, and a sensitivity of 89 dB, making the set capable enough for both head‑unit power and modest amplifiers.
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, removable motor cover, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. The factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility
The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven
Powered by advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last
Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Features
| Feature | Detail |
|---|---|
| Speaker Type | Component System |
| Midrange Size (Nominal Diameter) | 6″ x 9″ + 3.5″ |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) |
| Piezo Size (Nominal Diameter) | — |
| Nominal Impedance | 4Ω |
| Frequency Response | 49 Hz – 25 kHz |
| Voice Coil Diameter (in/mm) | 1.25″ (32.5 mm) |
| Crossover | Tweeter: HP 9 kHz @ 6 dB/octave (internal)Midrange Bass Blocker: HP 1,200 Hz @ 6 dB/octave (33µF)Woofer: LP 1.2 kHz @ 6 dB/octave (external) |
| Sensitivity (dB @ 1W/1M) | 89 dB |
| Sensitivity (2.83V/1M) | 92 dB |
| Fs (Hz) | 65 Hz |
Specifications
| Specification | Detail |
|---|---|
| Series | Punch P3 Series |
| Priced Per | Pair |
| Number of Speakers | 4 |
| Speaker Size | 6″ x 9″ |
| Design | 3-way Component Speakers |
| Tweeter Design | Inverted Dome |
| Tweeter Size | 3/4″ |
| Tweeter Composition | Tetolon |
| Woofer Composition | Mica Reinforced Polypropylene |
| Woofer Surround | Santoprene Rubber |
| Peak Power Handling | 150 watts |
| RMS Power Handling | 75 watts |
| Total Peak Per Pair/Set | 300 watts |
| Total RMS Per Pair/Set | 150 watts |
| Sensitivity | 89 dB |
| Frequency Response | 49 – 25,000 Hz |
| Impedance (Per Voice Coil) | 4 ohm |
| Voice Coil Diameter | 1.25″ |
| Shallow Mount Installation | No |
| Magnet Type | Ferrite |
| Top-Mount Depth (Mounting Depth) | 3.13″ |
| Cutout Dimensions | 8.41″ x 5.71″ |
| CTA-2031 Compliant | Yes |
About The Product

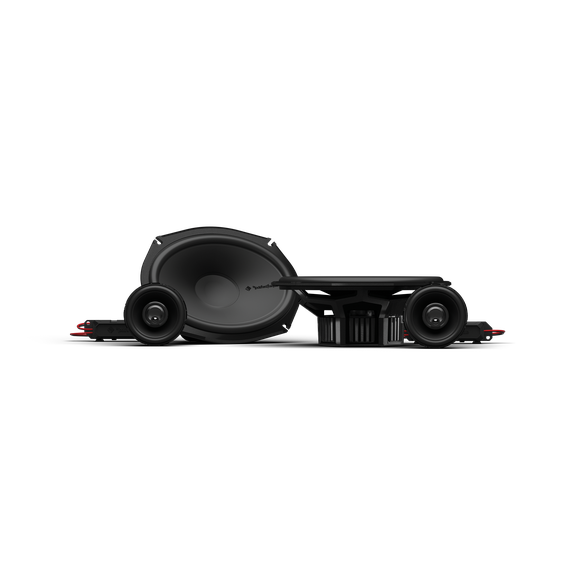

The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3 speakers are 3-way component systems for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.
Kit Includes:
• (2) 6″x9″ Speakers
• (2) 3.5″ Coax Speakers

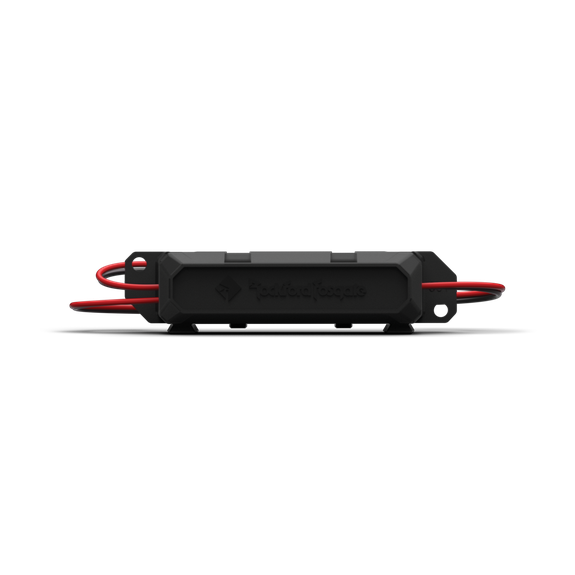

• (2) Crossovers

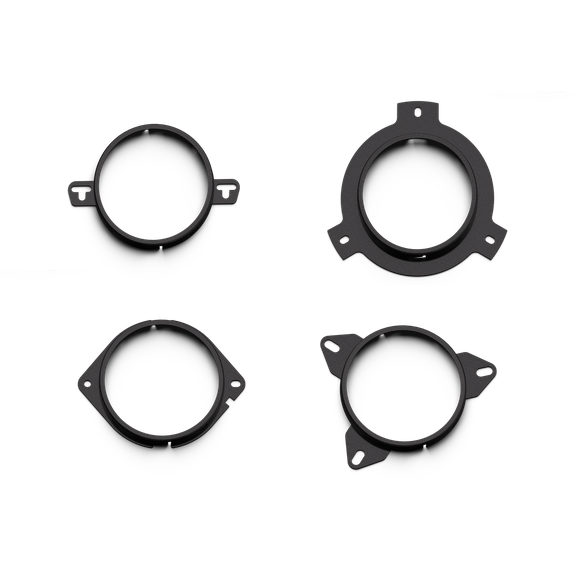

• (2) OEM Adaptors
• Installation Hardware
