Description
Rockford Fosgate Punch P3V2-69
The P3V2‑69 is a 6″ × 9″, 3‑way component speaker system from Rockford Fosgate’s Punch P3 series — designed to deliver full‑range sound with strong mid/bass, clear highs, and good overall fidelity. It uses a mica‑reinforced polypropylene cone with a Santoprene rubber surround for the woofer, and ¾″ inverted‑dome Tetolon tweeters to handle higher frequencies, giving a balanced output across lows, mids, and highs.
Auto Fit Architecture

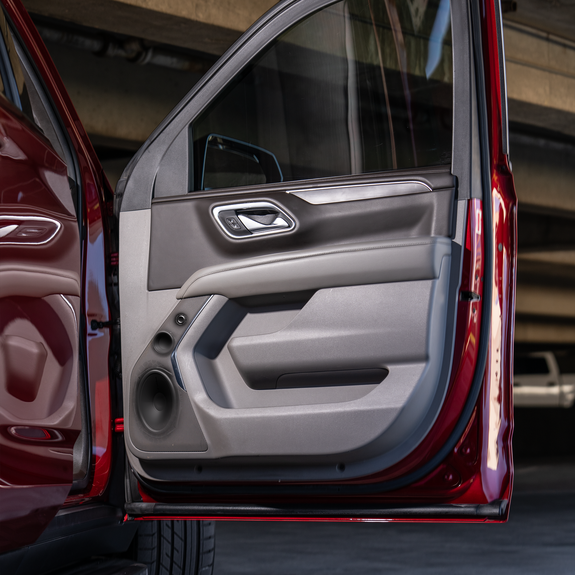

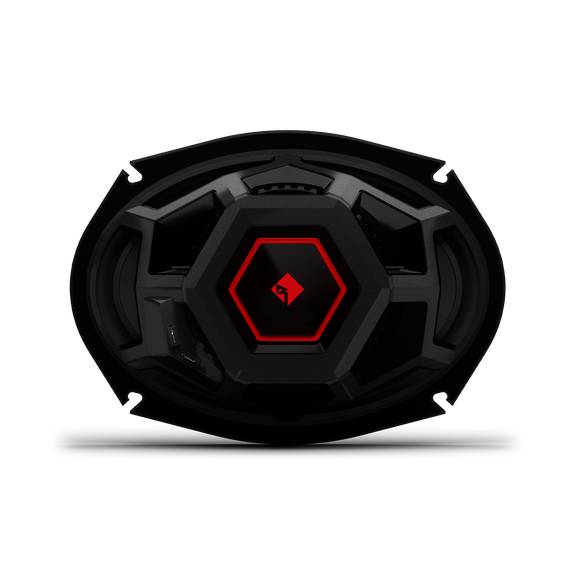

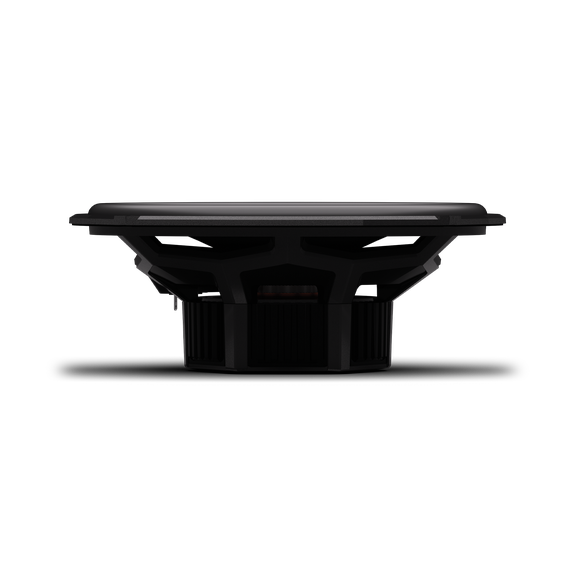

Everything was engineered to fit. A re-designed frame, removable motor cover, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. The factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility

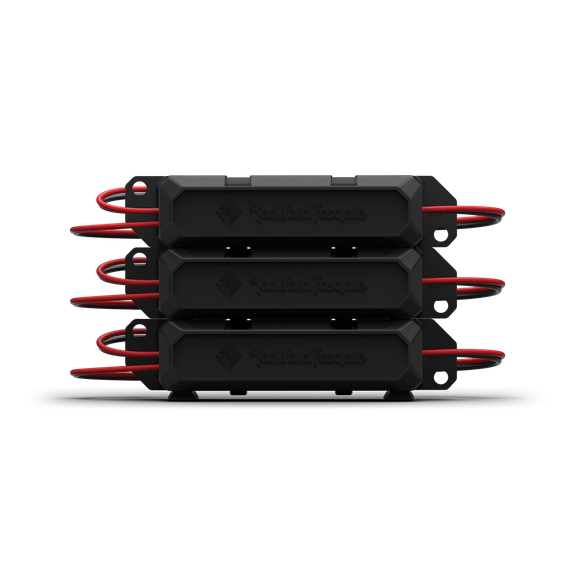

The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven
Powered by advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last
Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Features
| Feature | Detail |
|---|---|
| Speaker Type | Component System |
| Midrange Size (Nominal Diameter) | 6″ x 9″ + 2.5″ |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) |
| Piezo Size (Nominal Diameter) | — |
| Nominal Impedance | 4Ω |
| Frequency Response | 49 Hz – 25 kHz |
| Voice Coil Diameter (in/mm) | 1.25″ (32.5 mm) |
| Crossover | Tweeter: HP 9 kHz @ 12 dB/octave (external), Attenuation: 0 dB or -3 dB (external)Midrange: BP 600 Hz – 6 kHz @ 6 dB/octave (external)Midrange Bass Blocker: —Woofer: LP 1.2 kHz @ 6 dB/octave (external) |
| Sensitivity (dB @ 1W/1M) | 89 dB |
| Sensitivity (2.83V/1M) | 92 dB |
| Fs (Hz) | 65 Hz |
Specifications
| Specification | Detail |
|---|---|
| Series | Punch P3 Series |
| Priced Per | Pair |
| Number of Speakers | 4 Speakers + 2 Tweeters |
| Speaker Size | 6-1/2″ |
| Design | 3-way Component Speakers |
| Tweeter Design | Inverted Dome |
| Tweeter Size | 3/4″ |
| Tweeter Composition | Tetolon |
| Woofer Composition | Mica Reinforced Polypropylene |
| Woofer Surround | Santoprene Rubber |
| Peak Power Handling | 150 watts |
| RMS Power Handling | 75 watts |
| Total Peak Per Pair/Set | 300 watts |
| Total RMS Per Pair/Set | 150 watts |
| Sensitivity | 87 dB |
| Frequency Response | 49 – 25,000 Hz |
| Impedance (Per Voice Coil) | 4 ohm |
| Voice Coil Diameter | 1.25″ |
| Shallow Mount Installation | No |
| Magnet Type | Ferrite |
| Top-Mount Depth (Mounting Depth) | 2.5″ |
| Cutout Dimensions | 5.42″ |
| CTA-2031 Compliant | Yes |
About The Product
The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3 speakers are 3-way component systems for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.

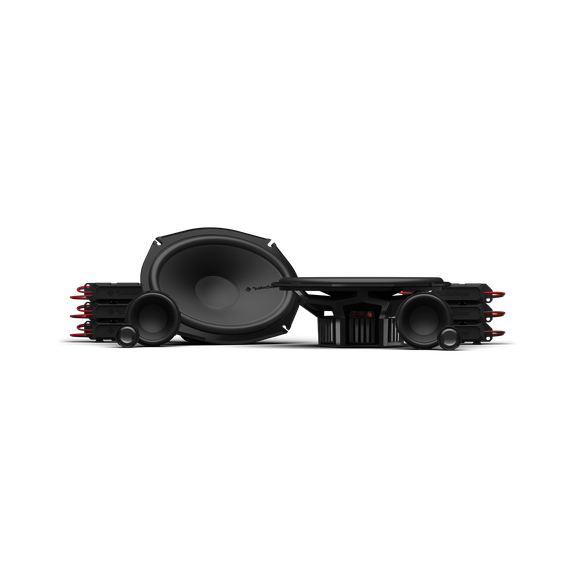

Kit Includes:

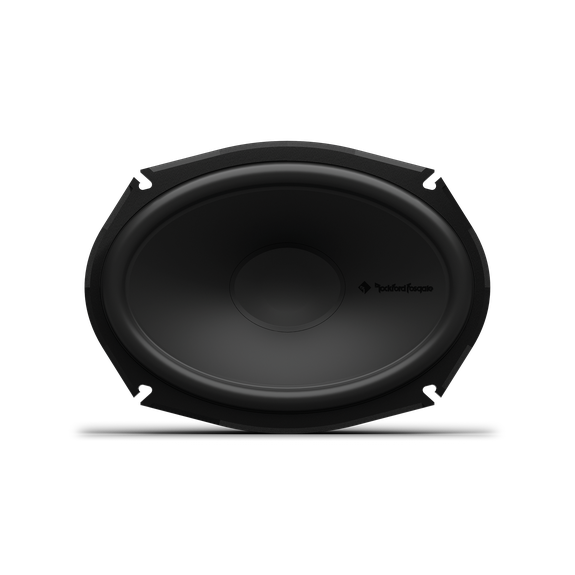

• (2) 6″x9″ Speakers
• (2) 2.5″ Speakers
• (6) Crossovers

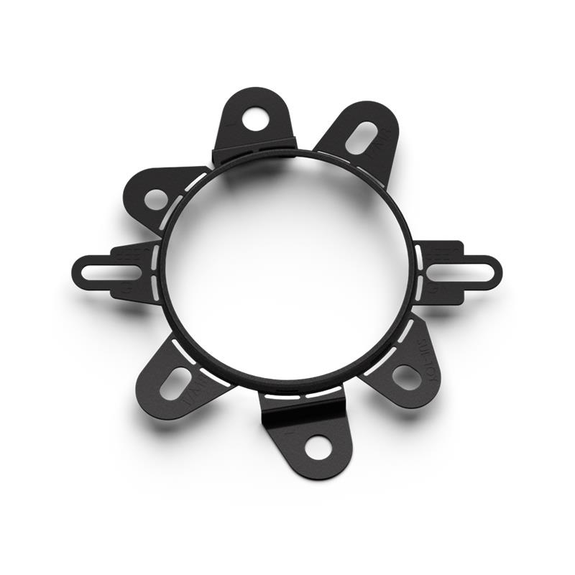

• (2) OEM Adaptors
• Installation Hardware
