Description
Rockford Fosgate Punch P2V2-TS
The P2V2‑TS is a 1″ component tweeter from Rockford Fosgate’s Punch P2 series intended to add crisp, detailed high frequencies to a car audio setup when paired with midrange/woofer speakers. It’s designed for component speaker systems rather than full‑range coaxial replacements.
Features
| Feature | Detail |
|---|---|
| Speaker Type | Convertible |
| Midrange Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) |
| Piezo Size (Nominal Diameter) | — |
| Nominal Impedance | 4Ω |
| Frequency Response | 3.5 Hz – 25 kHz |
| Voice Coil Diameter (in/mm) | 0.75″ (19 mm) |
| Crossover | Tweeter High-Pass: 9 kHz @ 12 dB/octaveTweeter Attenuation: 0 dB or -3 dB |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Fs (Hz) | 3.5 kHz |
| Sensitivity (dB @ 1W/1M) | 90 dB |
Specifications
| Specification | Detail |
|---|---|
| Sensitivity (2.83V/1M) | 93 dB |
| Mounting Diameter | Flush Mount: 1.54″ (39 mm)Surface Mount: 1.22″ (31.1 mm) |
| Rear-Loading Depth (Twist-Loc Adaptor) | — |
| Front-Loading Depth (Twist-Loc Adaptor) | — |
| Mounting Depth (Standard Flange) | Flush Mount: 0.78″ (19.9 mm)Surface Mount: 0.57″ (14.4 mm) |
| Min. Mounting Depth (No Motor Cover) | — |
| Front Side Clearance | Flush: 0.44″ (11.2 mm)Surface: 0.49″ (12.4 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | Yes |
| Included in the Box | (2) 3/4″ 4Ω Tweeters(2) Flush-Mount Tweeter Cups(2) Surface-Mounting Tweeter Cups(1) Tweeter Removal Tool(2) Passive Crossover Network (Tweeter)(4) Self-Tapping Phillips #4x16mm (Tweeter)(4) Self-Tapping Phillips #8x20mm (Crossover)(2) 18” Crossover Wiring Extensions(4) 18 AWG Crimp Butt Connectors(4) Zip Ties 4.8 mm x 350 mm |
| Mounting Hardware | No |
About The Product

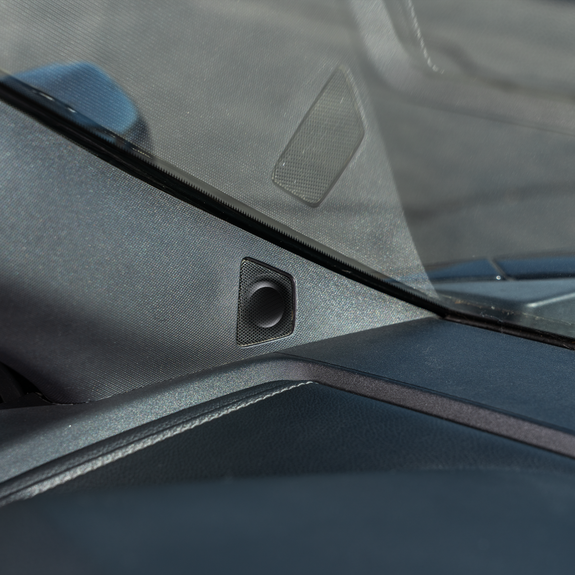

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. Use the P2V2-TS as a fast drop-in or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.
Kit Includes:
• (2) 3/4″ Tweeters
• (2) Flush Mount Cups
• (2) Surface Mount Cups

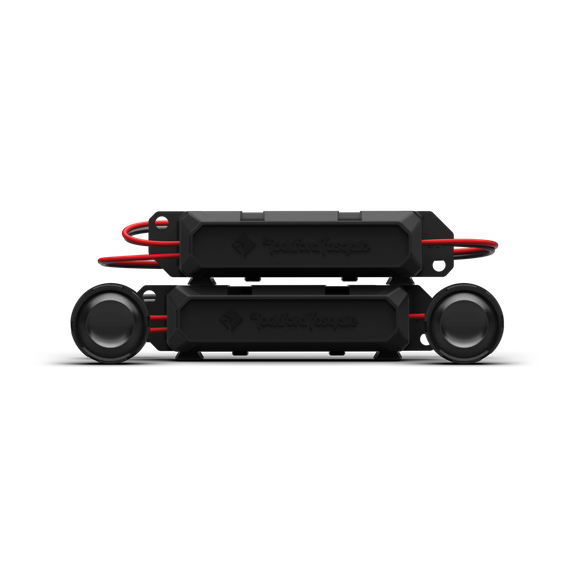

• (2) Crossovers
