Description

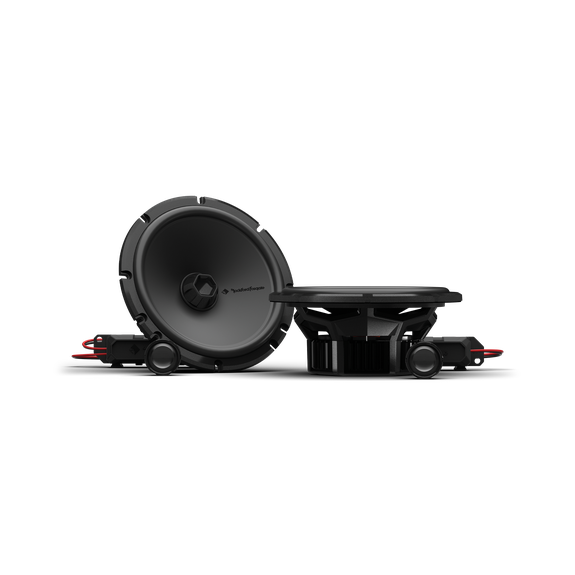

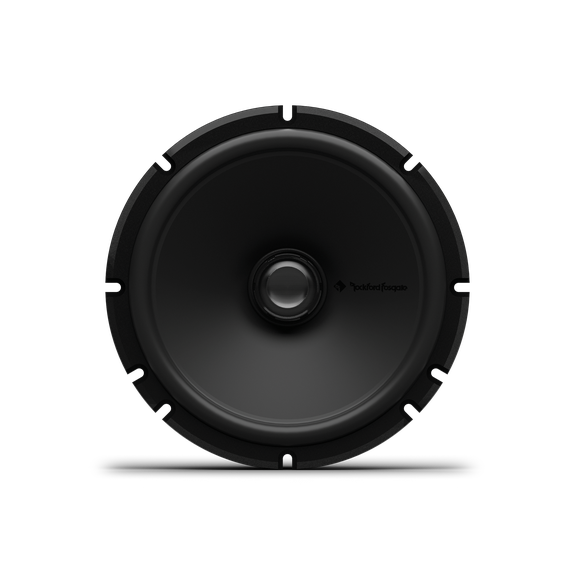

Rockford Fosgate Punch P2V2-675

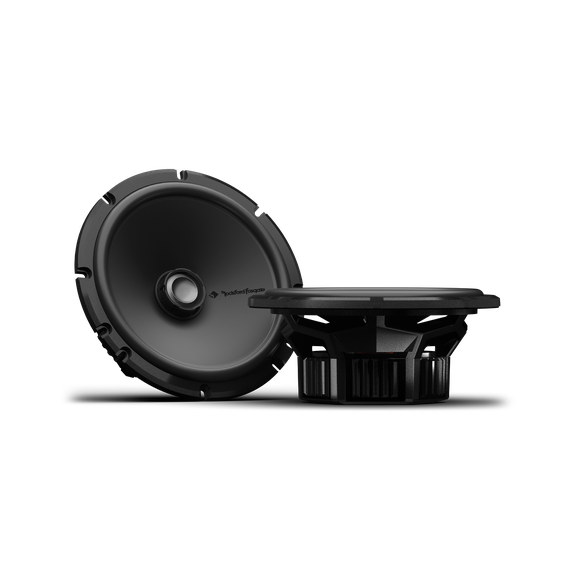

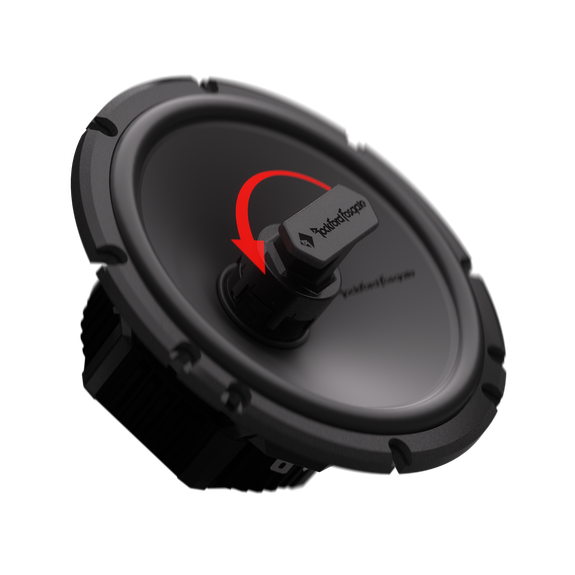

The P2V2‑675 is a 6.75″, 2‑way convertible speaker set from Rockford Fosgate’s “Punch P2” line — meaning you can install it either as a simple coaxial speaker (woofer + tweeter mounted together) or as a component system (separate tweeter) depending on your setup.
Features
| Feature | Detail |
|---|---|
| Speaker Type | Convertible |
| Midrange Size (Nominal Diameter) | 6.75″ |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) |
| Piezo Size (Nominal Diameter) | — |
| Nominal Impedance | 4Ω |
| Frequency Response | 49 Hz – 25 kHz |
| Voice Coil Diameter (in/mm) | 1.25″ (32.5 mm) |

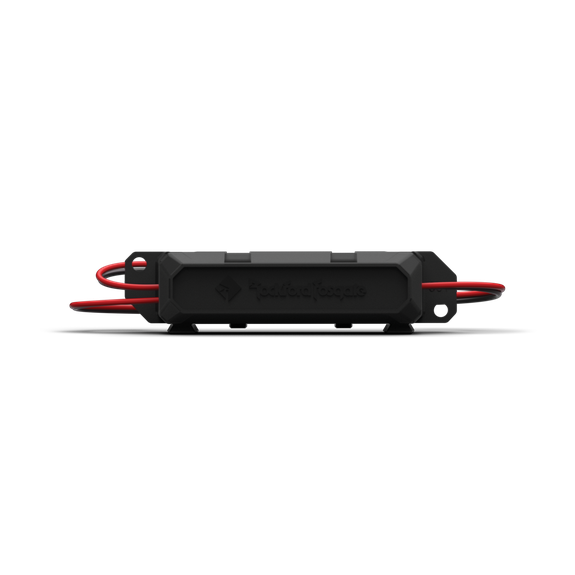

| Crossover | Tweeter High-Pass: 9 kHz @ 6 dB/octave (internal)Tweeter High-Pass: 9 kHz @ 12 dB/octave (external)Tweeter Attenuation: 0 dB or -3 dB (external) |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Fs (Hz) | 65 Hz |
| Sensitivity (dB @ 1W/1M) | 88 dB |
Specification
| Specification | Detail |
|---|---|
| Series | Punch P2 Series |
| Priced Per | Pair |
| Number of Speakers | 2 Speakers + 2 Tweeters |
| Speaker Size | 6-3/4″ |
| Design | 2-way Component System |
| Tweeter Design | Inverted Dome |
| Tweeter Size | 3/4″ |
| Tweeter Composition | Tetolon |
| Woofer Composition | Mica Reinforced Polypropylene |
| Woofer Surround | Santoprene Rubber |
| Peak Power Handling | 150 watts |
| RMS Power Handling | 75 watts |
| Total Peak Per Pair/Set | 300 watts |
| Total RMS Per Pair/Set | 150 watts |
| Sensitivity | 88 dB |
| Frequency Response | 49 – 25,000 Hz |
| Impedance (Per Voice Coil) | 4 ohm |
| Voice Coil Diameter | 1.25″ |
| Shallow Mount Installation | No |
| Magnet Type | Ferrite |

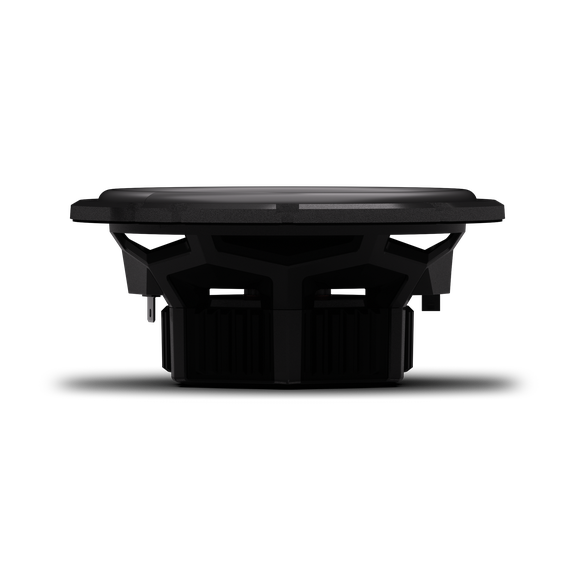

| Top-Mount Depth (Mounting Depth) | 2.48″ |
| Cutout Dimensions | 5.67″ |
| CTA-2031 Compliant | Yes |
