Description
Rockford Fosgate Punch P1V2-675

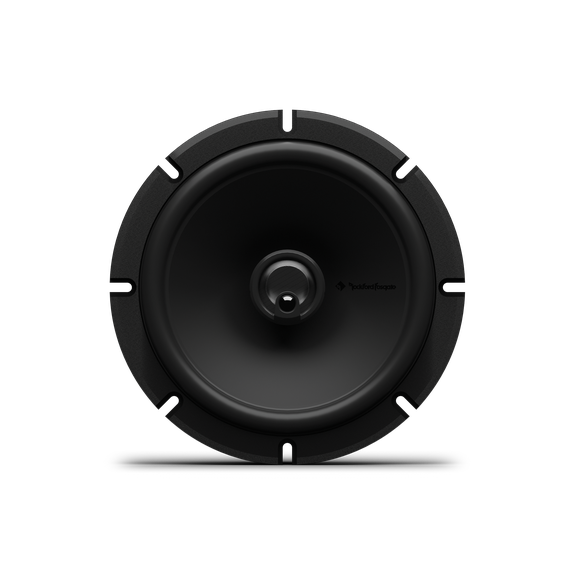

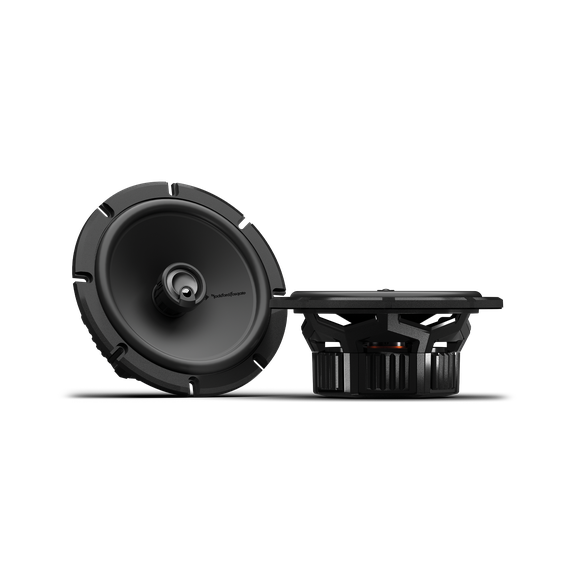

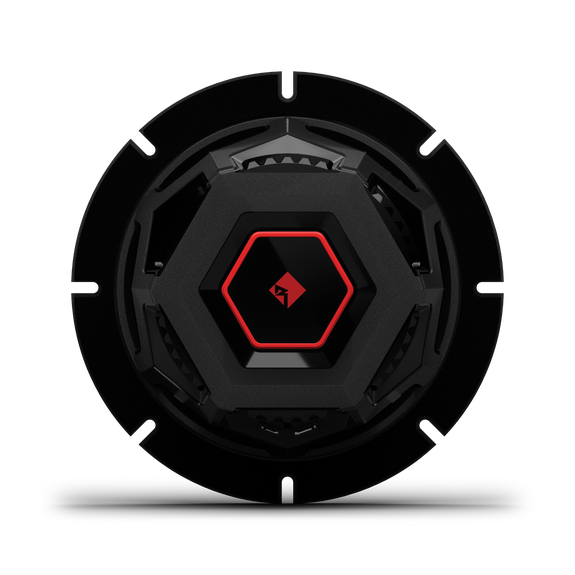

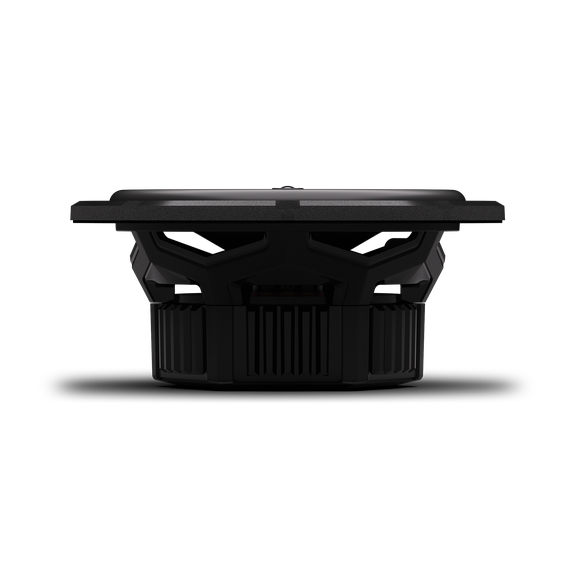

The P1V2-675 is a 6.75″, 3-way coaxial speaker from Rockford Fosgate’s Punch P1 series, built as a full-range car speaker with a good balance of mids, highs, and usable bass designed to replace factory speakers while offering noticeable sound quality improvement.
Features
| Feature | Detail |
|---|---|
| Speaker Type | Coaxial |
| Midrange Size (Nominal Diameter) | 6.75″ |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) Inverted Dome |
| Piezo Size (Nominal Diameter) | 3/8″ (9 mm) Co-Witnessed Convex |
| Nominal Impedance | 4Ω |
| Frequency Response | 49 Hz – 25 kHz |
| Voice Coil Diameter (in/mm) | 1″ (25.4 mm) |
| Crossover | Tweeter High-Pass: 9 kHz @ 6 dB/Octave |
| Fs (Hz) | 65 Hz |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Sensitivity (dB @ 1W/1M) | 88 dB |
Specification
| Specification | Detail |
|---|---|
| Series | Punch P1 Series |
| Priced Per | Pair |
| Number of Speakers | 2 |
| Speaker Size | 6-3/4″ |
| Design | 3-way Coaxial |
| Tweeter Design | Inverted Dome |
| Tweeter Size | 3/4″ |
| Tweeter Composition | Tetolon |
| Woofer Composition | Mica Reinforced Polypropylene |
| Woofer Surround | Santoprene Rubber |
| Peak Power Handling | 150 watts |
| RMS Power Handling | 75 watts |
| Total Peak Per Pair/Set | 300 watts |
| Total RMS Per Pair/Set | 150 watts |
| Sensitivity | 88 dB |
| Frequency Response | 49 – 25,000 Hz |
| Impedance (Per Voice Coil) | 4 ohm |
| Voice Coil Diameter | 1″ |
| Shallow Mount Installation | No |
| Magnet Type | Ferrite |
| Top-Mount Depth (Mounting Depth) | 2.48″ |
| Cutout Dimensions | 5.67″ |
| CTA-2031 Compliant | Yes |
About The Product
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.
Kit Includes:
• (2) 6.75″ Speakers
• Installation Hardware
