Description
Rockford Fosgate Punch P1V2-3
The P1V2‑3 is a compact 3″ 3‑way coaxial speaker from Rockford Fosgate’s Punch P1 line, designed to deliver surprisingly full‑range sound even where space is limited. Despite its small size, it offers a balanced sound profile tight mids and mid‑bass from its mica‑reinforced woofer, smooth highs from the inverted‑dome tweeter, and additional clarity from a super‑tweeter — making it a solid upgrade over factory speakers in doors or dashboards. Its moderate power handling and 4 Ω impedance make it compatible with most car head units or smaller amplifiers, while shallow depth ensures easy installation without major modifications.
Features
| Feature | Details |
|---|---|
| Speaker Type | Coaxial |
| Midrange Size (Nominal Diameter) | 3.5″ |
| Tweeter Size (Nominal Diameter) | 3/4″ (19 mm) Inverted Dome |
| Piezo Size (Nominal Diameter) | 3/8″ (9 mm) Co-Witnessed Convex |
| Nominal Impedance | 4 Ω |
| Frequency Response | 98 Hz – 25 kHz |
| Voice Coil Diameter | 1″ (25.4 mm) |
| Crossover | Tweeter High-Pass: 9 kHz @ 6 dB/OctaveMidrange Bass Blocker: 1,200 Hz @ 6 dB/Octave (33 µF) |
| Fs (Hz) | 130 Hz |
| Power Handling | 75 W RMS / 150 W Peak |
| Sensitivity | 82 dB @ 1W/1m |
Specification
| Specification | Details |
|---|---|
| Series | Punch P1 Series |
| Priced Per | Pair |
| Number of Speakers | 2 |
| Speaker Size | 3″ |
| Design | 3-way Coaxial |
| Tweeter Design | Inverted Dome |
| Tweeter Size | 3/4″ |
| Tweeter Composition | Tetolon |
| Woofer Composition | Mica reinforced Polypropylene |
| Woofer Surround | Santoprene Rubber |
| Peak Power Handling | 150 W |
| RMS Power Handling | 75 W |
| Total PEAK Per Pair/Set | 300 W |
| Total RMS Per Pair/Set | 150 W |
| Sensitivity | 82 dB |
| Frequency Response | 98 – 25,000 Hz |
| Impedance (Per Voice Coil) | 4 Ω |
| Voice Coil Diameter | 1″ |
| Magnet Type | Ferrite |
| Top-Mount Depth (Mounting Depth) | 1.70″ |
| Cutout Dimensions | 2.87″ |
| CTA-2031 Compliant | Yes |
About The Product
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.
Kit Includes:
• (2) 3.5″ Speakers

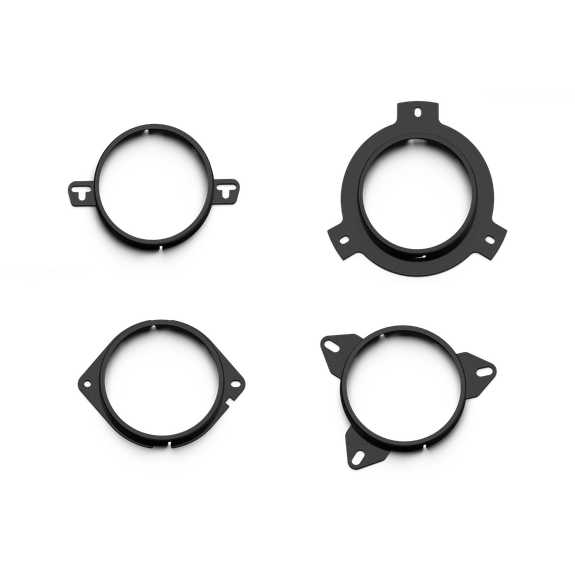

• (4) OEM Adaptors
• Installation Hardware
