Description

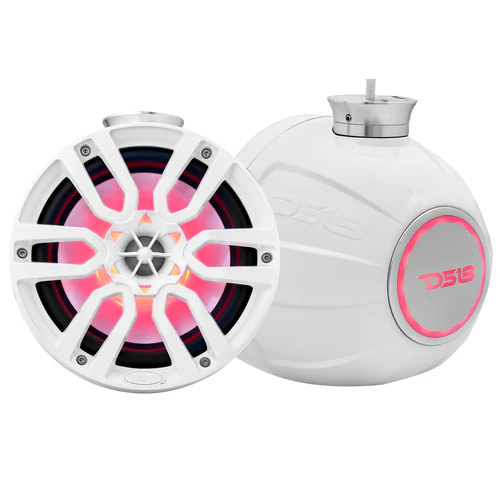

DS18 NXL-PS8W
The NXL‑PS8 is a set of 8″ compact marine‑grade speaker pods featuring integrated RGB LED lighting and rugged construction for outdoor, marine, UTV, ATV, and powersports audio systems. Designed with a 2‑way configuration, 93 dB sensitivity, and waterproof IP65 rating, these speakers deliver punchy mids, clear highs, and reliable output even in wet or dusty environments. They include versatile mounting options (pole and flat clamps) for easy installation on towers, roll bars, and other surfaces.
Specifications
| Parameter | Details |
|---|---|
| SKU | NXL-PS8 |
| Nominal Diameter | 8″ / 203 mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 125 W |
| MAX Power Handling | 375 W |
| Sensitivity (1W / 1m) | 93 dB |
| Frequency Response | 55 Hz – 23 kHz |
| Recommended Hi-Pass Crossover | 70 Hz |
Body / Features
| Feature | Specification |
|---|---|
| Enclosure Material | Injection PC + ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB speaker cone + back logo lighting, 6 core wires for lighting and speaker |
| Grill Type | Injection molded ASA + UV coating |
| Pair | Yes |
| Clamps | CNC aluminum base for flat mounting and die-cast solid aluminum 360° rotation mobile clamps for 1.75″ or 2″ mast included |
| Front Logo | Yes, can be rotated for correct angle display |
| Rear Logo | Yes, can be rotated for correct angle display |
| Finish | Matte Black |
Woofer Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1.2″ |
| Cone Material | Injection-molded UV-compliant polypropylene |
| Surround Material | Butyl |
| Basket Material | High-temp injection molded composite + UV coating |
| Magnet Material | Ferrite + Neodymium |
| Magnet Grade | Y35 / N40H |
| Passive Radiator | No |
Tweeter Specifications
| Parameter | Specification |
|---|---|
| Voice Coil Diameter | 1″ |
| Type | Dome |
| Diaphragm Material | Titanium + PEI surround |
| Magnet Material | Neodymium |
| Crossover | 6 dB / Oct |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 22.5 L / 0.795 ft³ |
| Excursion (one-way Xmax) | 4 mm |
| Free Air Resonance (Fs) | 50 Hz |
| Total Factor (Qts) | 0.532 |
Speaker Measurements
| Parameter | Specification |
|---|---|
| Overall Diameter | 8.59″ / 218.1 mm |
| Overall Depth | 6.8″ / 173 mm |
| Overall Height (with Mast Clamp) | 11.54″ / 293.1 mm |
| Overall Height (with Flat Clamp) | 9.4″ / 238.7 mm |
Product Overview
8” All Elements Speaker Pod (Pair) – Perfect for Jet Skis
The NXL-PS8 is your go-to 8” speaker pod for MAX output in open-air environments. With louder mids, stronger bass presence, and full RGB LED lighting, the PS8 is built to dominate wherever your ride takes you.
Audio Domination
Designed with a 1.2″ voice coil and 93dB sensitivity, the PS8 delivers massive power (125W RMS / 375W Peak) across a wide-range frequency response of 65Hz to 23kHz. That means clean vocals, punchy mids, and crystal clear highs—no matter how LOUD your adventure gets.
Integrated RGB LED Lighting
Show off your sound with built-in RGB illumination behind the cone and DS18 logo. Unlock full lighting control with DS18’s LED-BTC controller and the DS18 LED-BTC App on iOS or Android. Change colors, flash patterns, brightness, or sync to the beat—right from your phone.
Versatile Mounting Options
Each pair of NXL-PS8 speakers ships with both pole and flat mounts, giving you flexible install options for towers, roll cages, and flat surfaces alike. Want even more mounting control? Add the optional FLMBPS/V2 flat mount bracket for an upgraded 30° tilt-adjustable mount that’s perfect for custom installs and directional aiming.
Marine-Tough
Engineered with IP65 waterproofing, UV-resistant materials, and rugged construction, these pods are made to handle waves, dust, rain, and trail grit like a champ.
