Description

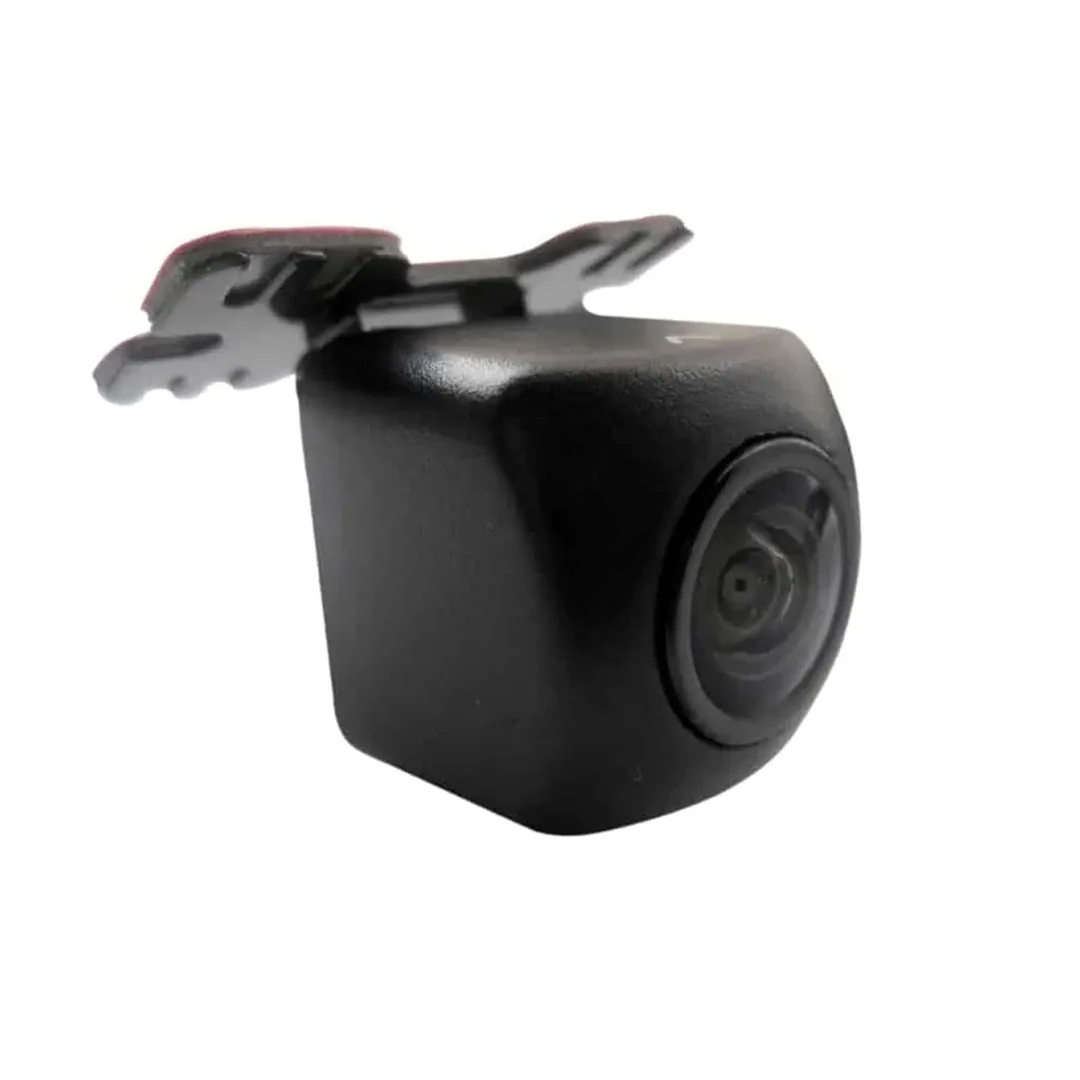

Pioneer ND‑BC010
The Pioneer ND-BC010 is a universal rear-view/backup camera designed to work with aftermarket in-dash receivers that feature a composite video input. It uses a 1/3″ color CMOS image sensor with approximately 968 × 488 resolution (about 470,000 pixels), and offers a wide-angle lens with 155° horizontal and 125° vertical field of view. The camera features excellent low-light capability (down to around 0.01 lux) and an IP67/68-rated aluminum housing for weather-proof performance. It comes with mounting hardware, a 9.5′ video cable, and a 23′ extension cable to support installation in larger vehicles.
Specifications
PRODUCT PERFORMANCE
| Feature | Specification |
|---|---|
| Operating Temperature | –22 ºF to +158 ºF, –30 ºC to +70 ºC |
ASSISTANCE CAMERA
| Feature | Specification |
|---|---|
| Camera-Power Source | Vehicle battery |
| Imaging Sensor | CMOS |
| Recording Angles Main | Horizontal 155°, Vertical 125° |
| Resolution | 968 x 488 |
ASSISTANCE FEATURES
| Feature | Specification |
|---|---|
| Mount Included | Yes |
| Mounting Location | Adhesive |
| Mount Types | Vehicle Specific, Adhesive |
About The Product
The ND-BC010 Universal Rearview/Backup Camera is compatible with Pioneer audio/video in-dash receivers that feature a rear-view camera input. It offers a wide-angle view of 155 degrees horizontally and 125 degrees vertically, with a resolution of over 470,000 pixels for detailed imagery. The ND-BC010 is equipped with a CMOS (Complementary Metal Oxide Semiconductor) sensor that provides improved resolution and glare reduction during daytime use, as well as enhanced low-light capability for nighttime use.
Installation Flexibility
This backup camera utilizes the vehicle’s power supply with minimal connections for easier installation, and its compact size allows for hassle-free mounting. It also includes a 10-meter cable for installation on long trucks, SUVs, and recreational vehicles. To assist with the installation process, we designed this camera with small in-line pen-type connectors, making it easier to route the wire into the cabin without the need for large holes.
Improved Visibility
A wide-angle 155 degree horizontal and 125 degree vertical angle lens allows viewing more objects. The 1/3” (8.5mm) color CMOS sensor delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use.
