Description

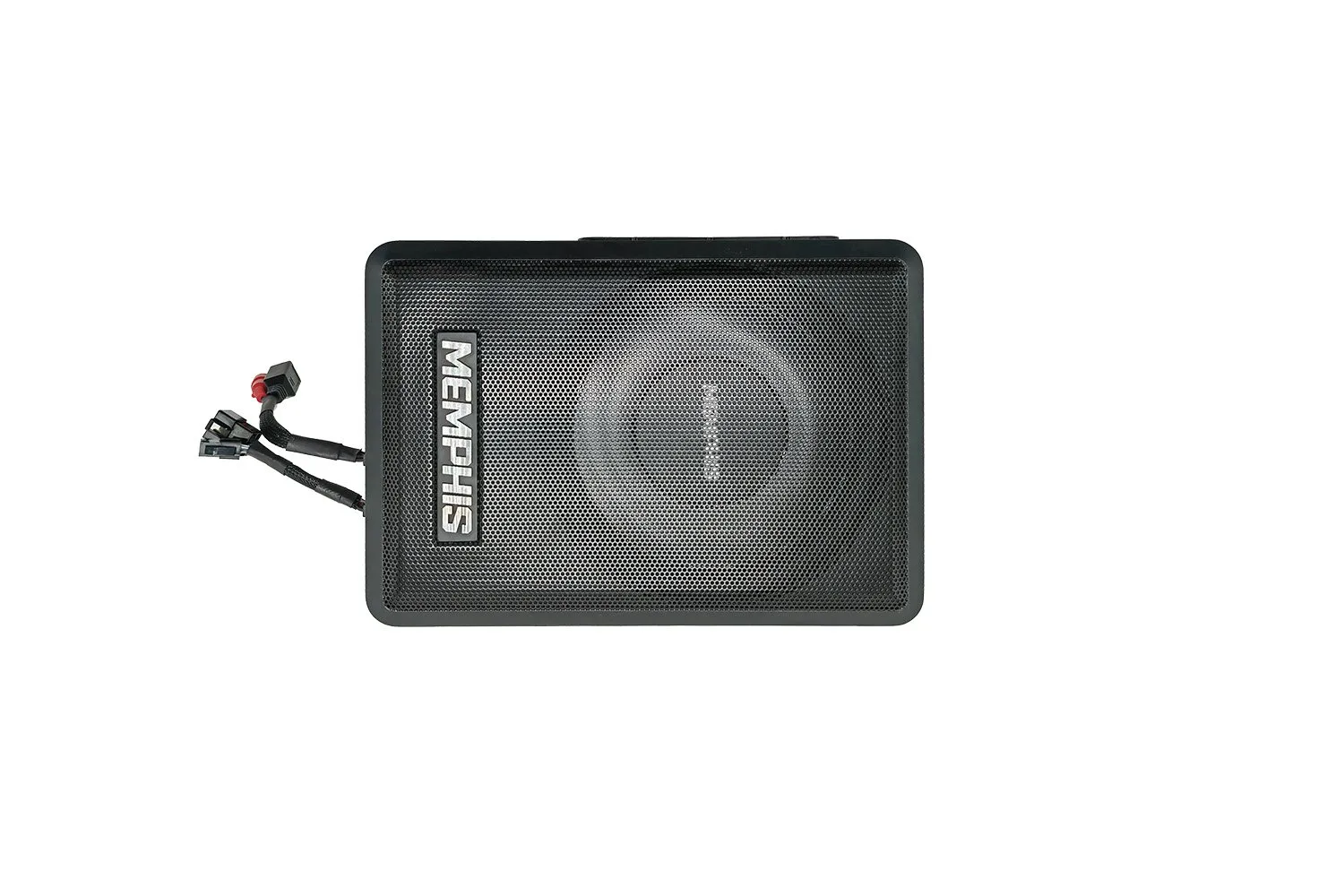

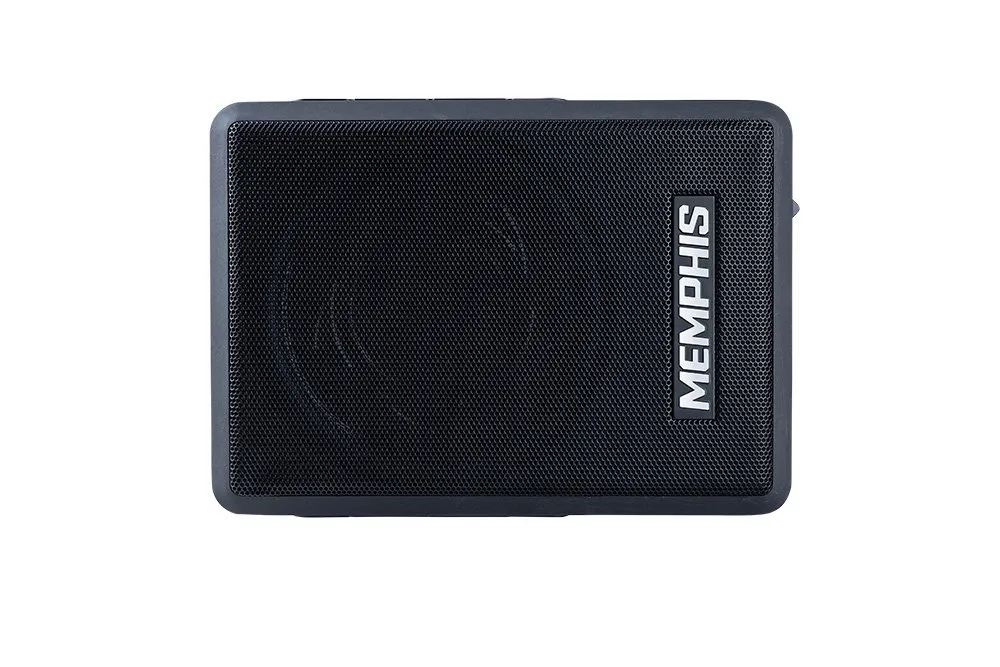

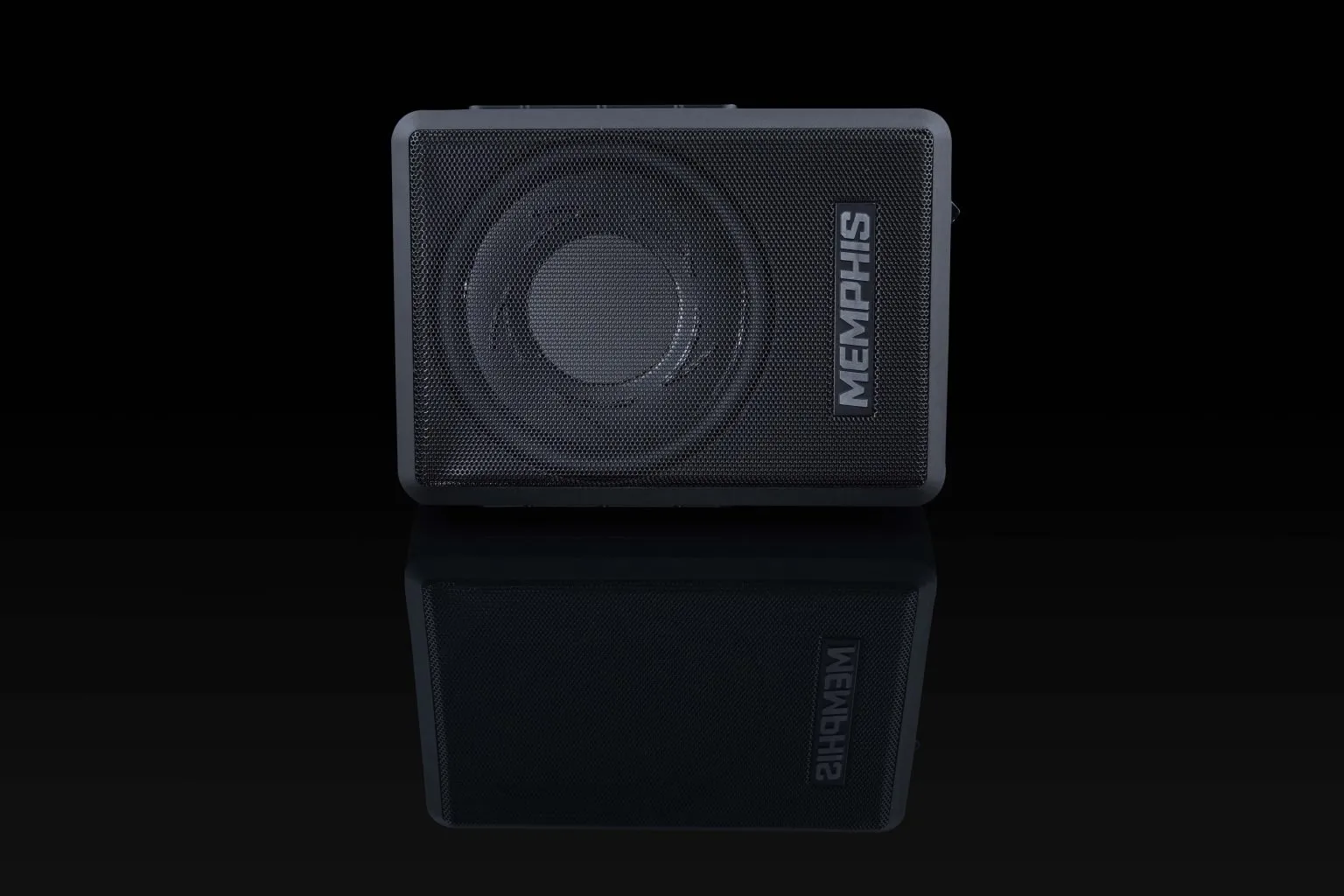

Memphis NANO10SPX
The NANO10SPX is a weatherproof, powered under-seat subwoofer designed for compact and rugged installations in vehicles like Jeeps, trucks, and UTVs. It features a 10″ subwoofer with a built-in Class‑D amplifier, oversized passive radiator, die-cast aluminum enclosure, integrated RGB LED ground lighting, remote gain control, high/low level inputs, bass boost (0–14 dB), adjustable low-pass (50–150 Hz) and subsonic filters (20 Hz), and protection circuits for thermal, short-circuit, and overload safety.
Features
| Feature | Description |
|---|---|

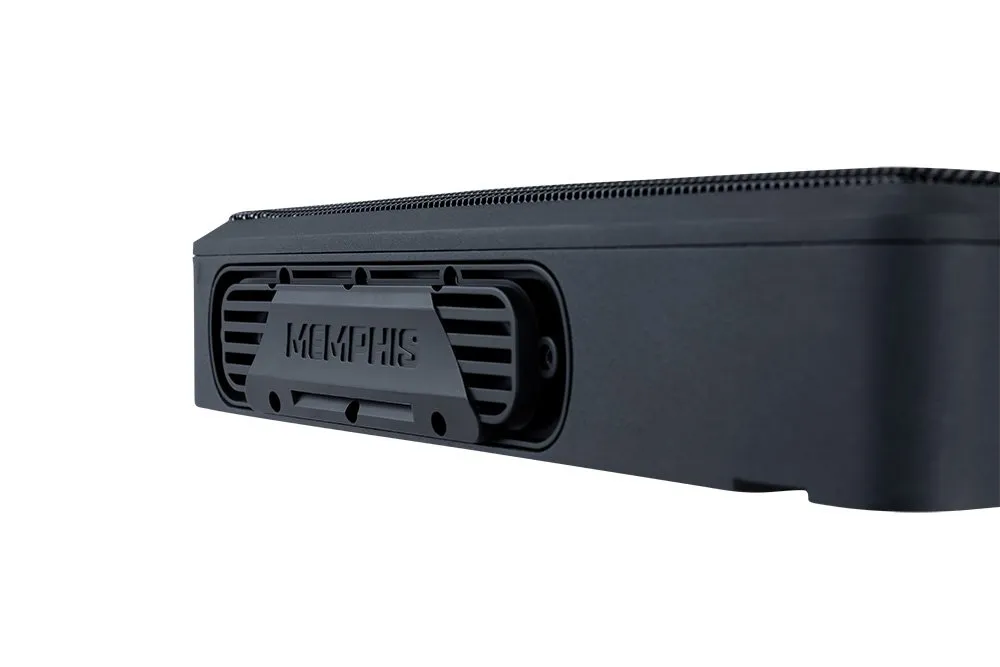

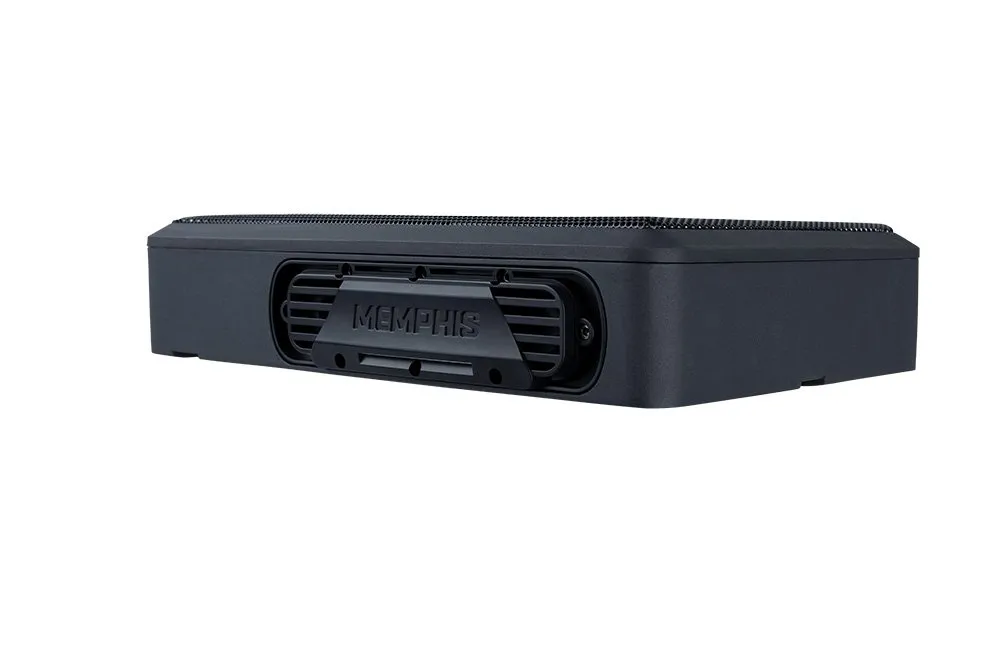

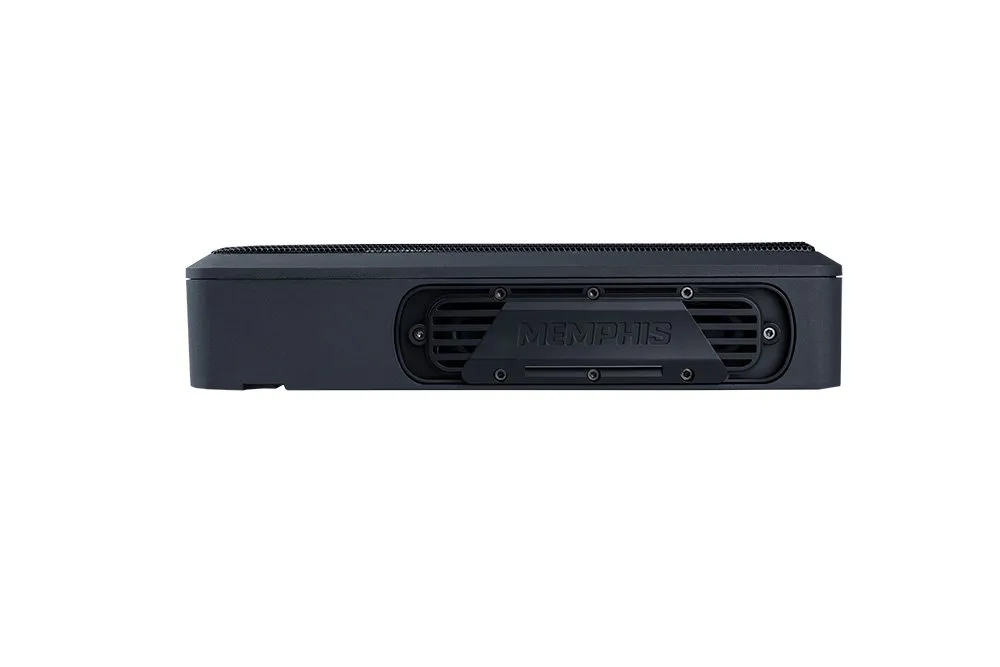

| Passive Radiator | Extremely loud, oversized cone |
| Amplifier | Maximum efficiency, built-in Class D |
| Enclosure | Sleek and durable diecast aluminum |
| Controls | Remote level control (Dial it in) |
| Inputs | High and low level inputs for easy installation |
| Bass Boost | 0–14 dB (Maximum Bass) |
| Filters | Low pass and subsonic for clean sound |
| Protection | Thermal, short circuit, and overload |

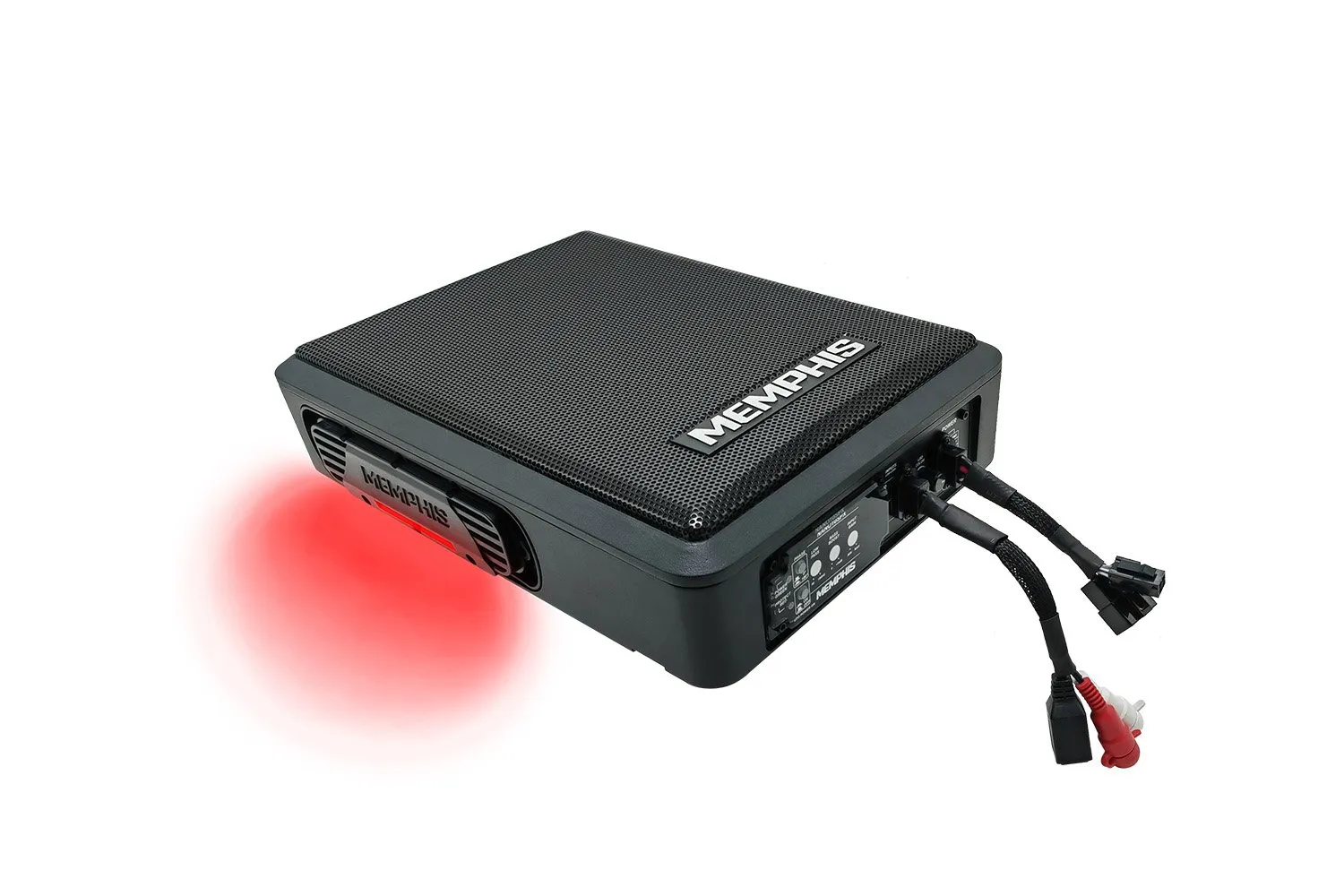

| Lighting | RGB LED ground lighting |
Specifications
| Feature | Specification |
|---|---|
| RMS Power | 180 W |
| Max Power | 360 W |
| Total Harmonic Distortion (THD) | < 1% |
| Signal-to-Noise Ratio | > 90 dB |
| Frequency Response | 20–150 Hz |
| Low Pass Filter | 50–150 Hz |
| Subsonic Filter | 20 Hz |
| Subwoofer | 10″, 2 Ω |
| Dimensions (L × W × H) | 13.6 × 9.6 × 2.7 |
