Memphis MJP1222

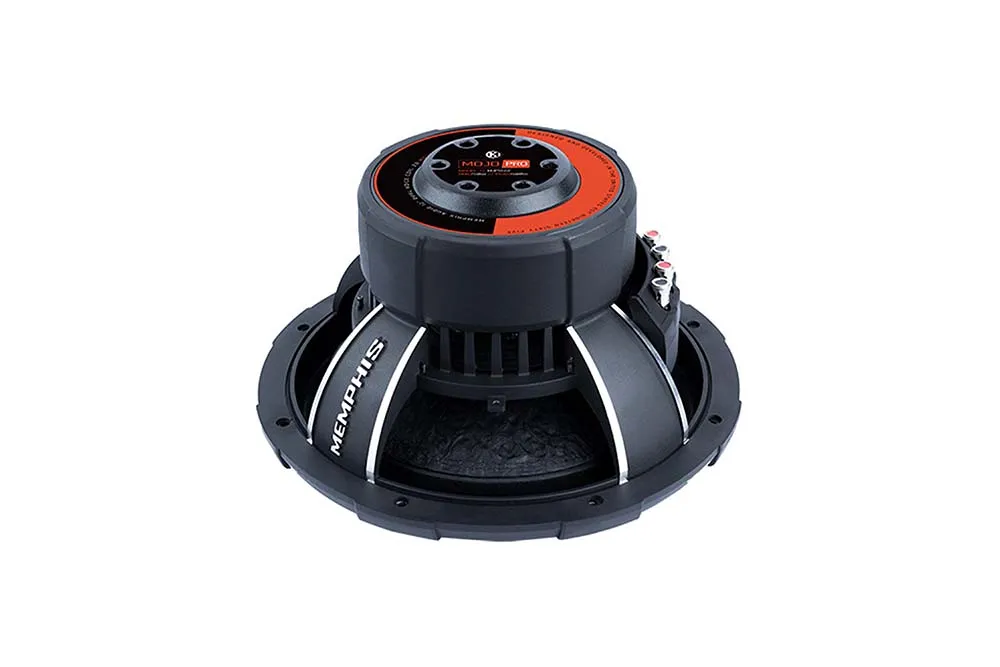

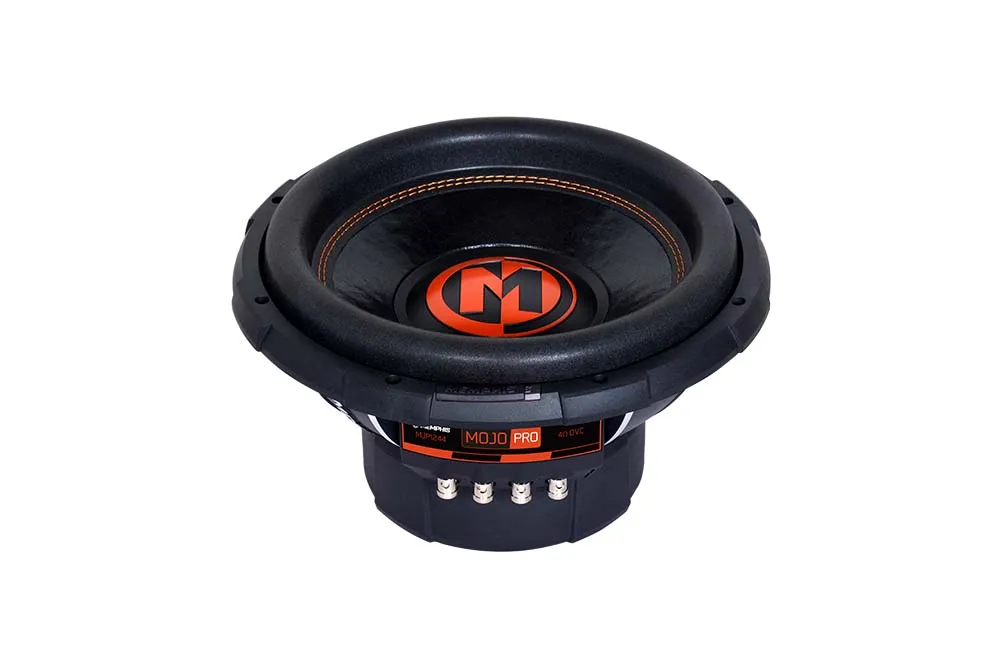

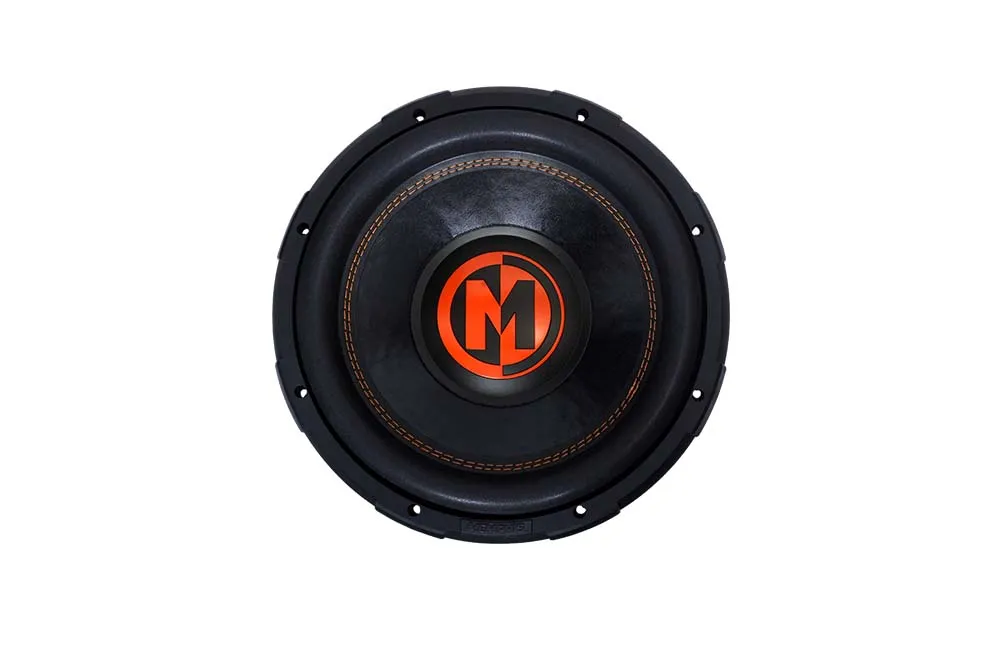

The Memphis MJP1222 is a premium 12″ Dual 2 Ohm subwoofer from the MOJO Pro Series, designed for high SPL performance in car audio systems. Featuring a rigid paper cone with double-stitched foam surround and diamond-studded gold basket accents, this subwoofer delivers precise, powerful bass. Its DVVC Direct Vent Voice Coil Cooling, cross-drilled front plate venting, and aluminum shorting ring reduce heat and inductance for maximum efficiency. With a 2.5″ high-temperature copper voice coil, Xmax of 12 mm, and a 120 oz double-stacked ferrite motor structure, it ensures strong, clean, and reliable output.
Feature
| Specification | Details |
|---|---|
| Model | MOJO Pro Series 12″ Dual 2Ω |
| RMS / Peak Power | 750 / 1500 Watts |
| Cone | Rigid paper cone with double-stitched foam surround |
| Coil Cooling | DVVC – Direct Vent Voice Coil Cooling |
| Venting | Cross-drilled front plate venting |
| Voice Coil | 2.5″ High-Temperature Copper with Aluminum shorting ring |
| Basket Accents | Diamond-studded gold basket accents and logos |
| Suspension | Progressive spider and diecast spider for high SPL performance |
| Terminals | Single-sided compression terminals |
| Xmax | 12 mm |
| Resonance Frequency (Fs) | 30.8 Hz |
| Recommended Box Volume | Sealed – 1.5 cu ft, Ported – 2.5 cu ft |
| Top-Mount Depth | 6.23″ |
| Cutout Diameter | 11.34″ |
| Dealer | Authorized Internet Dealer |
| Warranty | 1-Year Manufacturer’s Warranty |
Specifications
| Specification | Details |
|---|---|
| Model | MJP1222 |
| Impedance | Dual Voice Coil 2Ω |
| Size (in) | 12 |
| RMS / Peak Power | 750 / 1500 |
| Sensitivity (dB) | 85.15 |
| Magnet Size (Oz) | 120 |
| Mounting Depth (in) | 6.23 |
| Cut Out Diameter (in) | 11.34 |
| Voice Coil | 2.5 |
