Description

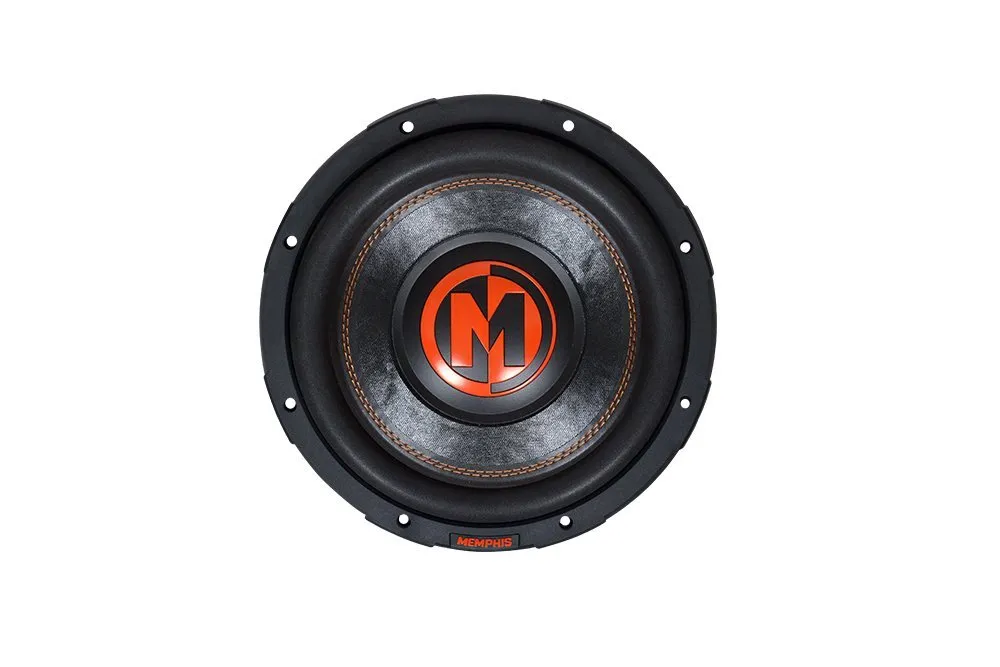

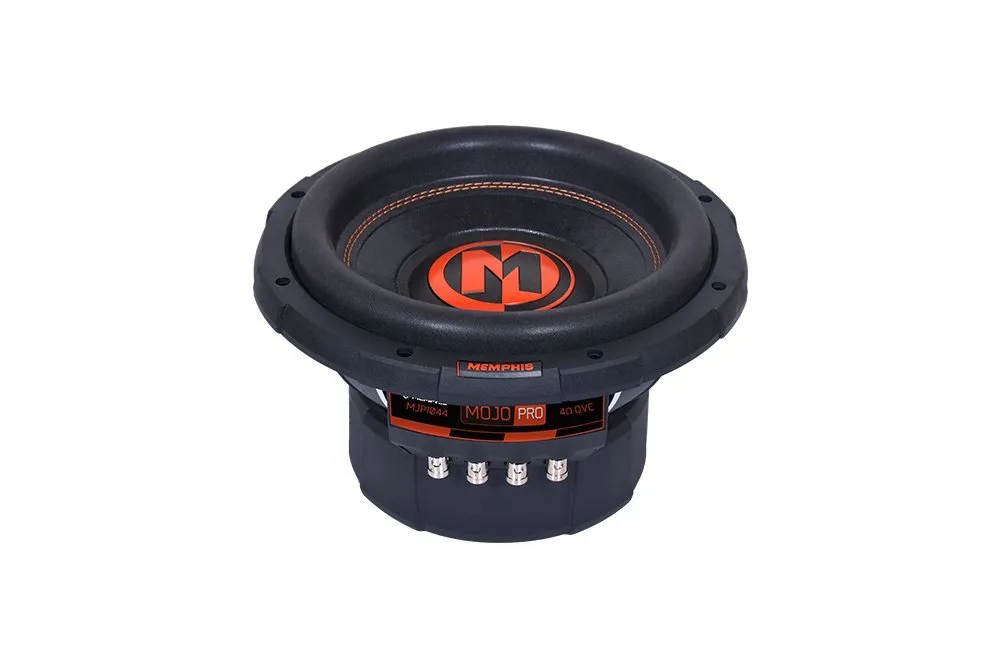

Memphis MJP1044
The Memphis MJP1044 is a 10″ Dual 4 Ohm subwoofer from the MOJO Pro Series, engineered for high SPL performance in car audio systems. It features a rigid paper cone with double-stitched surround and a progressive spider with diecast basket, delivering clean, powerful bass. Its DVVC Direct Vent voice coil cooling, cross-drilled front plate venting, and aluminum shorting ring ensure reduced heat and enhanced efficiency. The 2.5″ high-temperature aluminum voice coil, 12.95 mm Xmax, and 120 oz double-stacked magnet motor structure guarantee robust and precise sound reproduction.
Features
| Specification | Details |
|---|---|
| Subwoofer Size | 10″ Dual 4Ω |
| Series | MOJO Pro Series |
| Power Handling | RMS: 750W / Peak: 1500W |
| Cone Material | Paper Cone |
| Surround | Double-Stitched Surround |
| Design | Specifically designed for high SPL performance |
| Cooling | DVVC Direct Vent voice coil cooling, Cross-drilled front plate venting |
| Shorting Ring | Aluminum shorting ring |
| Basket Design | Progressive spider and diecast basket |
| Terminals | Single-sided compression terminals |
| Voice Coil | 2.5″ High-Temperature Aluminum |
| Xmax | 12.95 mm |
| Magnet Motor | 120 oz. Double-stacked magnet motor structure |
| Resonance Frequency (Fs) | 39.3 Hz |
| Sensitivity | 83.77 dB |
| Recommended Sealed Box Volume | 0.75 cu ft |
| Recommended Ported Box Volume | 1.6 cu ft |
| Top-Mount Depth | 5.72″ |
| Cutout Diameter | 9.45″ |
| Authorized Dealer | Yes |
| Warranty | 1-Year Manufacturer’s Warranty |
Specifications
| Specification | Details |
|---|---|
| Model | MJP1044 |
| Impedance | Dual Voice Coil 4Ω |
| Size (in) | 10 |
| RMS / Peak Power | 750 / 1500 |
| Sensitivity (dB) | 83.77 |
| Magnet Size (Oz) | 120 |
| Mounting Depth (in) | 5.72 |
| Cut Out Diameter (in) | 9.45 |
| Voice Coil | 2.5 |
