Description

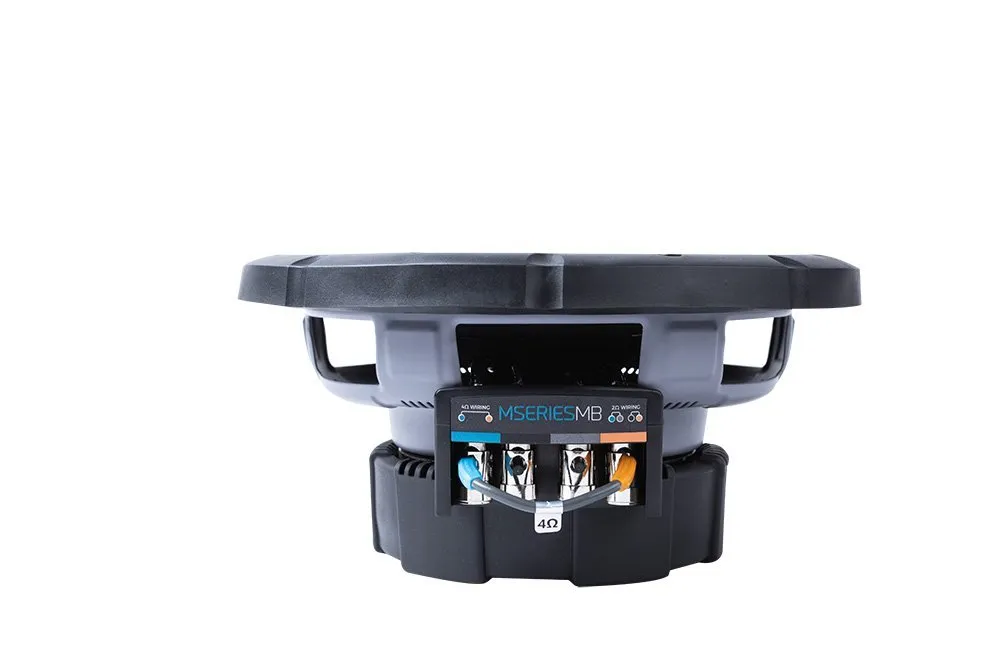

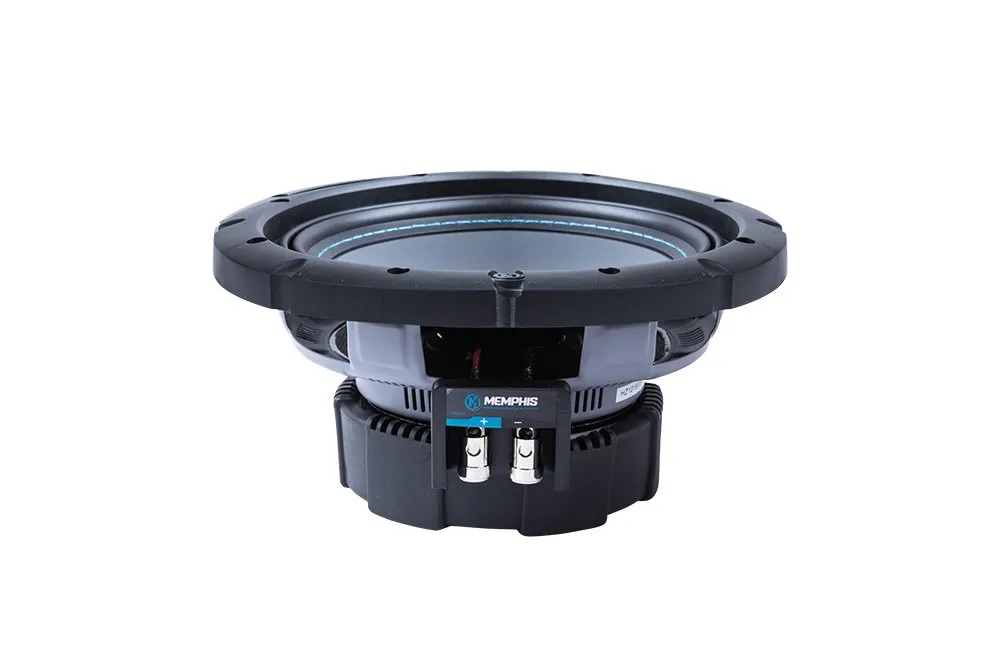

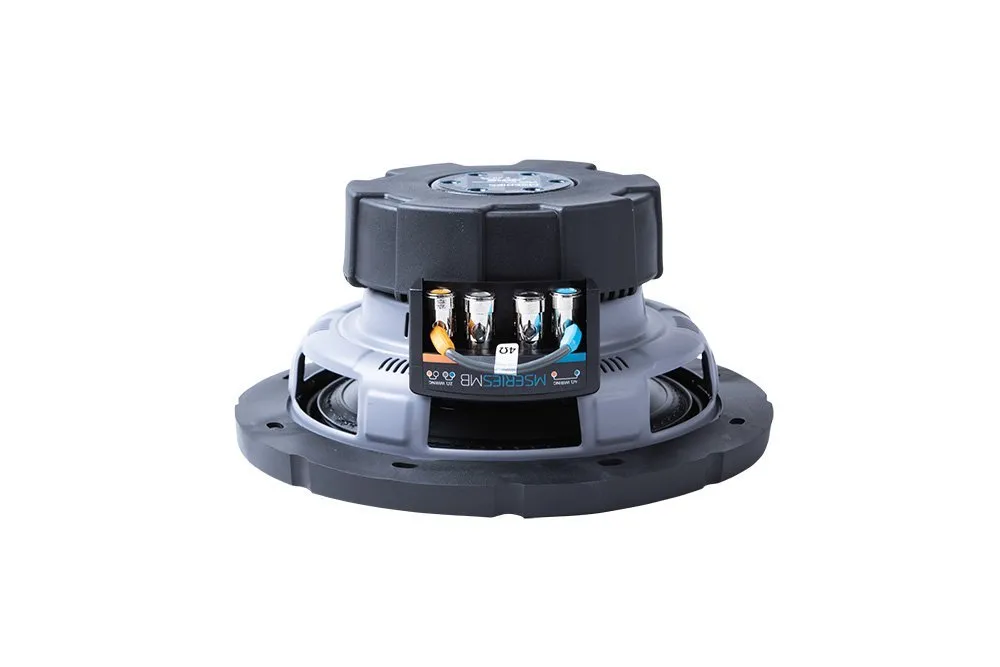

Memphis MB824
MB Subwoofers were engineered to deliver intense bass while remaining highly versatile. They were the first to feature Memphis’s patented Selectable Impedance Technology, allowing you to switch between 2Ω and 4Ω on the fly. With four available sizes and a compact design, MB subs are adaptable to a wide range of applications. The MB824, in particular, was designed to give audio enthusiasts a subwoofer that can be installed virtually anywhere. Whether you’re building a custom system or upgrading a factory 8″ subwoofer, the Memphis MB 8″ offers a perfect combination of performance and flexibility.
Features
| Feature | Specification |
|---|---|
| Size | Not specified |
| Configuration | Single 2 or 4 ohm |
| Series | MB Series |
| Peak Power Handling | 600 watts |
| RMS Power Handling | 300 watts |
| Cone Material | Paper Cone |
| Surround | Double stitched V-Groove folded Rubber Surround |
| Voice Coil | 1.5″ High Temperature Aluminum |
| VC Cooling | DVVC Direct Vented Voice Coil Cooling |
| Tinsel Leads | Woven |
| Xmax | 6.86 mm |
| Magnet Weight | 33 oz. Single Stacked |
| Resonance Frequency (Fs) | 48 Hz |
| Sensitivity | 83.5 dB |
| Recommended Sealed Box Volume | 0.5 cubic feet |
| Recommended Ported Box Volume | 1 cubic foot |
| Top-mount Depth | 3.75″ |
| Cutout Diameter | 7.13″ |
| Dealer | Authorized Internet Dealer |
| Warranty | 1-year Manufacturer’s Warranty |
Specification
| Specification | Details |
|---|---|
| Model | MB824 |
| Selectable Voice Coil | 2Ω or 4Ω |
| Size (in) | 8 |
| RMS/Peak Power (W) | 300 / 600 |
| Sensitivity (dB) | 83.5 @ 2Ω / 84.5 @ 4Ω |
| Magnet Size (Oz) | 33 |
| Mounting Depth (in) | 3.75 |
| Cut Out Diameter (in) | 7.13 |
| Voice Coil (in) | 1.5 |
