Description

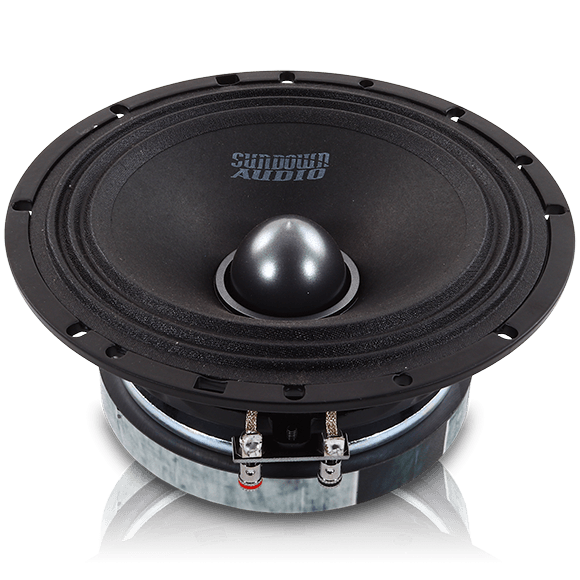

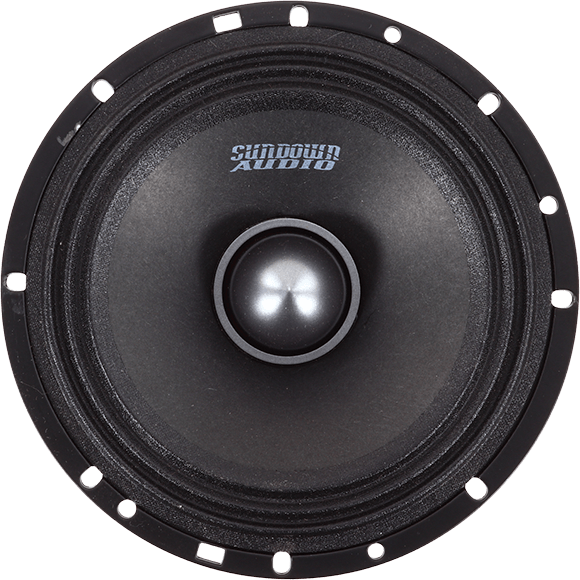

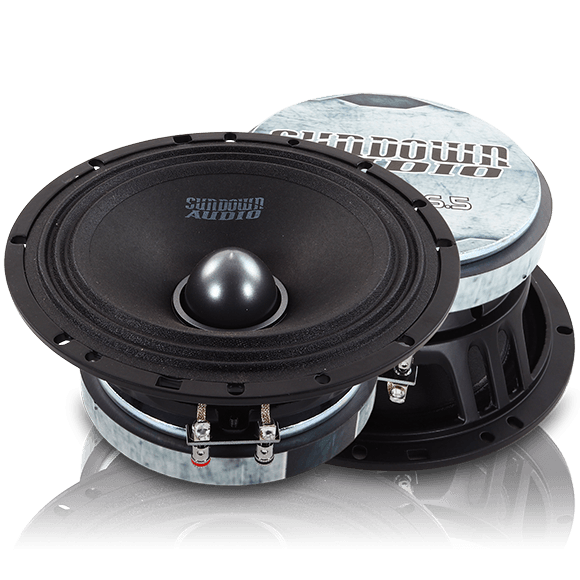

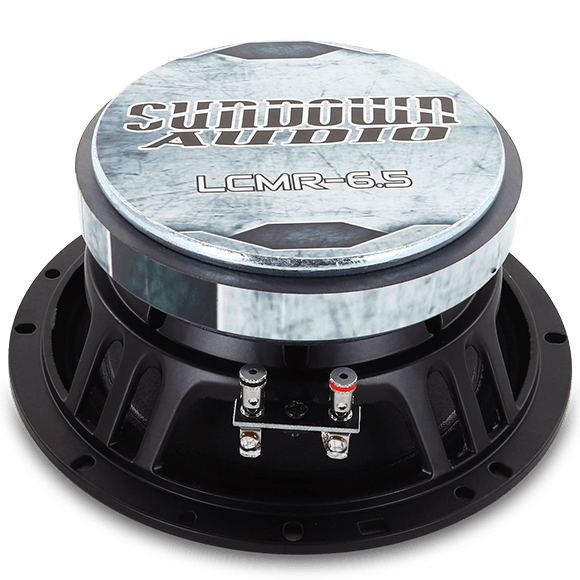

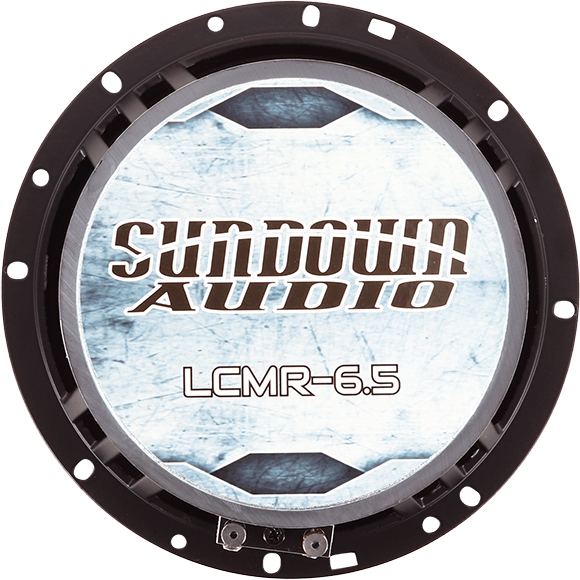

Sundown Audio LCMR-6.5
The Sundown Audio LCMR-6.5 is a 6.5-inch pro-audio midrange speaker designed to deliver clear, punchy midrange frequencies with excellent efficiency for car audio systems and custom installations. Rated at 100 W RMS and available in either 4 ohm or 8 ohm impedance, this speaker offers flexibility for different amplifier setups. Featuring a phase plug and a robust ferrite motor structure, it produces a smooth frequency response from approximately 120 Hz to 6 kHz, making vocals and instruments sound more natural and detailed. With a sensitivity around 92 dB, a sturdy build, and shallow mounting depth, the LCMR-6.5 is ideal for door or kick panel installations, factory speaker upgrades, or systems that need enhanced midrange performance and SPL capability.
Features
- Sold Individually
- Power Handling: 100 Watts RMS
- Impedance: 4/8 Ohm
- Frequency Range: 120Hz – 6kHz
- Phase Plug
- Outer Diameter: 6.51″
- Cutout Diameter: 5.82″
- Mounting Depth: 3.50″
- VC Diamete: 1.51″
- Magnet Material: Ferrite
- Resonant Frequency, FS: 83.27Hz
- D.C.Voice coil resistance, Re: 3.2
- Mechanical quality factor, Qms: 4.1
- Electrical quality factor, Qes: 0.43
- Total quality factor, Qts: 0.409
- Equivalent air volume to Cms. Vas: 7.5L
- Mechanical compliance, Cms: 0.24MM/N
- BL factor, Bl: 6.3N/A
- Effective surface area,Sd: 12.469*
- Sensitivitv(1w/1m): 92dB +/- 2dB
Specifications
|
RE (Ohms)
|
|
|---|---|
|
FS (Hz)
|
|
|
VAS (L)
|
|
|
Qes
|
|
|
Qms
|
|
|
Qts
|
|
|
BL (NA)
|
|
|
CMS (uM/N)
|
|
|
Sens (dB @ 1w/1m)
|
|
