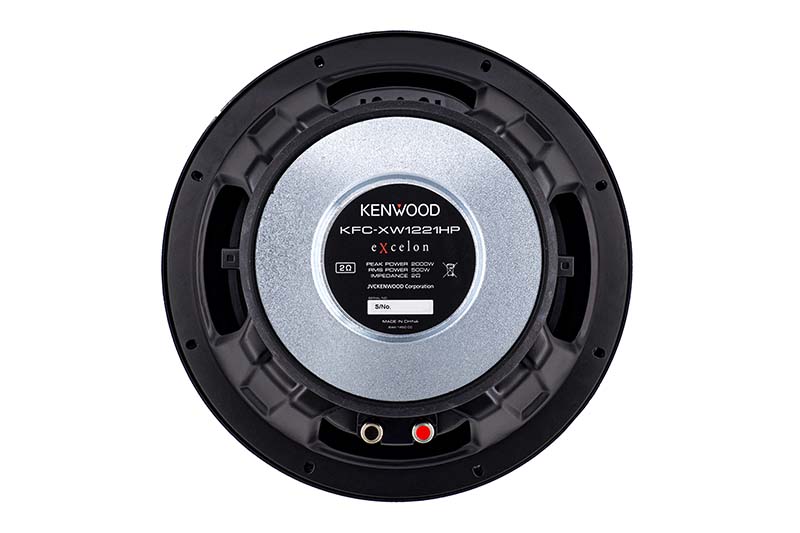

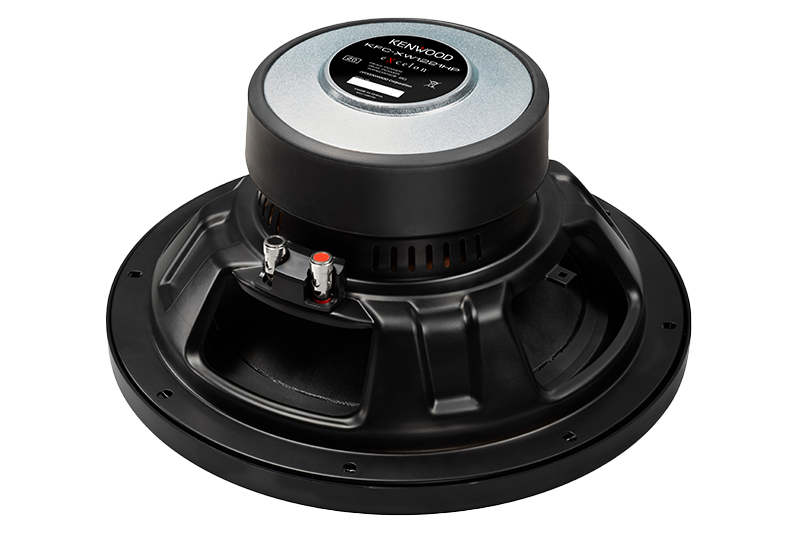

Kenwood eXcelon KFC-XW1221HP
The Kenwood KFC-XW1221HP is a 12-inch high-performance eXcelon series subwoofer designed for deep, powerful, and accurate bass in car audio systems. It features a 2Ω single voice coil design, making it ideal for high-output mono amplifier setups and efficient power delivery.
Specifications
| Category | Specification | Value |
|---|---|---|
| Electrical | Impedance | 2 Ω |
| Peak Input Power | 2000 W | |
| RMS Power | 500 W | |
| Sensitivity | 81 dB at 1m | |
| Frequency Response | 25 ~ 300 Hz | |
| Mounted Speaker | Size | 300 mm / 12 inch |
| Diaphragm | Paper | |
| Cap | Injection PP | |
| Surround | Rubber | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite φ155-φ75-t32 | |
| Dimension | Width | 326 mm / 12-13/16 inch |
| Height | 326 mm / 12-13/16 inch | |
| Cut-out Diameter | 279 mm / 11 inch | |
| Depth | 165.8 mm / 6-1/2 inch | |
| Mounting Depth | 147 mm / 5-13/16 inch | |
| Weight | Woofer without Gasket | 6.4 kg / 14.1 lb |
| Gross Weight | 7.4 kg / 16.3 lb | |
| Weight of Magnet | 2340 g / 82.4 oz | |
| Accessory | Included Items | Tapping Screw Φ4 × 35 (8 pcs), Polyethylene Foam 1000 × 13 mm, Instruction Manual, Warranty Card |
| Special Feature | Features | Injection PP Dual Area Cone, Closed Yoke with Advanced Airflow Control, Aluminum Bobbin |
