Description

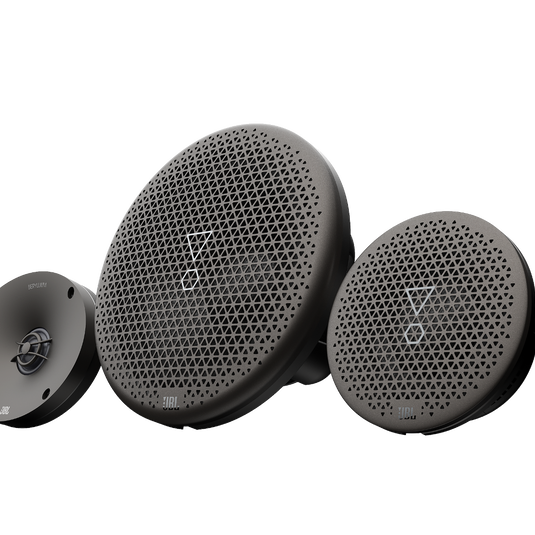

JBL Arena X
The JBL Arena X is a 6.5‑inch 3‑way premium component car speaker system from JBL’s high‑end Arena Series, engineered for audiophiles and custom car audio builds. It features a 1″ edge‑driven pure Beryllium dome tweeter with a ceramic‑coated acoustic lens waveguide for extended high‑frequency response and precise dispersion, a 3.5″ carbon fiber midrange driver, and a 6.5″ carbon fiber woofer for robust mids and lows. The system includes bi‑amp capable precision outboard crossovers with selectable tweeter output levels for optimized tuning. With its nomex spiders, neodymium magnet motors, and die‑cast aluminum baskets, the Arena X delivers extremely clear highs, detailed mids, and tight, controlled lows — a flagship speaker system for serious car audio enthusiasts.
Specifications
| Specification | Details |
|---|---|
| Speaker System | 6-1/2″ (165 mm) 3-way active car component |

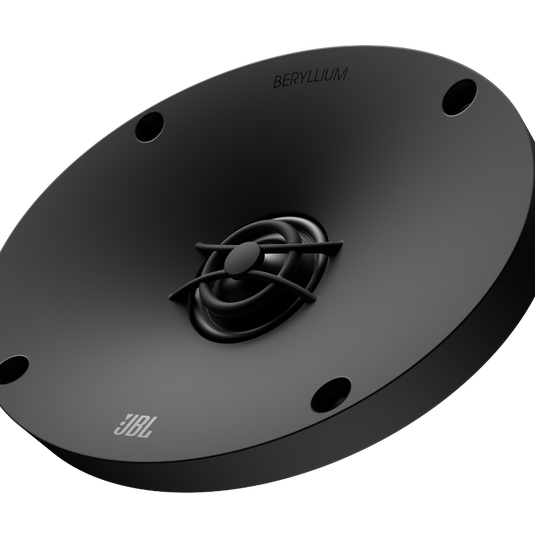

| Tweeter | 1″ Beryllium dome with 6th-gen ceramic-coated acoustic lens waveguide |

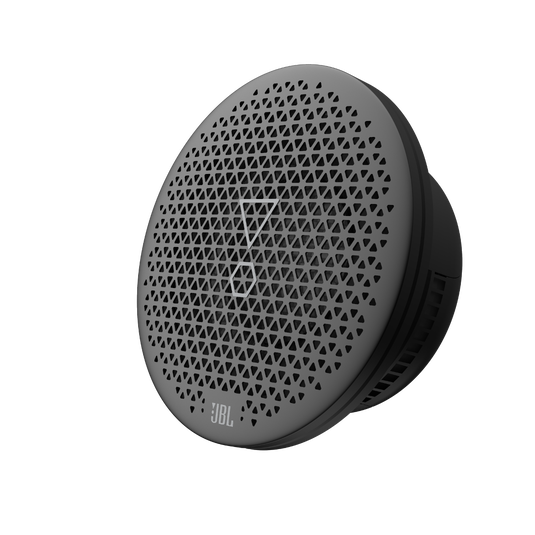

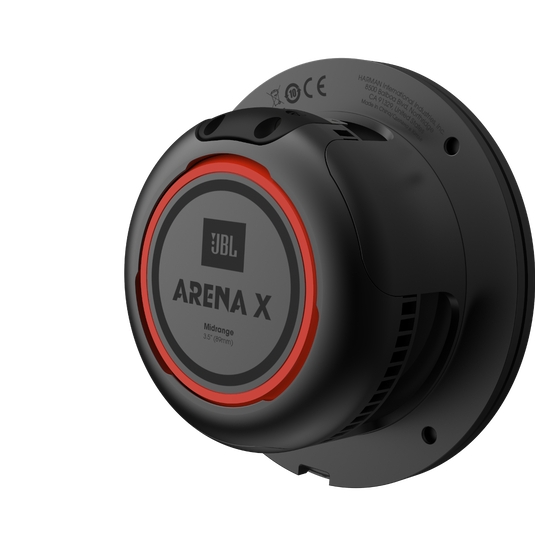

| Midrange | 3.5″ Carbon fiber cone with cast frame |

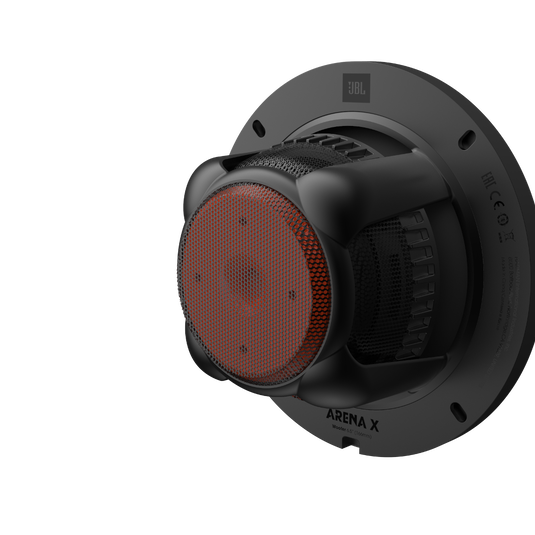

| Woofer | 6.5″ Carbon fiber cone with cast frame |
| Frequency Response (-6 dB) | 20 Hz – 40 kHz |
| Power Handling | 100W RMS, 200W Peak |
| Crossover Frequencies | 250 Hz; 3.5 kHz |
| Nominal Impedance | 4 Ω |
| Sensitivity | 90 dB (2.83V @ 1m) |
| Woofer Mounting Depth | 2.83 in. / 72 mm |
| Midrange Mounting Depth | 1.47 in. / 37.5 mm |
| Tweeter Flush Mounting Depth | 1.52 in. / 38.5 mm |
