Description
DS18 INF-45
The DS18 INF‑45 is a 12 V AGM Power Cell battery designed to deliver reliable and consistent electrical power for car audio systems, electronics, and automotive accessories. It offers 45 Ah capacity with a high 1500 W power rating, ensuring stable voltage and strong reserve power under heavy loads — perfect for high‑demand audio systems and accessories where voltage drop could affect performance. Built with maintenance‑free Absorbed Glass Mat (AGM) technology and a non‑spill sealed design, the INF‑45 can be mounted in various orientations and tight spaces without risk of leakage. It features recessed M6 bolt terminals for secure connections and flexible integration with add‑on terminals or busbars. (turn0search0

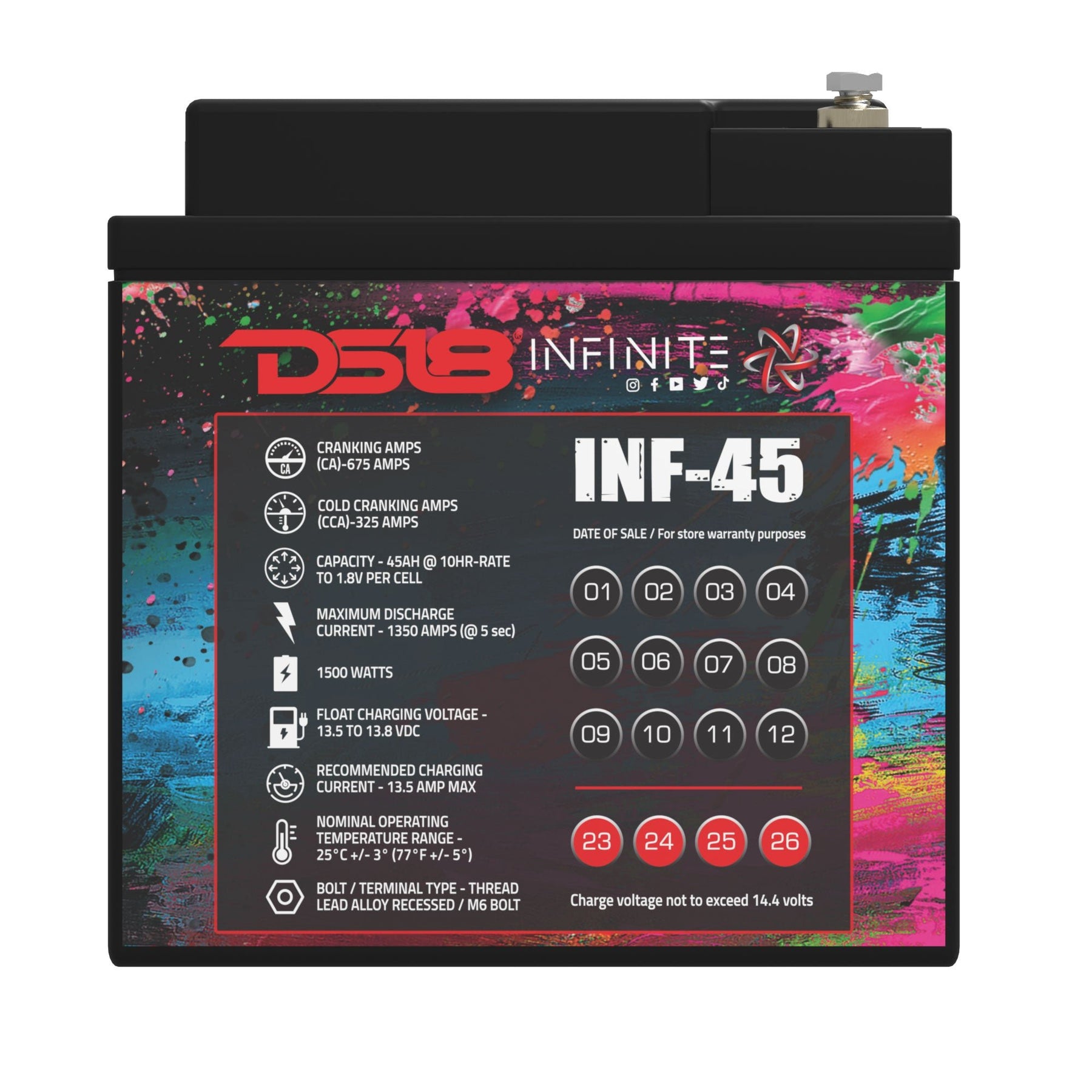

Specifications
| Category | Specification |
|---|---|
| SKU | INF-45AH |
| Battery Type | AGM |
| Nominal Voltage | 12.8 V |
| Capacity | 45Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F) |
| Maximum Discharge Current | 5 sec / 675 Amps |
| Power | 1500 W |
| Float Charging Voltage | 13.5 – 13.8 Vdc (unit average at 25°C / 77°F) |
| Recommended Charging Current | 13.5 A Max |
| Spillable | Non-spillable |
| Nominal Operating Temperature Range | 25°C ± 3° (77°F ± 5°) |
| Bolt / Terminal Type | Thread Lead Alloy Recessed / M6 Bolt |
| Battery Group | U1R |
| Country of Origin | Made in Vietnam |

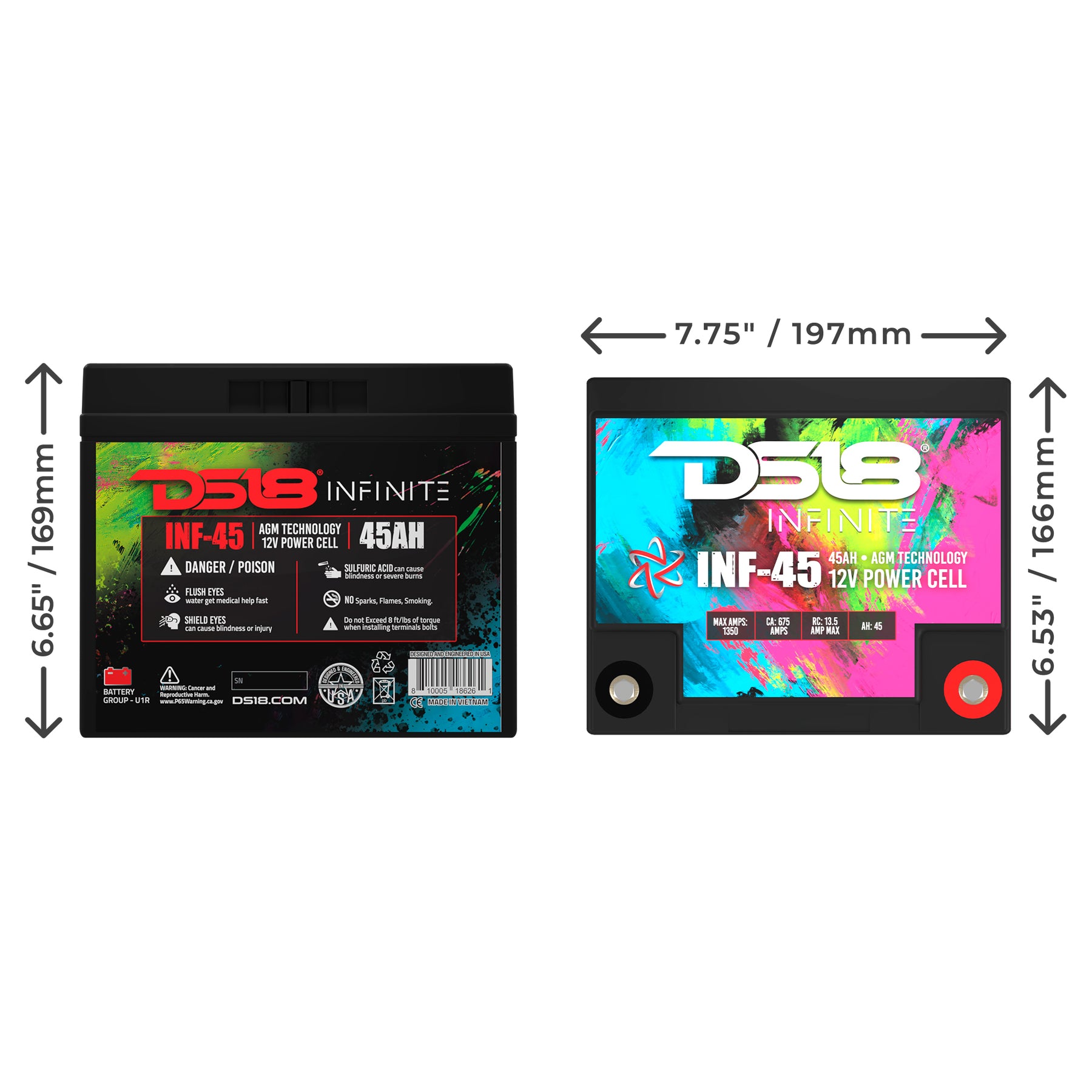

Measurements
| Measurement | Value |
|---|---|
| Overall Length | 7.75″ |
| Overall Width | 6.53″ |
| Overall Height | 6.65″ |
| Weight | 13.4 Kg / 29.48 Lbs |
| Product Weight | 29.5 lbs |
| Product Dimensions | 8.5 × 7.25 × 7.75 in |
| M/C Weight | 29.5 lbs |
| M/C Dimensions | 8.5 × 7.25 × 7.75 in |
| M/C Quantity | 1 |
| Sold In | Piece |
Product Overview
INFINITE 1500W 45AH AGM Power Cell 12V
DS18’s INF-45AH is a high-output AGM power cell engineered for sound systems that demand high-amperage support and reliable reserve power. Designed with Absorbed Glass Mat (AGM) technology, the INF-45AH maintains consistent voltage, prevents dim lights, and keeps your system running strong.
Powers Systems Up to 1500W
With a high burst reserve, the INF-45AH efficiently holds voltage under heavy loads, ensuring that your amplifiers, subs, and accessories receive clean, uninterrupted power.
Mount It Anywhere with Confidence
Thanks to its non-spill, sealed design, this power cell can be mounted upside down or in multiple configurations, allowing for greater flexibility in tight installation spaces.
Bolt M5 Terminals
The M5 bolt terminals provide a stable connection and allow for easy integration of additional terminals and busbars for improved conductivity and expanded wiring options.
More Reserve Power
With its high float charge and voltage retention, the INF-45AH ensures that your lights stay bright, your electronics perform stronger, and your system maintains peak performance under load.
When power and performance matter, trust DS18 to keep your system LOUD!
Disclaimer: Mount batteries away from heat sources. Do not install near engine bays—risk of swelling, especially in hot climates. Use cabin, trunk, or bed locations only.
