Description

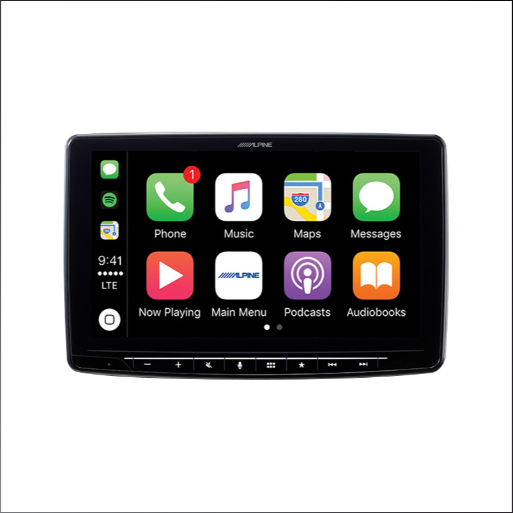

Alpine iLX-F309TND

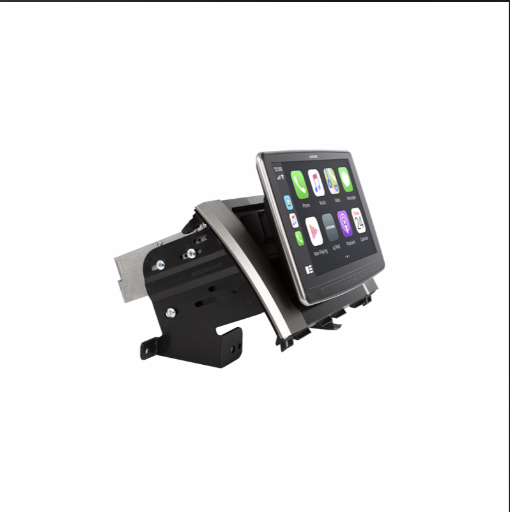

The iLX-F309TND comes with all the components you need to add the 9″ Alpine Halo9 to your Tundra. The main chassis comes pre-assembled to the Tundra dash kit out of the box, so you don’t need to research, buy, and assemble a compatible dash kit on your own. In addition, the iLX-F309TND’s screen comes pre-positioned at the optimal angle, height, and depth for your Tundra, eliminating the need for you to tweak these positions through trial and error yourself. The required Tundra wiring harness and other adapters come with the iLX-F309TND too. The result? Faster and easier installation, so you can get on the road and enjoy your iLX-F309TND.


SPECIFICATIONS

Feature Details
DIN 1
Display Size 9 Inch
Bluetooth Yes
MP3 Playback Yes
WMA Playback Yes
HD Radio Yes
Rear View Camera Input Yes
Apple CarPlay Yes
Android Auto Yes

Features

Feature Details / Notes
Display 9″ WVGA hovering capacitive touchscreen
Mounting Pre-assembled dash kit, plug-and-play install
Vehicle Info Retention Pre-programmed iDatalink Maestro included
Vehicle-Specific Hardware Tundra-specific wiring harness, USB & GPS antenna adapters included
Chassis Standard 1-DIN for aftermarket ISO dash kits
Apple CarPlay® Compatible, access maps, music, calls, messages
Android Auto™ Compatible
Bluetooth® Hands-free calling and audio streaming
HD Radio Built-in
SiriusXM Ready™ SXV300 tuner sold separately; subscription required
Audio/Video Playback MP3, WMA, AAC, FLAC; AVI, MPEG4
Sound Processing 9-band parametric EQ, time correction, high/low-pass filters, Bass Engine SQ, MediaXpander HD
Smartphone Features iPod/iPhone/iPad control, Pandora & Spotify control (iOS & Android)
Expandability Optional SiriusXM SXV300 tuner, optional Truck Accessory Controller
Inputs Rear USB port, HDMI, AUX, rear-view camera harness
Outputs 6-channel preamp (4V: Front, Rear, Subwoofer)
Weight 14 lbs
UPC 793276242792

Tech Specs
Spec Value / Notes
Screen Size 9″
Resolution WVGA
Mounting Adjustability Adjustable vertical positions and viewing angles
Chassis Single-DIN fitment
Audio/Video Processing 9-band parametric EQ, high/low-pass filters, time correction, Bass Engine SQ, MediaXpander HD
Inputs Rear USB, HDMI, AUX, rear-view camera
Outputs 6-channel preamp, 4V (Front, Rear, Subwoofer)
Expandability SiriusXM SXV300 tuner, Truck Accessory Controller
Weight 14 lbs




About The Product

RETAINS VEHICLE INFO

The iLX-F309TND comes with an iDatalink Maestro Module to retain Tundra features like the vehicle cluster sub-display and steering wheel controls. Other vehicle information such as tire pressure readings, open door alerts, and vehicle vitals are viewable on the large screen. The iDatalink Maestro Module is already pre-programmed for the Tundra, so you don’t need to configure the module to your truck before installing it.


APPLE CARPLAY

The iLX-F309TND “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).


ANDROID AUTO

The iLX-F309TND includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.

Reviews

There are no reviews yet.

Be the first to review “Alpine iLX-F309TND”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: Will I keep my factory controls and camera?

A1: Yes, thanks to the pre-programmed Maestro interface, you’ll retain steering wheel controls, backup camera, factory amp, and vehicle info.

Q2: Does it provide wireless CarPlay / Android Auto?

A2: No — CarPlay and Android Auto work via wired USB connections.

Q3: What is the screen and its characteristics?

A3: A 9″ capacitive touchscreen with hover-mount design and adjustable viewing positions.

Q4: What audio tuning features are included?

A4: 9-band parametric EQ, time correction, Bass Engine SQ, and input/output filtering options.

Q5: Does it have HDMI and Bluetooth?

A5: Yes, it includes HDMI input and full Bluetooth (audio streaming & hands-free).
