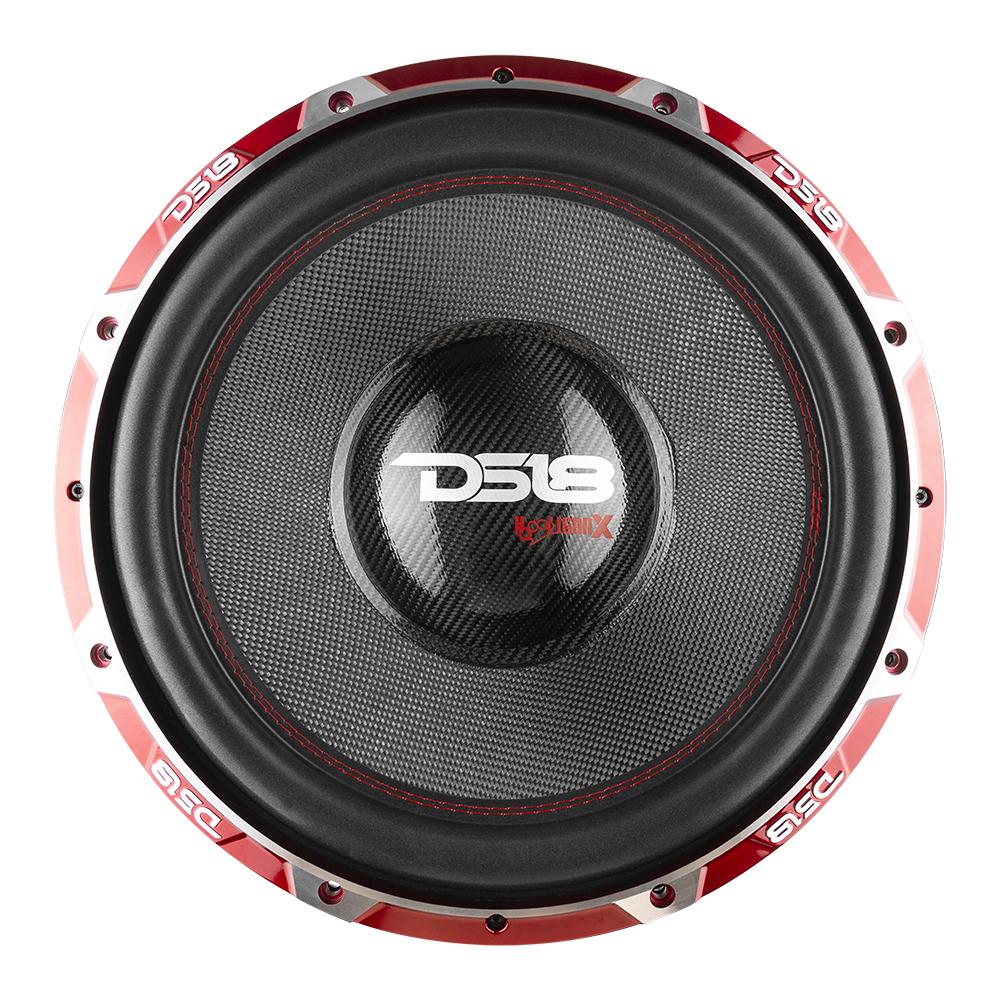

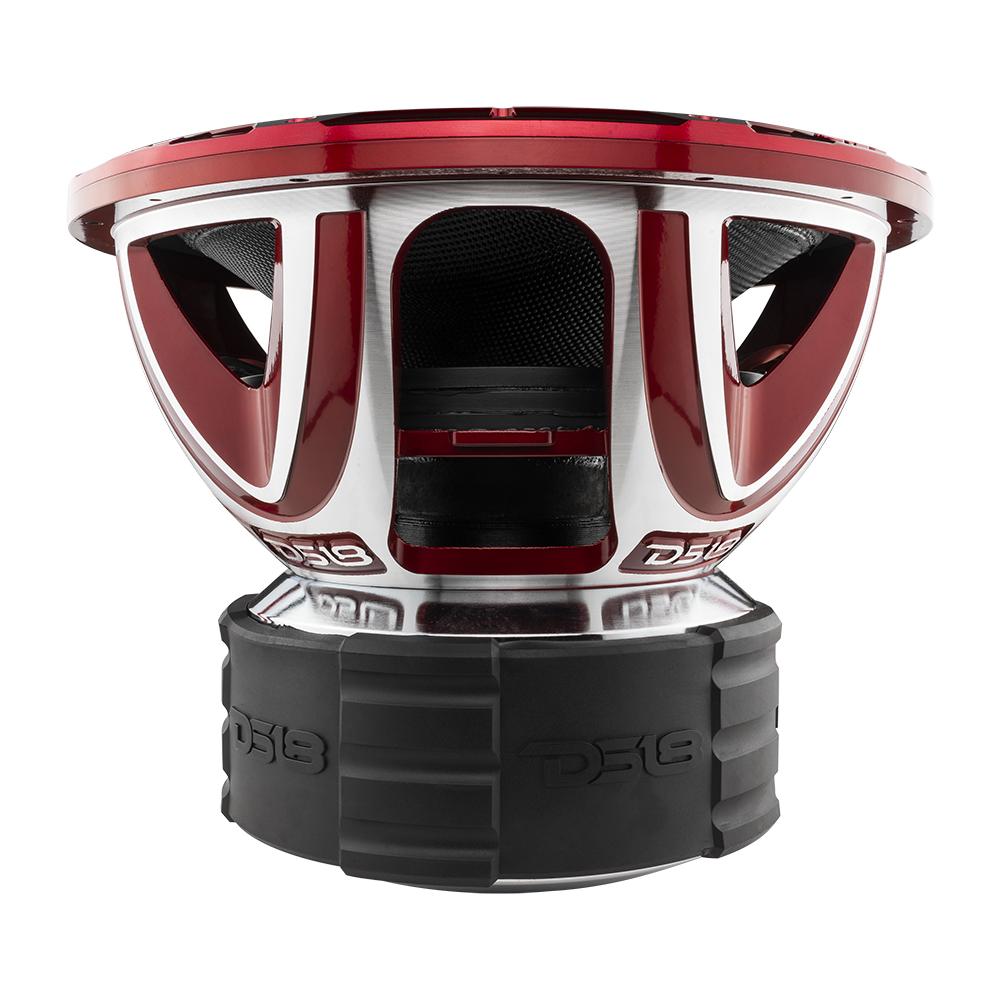

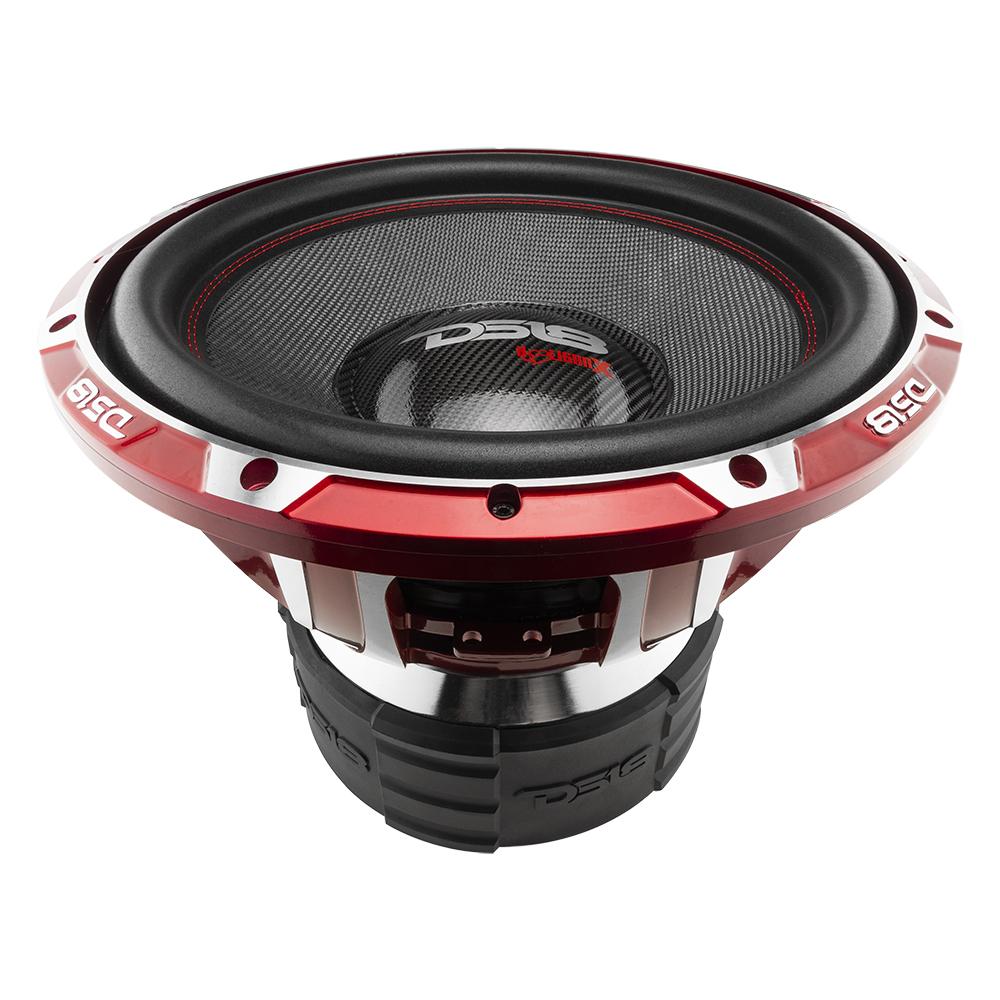

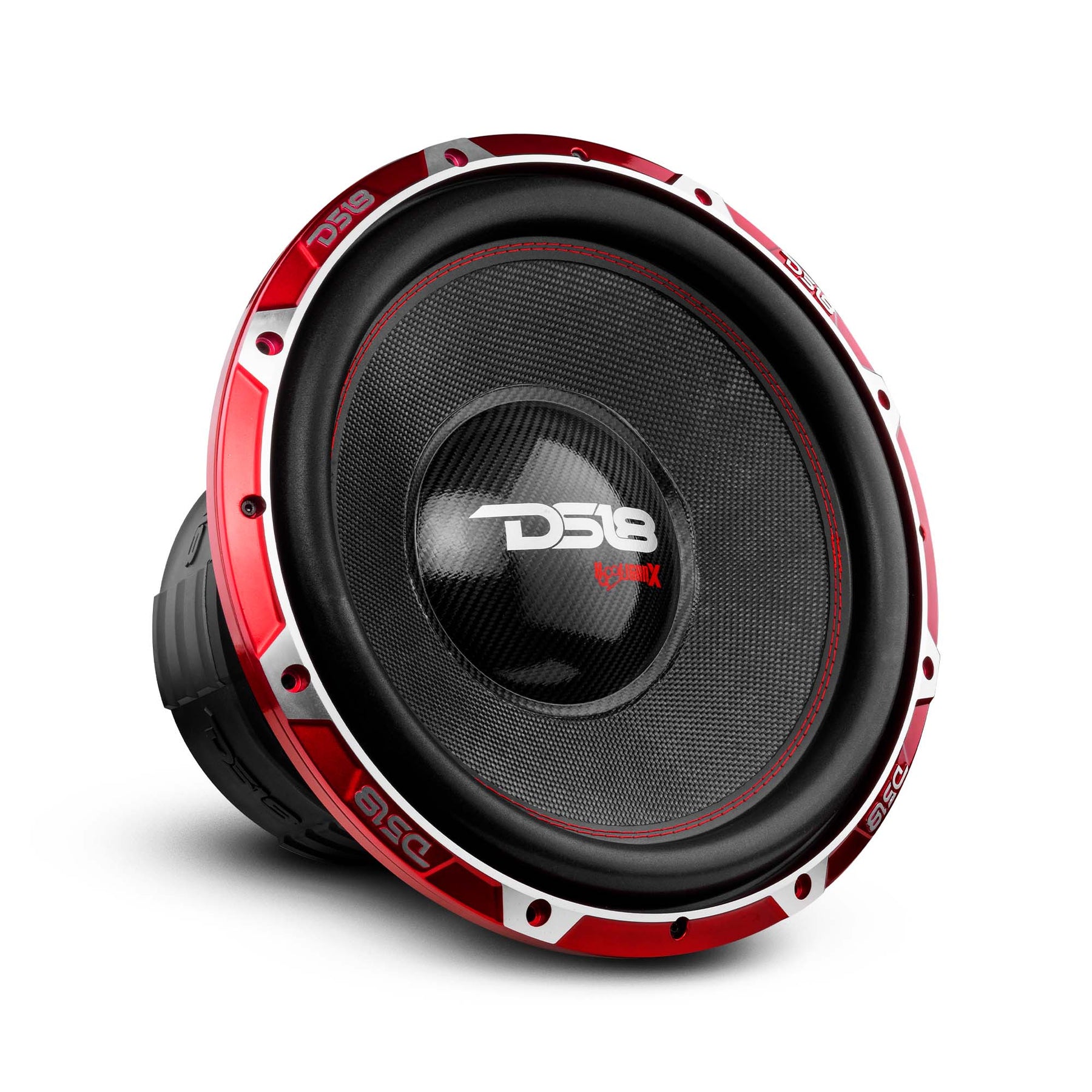

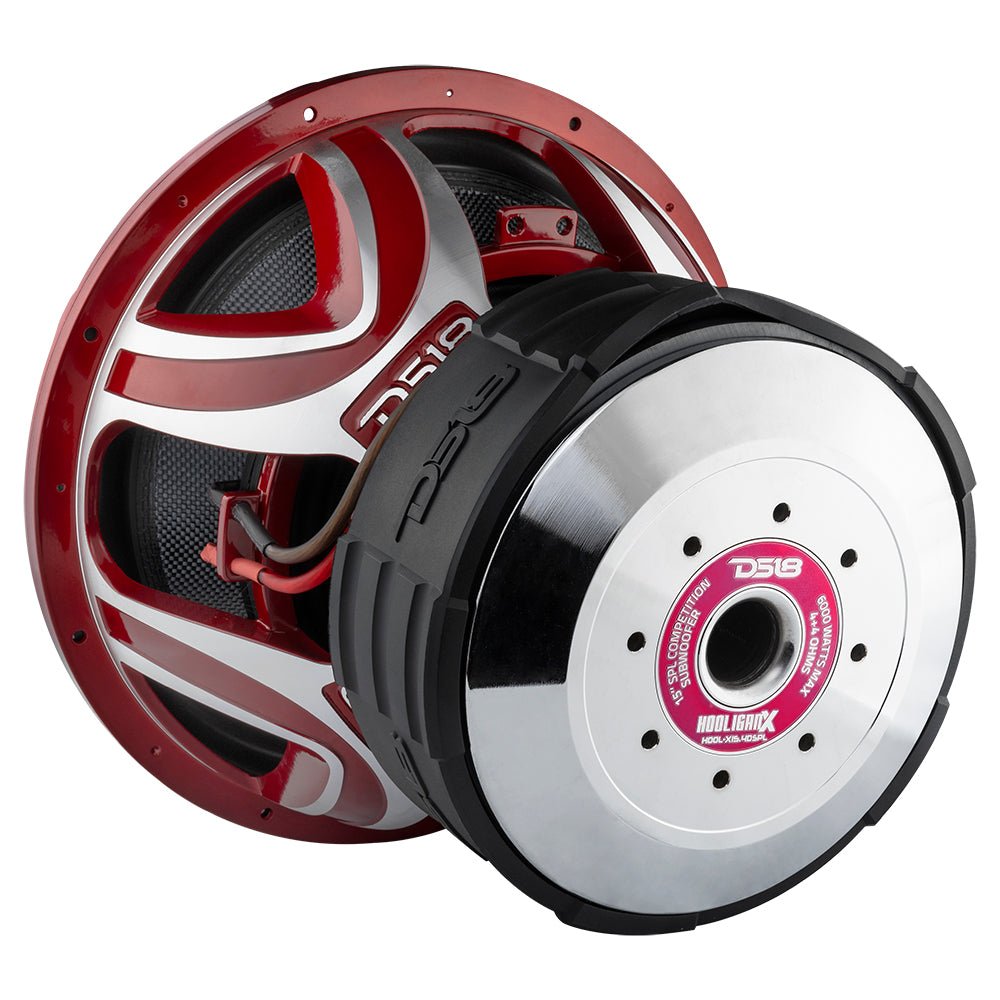

DS18 HOOL-X15.4DSPL

The HOOL‑X15.4DSPL is a 15‑inch high‑output SPL car subwoofer engineered for extreme bass and competition‑level sound pressure performance. Built with a dual 4 Ω (4+4 Ω) voice coil and a 4‑inch aluminum voice coil former with CCAW winding, it handles an impressive 4000 W RMS and up to 6000 W peak power with authority and control. Its non‑pressed paper cone paired with a carbon fiber dust cap and heavy‑duty splash‑tuned foam surround lets the sub move large volumes of air cleanly, producing deep, powerful bass from 20 Hz to 250 Hz. The rugged 500 oz ferrite magnet motor and reinforced SPL spider provide strength and reliability under high‑stress playback, while the stylish glossy red aluminum basket adds a performance look to your build. Perfect for ported, sealed, or advanced enclosure configurations, the HOOL‑X15.4DSPL is ideal for car audio enthusiasts and SPL competitors who want massive, chest‑thumping low end.


Specifications

Parameter Value
SKU HOOL-X15.4DSPL
Nominal Diameter 15″
Nominal Impedance 4 + 4 Ohms
RMS Power Handling 4000 W
MAX Power Handling 6000 W
Sensitivity (1W/1M) 89 dB
Frequency Response 20 – 250 Hz
Recommended Low-Pass Crossover 100 Hz

Motor Specifications
Parameter Value
Voice Coil Diameter 4″ / 101.6 mm
Voice Coil Former Material Black Aluminum
Winding Material CCAW
Cone Material Non Pressed Paper
Dust Cap Material Carbon Fiber
Surround Material Foam
Basket Material Aluminum
Basket Color / Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 500 oz
Displacement Volume 9.1 L / 0.32 ft³

Thiele & Small Parameters
Parameter Value
Equivalent Volume (Vas) 46.23 L / 1.63 ft³
Free Air Resonance (Fs) 38.12 Hz
Mechanical Factor (Qms) 6.26
Electrical Factor (Qes) 0.508
Total Factor (Qts) 0.482
Moving Mass (Mms) 459.68 g
Compliance (Cms) 0.026 mm/N
BL Factor 19.35
Voice Coil Inductance (Le) 2.078 mH
Diaphragm Area (Sd) 754.77 cm²
DC Resistance (Re) 3.6 + 3.6 Ohms
Efficiency Bandwidth Product (EBP) 75

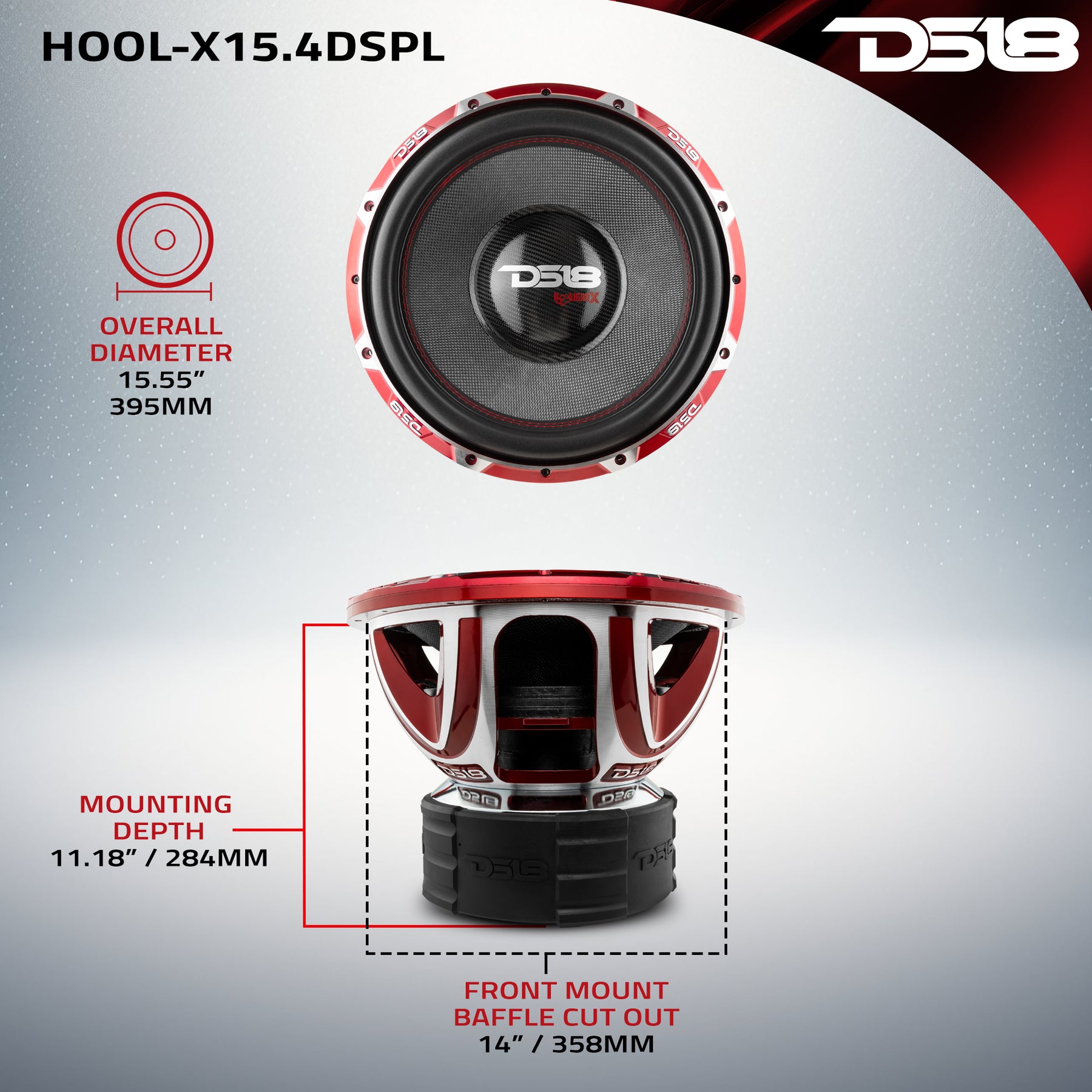

Measurements & Packaging
Parameter Value
Overall Diameter 15.55″ / 395 mm
Overall Depth 13.3″ / 338 mm
Front Mount Baffle Cutout 14″ / 358 mm
Mounting Depth 11.18″ / 284 mm
Motor Diameter 9.96″ / 253 mm
Product Weight 92 lb
Product Dimensions (L × W × H) 18 × 18 × 14.75 in
Master Carton Weight 92 lb
Master Carton Dimensions (L × W × H) 18 × 18 × 14.75 in
Master Carton Quantity 1
Sold In Single

Product Overview

HOOLIGAN 15″ SPL Car Subwoofer 4000 Watts RMS 4″ 4-Ohm DVC

For over six years, the HOOLIGAN series has captivated music lovers and competitors alike, consistently pushing the boundaries of what is possible in car audio. Now, with the HOOLIGAN X15 Sound Pressure Level, we have taken this iconic line to new heights. Our engineers have meticulously crafted this subwoofer to deliver unrivaled sound pressure levels, making it the perfect choice for those seeking extreme bass and massive power.
The HOOLIGAN X15 is built to withstand the most demanding conditions, both on the streets and in the lanes. With its heavy-duty pole, SPL spider, and high-strength surround, this subwoofer is specifically designed to enhance sound pressure levels, resulting in a louder output at competition frequencies.
Versatility is the name of the game with the HOOLIGAN X15. It is compatible with a range of enclosure types, including 4th orders, 6th orders, ported boxes, and large sealed boxes. This subwoofer adapts to your setup, providing flexibility and exceptional performance in any application.
At the heart of the HOOLIGAN X15 lies its high-powered 4″ aluminum voice coil, capable of handling 4000W RMS and 6000W MAX power, ensures every beat hits with precision and authority. We’ve also reinforced this version with a larger SPL surround, enhancing its capability to handle high SPL levels and allowing it to play louder and cleaner than ever before.
The DS18 Tooled Red basket on the HOOL-X15.4DSPL, constructed from aluminum, not only provides exceptional strength but also adds a touch of elegance to your car audio setup. The HOOL-X15.4DSPL also boasts a nominal diameter of 15″ (381mm) and a nominal impedance of 4+4 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
Join the ranks of music lovers and competitors who have chosen the HOOLIGAN series as their go-to subwoofer.

Reviews

There are no reviews yet.

Be the first to review “DS18 HOOL-X15.4DSPL”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What type of product is the HOOL‑X15.4DSPL?
A1: It’s a 15‑inch SPL (sound pressure level) competition‑grade car subwoofer designed for very high power and deep bass output.
Q2: What power can it handle?
A2: The HOOL‑X15.4DSPL handles 4000 W RMS and up to 6000 W peak power.
Q3: What is the impedance and coil setup?
A3: It has dual 4 Ω voice coils (4+4 Ω) with a 4‑inch aluminum CCAW wound coil system.
Q4: What frequency range does it cover?
A4: It delivers bass from about 20 Hz to 250 Hz for strong low‑frequency response.
Q5: What materials and features help its performance?
A5: It features a non‑pressed paper cone, carbon fiber dust cap, heavy‑duty SPL foam surround, 500 oz ferrite magnet, and a strong aluminum basket, all engineered for powerful and clean bass output.
