Description
DS18 HOOL-X15.4DHE
The HOOL-X15.4DHE is a 15-inch high-excursion car subwoofer engineered for extreme low-end performance and competition-level bass in powerful car audio systems. It features dual 4 Ω voice coils (4+4 Ω) and a 4″ black aluminum CCAW voice coil that handles up to 4000 W RMS and 6000 W peak power, delivering deep, impactful bass with authority. The rugged design includes a non-pressed paper cone, carbon fiber dust cap, high-roll foam surround, and a 500 oz ferrite magnet, ensuring durability and maximum excursion for heavy bass output. With an impressive frequency response from 16 Hz to 500 Hz and a low resonant frequency of 26 Hz, the HOOL-X15.4DHE digs deep and reproduces powerful lows with minimal distortion. Its finish in gloss black with machined aluminum accents makes it as visually striking as it is sonically powerful, perfect for sealed, ported, 4th order, or 6th order enclosures in serious SPL or daily-driven systems.
Specifications
| Parameter | Value |
|---|---|
| SKU | HOOL-X15.4DHE |
| Nominal Diameter | 15” / 381 mm |
| Nominal Impedance | 4 + 4 Ω |
| RMS Power Handling | 4000 W |
| MAX Power Handling | 6000 W |
| Sensitivity (1W/1M) | 88.3 dB |
| Frequency Response | 16 – 500 Hz |
| Recommended Low-Pass Crossover | 80 Hz |
Motor / Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 4” / 99.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color / Finish | Gloss Black with Machined Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 500 oz |
| Displacement Volume | 9.1 L / 0.32 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (VAS) | 66.83 L / 2.36 ft³ |
| Free Air Resonance (FS) | 26 Hz |
| Mechanical Factor (QMS) | 4.75 |
| Electrical Factor (QES) | 0.508 |
| Total Q (QTS) | 0.375 |
| Moving Mass (MMS) | 459.68 g |
| Compliance (CMS) | 0.026 mm/N |
| Bl Factor (Bl) | 19.35 |
| Voice Coil Inductance (Le) | 2.078 mH |
| Diaphragm Area (Sd) | 754.77 cm² |
| DC Resistance (Re) | 3.6 + 3.6 Ω |
| Efficiency Bandwidth Product (EBP) | 51.1 |
Recommended Enclosures
| Parameter | Value |
|---|---|
| Sealed Internal Volume | 35.4 L / 1.25 ft³ |
| Sealed Box Output Response | 45 Hz |
| Ported Internal Volume | 70.8 L / 2.5 ft³ |
| Port Size (W × H × L) | 2.47” × 15” × 37” / 62.7 × 381 × 939.8 mm |
| Port Tuning Frequency | 30 Hz |
| Ported Box Output Response | 26.5 Hz |

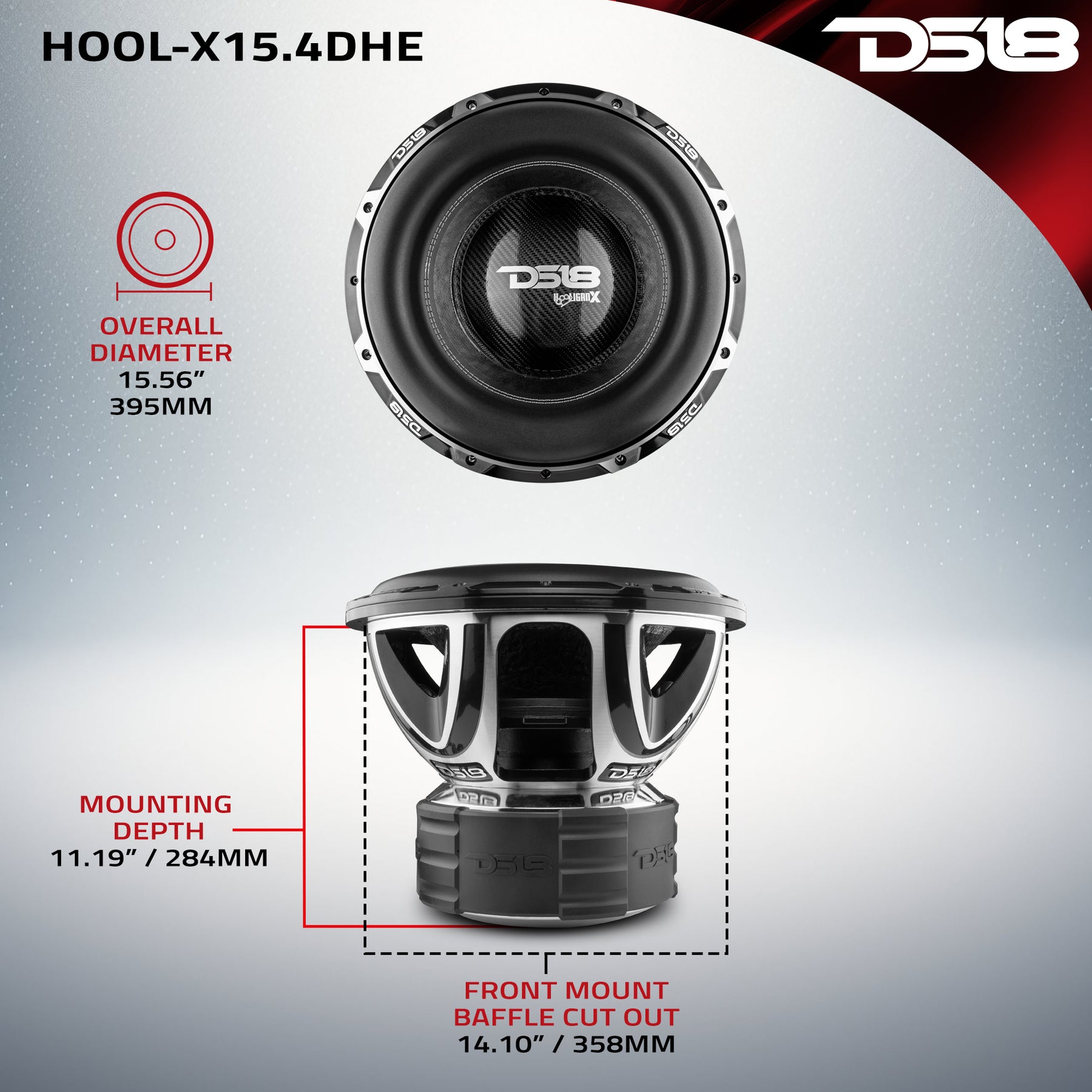

Measurements / Dimensions
| Parameter | Value |
|---|---|
| Overall Diameter | 15.56” / 395 mm |
| Overall Depth | 13.31” / 338 mm |
| Front Mount Baffle Cutout | 14.10” / 358 mm |
| Mounting Depth | 11.19” / 284 mm |
| Motor Diameter | 9.96” / 253 mm |
| Product Weight | 89 lb |
| Product Dimensions (L × W × H) | 17.75 × 17.75 × 16 in |
| Master Carton Weight | 89 lb |
| Master Carton Dimensions | 17.75 × 17.75 × 16 in |
| Master Carton Quantity | 1 |
| Sold In | Single |
Product Overview
HOOLIGAN 15″ High Excursion Car Subwoofer 4000 Watts Rms 4″ DVC 4-Ohm
Experience a new level of bass performance and power with DS18’s HOOL-X15.4DHE! The HOOLIGAN 15” High Excursion Car Subwoofer has been the top choice for enthusiasts and competitors alike, and now, it’s back with a vengeance.
The HOOLIGAN is built for power and durability. The redesigned long throw pole, larger spider, and high excursion surround, helps lower the HOOLIGAN’s FS (Resonant Frequency), making it even louder at subsonic frequencies. With an FS of 26, this subwoofer guarantees impressive low frequencies all the way down to 26Hz. Its high-powered 4″ Black Aluminum voice coil can handle 4000W RMS and 6000W MAX power, making it perfect for heavy-hitting competition bass.
Versatility is key, and the HOOL-X15.4DHE can adapt to various enclosure types. Whether you prefer 4th orders, 6th orders, ported boxes, or large sealed boxes, this subwoofer will thrive in any setup that has enough room.
This version of the HOOLIGAN boasts a nominal diameter of 15″ (381 mm) and a nominal impedance of 4+4 OHMS to amplify the performance and capabilities of this high-powered subwoofer. With a sensitivity of 88.3dB and a frequency response ranging from 16Hz to 500Hz, this subwoofer ensures every beat is reproduced with staggering depth and precision.
DS18’s HOOLIGAN 15″ High Excursion Car Subwoofer is the ultimate choice for car audio enthusiasts seeking extreme bass and massive power. Its unmatched performance, cutting-edge design, and versatility make it a must-have for any ground shaking audio system.
