Description
DS18 HOOL-X15.2DHE
The HOOL-X15.2DHE is a 15-inch high-excursion car subwoofer designed to deliver extreme bass performance and powerful low-end output for high-power audio systems and competition builds. Featuring dual 2 Ω voice coils (2+2 Ω) with a 4″ black aluminum CCAW voice coil, it handles up to 4000 W RMS and 6000 W peak power, providing deep and impactful bass with authority. Its rugged design includes a non-pressed paper cone, carbon fiber dust cap, high-roll foam surround, and a 500 oz ferrite magnet for durability and efficient excursion. With a frequency response from approximately 16 Hz to 500 Hz and a low resonant frequency of ~26 Hz, the HOOL-X15.2DHE delivers authoritative sub-bass across a wide range of enclosures, making it ideal for sealed, ported, 4th order, or 6th order setups in serious car audio and SPL systems.
Specifications
| Parameter | Value |
|---|---|
| SKU | HOOL-X15.2DHE |
| Nominal Diameter | 15” / 381 mm |
| Nominal Impedance | 2 + 2 Ω |
| RMS Power Handling | 4000 W |
| MAX Power Handling | 6000 W |
| Sensitivity (1W/1M) | 88.2 dB |
| Frequency Response | 16 – 500 Hz |
| Recommended Low-Pass Crossover | 80 Hz |
Motor / Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 4” / 99.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color / Finish | Gloss Black with Machined Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 500 oz |
| Displacement Volume | 9.1 L / 0.32 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (VAS) | 61.93 L / 2.18 ft³ |
| Free Air Resonance (FS) | 26 Hz |
| Mechanical Factor (QMS) | 4.98 |
| Electrical Factor (QES) | 0.513 |
| Total Q (QTS) | 0.402 |
| Moving Mass (MMS) | 478.64 g |
| Compliance (CMS) | 0.025 mm/N |
| Bl Factor (Bl) | 15.83 |
| Voice Coil Inductance (Le) | 2.517 mH |
| Diaphragm Area (Sd) | 754.77 cm² |
| DC Resistance (Re) | 1.9 + 1.9 Ω |
| Efficiency Bandwidth Product (EBP) | 50.6 |
Recommended Enclosures
| Parameter | Value |
|---|---|
| Sealed Internal Volume | 35.4 L / 1.25 ft³ |
| Sealed Box Output Response | 45 Hz |
| Ported Internal Volume | 70.8 L / 2.5 ft³ |
| Port Size (W × H × L) | 2.47” × 15” × 37” / 62.7 × 381 × 939.8 mm |
| Port Tuning Frequency | 30 Hz |
| Ported Box Output Response | 26.5 Hz |

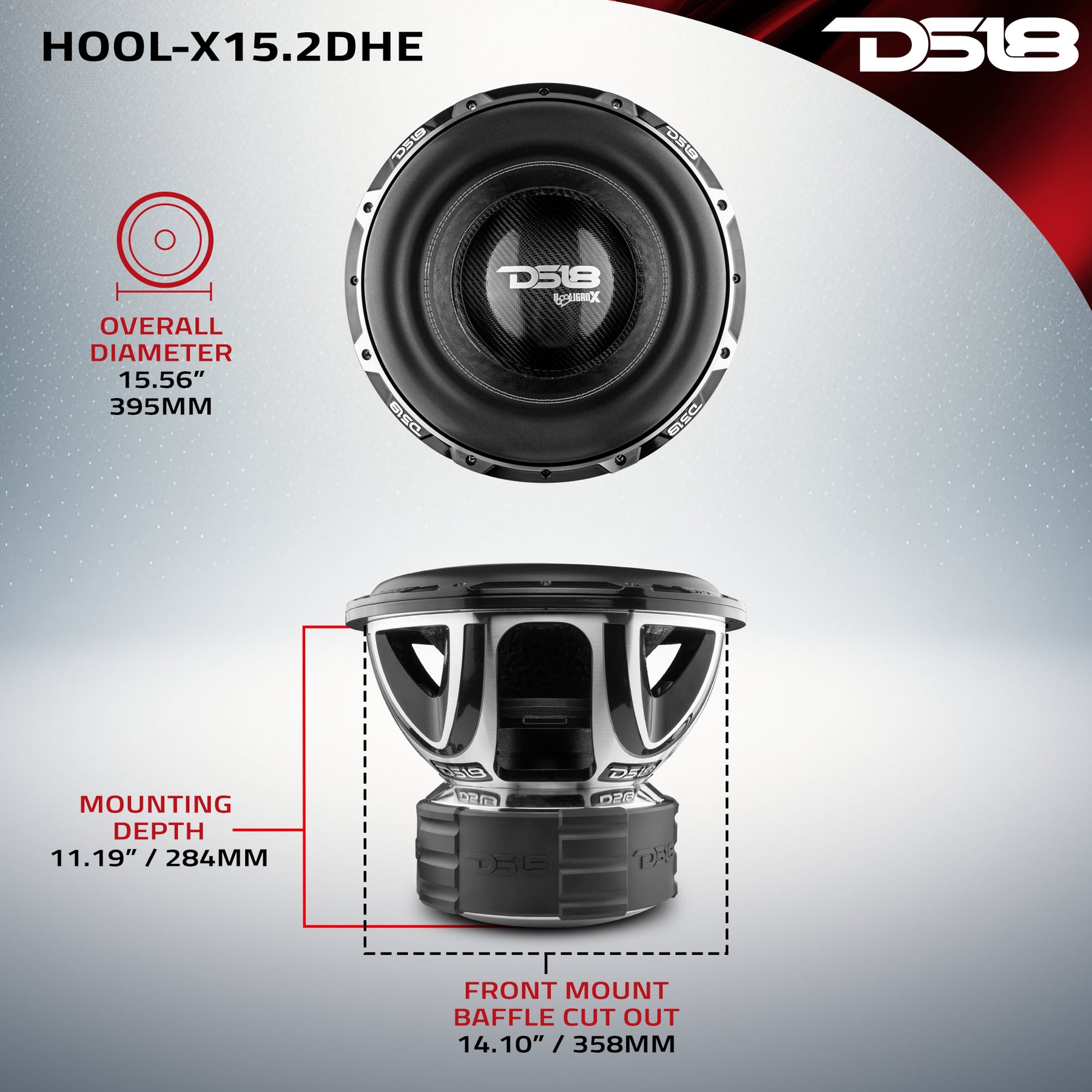

Measurements / Dimensions
| Parameter | Value |
|---|---|
| Overall Diameter | 15.56” / 395 mm |
| Overall Depth | 13.31” / 338 mm |
| Front Mount Baffle Cutout | 14.10” / 358 mm |
| Mounting Depth | 11.19” / 284 mm |
| Motor Diameter | 9.96” / 253 mm |
| Product Weight | 89 lb |
| Product Dimensions (L × W × H) | 17.75 × 17.75 × 16 in |
| Master Carton Weight | 89 lb |
| Master Carton Dimensions | 17.75 × 17.75 × 16 in |
| Master Carton Quantity | 1 |
| Sold In | Single |
Product Overview
HOOLIGAN 15″ High Excursion Car Subwoofer 4000 Watts Rms 4″ DVC 2-Ohm
Experience a new level of bass performance and power with DS18’s HOOL-X15.2DHE! The HOOLIGAN 15” High Excursion Car Subwoofer has been the top choice for enthusiasts and competitors alike, and now, it’s back with a vengeance.
The HOOLIGAN is built for power and durability. The redesigned long throw pole, larger spider, and high excursion surround, helps lower the HOOLIGAN’s FS (Resonant Frequency), making it even louder at subsonic frequencies. With an FS of 26, this subwoofer guarantees impressive low frequencies all the way down to 16Hz. Its high-powered 4″ Black Aluminum voice coil can handle 4000W RMS and 6000W MAX power, making it perfect for heavy-hitting competition bass.
Versatility is key, and the HOOL-X15.2DHE can adapt to various enclosure types. Whether you prefer 4th orders, 6th orders, ported boxes, or large sealed boxes, this subwoofer will thrive in any setup that has enough room.
This version of the HOOLIGAN boasts a nominal diameter of 15″ (381 mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-powered subwoofer. With a sensitivity of 88.2 dB and a frequency response ranging from 26Hz to 500Hz, this subwoofer ensures every beat is reproduced with staggering depth and precision.
DS18’s HOOLIGAN 15″ High Excursion Car Subwoofer is the ultimate choice for car audio enthusiasts seeking extreme bass and massive power. Its unmatched performance, cutting-edge design, and versatility make it a must-have for any ground shaking audio system.
