Description

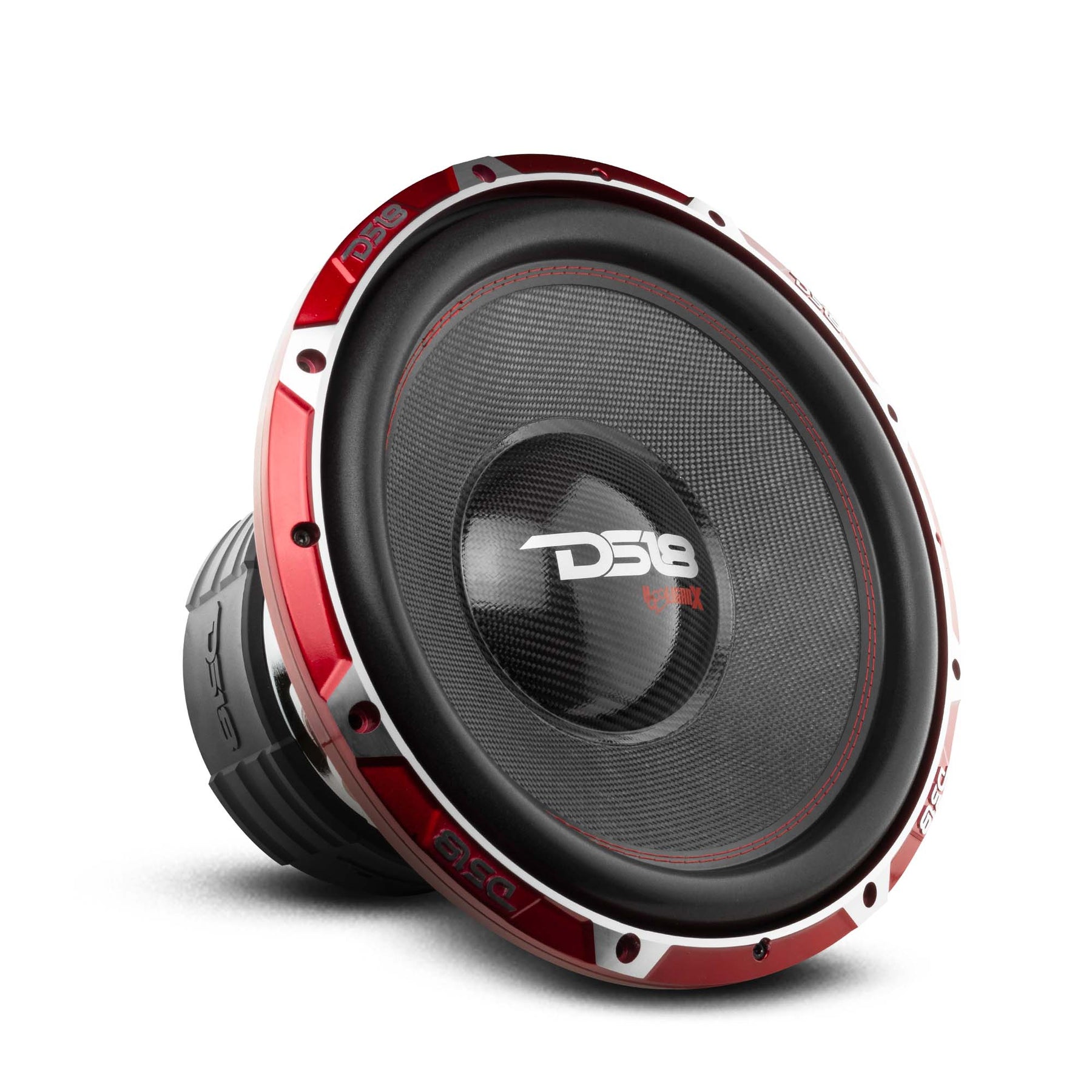

DS18 HOOL-X15.1DSPL
The HOOL-X15.1DSPL is a 15-inch SPL (Sound Pressure Level) competition car subwoofer engineered to deliver extreme, thunderous bass and maximum output for high-power car audio builds. With a dual 1 Ω (1+1 Ω) voice coil and a 4-inch black aluminum CCAW voice coil, it’s built to handle 4000 W RMS and up to 6000 W peak power with authority and control. Featuring a non-pressed paper cone, carbon fiber dust cap, heavy-duty foam surround, and a 500 oz ferrite magnet, this subwoofer produces deep, rich bass from 20 Hz to 250 Hz, making it ideal for sealed, ported, 4th order, 6th order, or custom enclosure applications. The glossy red aluminum basket provides both strength and visual appeal, while reinforced SPL spider design ensures durability under high SPL conditions for bass enthusiasts and competition setups alike.
Specifications
| Parameter | Value |
|---|---|
| SKU | HOOL-X15.1DSPL |
| Nominal Diameter | 15” |
| Nominal Impedance | 1 + 1 Ω |
| RMS Power Handling | 4000 W |
| MAX Power Handling | 6000 W |
| Sensitivity (1W/1M) | 87 dB |
| Frequency Response | 20 – 250 Hz |
| Recommended Low-Pass Crossover | 100 Hz |
Motor / Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 4” / 101.6 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | Carbon Fiber |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color / Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 500 oz |
| Displacement Volume | 9.1 L / 0.32 ft³ |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (VAS) | 43.26 L / 1.52 ft³ |
| Free Air Resonance (FS) | 35.3 Hz |
| Mechanical Factor (QMS) | 6.25 |
| Electrical Factor (QES) | 0.526 |
| Total Q (QTS) | 0.495 |
| Moving Mass (MMS) | 613.54 g |
| Compliance (CMS) | 0.024 mm/N |
| Bl Factor (Bl) | 16.25 |
| Voice Coil Inductance (Le) | 2.54 mH |
| Diaphragm Area (Sd) | 754.77 cm² |
| DC Resistance (Re) | 0.9 + 0.9 Ω |
| Efficiency Bandwidth Product (EBP) | 67.1 |

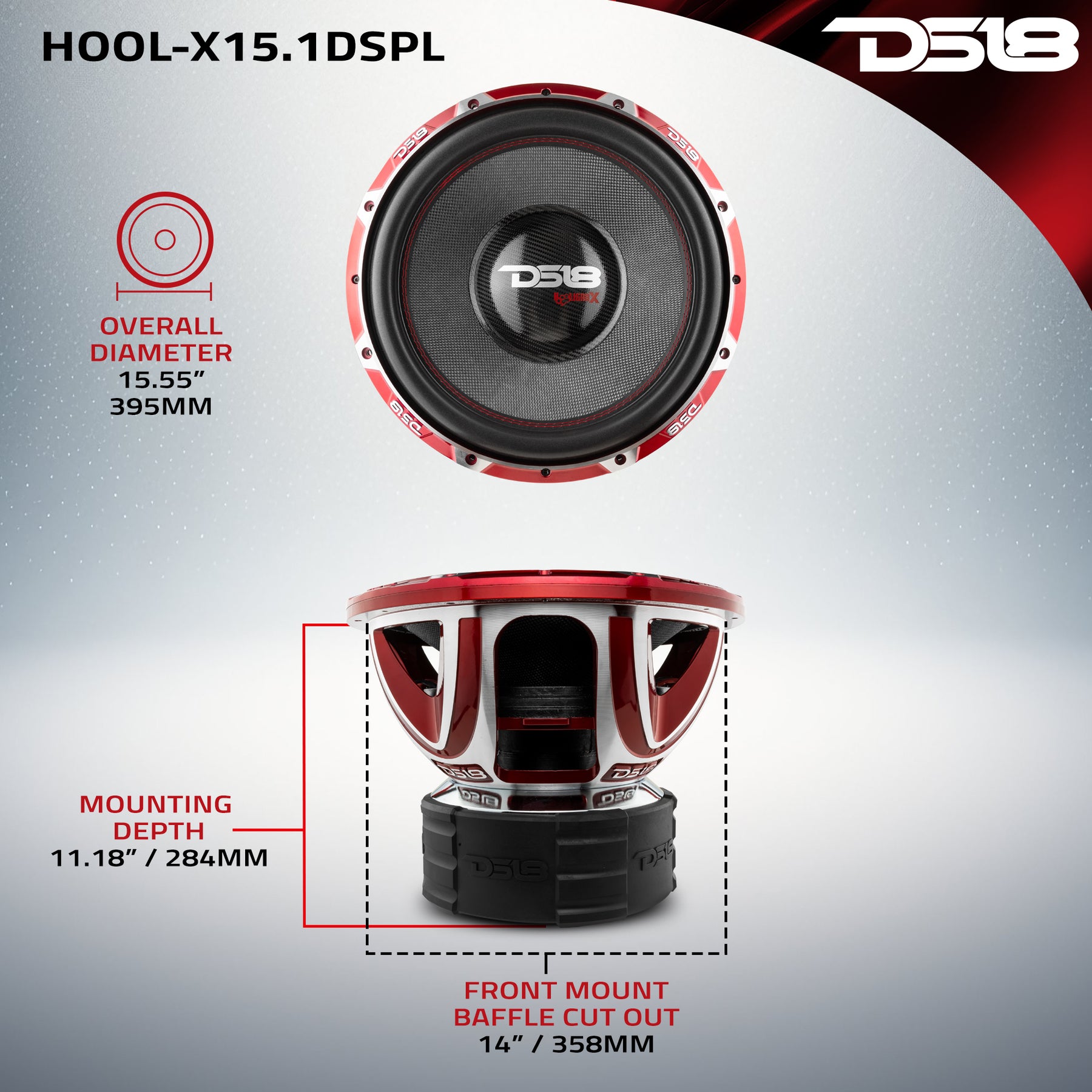

Measurements / Dimensions
| Parameter | Value |
|---|---|
| Overall Diameter | 15.55” / 395 mm |
| Overall Depth | 13.3” / 338 mm |
| Front Mount Baffle Cutout | 14” / 358 mm |
| Mounting Depth | 11.18” / 284 mm |
| Motor Diameter | 9.96” / 253 mm |
| Product Weight | 88 lb |
| Product Dimensions (L × W × H) | 17.75 × 17.5 × 15.25 in |
| Master Carton Weight | 88 lb |
| Master Carton Dimensions | 17.75 × 17.5 × 15.25 in |
| Master Carton Quantity | 1 |
| Sold In | Single |
Product Overview
HOOLIGAN 15″ SPL Car Subwoofer 4000 Watts RMS 4″ 1-Ohm DVC
For over six years, the HOOLIGAN series has captivated music lovers and competitors alike, consistently pushing the boundaries of what is possible in car audio. Now, with the HOOLIGAN X15 Sound Pressure Level, we have taken this iconic line to new heights. Our engineers have meticulously crafted this subwoofer to deliver unrivaled sound pressure levels, making it the perfect choice for those seeking extreme bass and massive power.
The HOOLIGAN X15 is built to withstand the most demanding conditions, both on the streets and in the lanes. With its heavy-duty pole, SPL spider, and high-strength surround, this subwoofer is specifically designed to enhance sound pressure levels, resulting in a louder output at competition frequencies.
Versatility is the name of the game with the HOOLIGAN X15. It is compatible with a range of enclosure types, including 4th orders, 6th orders, ported boxes, and large sealed boxes. This subwoofer adapts to your setup, providing flexibility and exceptional performance in any application.
At the heart of the HOOLIGAN X15 lies its high-powered 4″ aluminum voice coil, capable of handling 4000W RMS and 6000W MAX power, ensures every beat hits with precision and authority. We’ve also reinforced this version with a larger SPL surround, enhancing its capability to handle high SPL levels and allowing it to play louder and cleaner than ever before.
The DS18 Tooled Red basket on the HOOL-X15.1DSPL, constructed from aluminum, not only provides exceptional strength but also adds a touch of elegance to your car audio setup. The HOOL-X15.1DSPL also boasts a nominal diameter of 15″ (381mm) and a nominal impedance of 1+1 OHMS to amplify the performance and capabilities of this high-powered subwoofer.
Join the ranks of music lovers and competitors who have chosen the HOOLIGAN series as their go-to subwoofer.
