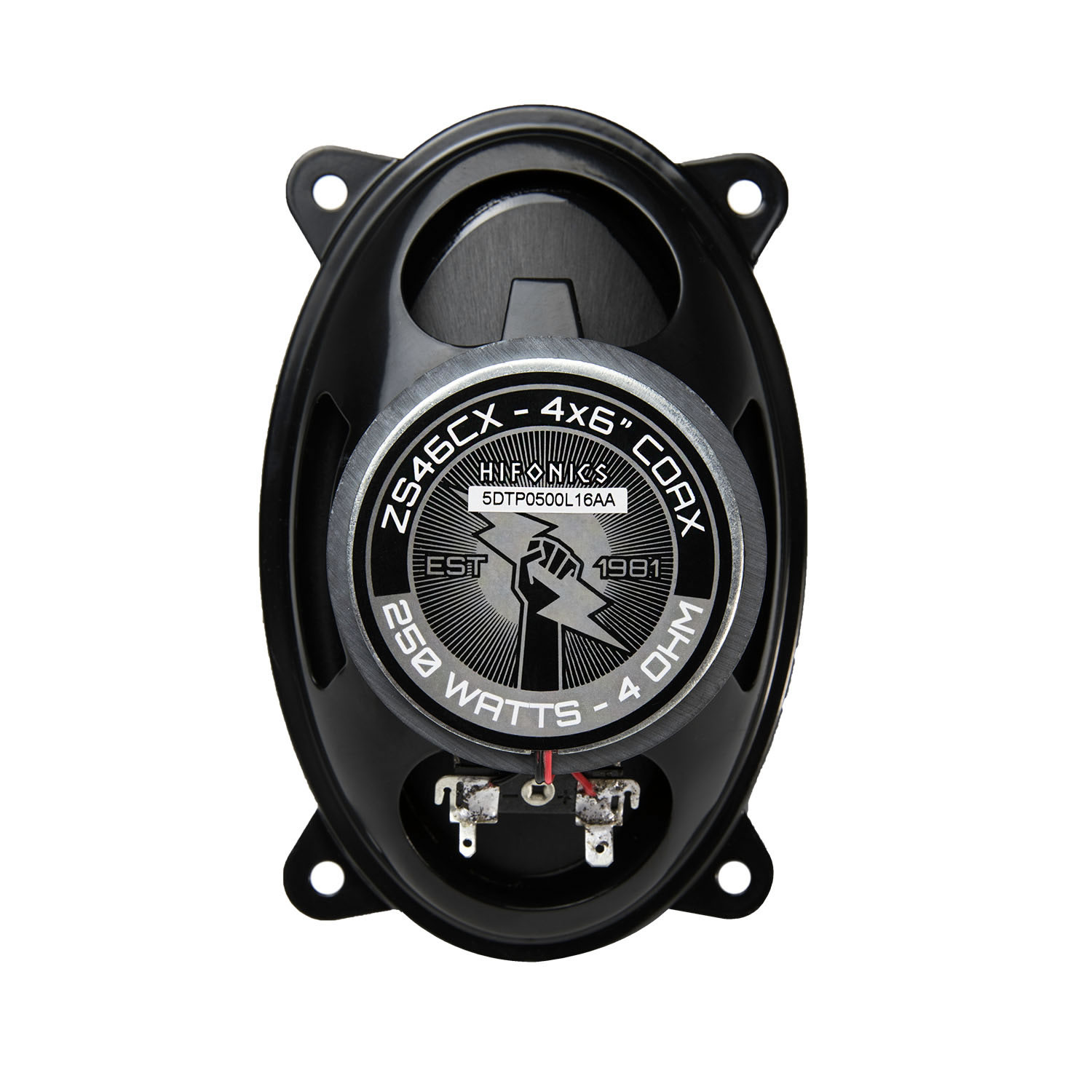

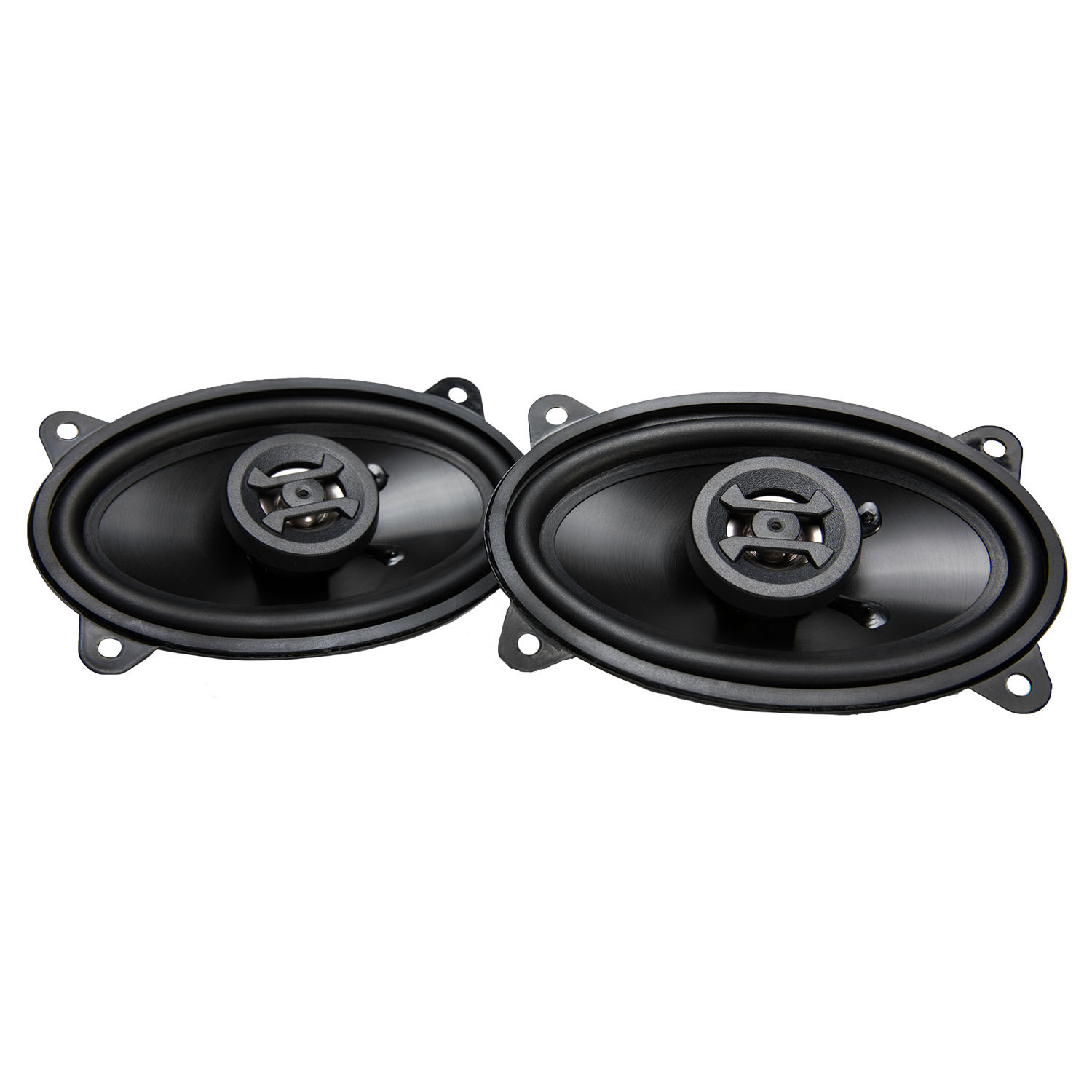

Hifonics ZS46CX
The Hifonics ZS46CX is a 4×6″ 2-way coaxial car speaker from the Zeus Series, designed as a budget-friendly plug-and-play upgrade for factory 4×6″ speaker locations. It features Alpha-Cellulose woofer cones, 1″ Neo-Mylar soft dome tweeters, and a built-in passive crossover, delivering balanced sound with clear highs and decent midbass for everyday use.
Specifications
| Specification | Details |
|---|---|
| Type | Speaker |
| Brand | Hifonics |
| Series | ZEUS |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| CEA Standards | CEA426B |
| Compatible Vehicles | Universal |
| RMS Power Handling | 40 watts |
| Peak Power Handling | 200 watts |
| Impedance | 4 ohms |
| Frequency Response | 55Hz – 19kHz |
| Sensitivity | 88 dB |
| Crossover Slope | 6kHz 12dB |
| Mounting Diameter / Cut Out | 5.5 x 3.46 inches |
| Outside Diameter | 5.94 x 3.84 inches |
| Mounting Depth / Chassis Depth | 3.0 inches |
| Speaker Size | 4 x 6 inches |
Features & Benefits
| Tweeters | 1 inch: Clear highs while handling plenty of power without sound harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat. |
|---|---|
| Cone Material | Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass. |
| Surround / Cone Coupling | Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround. |
| Voice Coil / Former Assembly | Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat. |
| Spider | Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. |
| Cooling System | Overcoil: Air is exchanged over the voice coil through the spider. |
| Crossover | Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element. |
| Frame | Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing. |
| Motor | Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application. |
| Connectors | Spade: Use spade connectors or solder direct for the best connection. |
| Grills | No: Typical installation mounts speakers behind a panel or dash. |
