Description

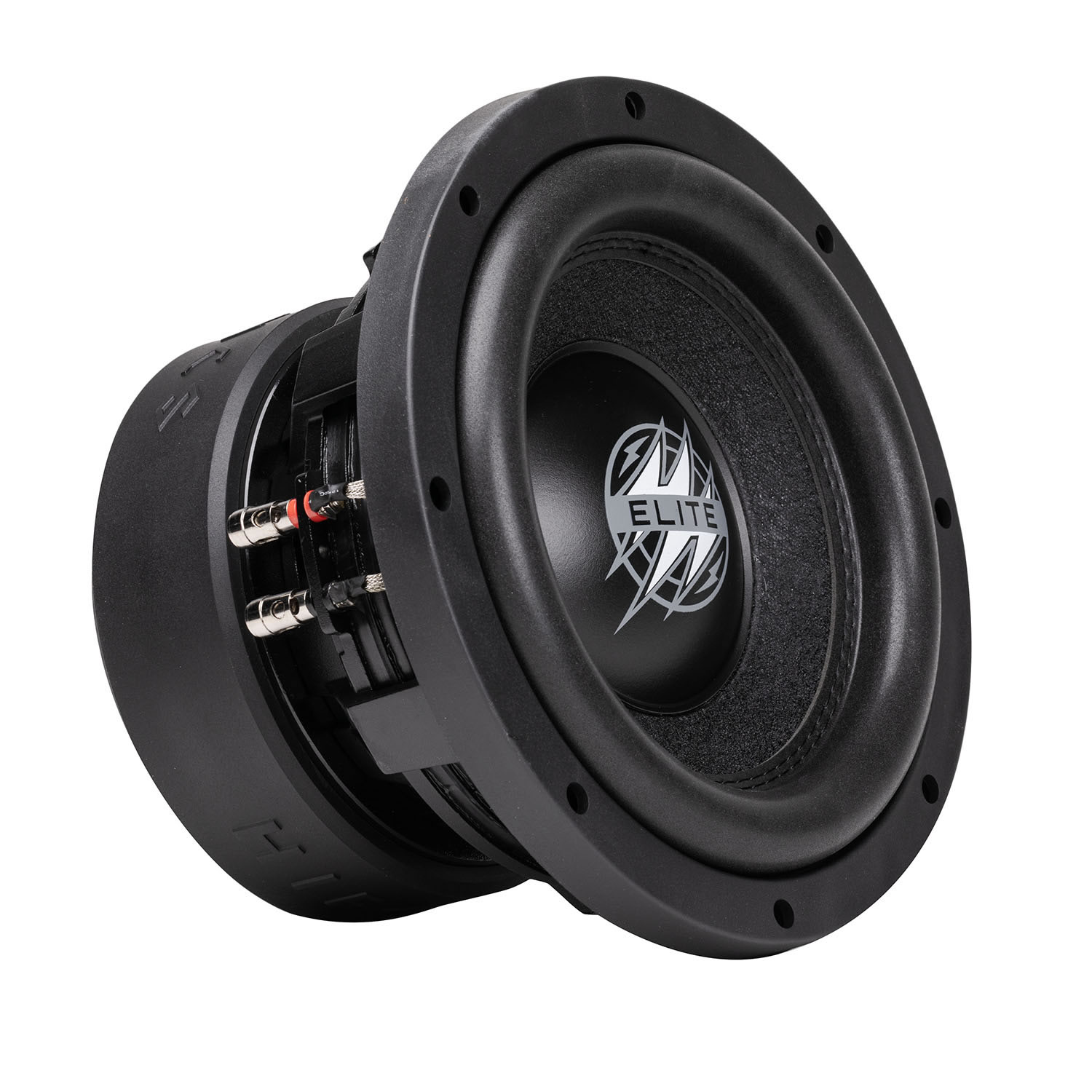

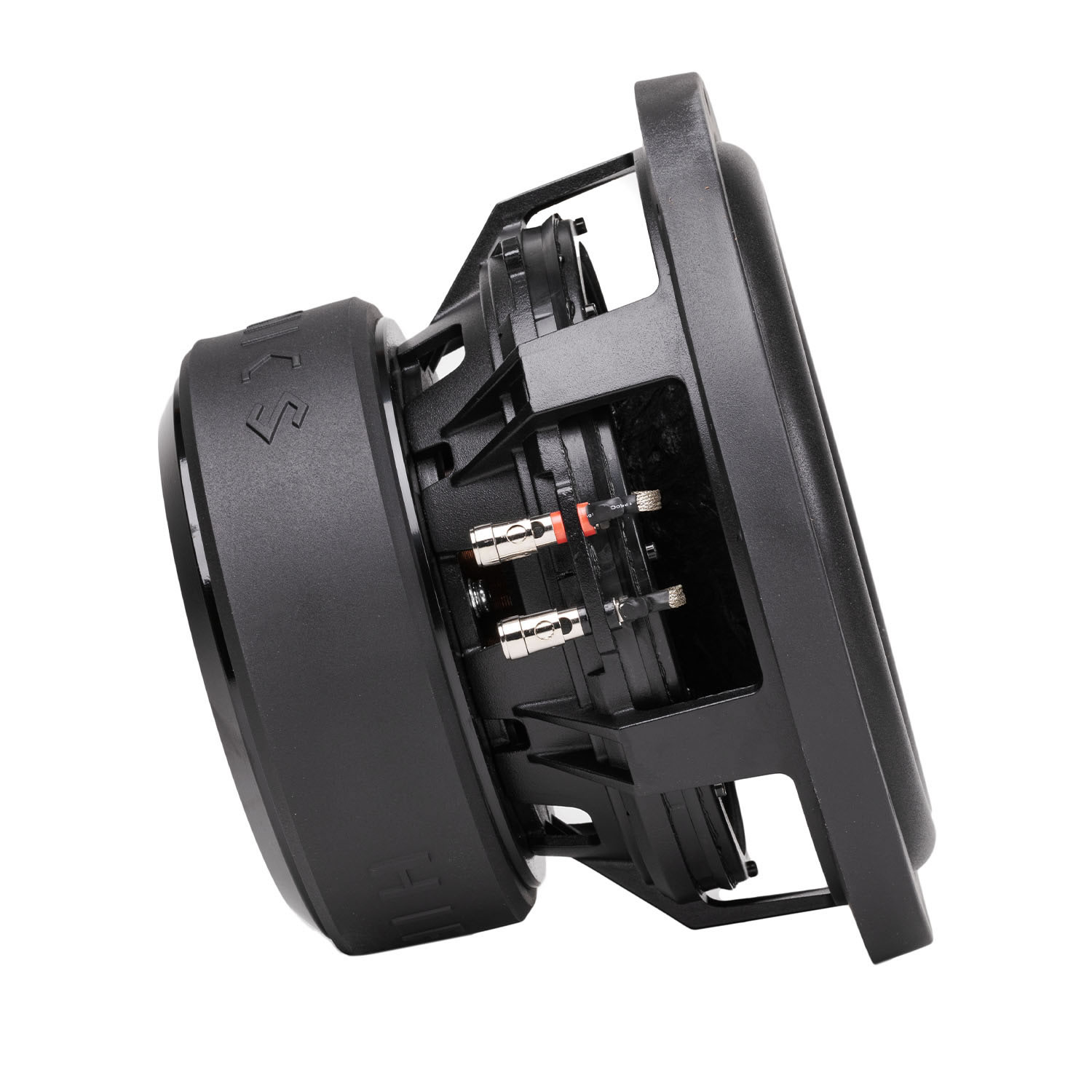

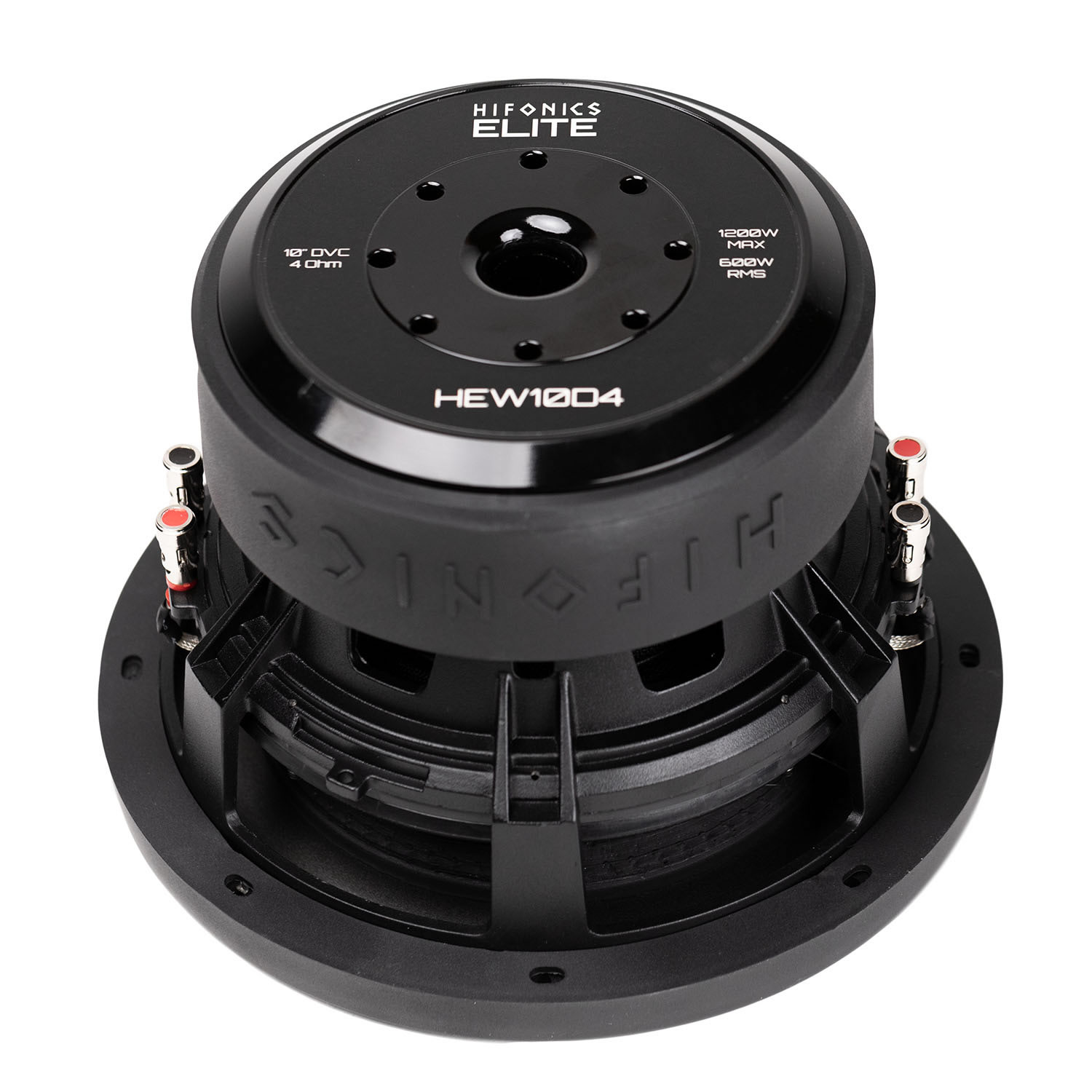

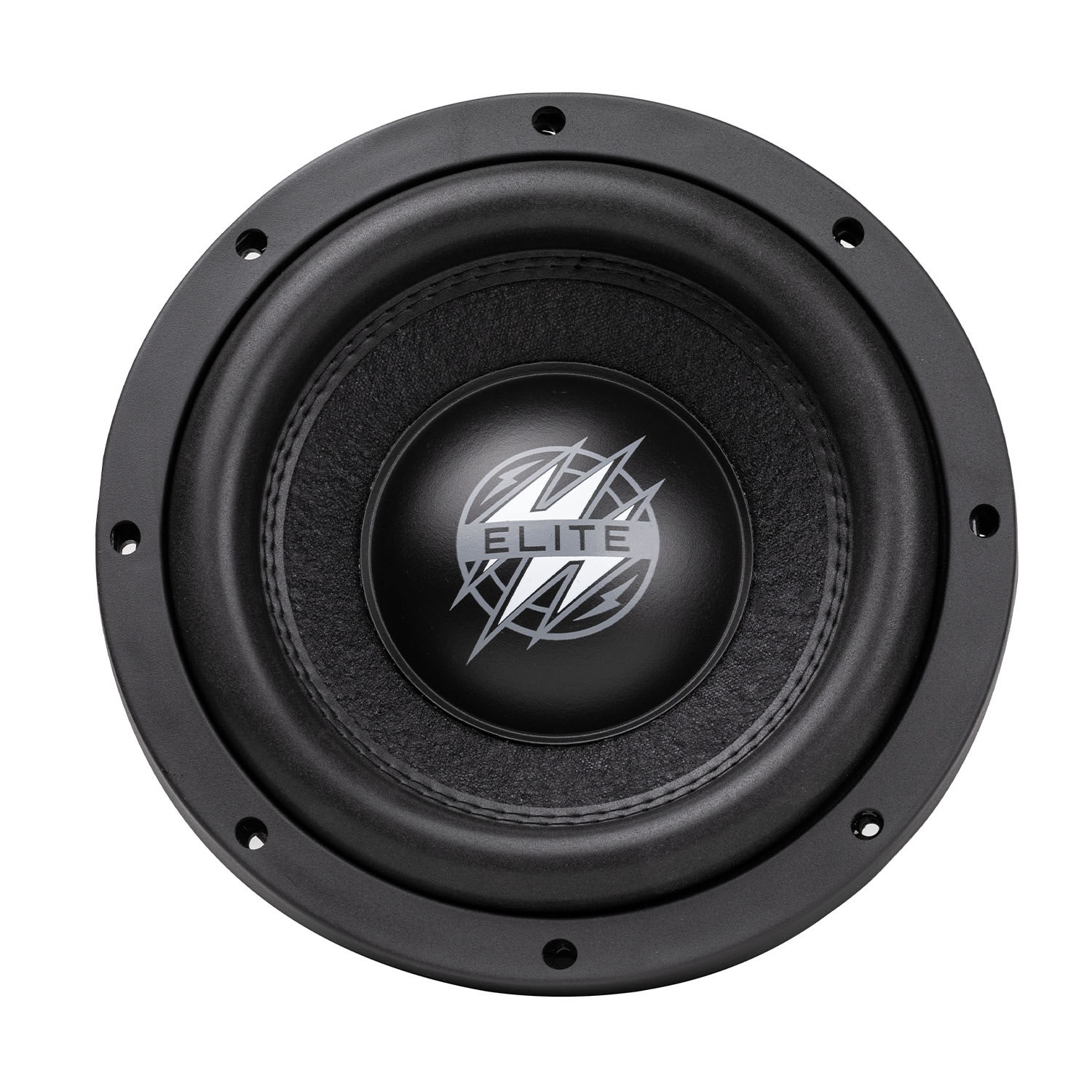

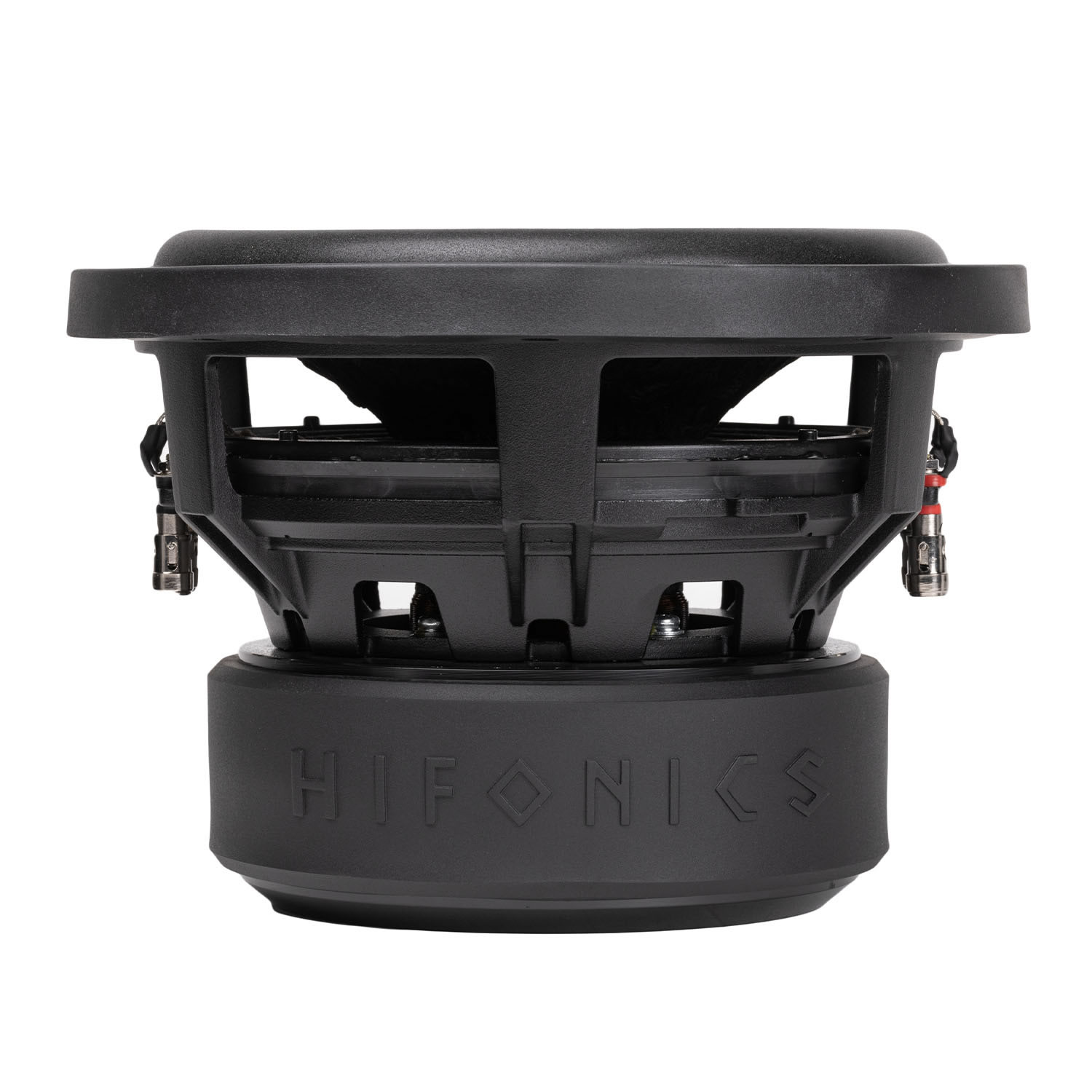

Hifonics HEW10D4
The Hifonics HEW10D4 is a 10″ dual‑voice‑coil (DVC) car subwoofer from the Elite Series, engineered to provide deep, powerful bass in upgraded car audio systems. Its dual 4 Ω voice coil configuration allows flexible wiring to match different amplifiers, and rugged construction delivers strong low‑frequency performance for both sealed and ported enclosures.
Specifications
| Specification | Details |
|---|---|
| Type | Subwoofer |
| Brand | Hifonics |
| Series | Hifonics ELITE |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Configuration | Round |
| Voice Coils | 2 |
| Impedance | 4 ohms |
| RMS Power Handling | 600 watts |
| Peak Power Handling | 1200 watts |
| Cut-Out | 9.4 inches |
| Mounting Depth | 6.53 inches |
| Outside Diameter | 10.8 inches |
| Sensitivity (1W/1m) | 83 dB |
| Enclosure Recommendation | Medium Sealed – Large Vented |
| Size | 10 inches |
Features & Benefits
| Terminal Type | Push & insert style terminals for easy installation. |
|---|---|
| Configuration | Round |
| Surround / Cone Coupling | The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free. |
| Voice Coil / Former Assembly | Vented aluminum former holds a 3″ voice coil while allowing the heat to be exchanged. (Less heat means less distortion) |
| Spider | Specialized Hifonics dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions. |
| Frame / Venting | Hifonics heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability. |
| Motor | Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL. |
