Description

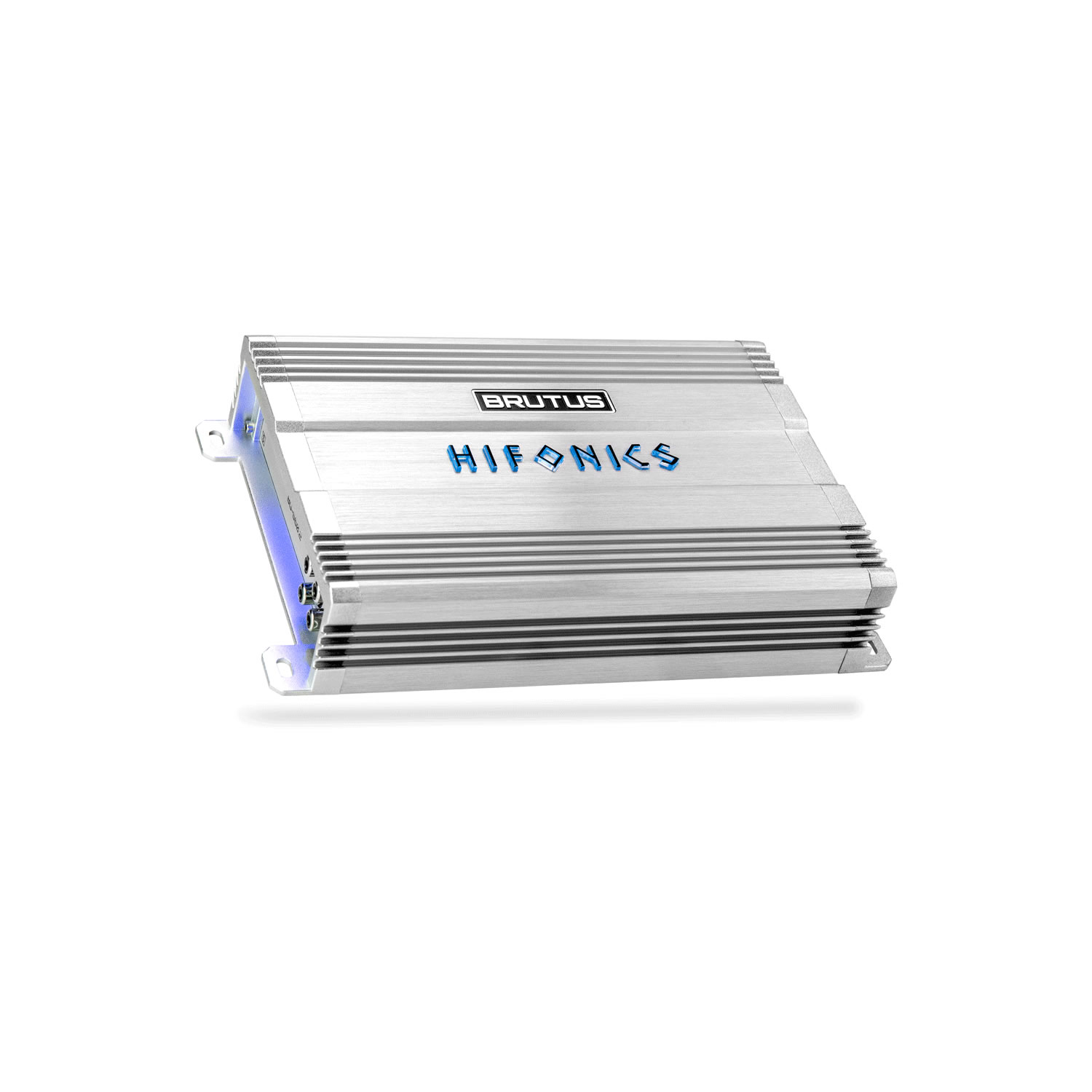

Hifonics BG-560.2
The Hifonics BG‑560.2 is a Class A/B 2‑channel amplifier from the Brutus Gamma (BG) Series, engineered to deliver efficient and clean power for full‑range speaker systems or bridged subwoofer use. With solid output capability, flexible crossover controls, and reliable protection circuitry, it’s suitable for daily car audio systems and moderate performance builds.
Specifications
| Category | Specification |
|---|---|
| Type | Amplifier |
| Brand | Hifonics |
| Series | BRUTUS BG |
| Category (Use) | Mobile |
| Condition | New |
| Color | Silver |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Super D Class™ |
| Total Channels | 2 |
| Max Power (Watts) | 560 |
| Power @ 2 Ohms (ch x watts) | 2 x 275 |
| Power @ 4 Ohms (ch x watts) | 2 x 150 |
| Mono Bridged @ 4 Ohms (ch x watts) | 1 x 560 |

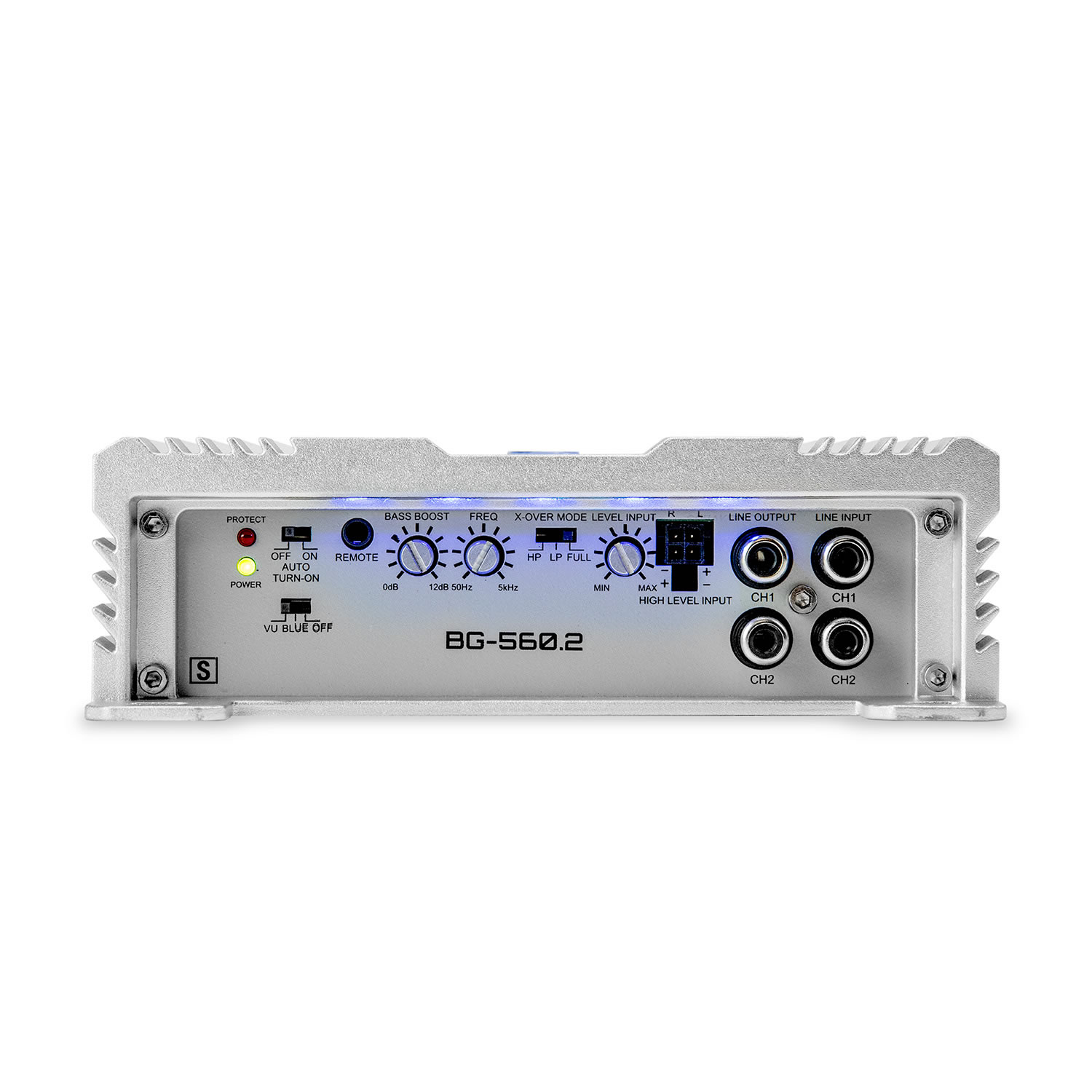

| Amp Crossover | Variable Electronic 12dB Per Octave, APF, HPF, LPF |
| Variable High Pass Crossover | 50Hz – 5kHz |
| Variable Low Pass Crossover | 50Hz – 5kHz |
| Bass Boost | 0 – 12dB |
| Variable Voltage | High: 1.1 – 19.3V, Low: 0.2 – 6.7V |
| Signal to Noise Ratio | 85dB |
| Frequency Response | 10Hz – 30kHz |
| Total Harmonic Distortion (THD) | < 0.1% |
| Speaker Level Audio Inputs | Yes |
| Pre-amp Audio Outputs | Pass Thru RCA |
| Power Terminal 12V/GND | 4 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | 2 x 30A |
Features & Benefits
| Compatible Vehicle Fitment | Universal |
|---|---|
| Ultra-Low EMI Design | Shielded inductors are used in the BG series for increased sound quality that produces ultra-low EMI. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that are corrosion-resistant. |
| High Tolerance Output Device | BRUTUS BG amplifiers have MOSFETS designed for high output power and fast thermal dissipation through a SMT process that produces ultra-low EMI. |
| High Level Inputs | Easily tie into OEM audio systems that do not offer RCA output to maximize after-market amplifier power. |
| Operation Mode | 2 channel operation mode allows either stereo or mono bridged operation. |
| Clean Board Construction | 4-layer PCB design, using a thinner substrate, improves heat dissipation and enhances performance stability. |
| Class / Topology | BG amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Dual toroidal transformers paired with a high-frequency PWM drive results in higher power capacity compared to other transformer designs. This whole system is protected by a current overload limiter. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. |

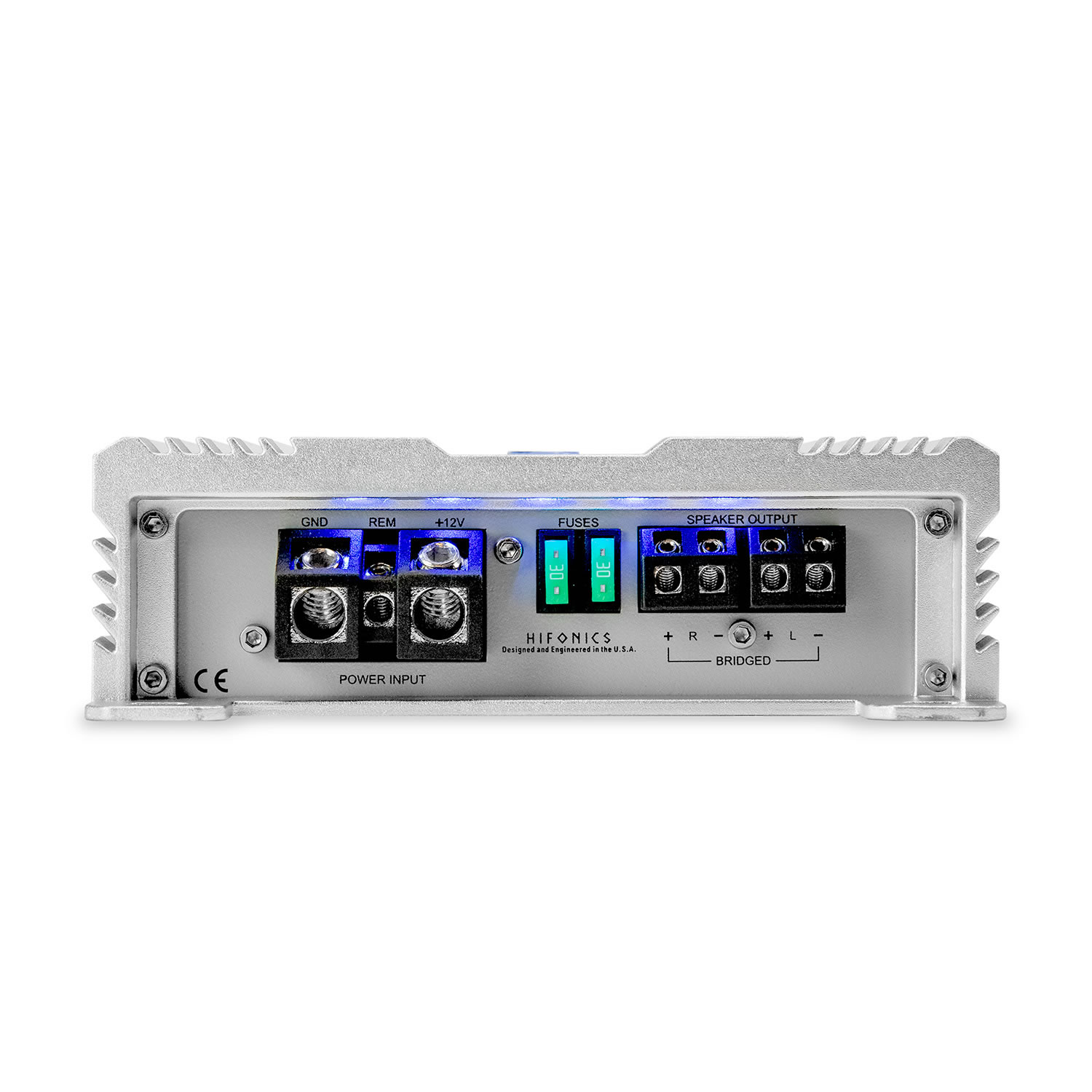

| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |
| Full-Range RCA Outputs for Signal Pass Through | One pair of RCA connectors for a full range, Ch1 & Ch2 output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, and thermal protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance. |
| Auto Turn-On | The DC SIGNAL SENSE switch will allow the amplifier to turn on when a signal is received on the high level inputs. An amplifier remote turn on wire is not needed to power on the amplifier. This feature can also be turned off. |
