Description

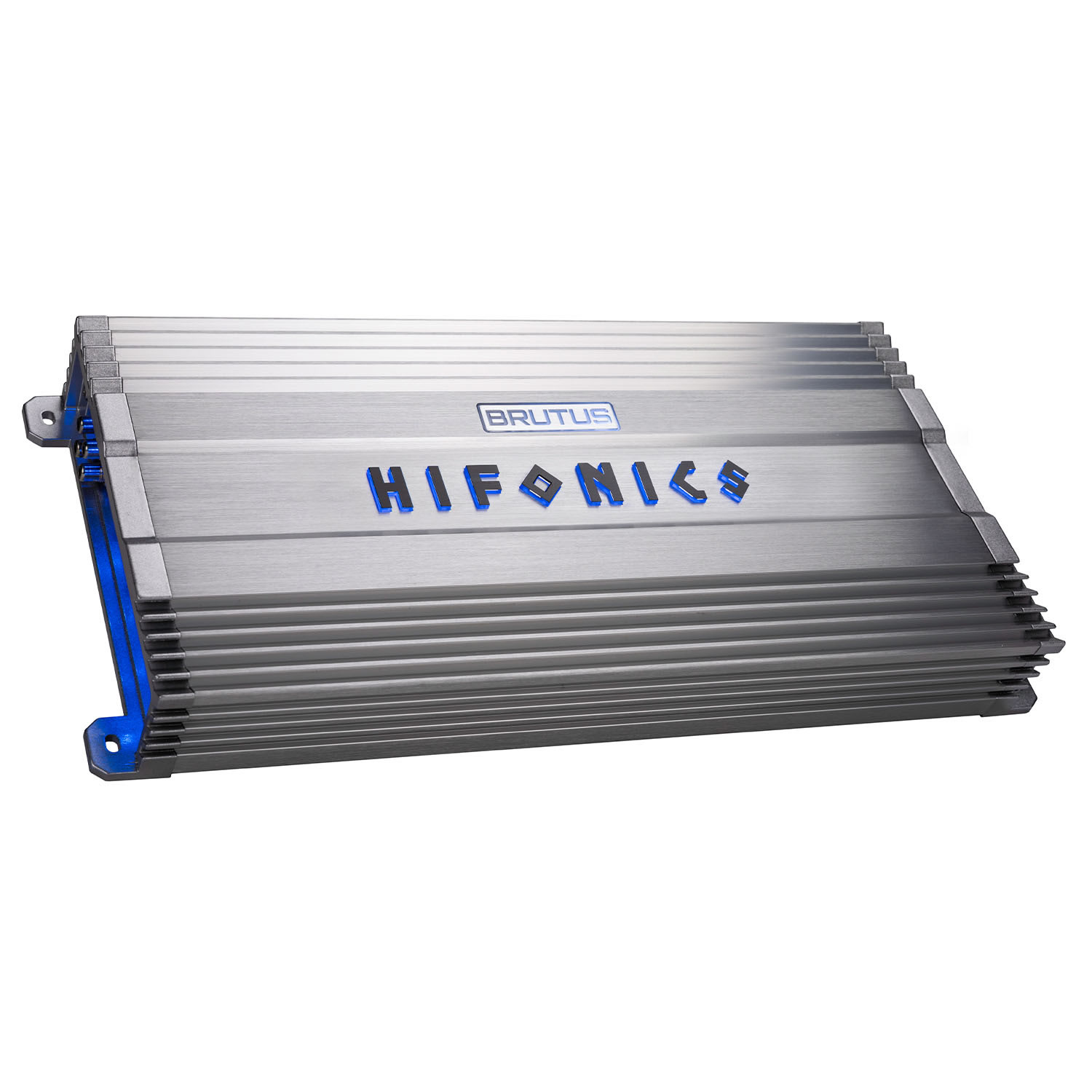

Hifonics BG-1600.4
The Hifonics BG-1600.4 is a Super Class A/B 4-channel amplifier from the Brutus Gamma (BG) Series, designed to deliver strong and clean power for full-range speaker systems. With high output capability, flexible crossover tuning, and durable protection circuitry, it is ideal for powering door speakers as well as small subwoofer setups in daily and performance builds.
Specifications
| Category | Specification |
|---|---|
| Type | Amplifier |
| Brand | Hifonics |
| Series | BRUTUS GAMMA |
| Category | Mobile |
| Condition | New |
| Color | Bright Silver Hairline Anodized Finish |
| Model Replaced | BXX-1200.4 |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Super A/B Class™ |
| Total Channels | 4 |
| Max Power | 1600 Watts |
| Power @ 2 Ohms | 4 x 400 W |
| Power @ 4 Ohms | 4 x 200 W |
| Mono Bridged @ 4 Ohms | 2 x 800 W |
| Crossover | Variable Electronic 12dB/Octave |
| High Pass Crossover | 10Hz – 2.5kHz |
| Low Pass Crossover | 30Hz – 2.5kHz |
| Tone Control / EQ | Built-in Bass Control |
| Bass Boost | 0 – 10dB |
| Variable Voltage | 0.2 – 9V |
| Frequency Response | 10Hz – 22kHz |
| Total Harmonic Distortion (THD) | < 0.5% |
| Speaker Level Inputs | Yes |
| Power Terminal | 4 AWG |
| Speaker Terminal Wire Gauge | 12 AWG |
| Fusing | 100A |
Features & Benefits
| Low Noise Preamplifier Circuit | Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
|---|---|
| RCA Inputs | Nickel-plated RCA jacks create the most efficient High/Low Level audio connection and resist corrosion. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. |
| Class / Topology | Super A/B Class proprietary designs use high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, this unique hybrid of Super A/B Technology results in lower distortion, higher current efficiencies and less heat than conventional amplifier designs. |
| Output Device Technology | Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion. |
| Heat Sink | Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices. |
| Power Supply | Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices. |
| Output Connections | High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. |
| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
