Description

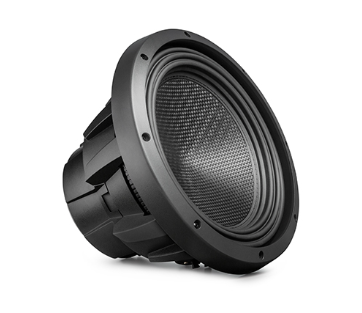

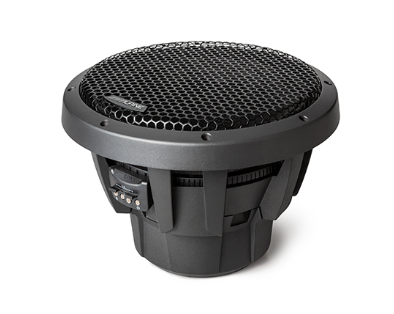

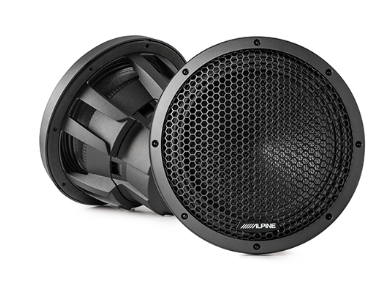

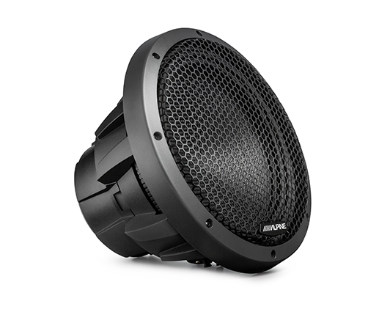

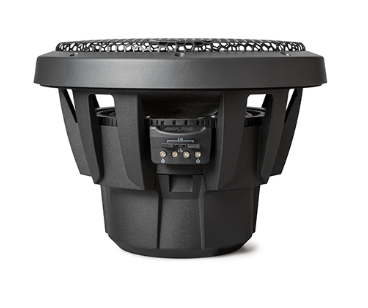

Alpine HDZ‑W12
The Alpine HDZ‑W12 is a 12‑inch high‑performance subwoofer from Alpine’s Status Series, engineered for enthusiasts seeking deep, clean bass with premium build quality. It features a pulp‑mica cone body with a carbon‑fiber dust cap, High‑Amplitude Multi‑Roll (HAMR) surround allowing 20 mm of linear excursion, triple‑stacked high‑power strontium ferrite magnets, and a cast‑aluminum frame with premium trim ring. Key specifications: 800 W RMS (2400 W peak) power handling, dual 4 Ω voice coils, frequency response approx. 24‑200 Hz, and a top‑mount depth of about 7‑3/8″
Specifications
Features
| Feature | Description |
|---|---|
| Dust Cap & Cone | Carbon Fiber Dust Cap with Pulp-Mica Cone Body |
| Magnets | Triple-Stacked High Power Strontium Ferrite Magnets |
| Surround | High Amplitude Multi-Roll (HAMR) Surround |
| Spiders | Dual Progressive Spiders with Integrated Tinsel Leads |
| Frame | Cast Aluminum Frame with Premium Aluminum Trim Ring |
| Pole Geometry | Compound Radius Curve Extended Pole Geometry |
| Linear Excursion | 20 mm of linear excursion |
Tech Specs
| Specification | Value |
|---|---|
| Dimensions | 12‑7/8″ x 12‑7/8″ x 9‑2/8″ |
| Mounting Depth | 7‑3/8″ |
| Frequency Response | 24 Hz – 200 Hz |
| Power Range | 400 W – 800 W RMS |
| Power Handling | 800 W RMS / 2400 W Peak |
| Magnet Weight | 174 oz (x3) |
| Voice Coil | 65.5 mm (2.6″) |
| Linear Excursion | 20 mm |
About The Product
Superior Bass Performance
Featuring the revolutionary Alpine HAMR (High Amplitude Multi-Roll) Surround technology, this subwoofer ensures maximum excursion (20mm Linear Excursion) and performance without compromising on sound quality. The carbon fiber dust cap and pulp-mica cone body are meticulously crafted to deliver durability and crystal-clear bass, even at high volumes.
Power & Precision
Power through your tracks with the robust 800W RMS (2400W peak) power handling. Coupled with triple-stacked high-power strontium ferrite magnets, this subwoofer ensures impeccable control and responsiveness, delivering deep, resonating bass for a truly immersive listening experience.
