Rockford Fosgate HD24BL69

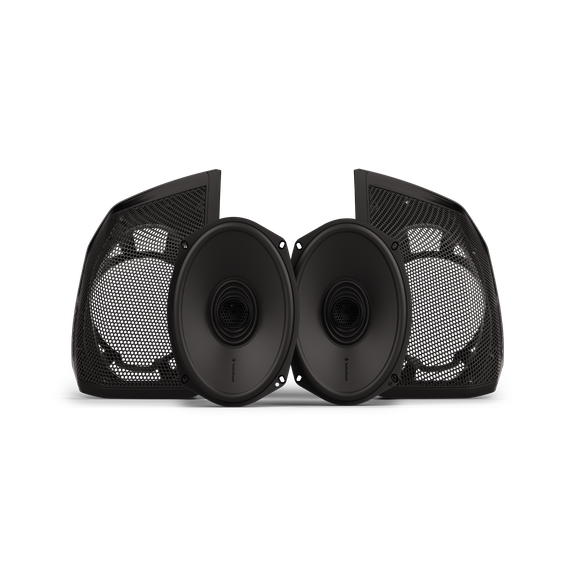

HD24BL69 is a 6×9″ 2-way saddlebag speaker kit for Harley‑Davidson touring motorcycles (2024+ and compatible earlier models). It includes two TMS24‑69 speakers, bag‑lid cutting templates, mounting hardware, grilles, and wiring harnesses — all designed for plug-and-play installation. Built to Element Ready™ standards, these speakers are water-, dust-, UV-, and vibration-resistant, ideal for outdoor and motorcycle use
Specifications
| Specification | Details |
|---|---|
| Speaker Qty | 2 |
| Amplifier Type | N/A |
| Total Power | N/A |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Shipping Weight | 15 Lbs. (6.8 Kg) |
| Included In The Box | (2) TMS24-69 Speakers (1) Baglid Cutting Template – left (1) Baglid Cutting Template – right (1) Mechanical Bucket – left (1) Mechanical Bucket – right (1) Mechanical Backer – left (1) Mechanical Backer – right (1) Baglid Grille – left (1) Baglid Grille – right (1) Wiring Harness – external (1) Wiring Harness – internal 1130-80758-01 AP Pack: • (8) Grille Washer 4.3mm ID/9.1mm OD/3.1mm • (16) Grille Screw, self-tapping, MX4.2 L=19mm • (12) Bucket Washer 4mm ID/8mm OD/2mm • (12) Bucket Screw M4x0.7 • (4) Template Screw, self-tap, M4x1.4, L=15.5mm • (16) Nylon Cable Tie 0.17 x 8 in • (10) Nylon Tie Holder, adhesive, 19mm sq, 5mm |
About The Product
Precision-Tuned
Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Performance Engineered
Each element of these 6X9 speakers is meticulously engineered for peak performance. Now handling 40% more power than before, these speakers feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.
Direct Fitment

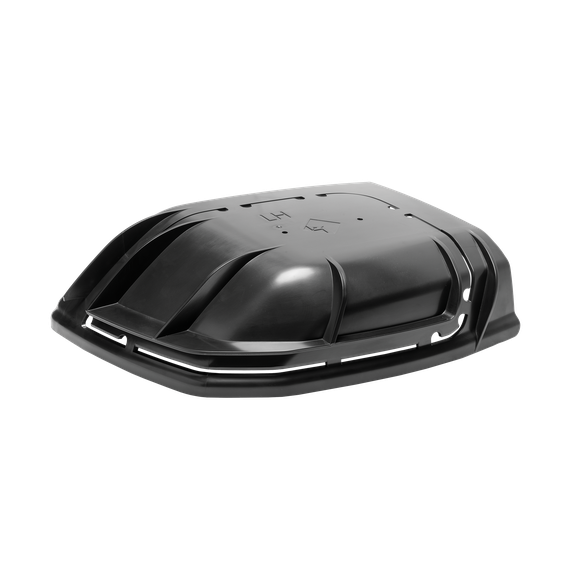

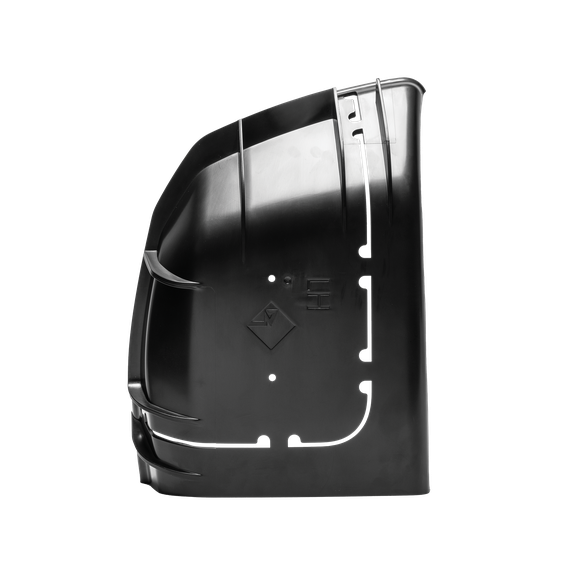

The patent-pending top-loading bucket and backer design helps to ensure smooth, precise cutting over the bag lid surface, we developed a newly designed precision-cut template with parallel ribbing. Our robust, injection-molded, tube-style gasketed saddlebag speaker mount inserts from the outside of the lid, making it possible to accommodate larger 6×9 speakers for unmatched audio performance.
Element Ready™
Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
UNRELENTING PERFORMANCE

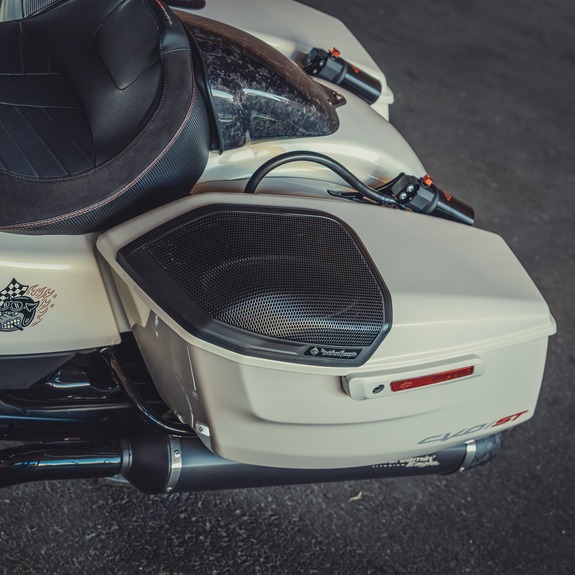

The HD24BL69 is a high-performance, 2-speaker, cut-in kit for factory Harley-Davidson™ saddlebag lids.
Kit Includes:
• (2) 6×9” TMS 2.0 speakers
• (2) Cutting templates
• (2) Speaker bucket systems
• (2) Baglid grilles
• (1) Installation harness
• Mounting hardware
