Pioneer GM‑ME300X1C

Description

Pioneer GM‑ME300X1C

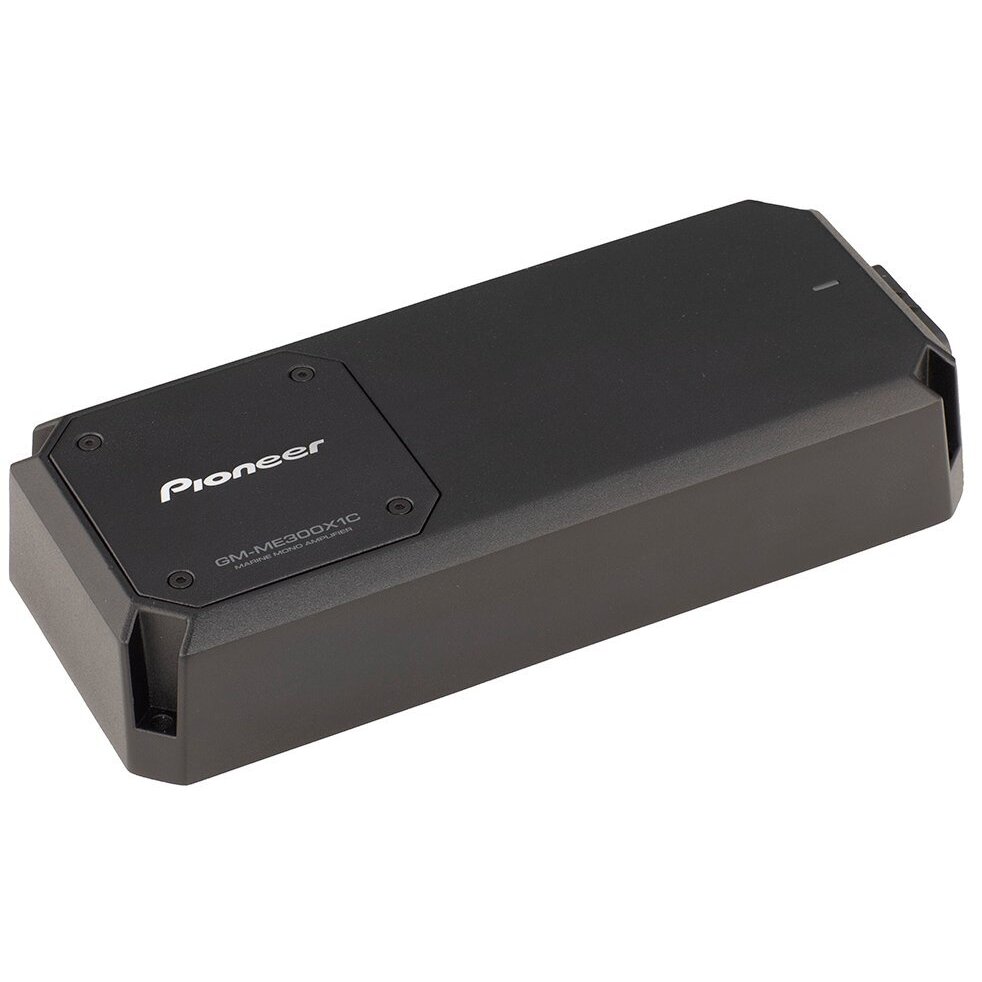

The Pioneer GM‑ME300X1C is a marine‑rated Class‑D mono subwoofer amplifier designed for rugged outdoor/vehicle use. It delivers 300 W RMS x 1 channel into both 4 Ω and 2 Ω loads.
It features an IP67 ingress‑protection rating (dust‑tight and suitable for immersion up to 1 m for 30 minutes when properly installed) and meets SAE J1171 ignition‑protection standards — making it suitable for marine, powersport or harsh‑environment car installations. Additional features include a 21‑step low‑pass filter (50‑500 Hz), 0/6/12 dB bass boost, speaker‑level input option, and Pioneer’s Protection Control System (PCS) to safeguard from thermal/current/voltage faults.

About The Product

Great as a subwoofer amp or as part of a larger system with other amplifiers. Digital design runs cooler and more efficiently that similar analog amplifiers

• Waterproof (IP67 rated) resistant to rain, splash and spray
• 300 watts RMS (continuous) power at 4 ohms
• 300 watts RMS (continuous) power at 2 ohms
• Digital 1 channel design
• Frequency Response – 20 – 240 Hz
• Signal-to-Noise Ratio – 75dB
• Dimensions (L x W x H) – 11-13/16″ x 4-1/8″ x 1-5/8″
• PCS (Protection Control System)
• Built in crossover with 21-step frequency selection (LPF/HPF)
• Switching power supply controlled by microcomputer
• 1 year manufacturer warranty

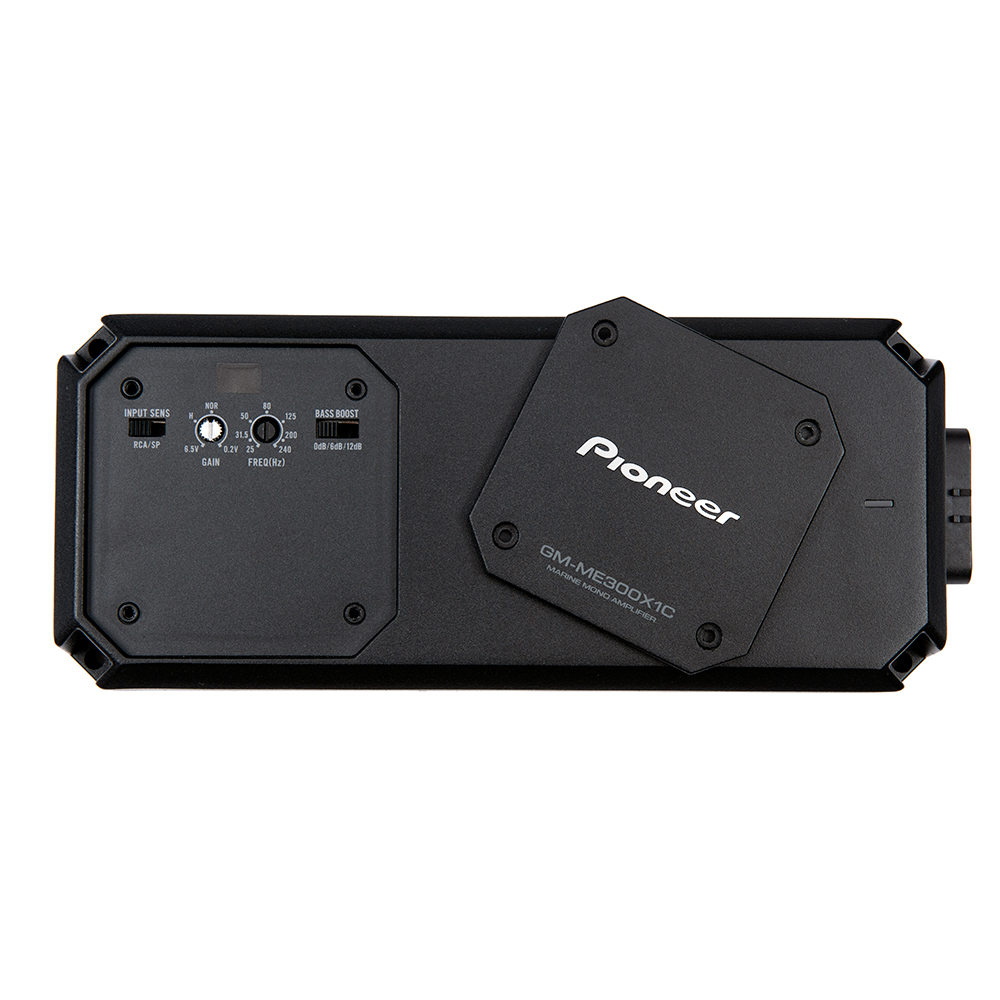

Pioneers GM-ME300X1C is a weatherproof, Class-D monoaural marine amplifier that is IP67 rated and SAE J1171 Certified. This amplifier features 21-step frequency selection and top adjustment access that benefits when installing into narrow compartments. The microcomputer Protection Control System (PCS), provides thermal protection, controlled current, and voltage protection to ensure stable output operation. The microcomputer also provides a selectable power mode to match the speakers handling.
