Description

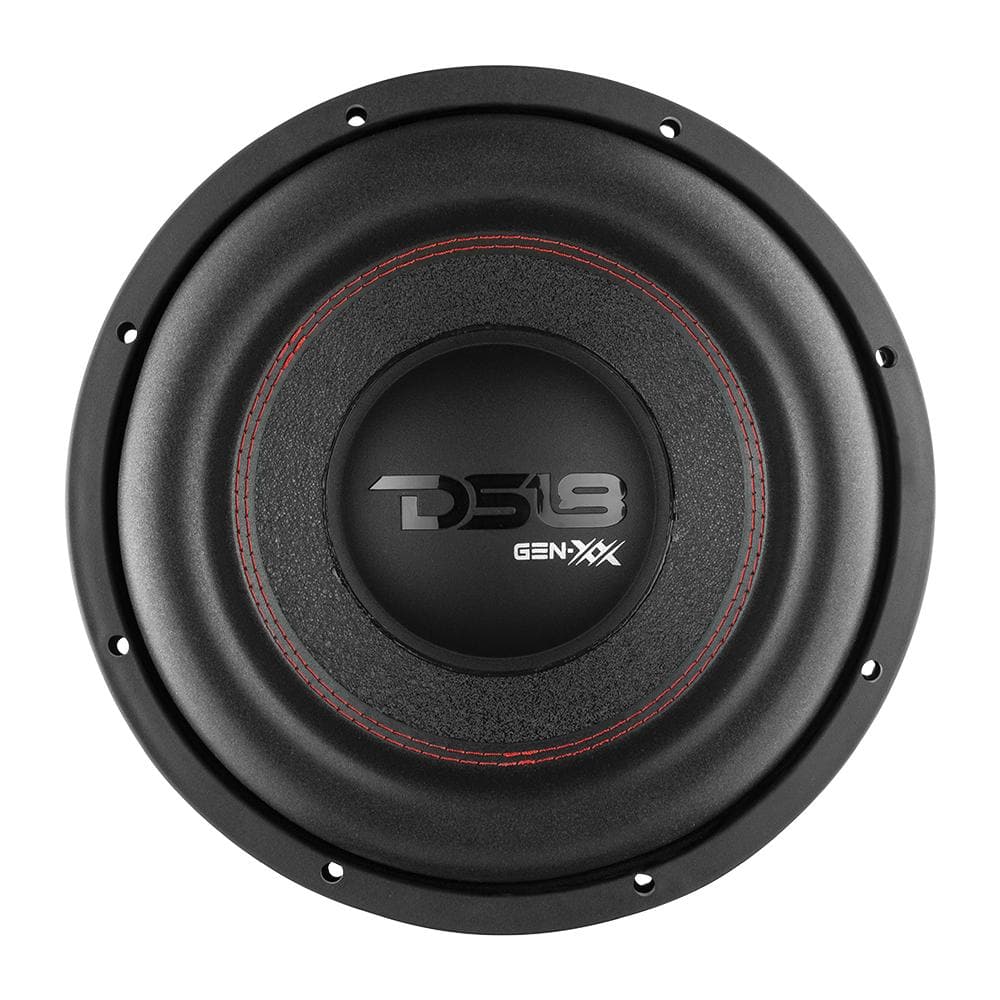

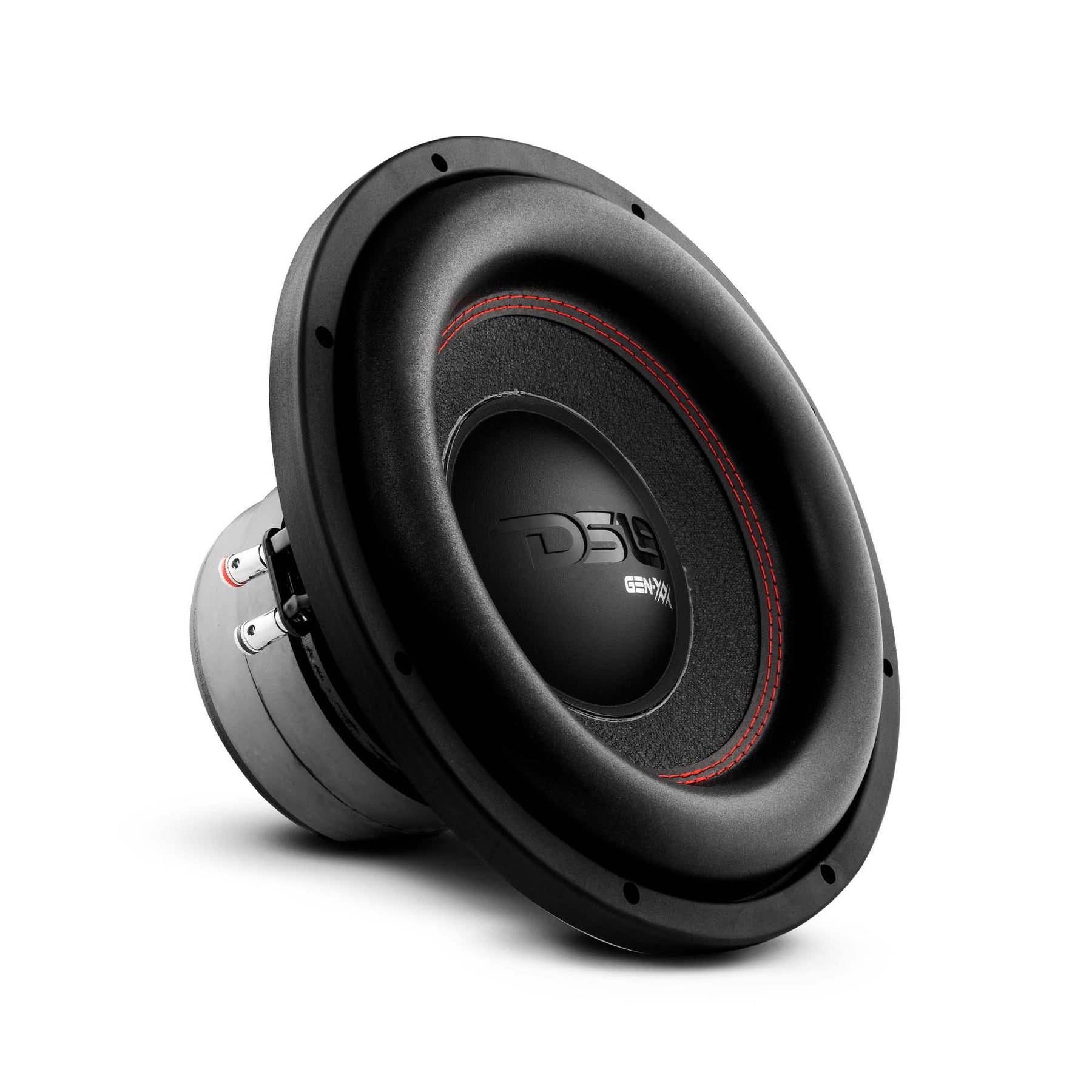

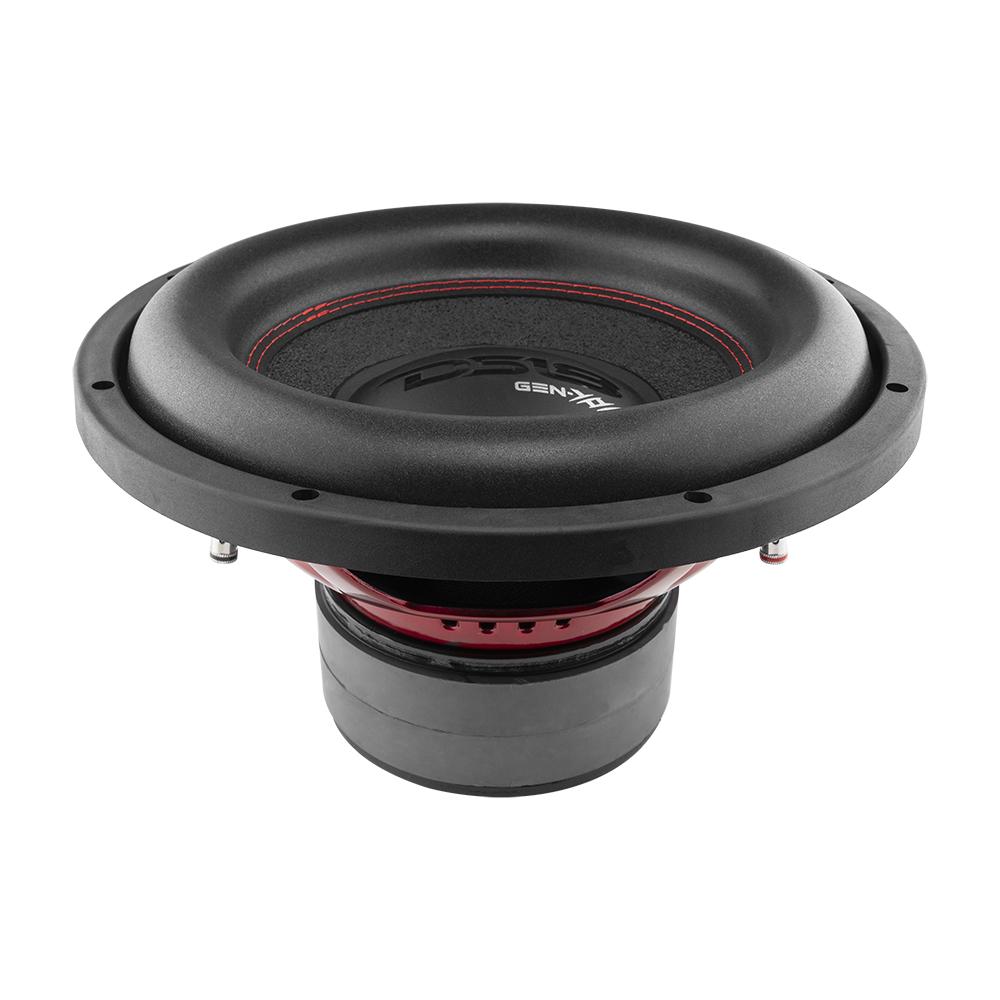

DS18 GEN-XX12.4DHE
The GEN-XX12.4DHE is a 12-inch high-excursion dual voice coil (DVC) car subwoofer designed to deliver deep, powerful low-end bass with strong performance and versatility for custom audio systems. It features dual 4 Ω voice coils (4 + 4 Ω) and a 2″ black aluminum voice coil former with SV winding, giving it a 600 W RMS and up to 1200 W peak power handling for robust output with minimal distortion. Built with a paper cone, PPI dust cap, foam surround, and a 136 oz ferrite magnet in a glossy red steel basket, this subwoofer offers a wide frequency response from about 20 Hz to 1.5 kHz and ≈86.7 dB sensitivity, making it ideal for both sealed and ported enclosures. Its ~6.5″ mounting depth and 10.9″ cut-out diameter also make installation straightforward in most custom builds and daily-driven systems, providing deep, responsive bass that enhances music of all genres.
Specifications
| Parameter | Value |
|---|---|
| SKU | GEN-XX12.4DHE |
| Nominal Diameter | 12″ |
| Nominal Impedance | 4 + 4 Ohm |
| RMS Power Handling | 600 W |
| Maximum Power Handling | 1200 W |
| Sensitivity (1W/1m) | 86.7 dB |
| Frequency Response | 20 Hz – 1.5 kHz |
| Recommended Low-Pass Crossover | 80 Hz |
Motor & Construction
| Parameter | Value |
|---|---|
| Voice Coil Diameter | 2″ / 50.8 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |

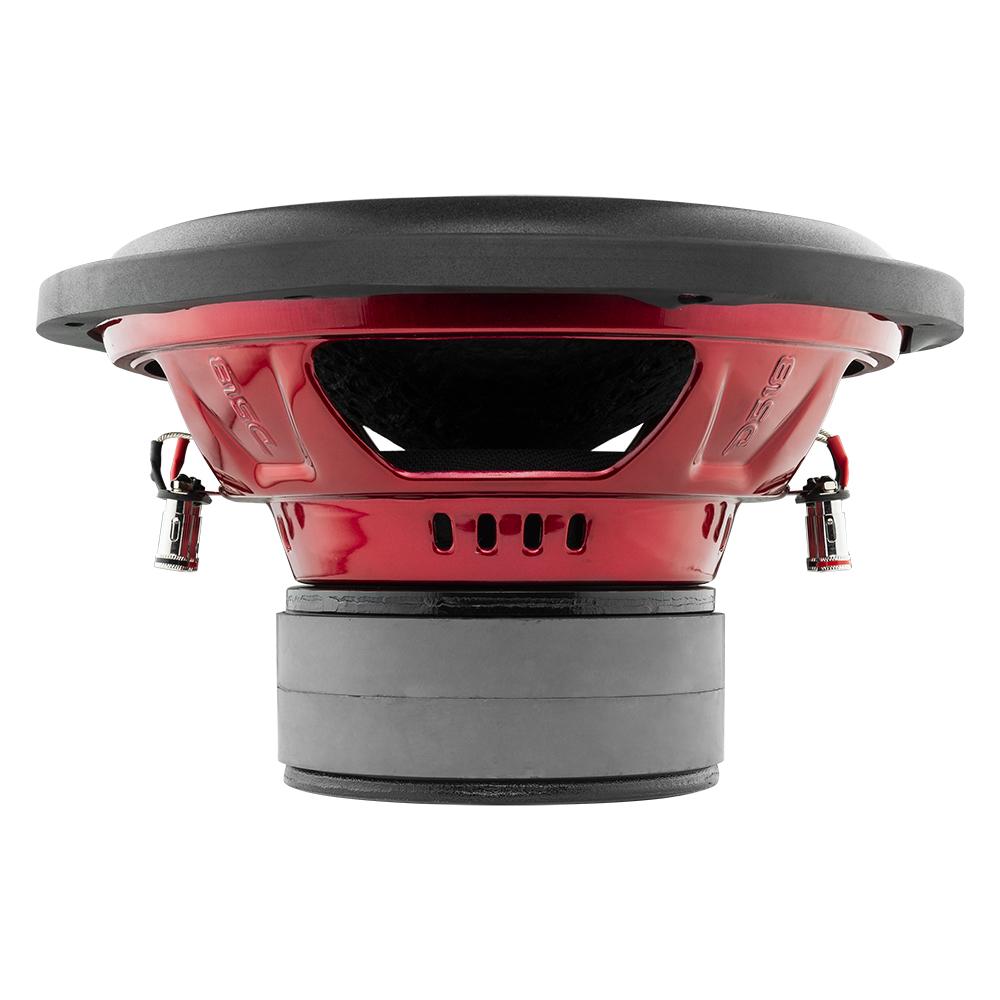

| Basket Material | Steel Basket |
| Basket Color / Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 136 oz |
| Displacement Volume | 1.69 L |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Vas (Equivalent Volume) | 56.436 L |
| Fs (Free Air Resonance) | 30.5 Hz |
| Qms (Mechanical Q) | 3.991 |
| Qes (Electrical Q) | 0.532 |
| Qts (Total Q) | 0.469 |
| Mms (Moving Mass) | 154.38 g |
| Cms (Compliance) | 0.175 mm/N |
| BL Factor | 19.173 N/A |
| Le (Voice Coil Inductance) | 0.6741 mH |
| Sd (Diaphragm Area) | 475.29 cm² |
| Re (DC Resistance) | 3.2 + 3.2 ohms |
| EBP | 57.3 |

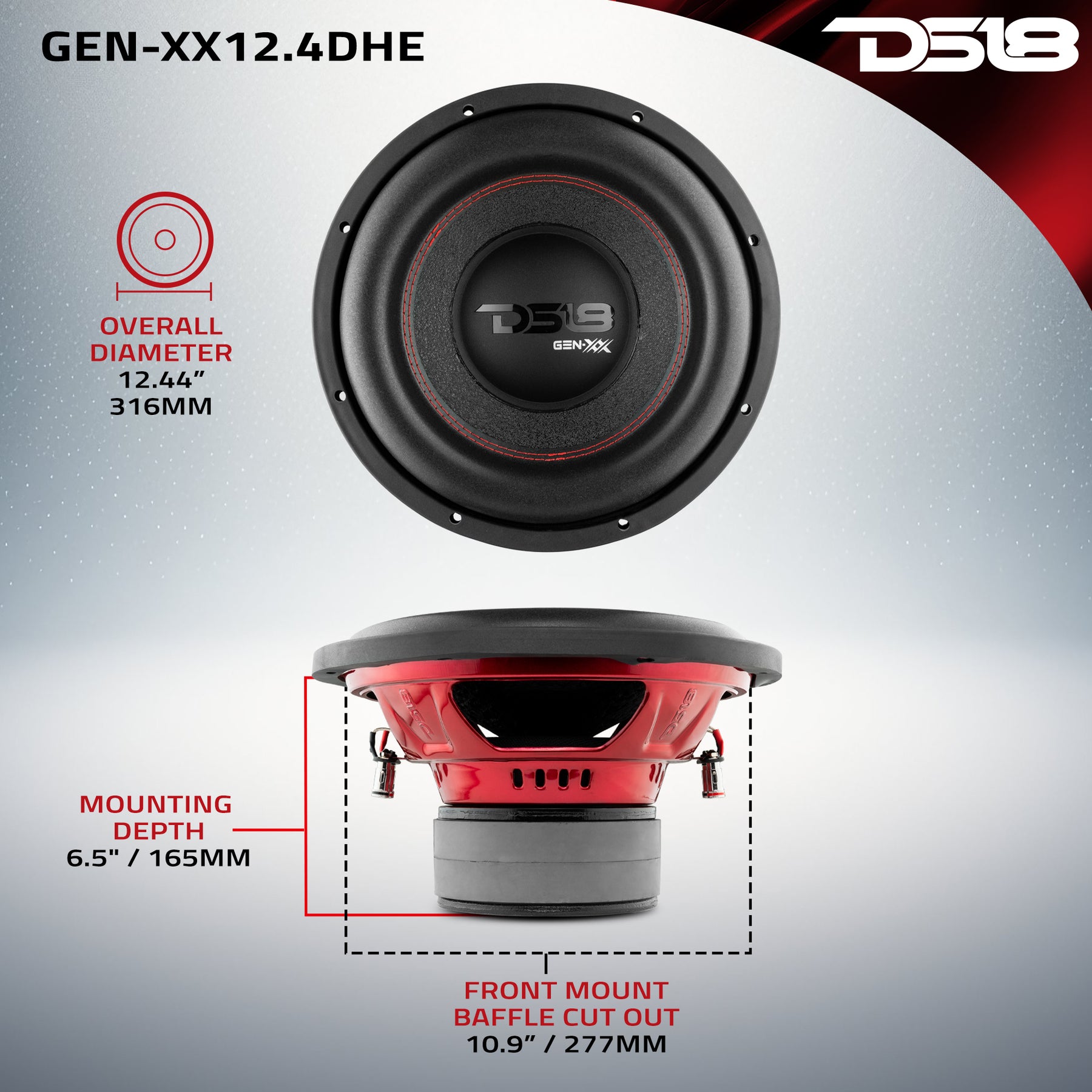

Physical Measurements & Packaging
| Parameter | Value |
|---|---|
| Overall Diameter | 12.44″ / 316 mm |
| Overall Depth | 7.6″ / 193 mm |
| Front Mount Baffle Cutout | 10.9″ / 277 mm |
| Mounting Depth | 6.5″ / 165 mm |
| Motor Diameter | 6.14″ / 156 mm |
| Gross Single Unit Weight | 19.5 lb |
| Single Unit Box Dimensions (W × L × H) | 13.5 × 13.5 × 9 in |
| Units per Master Carton | 2 |
| Gross Master Carton Weight | 41.5 lb |
| Master Carton Dimensions (W × L × H) | 14.25 × 14.25 × 19 in |
Product Overview
12″ High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet
Introducing the DS18 GEN-XX12.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX12.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.
Crafted with the finest materials, the GEN-XX12.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car’s interior.
Featuring a remarkable power rating of 600W RMS and 1200W maximum, the GEN-XX12.4DHE doesn’t require massive amounts of power to deliver a mind-blowing performance. You’ll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX12.4DHE’s frequency response of 20Hz to 1.5KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.
The long 2-inch voice coil and double magnet are specifically designed to ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 30.5 Hz, the GEN-XX12.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.
Get ready to redefine what you thought was possible in car audio – the GEN-XX12.4DHE is here to make your dreams a reality.
