Description
DS18 GEN-X212LD
The GEN-X212LD is a high-output 12-inch dual subwoofer designed for enthusiasts seeking deep, powerful bass in car and professional audio systems. Built for high SPL performance, it delivers strong, precise low-frequency response while minimizing distortion, even at elevated volume levels. Constructed with a durable cone, robust magnet structure, and reinforced voice coils, the GEN-X212LD ensures reliable performance and long-term durability. Its design allows for easy integration into a variety of enclosures, making it ideal for both custom builds and factory-style installations. Perfect for bass lovers who demand impactful sound and consistent performance, this subwoofer enhances the low-end depth of any audio setup.
Specifications
General Specs
| Category | Specification |
|---|---|
| SKU | GEN-X212LD |
| Speaker Type / Size | Dual 12″ Subwoofer (GEN-X124D) |
| Total Impedance | 2+2 Ohm |
| Total RMS Power Handling | 900W |
| Total MAX Power Handling | 1800W |
| Sensitivity (1W/1m) | 94dB |
| Frequency Response | 25–250 Hz |
| Recommended Lo Pass Crossover | 120 Hz |
Speaker Specifications
| Attribute | Specification |
|---|---|
| Voice Coil Diameter | 2″ / 50.8mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Paper & Fiber Glass |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 70 Oz |
Box Specifications
| Attribute | Specification |
|---|---|
| Internal Volume | 90.6L / 3.2 ft³ |
| Port Tune (Fb) | 35 Hz |
| Load Configuration | Parallel |
| Box Type | Front Ported |
| Box Material | 1/2″ / 15mm MDF |
| Finish Material | Black Carpet |
| -3dB Dropping Point (F3) | 29 Hz |
Measurements
| Dimension / Attribute | Specification |
|---|---|
| Height | 13.78″ / 350mm |
| Width | 38.58″ / 980mm |
| Depth 1 | 11″ / 280mm |
| Depth 2 | 14″ / 356mm |
| Gross Single Unit Weight | 40 lbs |
| Single Unit Box Dimensions (W×L×H) | 21.25 × 15.75 × 15.5″ |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight | 40 lbs |
| Master Carton Dimensions (W×L×H) | 21.25 × 15.75 × 15.5″ |
Product Overview

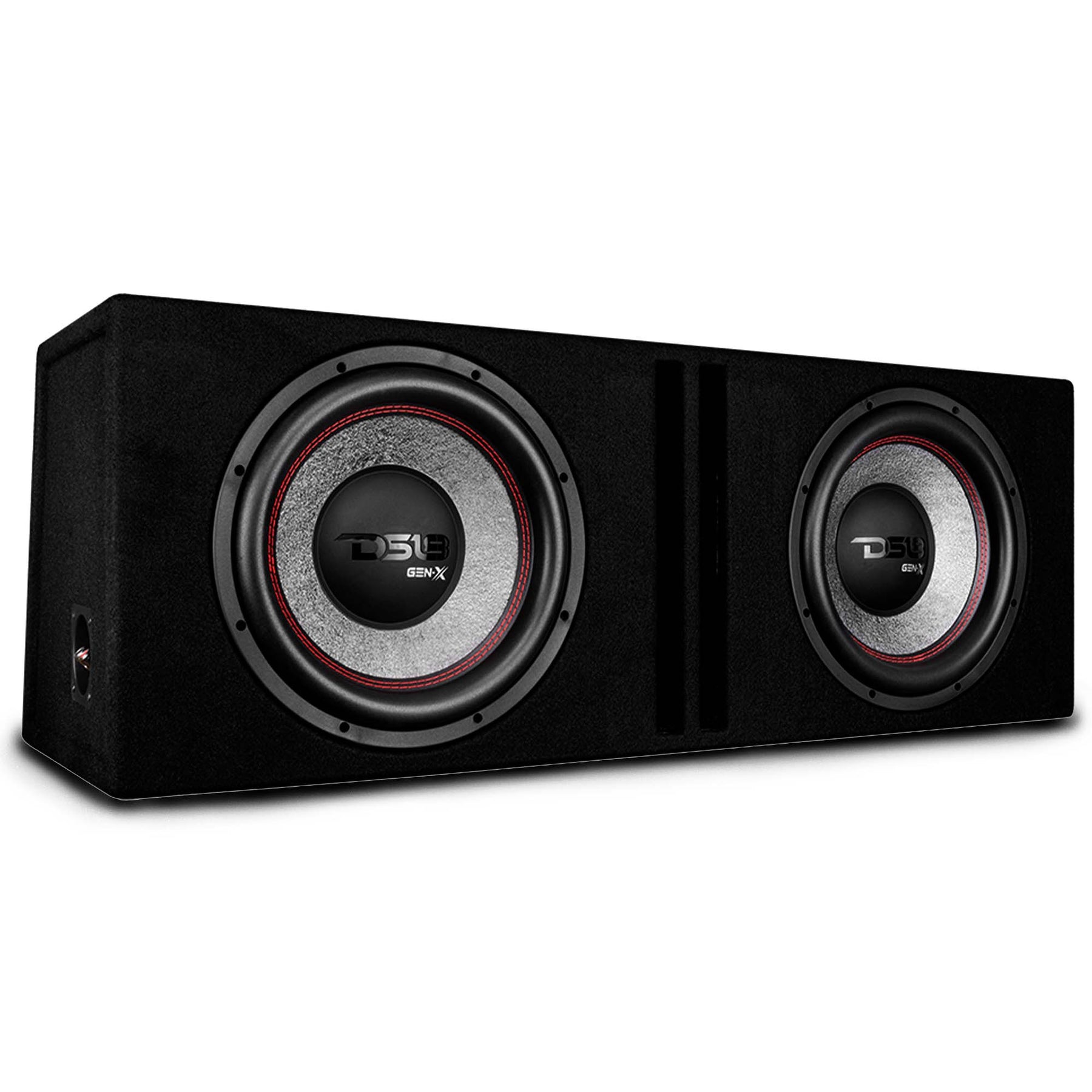

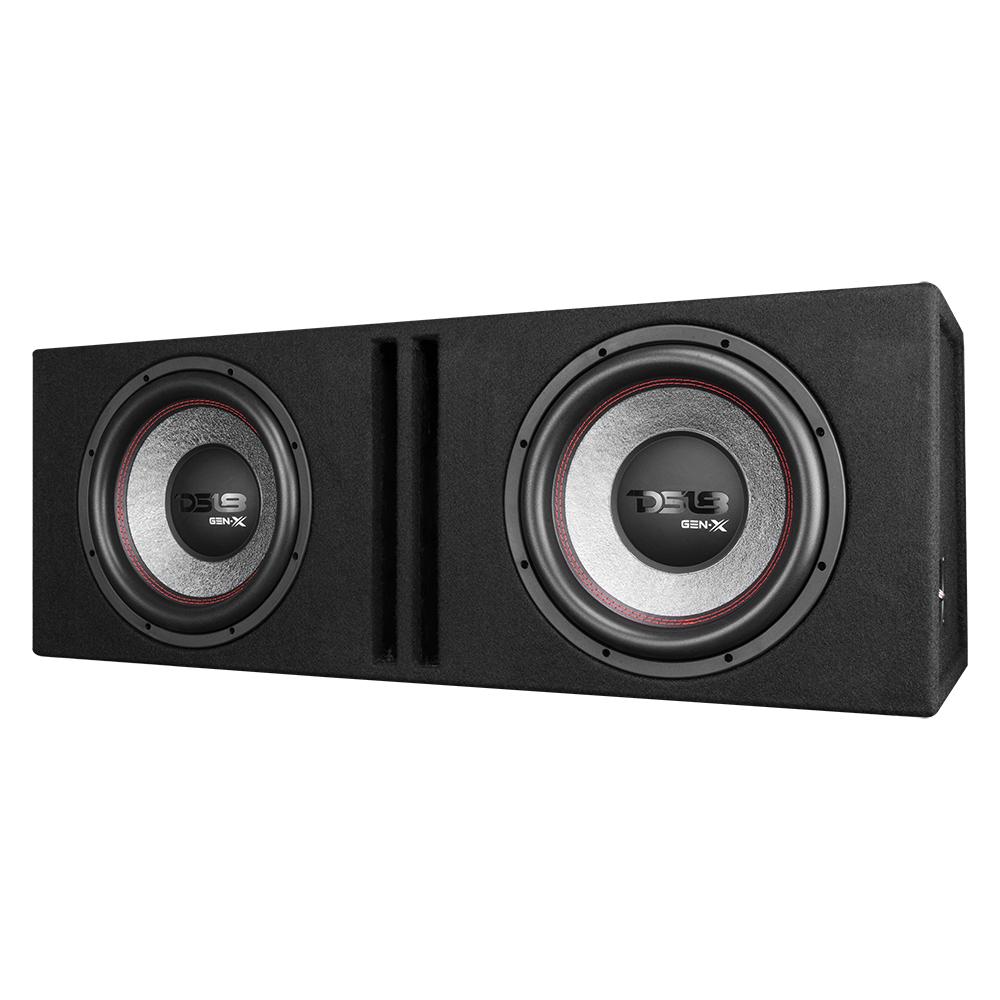

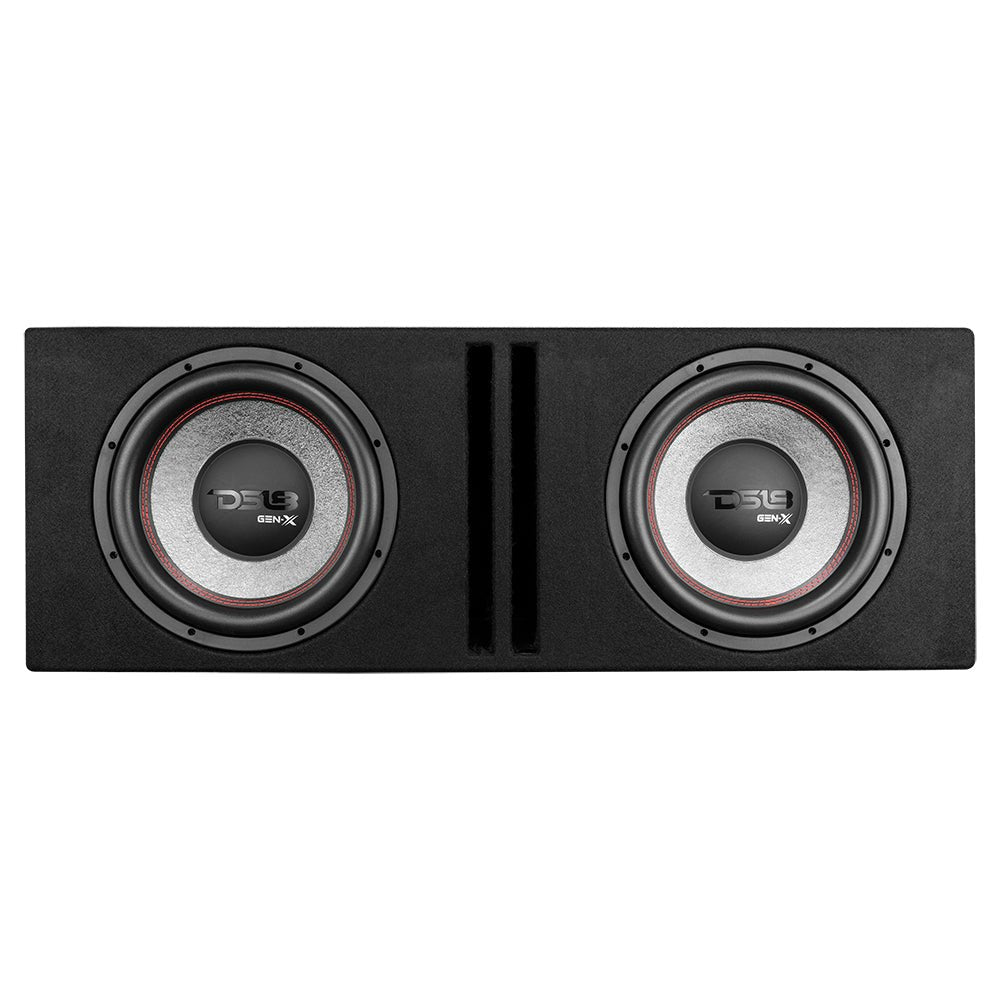

2x GEN-X124D Bass Package Two 12″ Subwoofer In a Ported Box 1800 Watts
The uncompromising quality and unmatched performance DS18 are known for is shown in their GEN-X212LD Bass Package! The combination of one of our best-selling high-quality subwoofers and perfectly crafted prefab ported boxes is FINALLY available to car audio enthusiasts like you!
Crafted from premium ½-inch thick treated MDF, this beautifully designed ported box pushes your subwoofers to perform at their MAX during every session. With a port tune of 35Hz and an internal volume of 90.6L, this ported box’s design pushes the boundaries of your bass, developing a rich and tangible soundstage that is both immersive and mesmerizing. This prefabricated DS18 subwoofer enclosure not only looks sleek and stylish, but also effortlessly extracts deep, pulsating bass notes with ease. This high-quality enclosure houses two of our best-selling GEN-X124D subwoofer, delivering the perfect harmony of power and precision.
With its high excursion capabilities and a robust 67 oz ferrite magnet, the GEN-X124D can handle up to 450W RMS power and a staggering 900W of MAX power. Equipped with a 4+4 configuration on the 2-inch 4-layer voice coil, the GEN-X124D maximizes the power output from your amplifier. The impressive 91dB sensitivity ensures that every nuance of your favorite music is faithfully reproduced, while the wide frequency response of 29Hz to 250Hz guarantees an impressive range of sound.
Designed specifically for car audio enthusiasts like you, this extraordinary combo offers a seamless fusion of booming bass and unrivaled convenience, all in one complete box.
