Description
DS18 ZXI12.4D-PKG
The DS18 ZXI12.4D-PKG is a complete high-performance bass package built for car audio enthusiasts who want powerful, tight, and deep low-frequency output. This all-in-one system includes two 12-inch ZXI12.4D dual 4-ohm high-excursion subwoofers, each rated at 700 W RMS and 1400 W peak power handling, delivering strong and controlled bass response with impressive efficiency. Powering the subs is the ZR2000.1D Class D monoblock amplifier, capable of delivering up to 2000 W RMS at 1 ohm for maximum performance. The package also includes an AMPKIT0 professional amplifier wiring kit for secure and reliable installation. Designed for daily bass systems or entry-level SPL builds, this package provides deep low-end performance down to approximately 20 Hz with durable, competition-grade components.
General Specifications
BASS PACKAGE – ZXI12.4D-PKG
| Included Components | Model |
|---|---|
| 2 × 12″ High Excursion Subwoofers | ZXI12.4D |
| 1 × 1-Channel Monoblock Amplifier | ZR2000.1D |

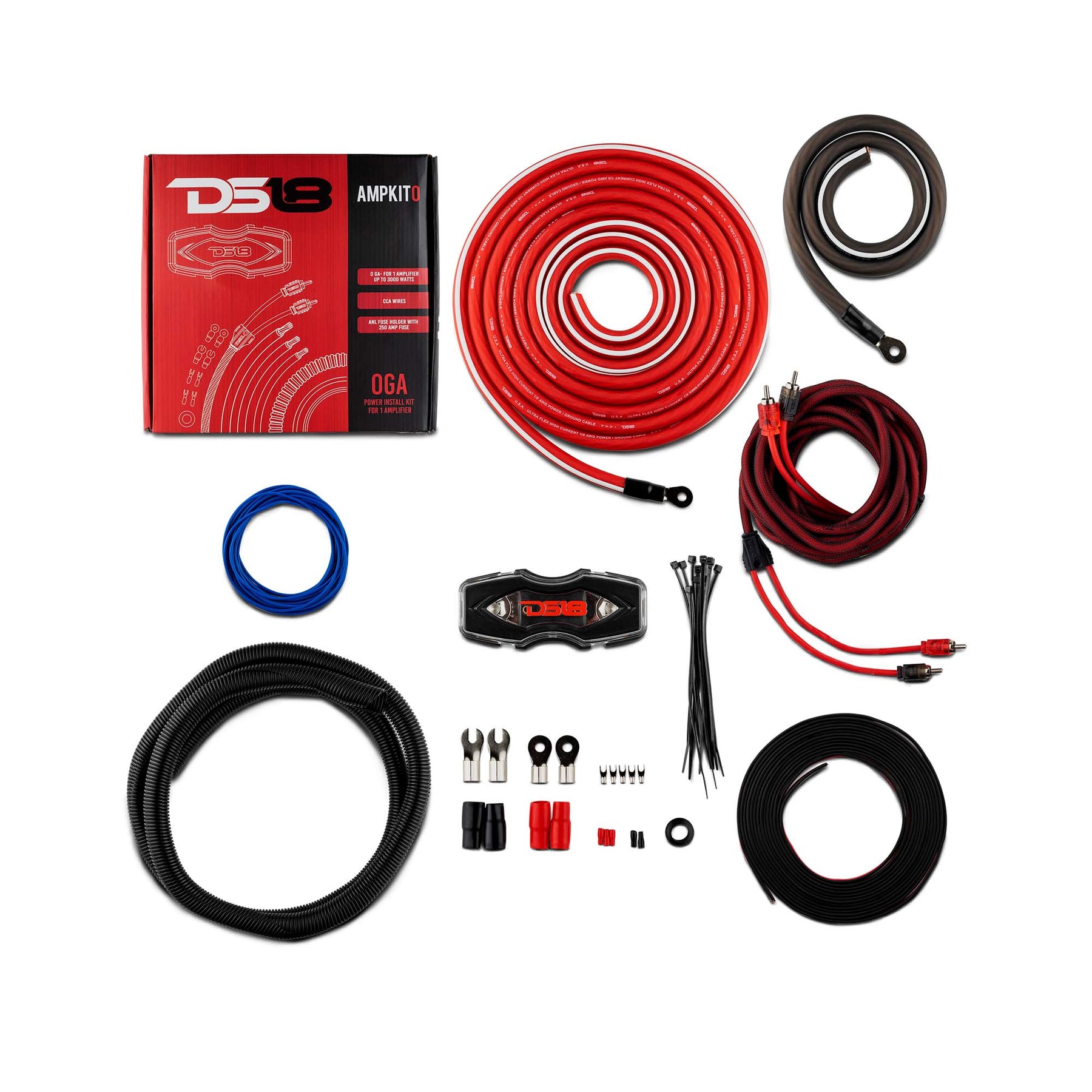

| 1 × Amplifier Installation Kit | AMPKIT0 |

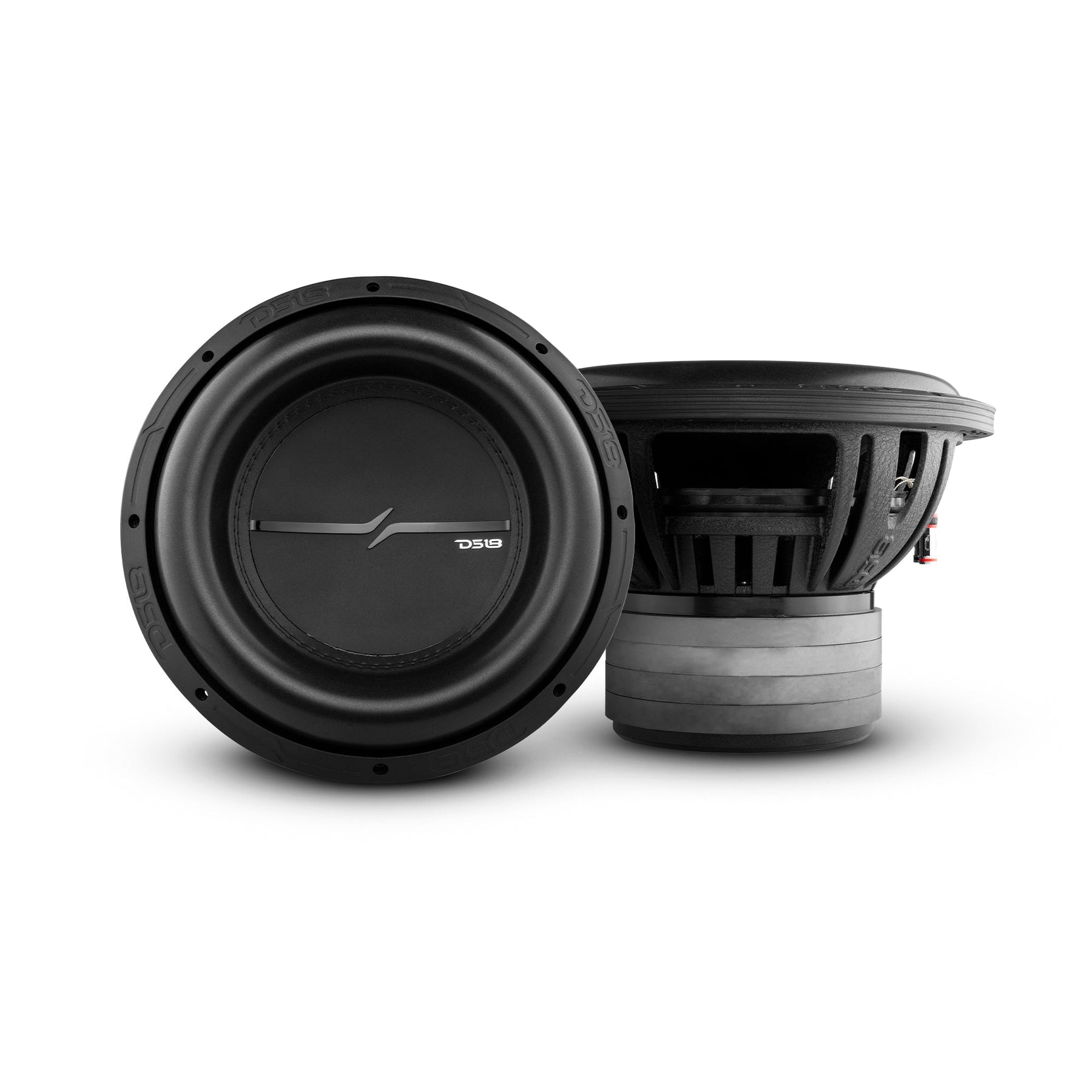

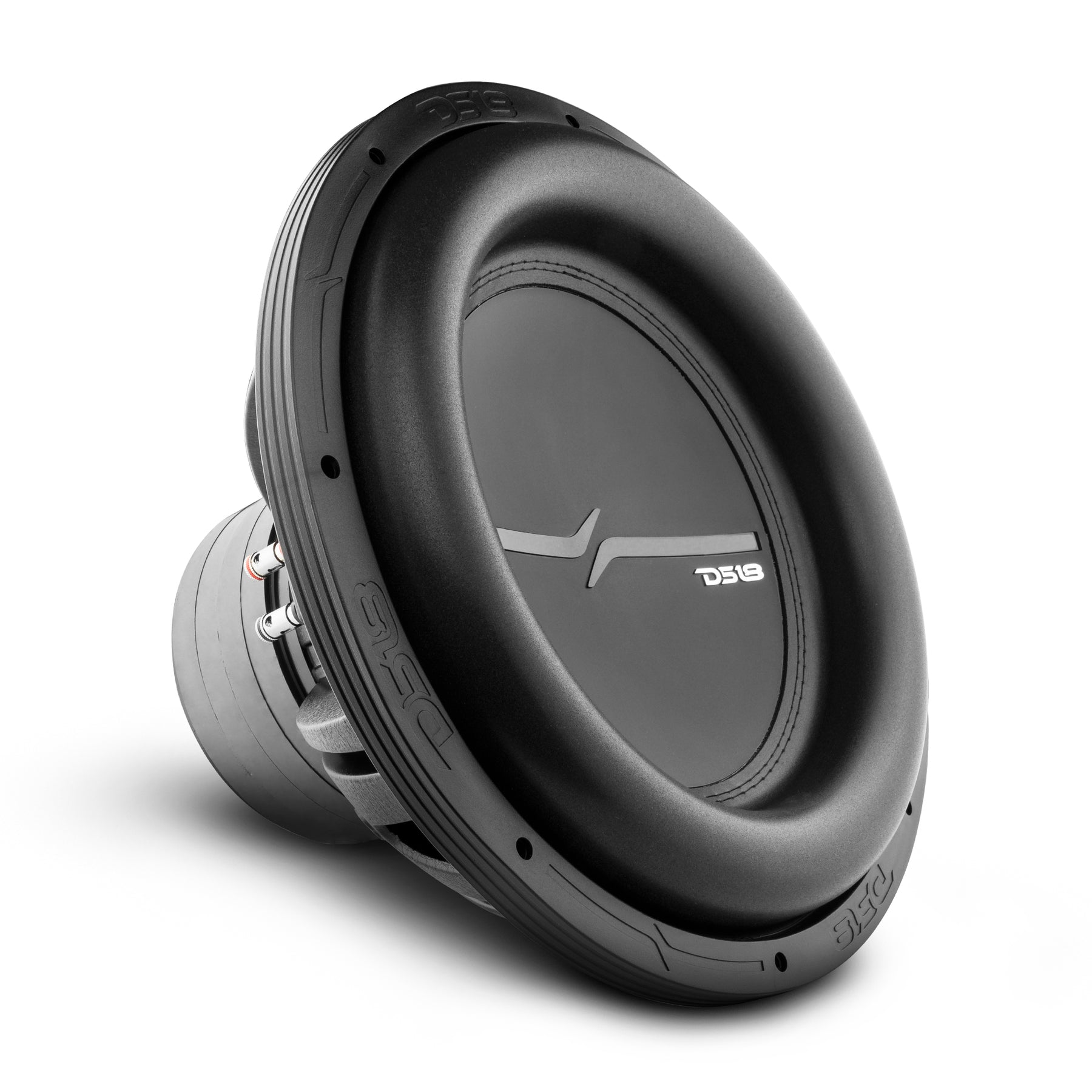

12″ High Excursion Subwoofer – ZXI12.4D
| Specification | Value |
|---|---|
| Nominal Diameter | 12″ / 304.8 mm |
| Nominal Impedance | 4 + 4 Ohm (Dual Voice Coil) |
| RMS Power Handling | 1000 W |
| Max Power Handling | 2000 W |
| Sensitivity (1W/1M) | 89.2 dB |
| Frequency Response | 15 Hz – 1.7 kHz |
| Recommended Low-Pass Crossover | 90 Hz |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 224 oz (4 × 56 oz) |
| Displacement Volume | 0.14 ft³ / 3.99 L |

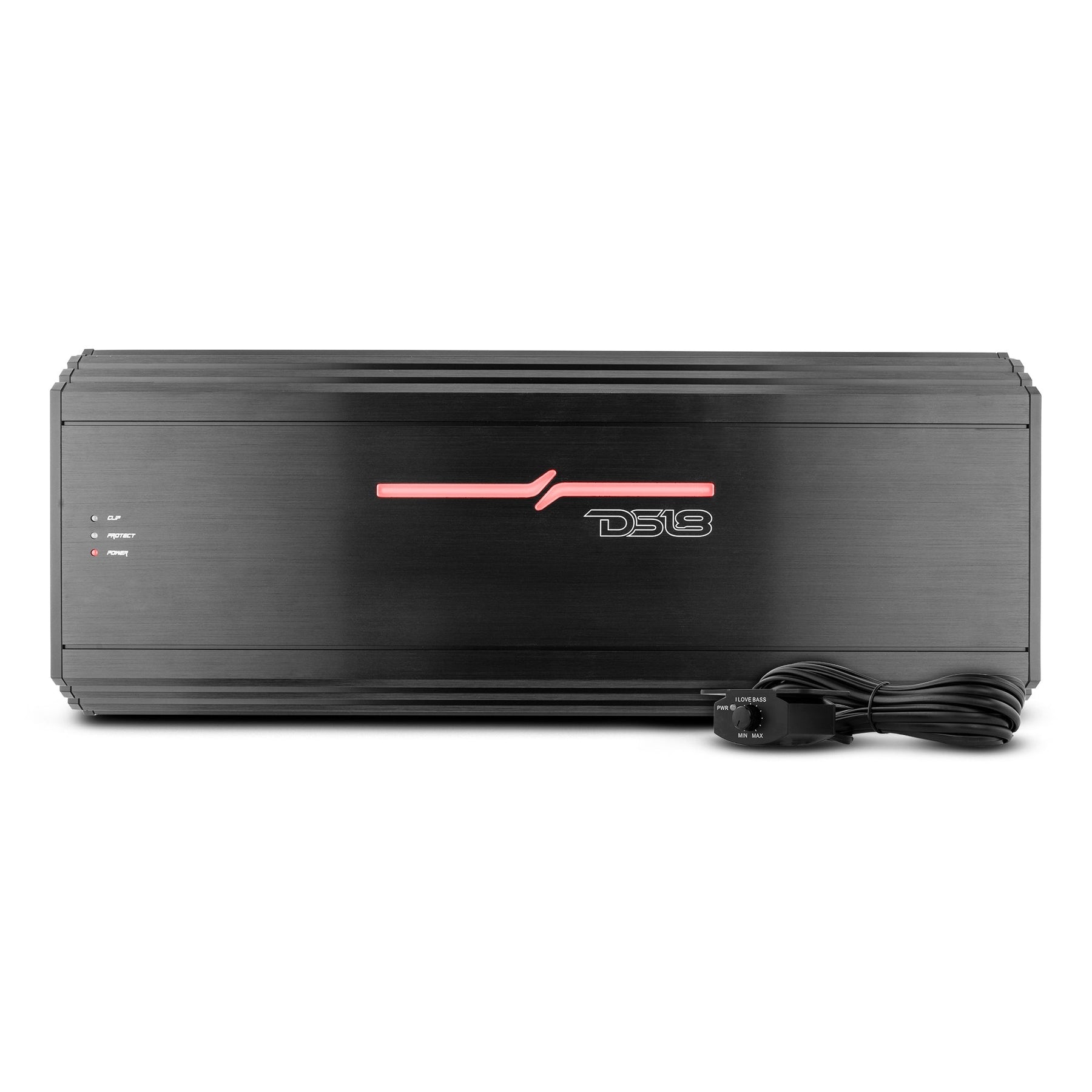

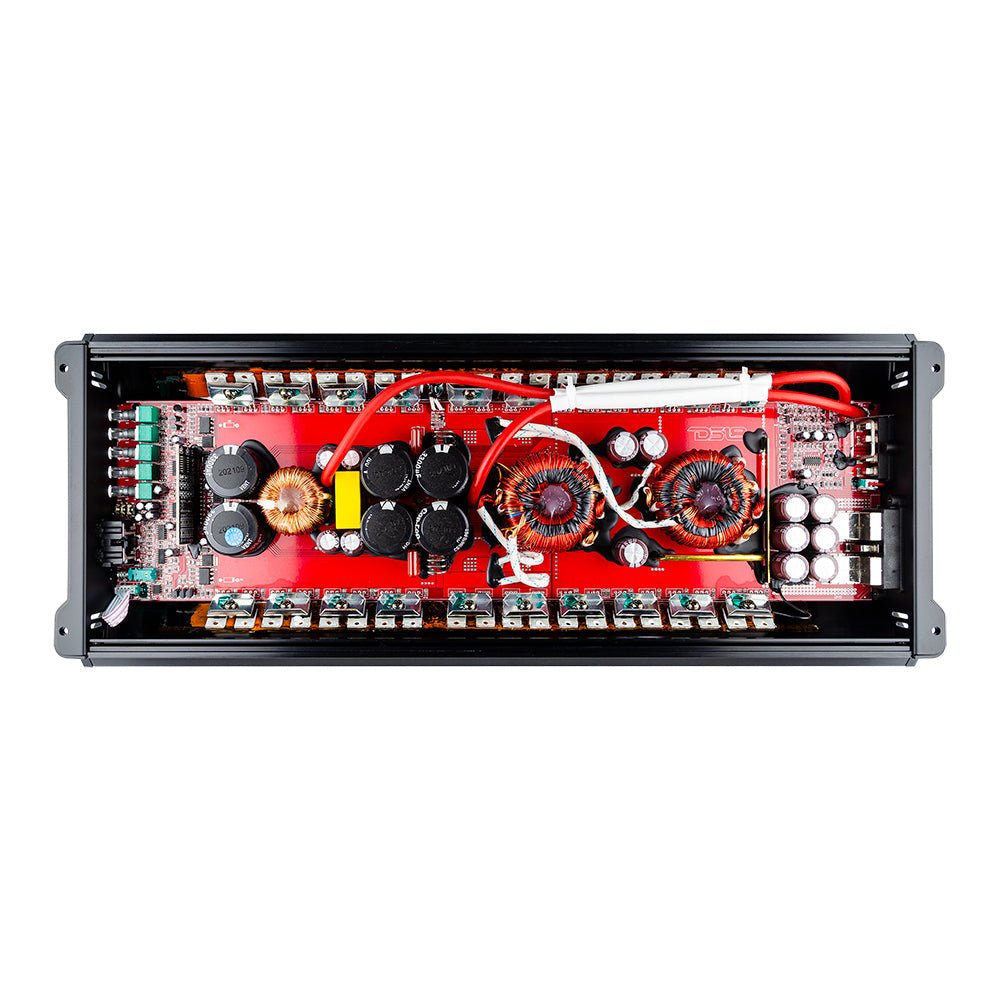

1-Channel Class D Monoblock Amplifier – ZR2000.1D
| Specification | Value |
|---|---|
| Total Peak Power | 6000 W |
| RMS Power @ 4 Ohm | 800 W |
| RMS Power @ 2 Ohm | 1300 W |
| RMS Power @ 1 Ohm | 2000 W |
| Frequency Response | 10 Hz – 220 Hz |
| Signal-to-Noise Ratio | >95 dB |
| Efficiency @ 4 Ohm | 80% |
| Total Harmonic Distortion (THD) | 0.01% |
| Minimum Impedance | 1 Ohm |
| Power Input Terminal Size | 0 Gauge |
Product Overview
Bass Package – 2 x ZXI12.4D – 12″ Car Subwoofer, ZR2000.1D – 1-Channel Monoblock Amplifier, and AMPKIT0
Introducing DS18’s ZXI12.4D-PKG, the ultimate Bass Package for car audio enthusiasts who crave nothing but the most powerful, distortion-free bass.
At DS18, we understand that expanding the range of frequencies available to your sound system shouldn’t break the bank. With the purchase of a pair of our high-powered, distortion-free subwoofers, the ZXI12.4D, we sweeten the deal by including a FREE ZR2000.1D amplifier that will push your subwoofers to their absolute maximum.
The ZXI12.4D subwoofers are designed to unleash hard-hitting bass with minimal power requirements. Equipped with an incredibly efficient voice coil and one of the highest sensitivity ratings in our lineup, these subwoofers deliver remarkable clarity and accuracy across a wide frequency range. From spine-tingling 10Hz to mind-blowing 1.8KHz, experience every nuance of your music with astonishing precision.
