Name: DS18 ZR600.4D
SKU: ZR600.4D
Availability: InStock

Description

DS18 ZR600.4D

The DS18 ZR600.4D is a 4-channel Class D car audio amplifier engineered for efficient, high-power sound across both full-range speakers and subwoofers. Built with premium components, it delivers stable performance from 2 Ω to 4 Ω with minimal distortion, ensuring clear and dynamic audio. The amp features advanced protection circuitry, a robust cooling system, and a compact design, making it ideal for custom car audio setups that require reliable performance, precise sound, and high output.

Power Specifications

Specification	Value
SKU	ZR600.4D
Total Watts (Peak)	2400W
RMS Power @ 4 Ohm	4 × 150W
RMS Power @ 2 Ohm	4 × 240W
RMS Power @ 4 Ohm Bridge	2 × 400W

Audio Specifications

Specification	Value
Frequency Response	20Hz – 20kHz
Signal to Noise Ratio	>90dB
Efficiency @ 4 Ohm	90%
Damping Factor	160
Input Impedance	20kΩ
Channel Separation	60dB
Total Harmonic Distortion (THD)	1.00%
Low Level Input Range	0.2–6V
Selectable X-Over	FULL / LPF / HPF
X-Over Filter Range	40Hz – 4kHz

Features

Specification	Value
Amplifier Class	Digital
Amplifier Type	Stereo Full Range
Number of Channels	4
Minimum Impedance	2 Ohm (Stereo) / 4 Ohm (Bridge)
LED Indicator	Clipping / Protect / Power
Power Input Terminal Size	4 GA
Fuse Size	2 × 30A
Thermal Protection	Yes
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes (<9V / >16V)
Clipping Protection	Yes
Body Color / Finish	Black Aluminum Brush

Measurements

Measurement	Value
Overall Length	10″ / 254mm
Overall Width	7.24″ / 184mm
Overall Height	2″ / 53mm
Heatsink Length	8.54″ / 217mm
Gross Single Unit Weight	4.11 lb

Product Overview

ZR Class D 4-Channel Full Range Amplifier 150×4 @ 4ohm Watts RMS

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential!

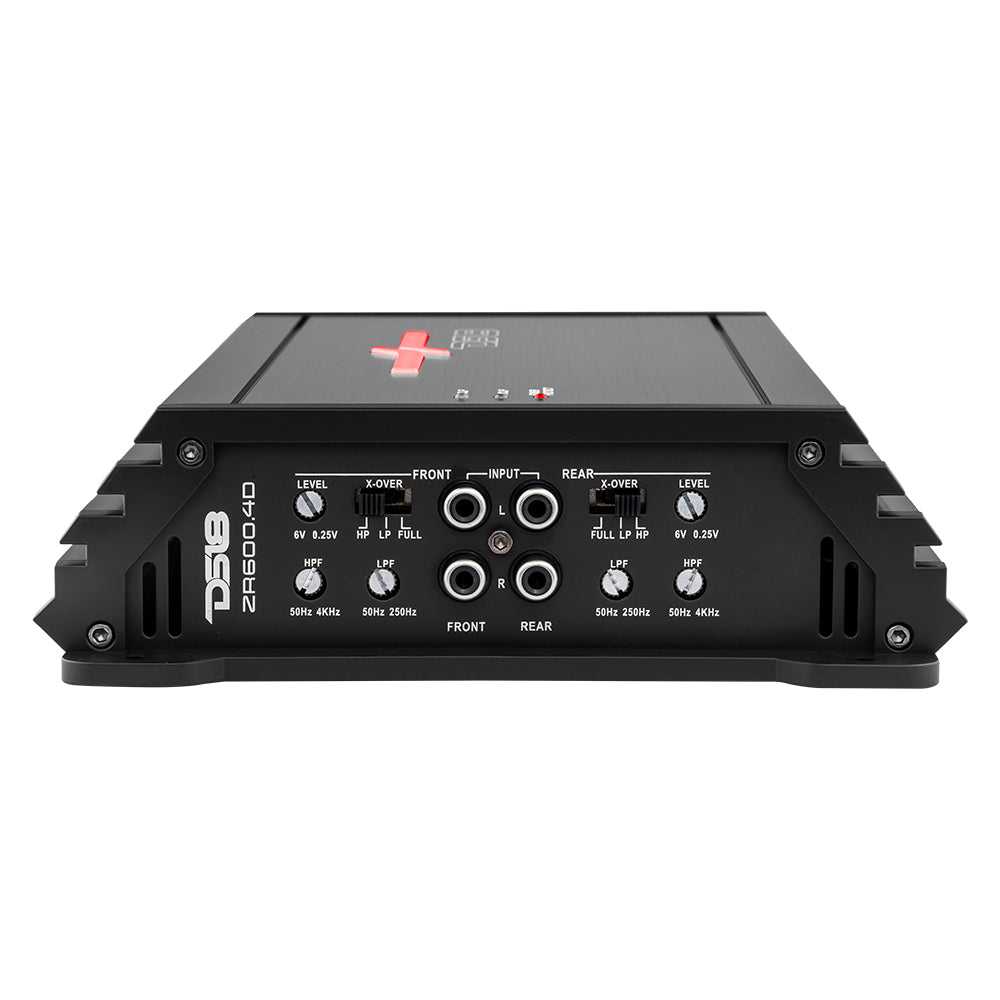

With DS18’s ZR600.4D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Highpass, and Full Frequency Selector Switches, as well as a Gain Knob that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a powerful 2 x 400W RMS @ 4-Ohms Bridge, 4 x 240W RMS @ 2-Ohms, and 4 x 150W RMS @ 4-Ohms, the ZR600.4D provides the perfect amount of power to fuel your bass. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment.
The ZR600.4D is a testament to DS18’s commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 2400 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 20Hz – 20KHz, this amplifier faithfully reproduces every note, from the deepest lows to the highest highs, with remarkable clarity and accuracy.

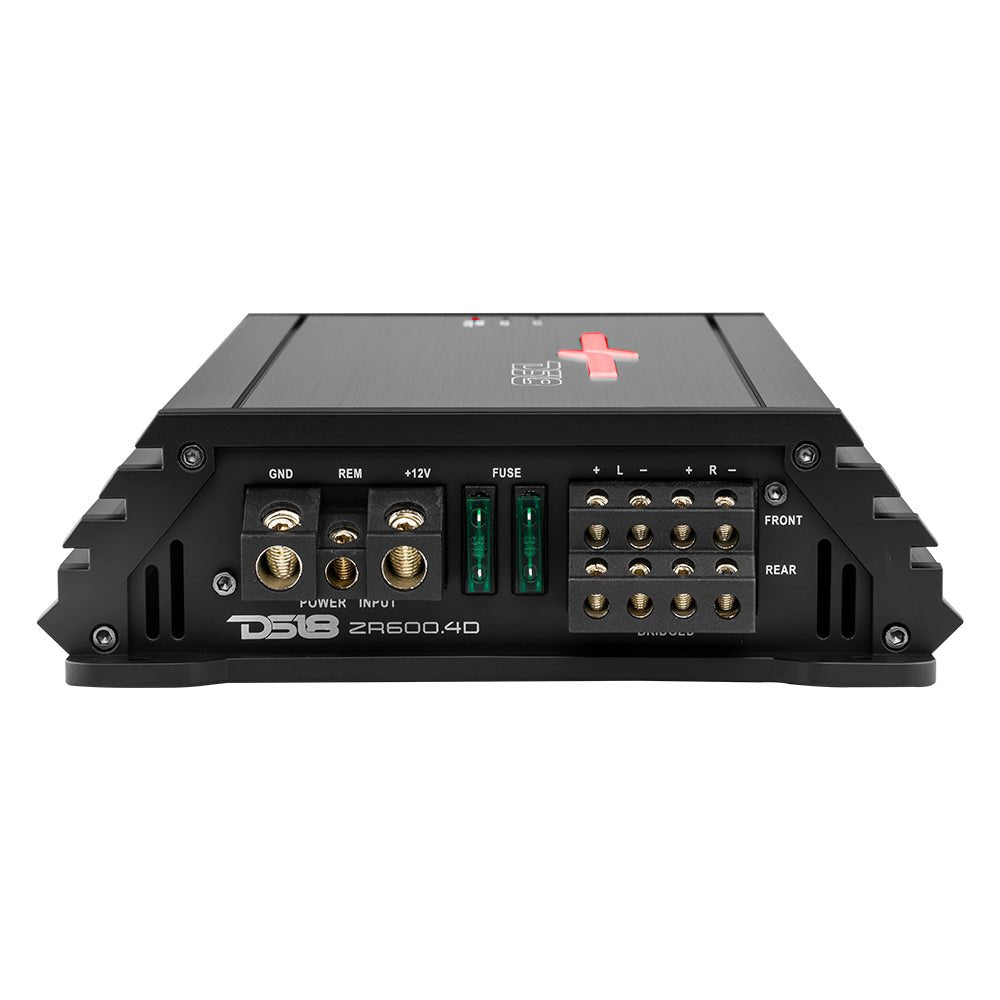

The ZR600.4D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 4 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your audio, allowing for seamless integration with your existing sound system and putting you in complete control of your audio landscape.
Experience the DS18 difference today with the ZR600.4D and discover a new dimension of car audio excellence.
