Description
DS18 ZR212LD-PKG

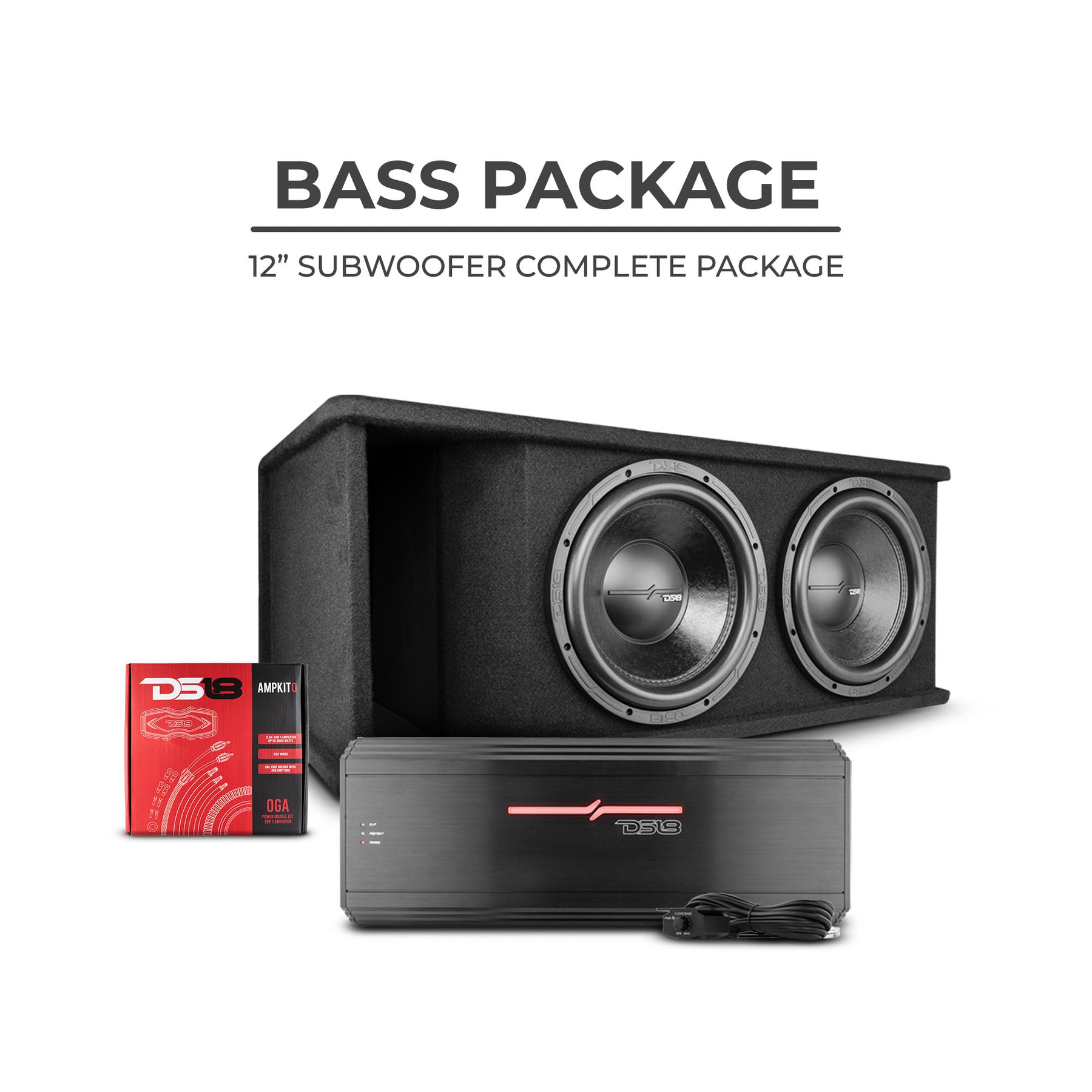

The DS18 ZR212LD-PKG is a complete bass system package featuring two 12″ ZR12.4D subwoofers mounted in a ported loaded enclosure, paired with a ZR2000.1D Class D 1-channel monoblock amplifier and a full amp installation kit. Designed for powerful low-end performance, this package delivers deep, punchy bass with robust power handling and efficient tuning for car audio enthusiasts. The ported box is tuned to around 29 Hz to maximize low-frequency extension and impact, while the included amplifier ensures the subs receive plenty of clean power. It’s an ideal plug-and-play solution for anyone looking to significantly upgrade bass output without sourcing components separately.
Specifications
| Item | Model / Details |
|---|---|
| Subwoofers | 2 × 12″ ZR12.4D |
| Amplifier | 1-Channel Monoblock ZR2000.1D |
| Amplifier Installation Kit | AMPKIT0 |
| Ported Vented Box | ZR212LD |
12″ Subwoofer (ZR12.4D)
| Parameter | Specification |
|---|---|
| Nominal Diameter | 12″ / 304.8 mm |
| Nominal Impedance | 4 + 4 Ω |
| RMS Power Handling | 750 W |
| Max Power Handling | 1500 W |
| Sensitivity (1W/1m) | 82 dB |
| Frequency Response | 25 Hz – 200 Hz |
| Recommended High-Pass Crossover | 90 Hz |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 100 oz |
| Displacement Volume | 0.07 ft³ |
1-Channel Class D Amplifier (ZR2000.1D)
| Parameter | Specification |
|---|---|
| Total Watts (Peak) | 6000 W |
| RMS Power @ 4 Ω | 800 W |
| RMS Power @ 2 Ω | 1300 W |
| RMS Power @ 1 Ω | 2000 W |
| Frequency Response | 10 – 220 Hz |
| Signal-to-Noise Ratio | >95 dB |
| Efficiency @ 4 Ω | 80% |
| Total Harmonic Distortion (THD) | 0.01% |
| Minimum Impedance | 1 Ω |
| Power Input Terminal Size | 0 GA |
Ported Vented Box (ZR212LD)
| Parameter | Specification |
|---|---|
| Internal Volume | 141.6 L / 5 ft³ |
| Port Tune | 29 Hz |
| Load Configuration | Ported Box |
| Box Type | Double 12″ |
| Box Material | 3/4″ (19 mm) MDF |
| Finish Material | Black Carpet |
| Measurements (L × W × H) | 36.22 × 21.65 × 14.5 in |
Product Overview
12” Subwoofer In a Ported Box With Amplifier and AMPKIT – ZR212LD + ZR2000.1D + AMPKIT0
Introducing DS18’s ZR212LD-PKG, the best package for instantly boosting your car audio system’s bass experience.
The ZR212LD-PKG’s prefabricated box is constructed with thick ¾” MDF, the best material and size for securing and amplifying your subwoofers. The box’s design is expertly tuned to an astonishing 29 Hz, delivering low and hard-hitting bass that will leave you breathless.
At the heart of this enclosure lies two of the powerful ZR12.4D subwoofer. Equipped with a dual voice coil configuration wired in parallel to achieve a 1-ohm impedance, it demands a worthy 1600W RMS and can handle up to an astonishing 3200W MAX. Its aluminum voice coil results in an astonishing sensitivity of 84 dB, delivering crisp and clear bass reproduction across the frequency range of 25 – 200Hz.

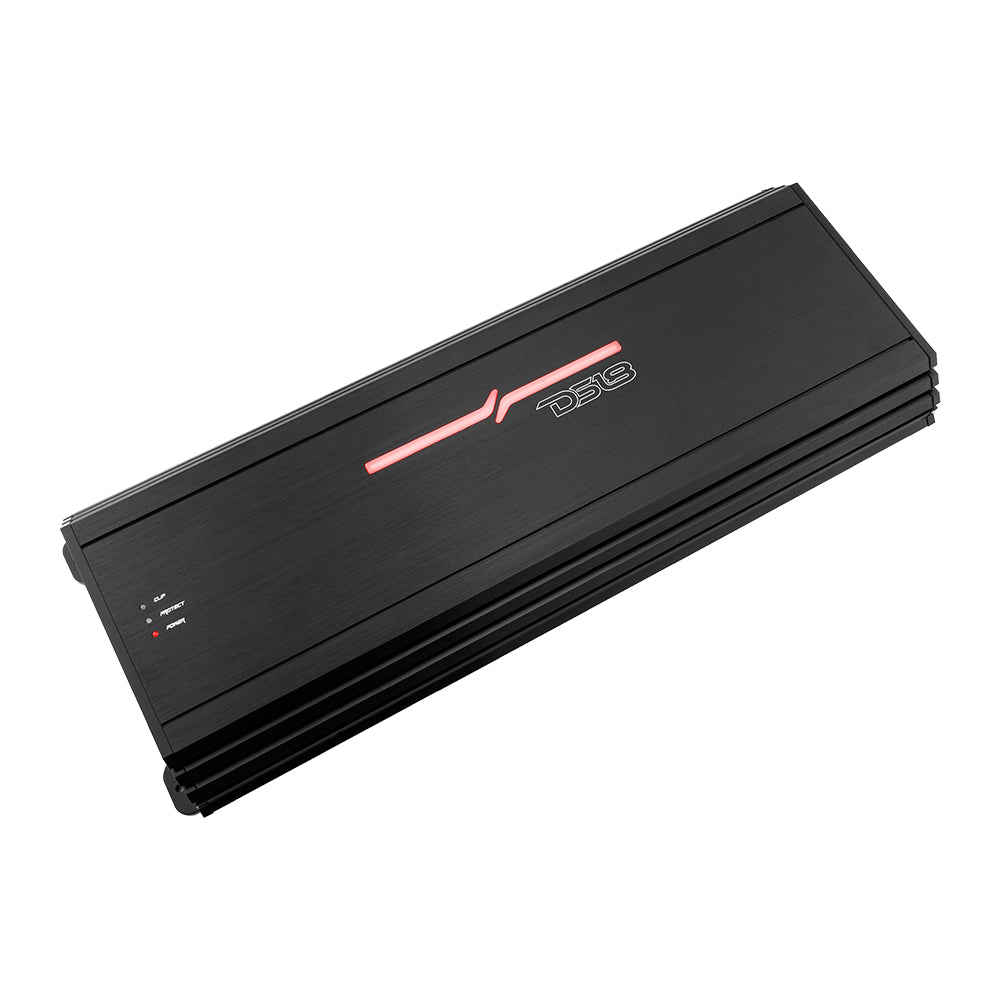

To harness the true potential of the ZR212LD-PKG, we’ve paired it with the powerhouse ZR2000.1D amplifier. Delivering a jaw-dropping 2000W RMS, this Class D Monoblock amplifier ensures that your subwoofers reach their maximum potential. Its cutting-edge features, such as the Lowpass and Subsonic filters, bass boost range, and thermal protection, ensure that your sound remains pristine, even during extended listening sessions.
We understand that time is precious, and you don’t want to be hassled with complex installations. That’s why the ZR212LD-PKG comes with the easy-to-use AMPKIT0, a 0-gauge installation kit specifically designed for car amplifiers. With all the necessary components included, you can get your new system up and running in no time, letting you focus on what matters most – getting LOUD!
