Description

DS18 ZR2000.1D

The DS18 ZR2000.1D is a powerful 1-channel Class D monoblock car audio amplifier engineered for extreme bass performance. Designed for SPL (sound pressure level) enthusiasts and custom subwoofer installations, it delivers massive, clean power across 1 Ω to 4 Ω loads with minimal distortion. Featuring premium components, advanced protection circuitry, and a robust cooling system, the ZR2000.1D ensures reliable, high-efficiency performance, making it ideal for serious car audio setups that demand deep, controlled bass and maximum output.


Power Specifications

Specification Value
SKU ZR2000.1D
Total Watts (Peak) 6000W
RMS Power @ 4 Ohm 800W
RMS Power @ 2 Ohm 1300W
RMS Power @ 1 Ohm 2000W
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1
Minimum Impedance 1 Ohm
Power Input Terminal Size 0 GA
Fuse Size 200A
Operation Voltage 8.5–16V (approx, per protection spec)

Audio Specifications
Specification Value
Frequency Response 10–220Hz
Signal to Noise Ratio >95dB
Efficiency @ 4 Ohm 80%
Damping Factor 220
Input Impedance 20KΩ
Channel Separation N/A
Total Harmonic Distortion (THD) 0.01%
Low Level Input Range 0.2–6V
High Level Input Yes
Selectable X-Over LPF Fixed
X-Over Filter Range 40–180Hz
Bass Boost Range 0–12dB
Bass Boost Frequency 30–80Hz
Infrasonic Filter 10–50Hz
Phase Selector No

Features & Protection
Specification Value
LED Indicator Clipping / Protect / Power

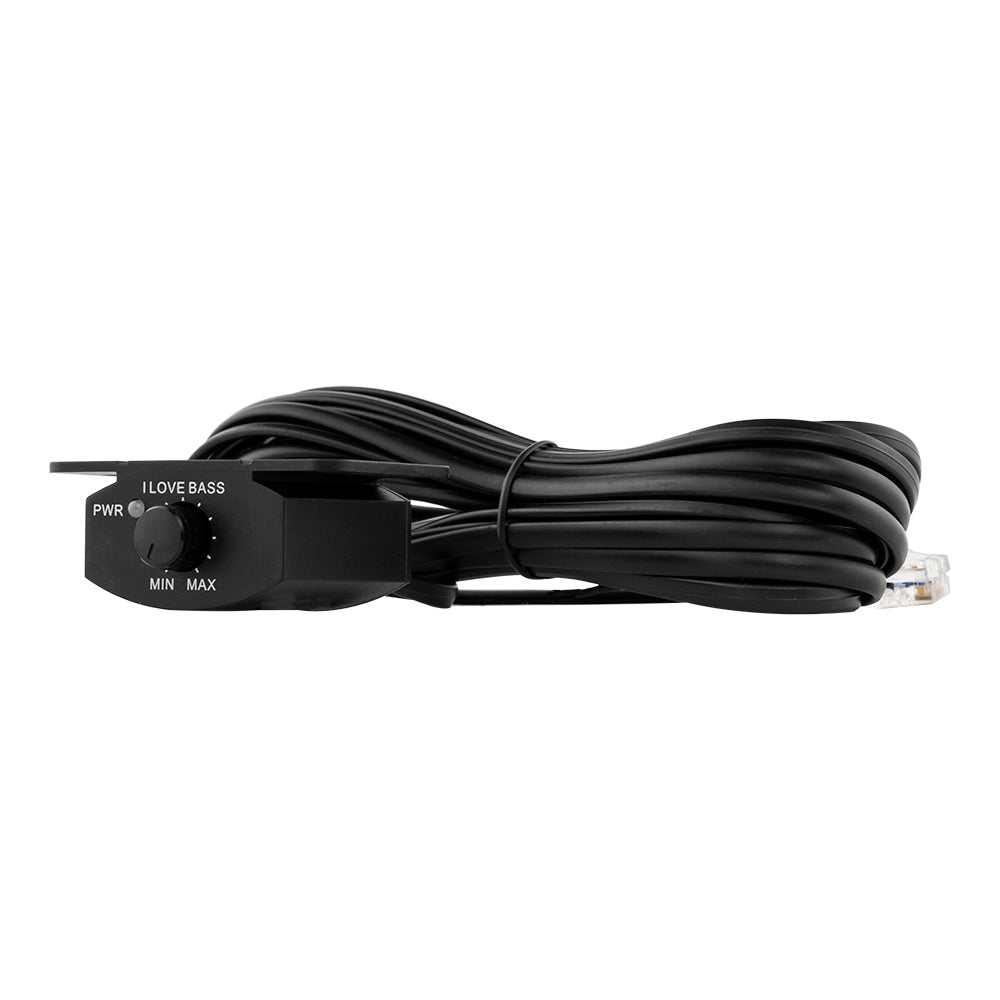

Remote Level Control Yes / Dash Mount
Cooling Fan No
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (<9V / >16V)
Clipping Protection Yes
Body Color / Finish Black Aluminum Brush

Measurements
Measurement Value
Overall Length 19.13″ / 486mm
Overall Width 7.24″ / 184mm
Overall Height 2″ / 53mm
Heatsink Length 17.75″ / 451mm
Gross Single Unit Weight 8.1 lb

Product Overview

ZR Class D 1-Channel Monoblock Car Amplifier 1500W RMS @ 1 Ohm

The ZR series is a game-changer, crafted to optimize your sound system and unleash its true potential!

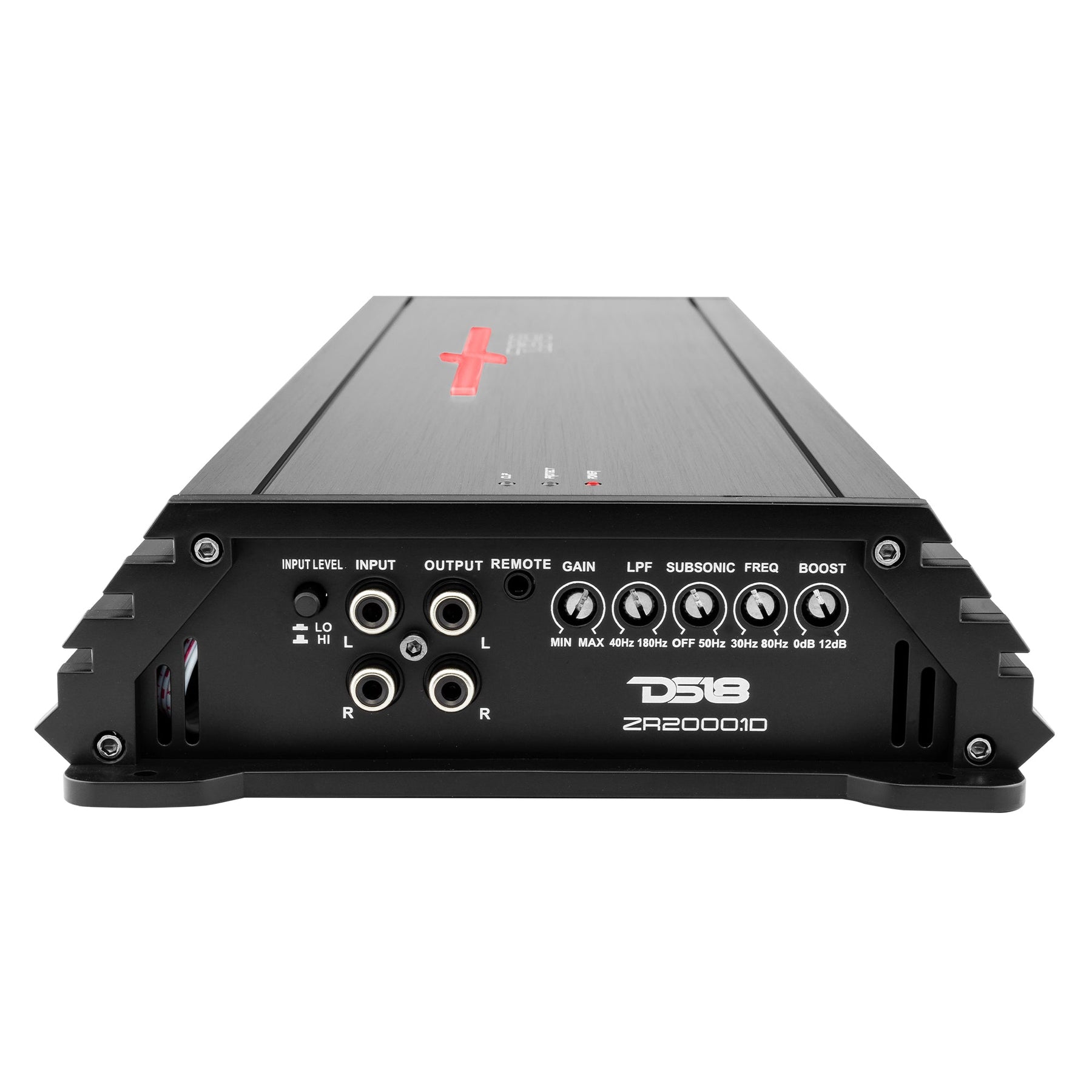

With DS18’s ZR2000.1D, the possibilities are endless. It boasts an impressive array of tuning options, including Lowpass, Subsonic, as well as a Bass Boost Switch Selector that allows you to fine-tune every song to your desired frequency. This level of customization ensures that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a commendable 800W RMS @ 4-Ohm, 1300W RMS @ 2-Ohm, and 2000W RMS @ 1-Ohm, the ZR2000.1D provides the perfect amount of power to fuel your bass. It effortlessly propels your speakers to their maximum potential, creating a rich and immersive audio environment.
The ZR2000.1D is a testament to DS18’s commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 6000 Peak Wattage makes sure all your speakers get the juice they deserve. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.

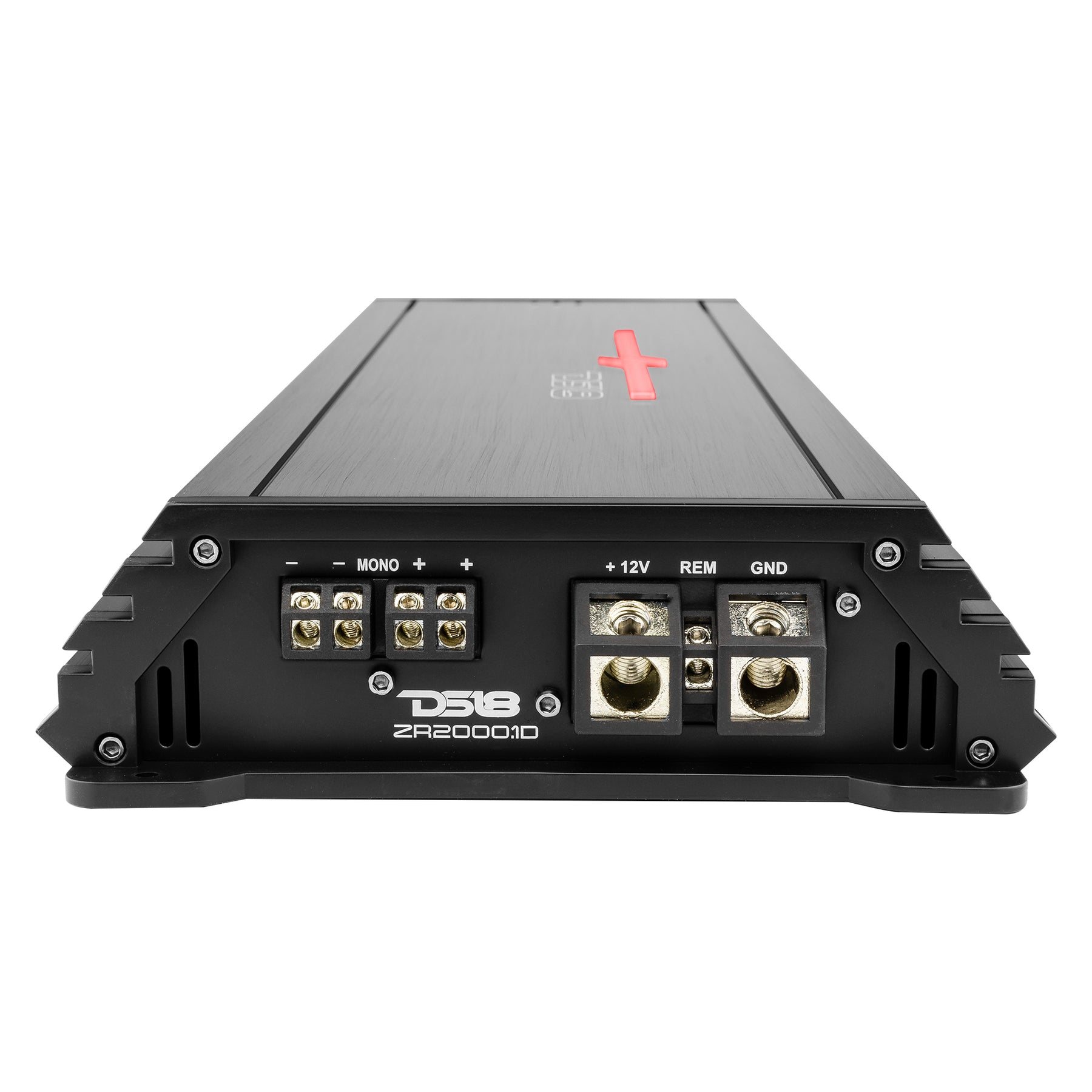

The ZR2000.1D is designed to optimize your sound system for powerful performance during every session. The LED indicators for Clipping, Power, and Protect provide valuable visual feedback that ensure optimal performance. The power and ground terminals are designed to accommodate 0 Ga wires, ensuring a secure and reliable connection. Additionally, the selectable X-Over options grant you the ability to fine-tune your bass, allowing for seamless integration with your existing sound system and putting you in complete control of your soundstage.
Experience the DS18 difference today with the ZR2000.1D and discover a new dimension of car audio excellence.

Reviews

There are no reviews yet.

Be the first to review “DS18 ZR2000.1D”

Your email address will not be published. Required fields are marked *

Questions and Answers

Q1: What is the ZR2000.1D?

A1: It’s a 1-channel Class D monoblock car audio amplifier designed to deliver massive, clean bass for subwoofers.

Q2: How many channels does it have?

A2: It has 1 channel (mono), specifically for low-frequency subwoofer applications.

Q3: What power output does it produce?

A3: It delivers up to 2000 W RMS at 1 Ω and remains stable across 2 Ω to 4 Ω loads for high-efficiency, distortion-free bass.

Q4: Does it include protection features?

A4: Yes — it has thermal, overload, short-circuit, and voltage protections to safeguard the system.

Q5: Why choose this amp for car installations?

A5: Its extreme output, low distortion, efficient cooling, and durable design make it ideal for SPL setups and custom car audio installations requiring deep, controlled bass.
