Description

DS18 VS-HARLEY5

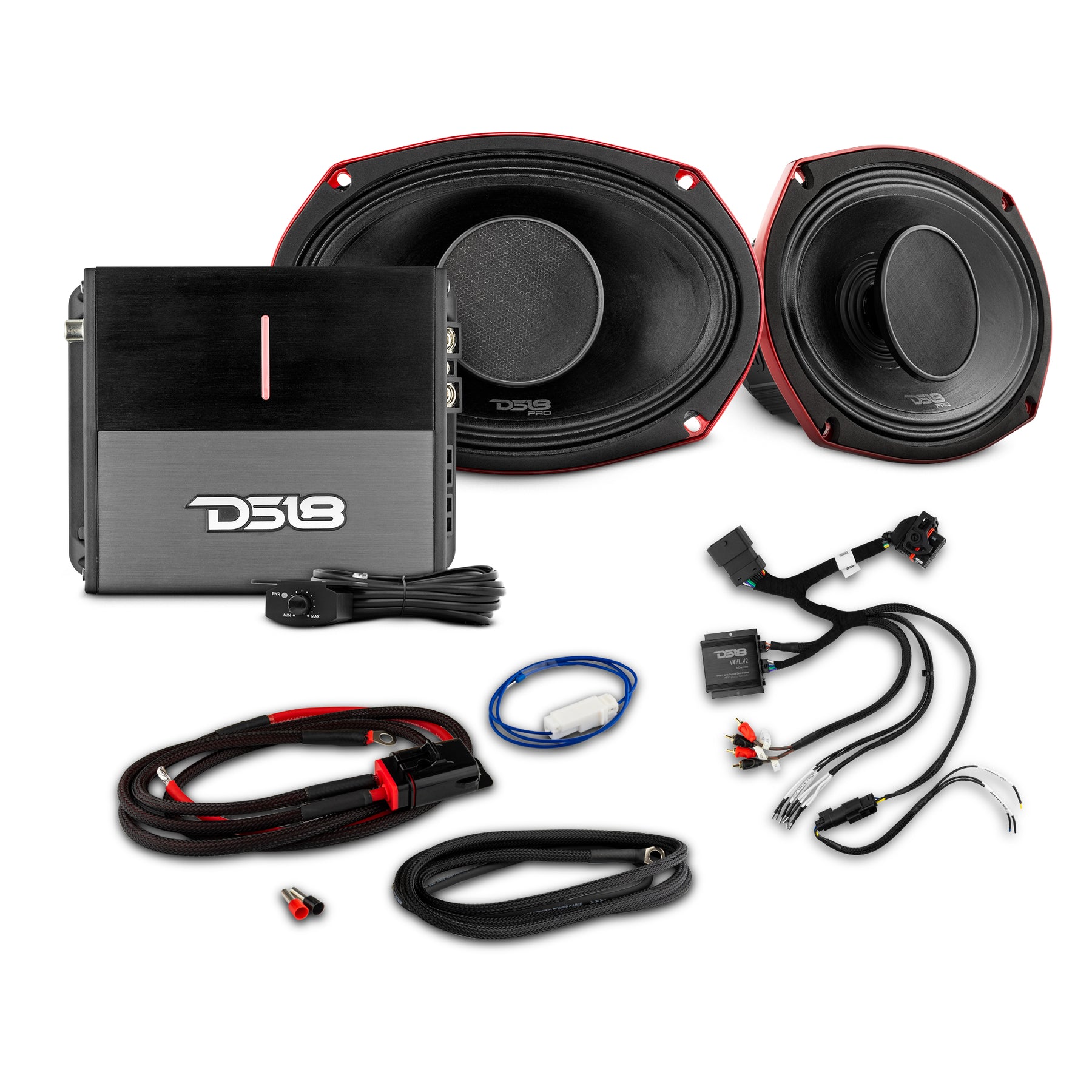

The VS-HARLEY5 is a complete rear audio upgrade package designed for 2014 and newer Harley-Davidson® Street Glide and Road Glide motorcycles. It includes powerful water-resistant 6×9″ hybrid mid-range speakers with built-in drivers, a dedicated 2-channel amplifier, and all necessary harnesses and wiring for seamless installation. This package delivers improved clarity, higher output, and enhanced sound performance over the factory audio system — perfect for riders who want richer audio while cruising.

Specifications

Item	Model
6×9 inch Water Resistant Hybrid Mid Range Loudspeaker	PRO HY69.4B
2 Channel Amplifier	ION700.2D
Plug and Play Harness For Amplifier	RY HARNESS.HD
4 GA Amplifier OFC Installation Kit	RY KIT4.HD

Speaker Specifications

Feature	Details
Type	6×9 inch Water Resistant Hybrid Mid Range Loudspeaker with Built in Driver
RMS Power	250 Watts
Impedance	4 Ohm
Configuration	2 Way
Magnet Type	Ferrite and Neodymium Magnets
Water Resistance	IPX5
Sensitivity	97 dB
Grills Included	Yes

Amplifier Specifications

Feature	Details
Type	2 Channel Amplifier
Range	Full Range
Class	Class D
Stability	2 to 4 Ohm Stable
Power Output	2 x 240 Watts at 4 Ohm
Indicators	Power Clip Protection Indicator
Design	Compact Design
Remote Level Control	Yes

Wiring Kit Specifications

Plug and Play Harness

Feature	Details
Type	Plug and Play Harness For Amplifiers
Compatibility	Harley Davidson Amplifier Harness
Connection	OEM Plug N Play
RCA Output	4 Channel RCA Pre Out
Wire Type	OFC Wires
Water Resistance	Water Resistant

4 GA Amplifier OFC Installation Kit

Feature	Details
Type	4 GA Amplifier Wire Kit
Power Handling	Up to 1680 Watts RMS
Fuse Holder	Mini ANL Fuse Holder
Wire Type	OFC Wires
Application	Motorcycle Powersports Marine
Water Resistance	Water Resistant

Product Overview

Upgrade your Harley with DS18’s Harley-Davidson Rear Package.

DS18’s PRO-HY69.4B is a water-resistant hybrid loudspeaker that combines a 6×9″ midrange with a high-powered 1″ compression driver horn. A titanium diaphragm and neodymium magnet with 250W RMS Power Handling at 4-OHM each ensure powerful and precise sound reproduction across all frequencies. Designed for outdoor use, the water-resistant cone protects the speaker from the elements, making this speaker perfect for Harley’s riding in any weather condition.

To further enhance your audio experience, we’ve included our ION700.2D. This compact amplifier delivers outstanding performance for crystal-clear sound on every ride. The full variable crossover switch and remote level knob control allows you to customize your audio settings to your preferences, ensuring enhanced clarity across all frequencies. With power ratings of 700W at 4-ohm bridged, 2 x 350W at 2 ohms, and 2 x 240W at 4 ohms, this amplifier provides the perfect power boost for every component in your new system.

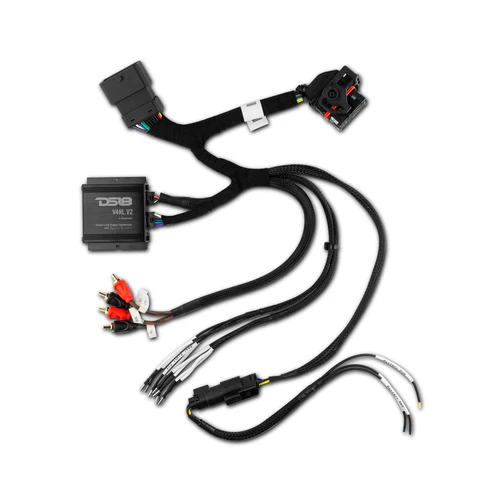

Seamlessly integrate your aftermarket amplifier using the included RY-HARNESS.HD. This kit features Oxygen-Free Copper (OFC) wires and noise rejection RCA’s, ensuring optimal signal transfer and minimal interference. This plug-and-play T-Harness kit combined with the hi-level inputs and Tiffany RCA connectors on the ION700.2D makes integrating your new amplifier into your existing audio setup extremely easy. To ensure a flat and clean signal for the RY-Harness’s V4HL, we recommend a flash for your radio.

To complete the package, we have included the RY-KIT4.HD. Designed specifically for Harley-Davidson models from 1996 onwards, this kit provides all the necessary wiring for a seamless installation of an additional amplifier.
