Description
DS18 SQT1

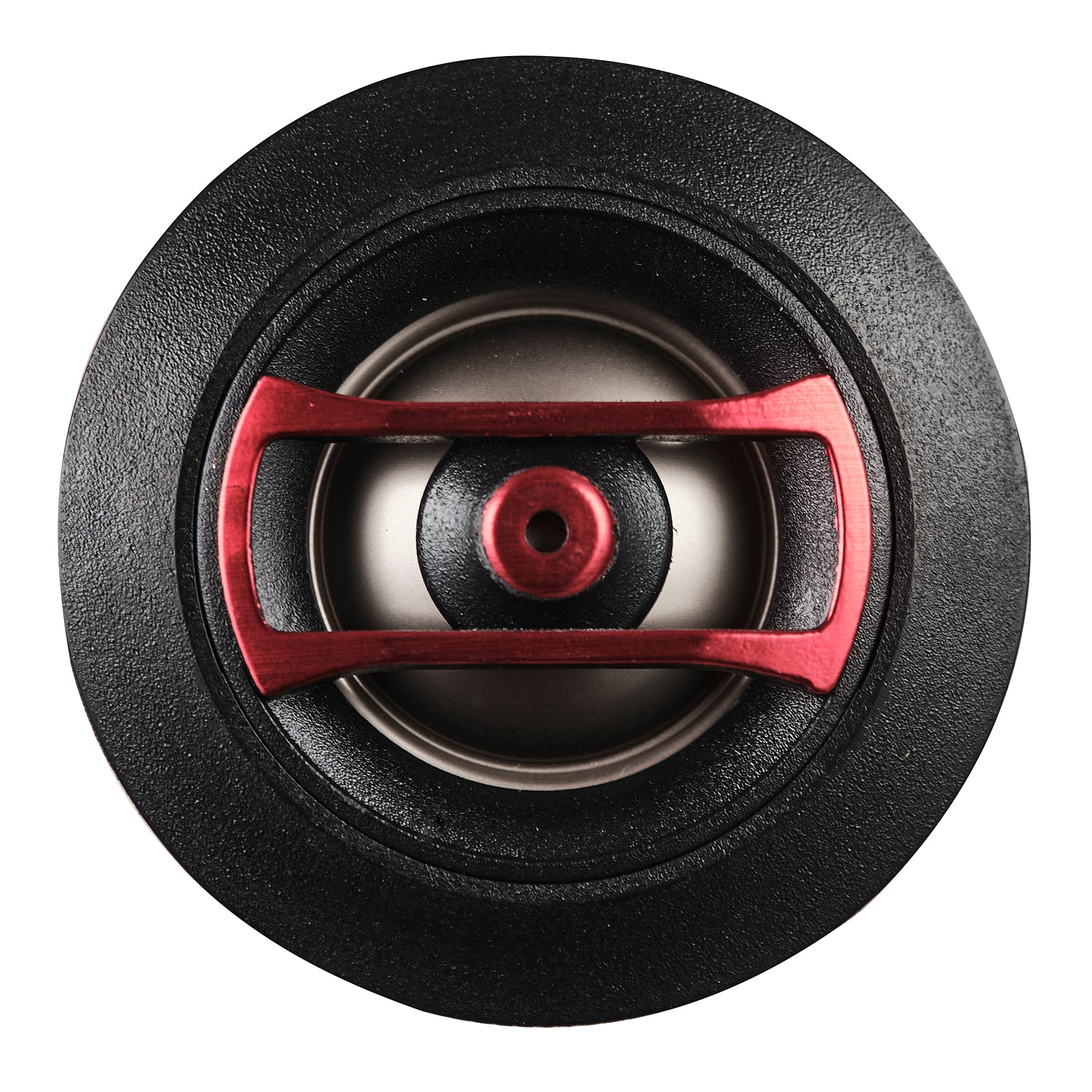

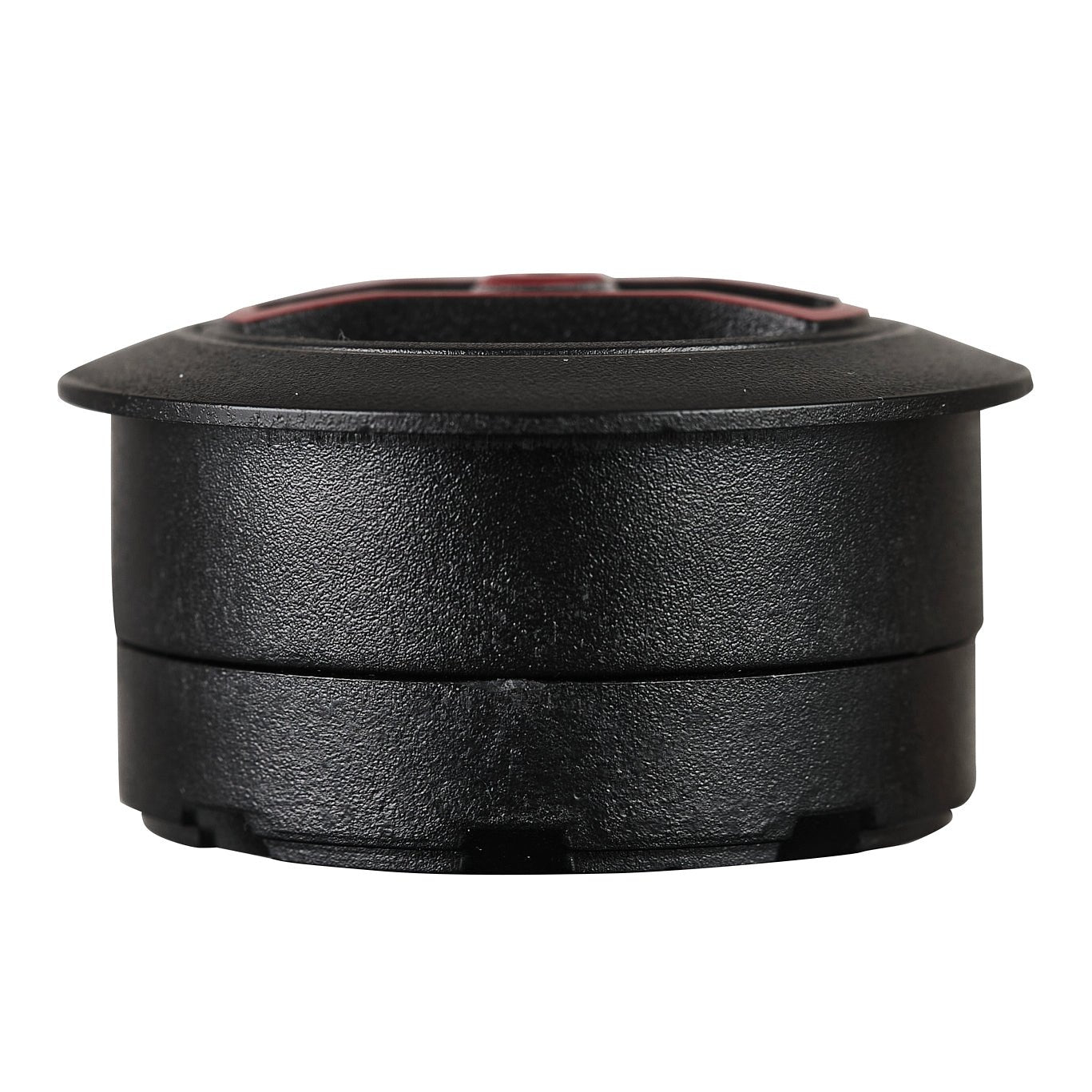

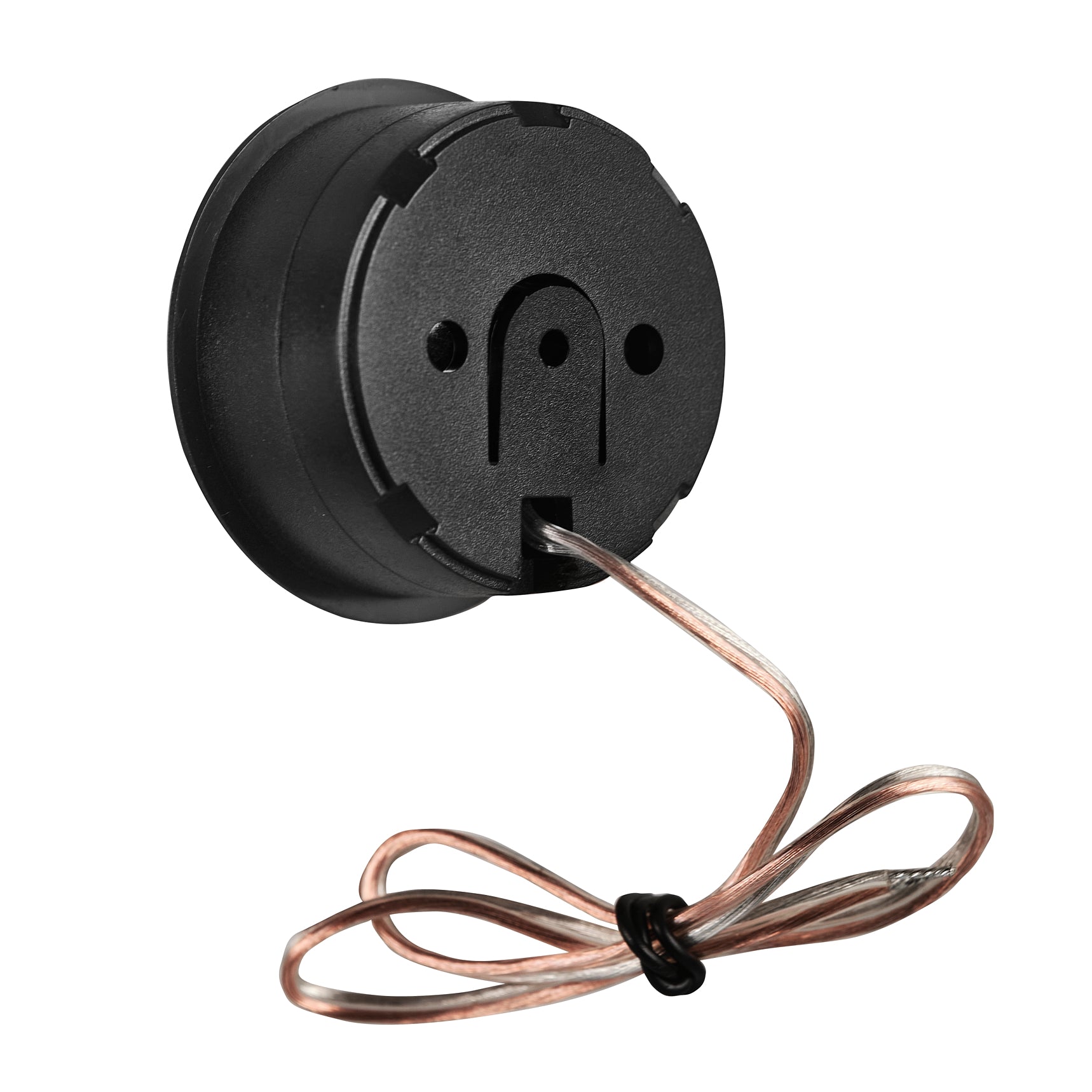

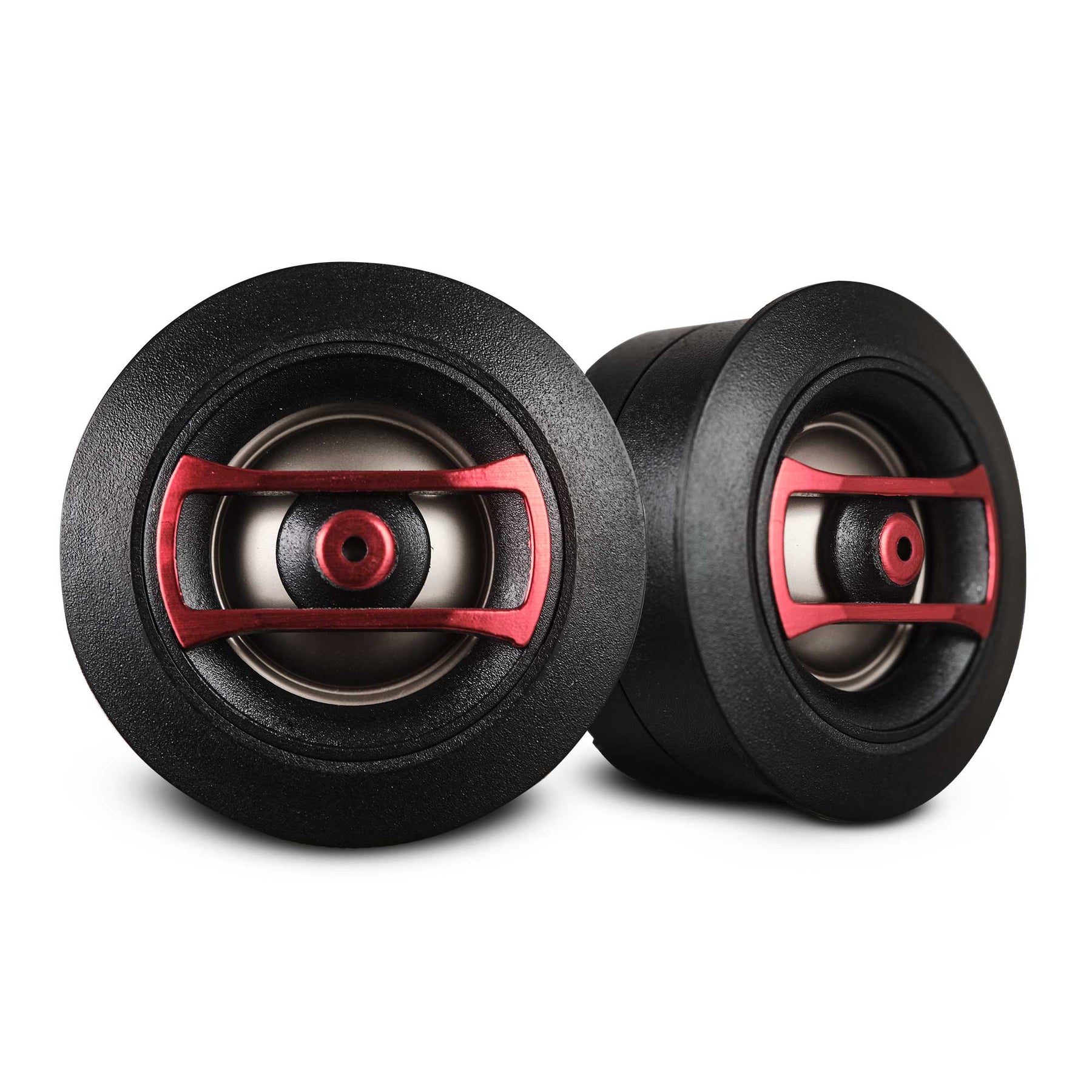

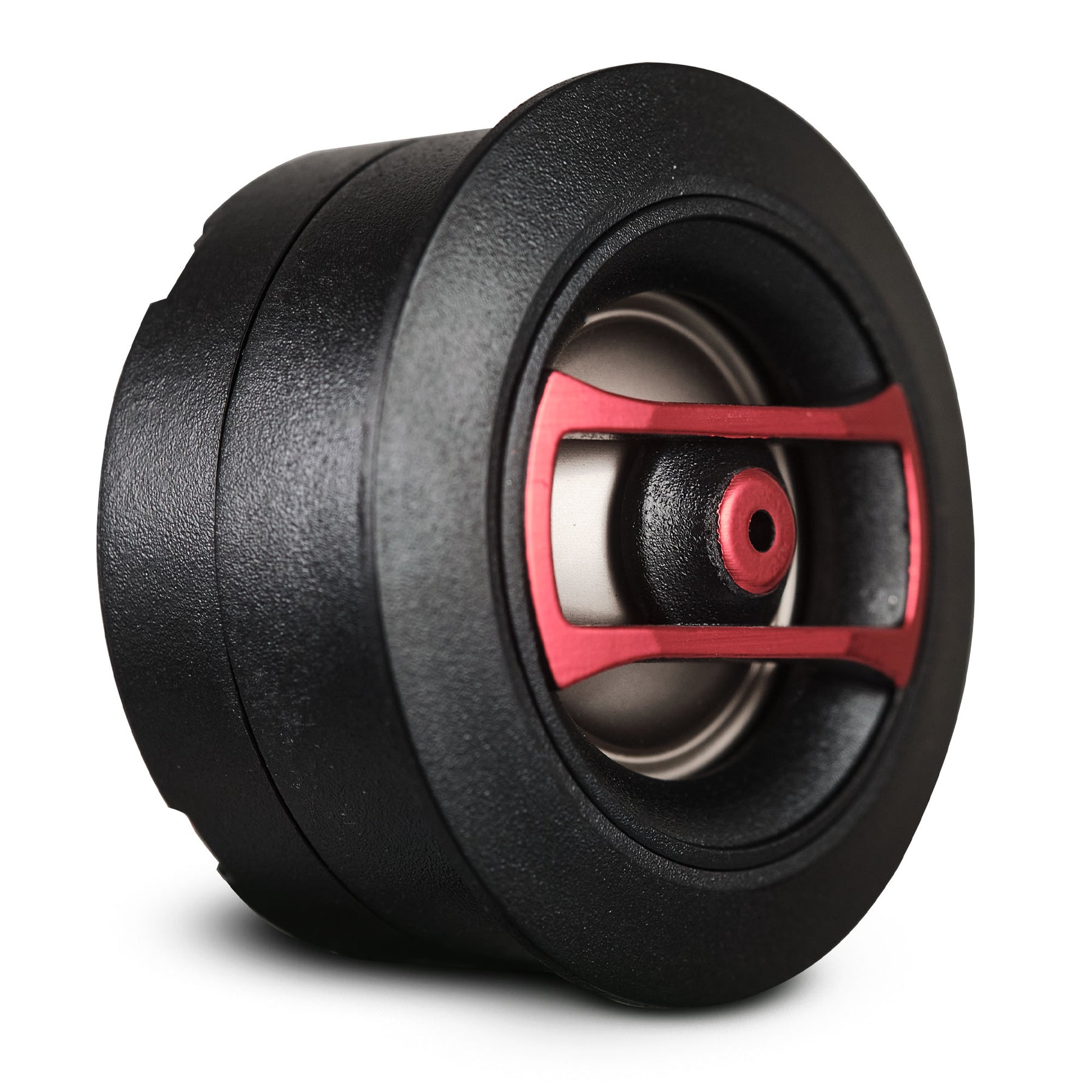

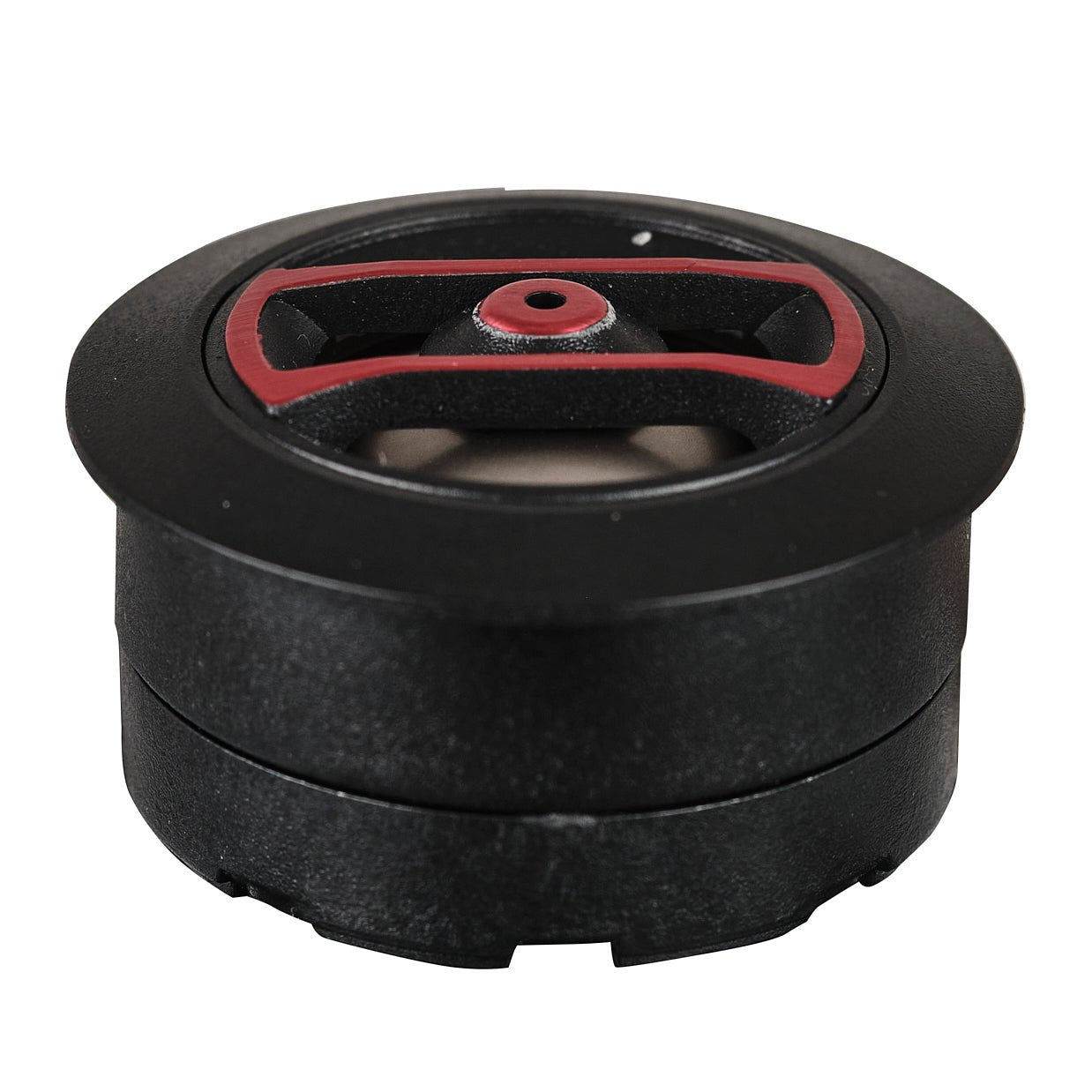

The PRO-SQT1 (commonly referred to simply as SQT1) is a 1.3-inch multi-mount PEI mini dome tweeter pair designed to deliver clear, crisp high-frequency sound for car audio systems and custom installations. Built with a lightweight 0.8″ voice coil, neodymium magnet, and durable PEI (polyetherimide) dome with ABS housing, it handles 15 W AES (30 W RMS) and up to 60 W peak power while maintaining a 4-ohm impedance and ~92 dB sensitivity. The tweeter produces refined treble across a frequency range of approximately 1 kHz to 20 kHz, enhancing vocals and high-end detail with minimal distortion. Its versatile mounting options — flush, angled, or surface — make installation easy in a variety of locations, from dashboards to custom pods, making the SQT1 a great upgrade for factory audio systems or compact high-frequency setups.
Specifications
| Parameter | Details |
|---|---|
| SKU | SQT1 |
| Nominal Diameter | 1.3″ / 33 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 15 W |
| Program Power Handling | 30 W |
| Peak Power Handling | 60 W |
| Sensitivity (1W/1M) | 92 dB |
| Frequency Response | 1 kHz – 20 kHz |
| Recommended Hi-Pass Crossover | 3 kHz |
| Pair / Single | Pair |
| Body Color / Material | Black / ABS |
Motor
| Parameter | Details |
|---|---|
| Voice Coil Diameter | 0.8″ / 20.4 mm |
| Voice Coil Former Material | KSV |
| Winding Material | Copper |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 1.16 Oz |

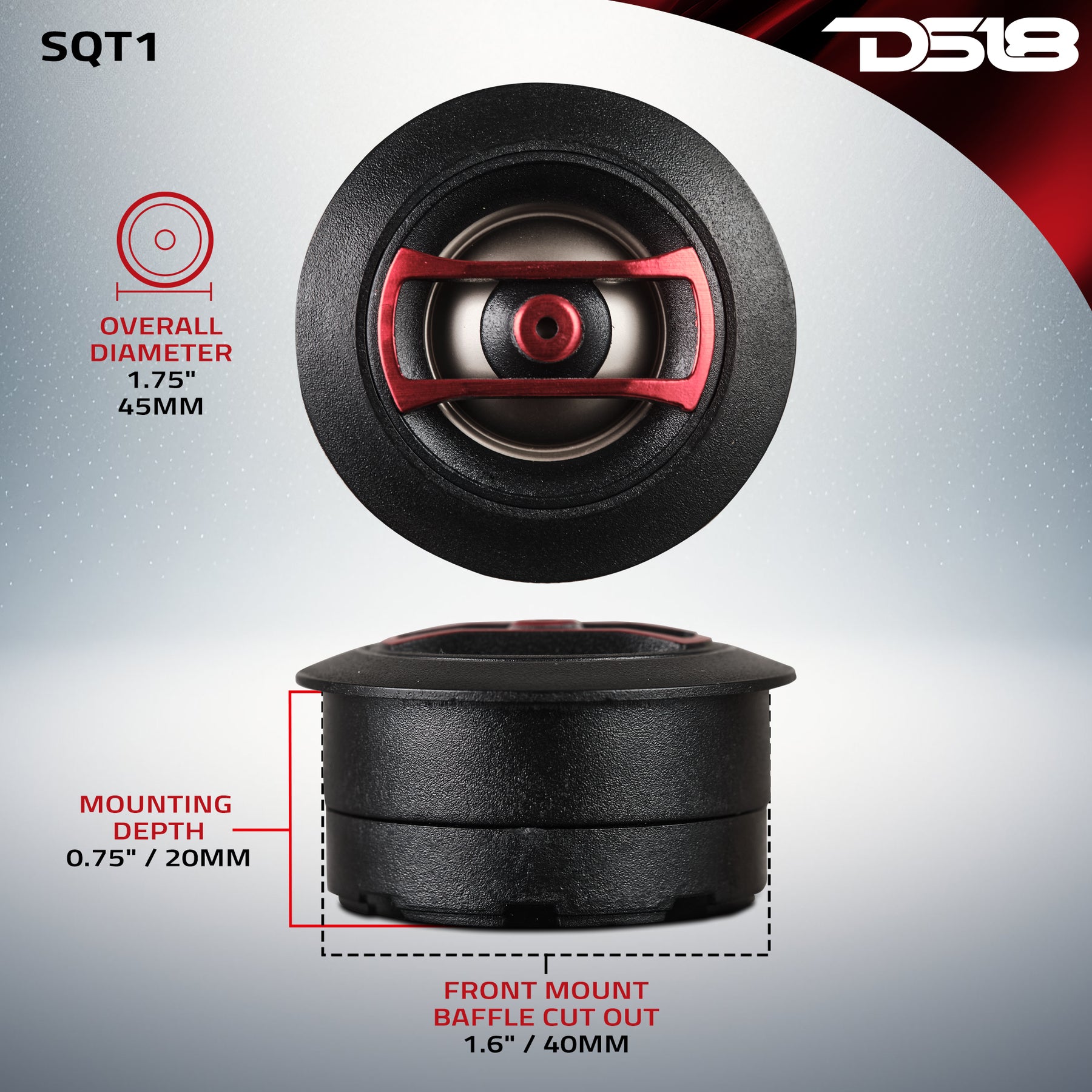

Measurements – With Flush Mount Adapter
| Parameter | Details |
|---|---|
| Overall Diameter | 1.75″ / 45 mm |
| Overall Depth | 1″ / 25 mm |
| Front Mount Baffle Cutout | 1.6″ / 40 mm |
| Mounting Depth | 0.75″ / 20 mm |

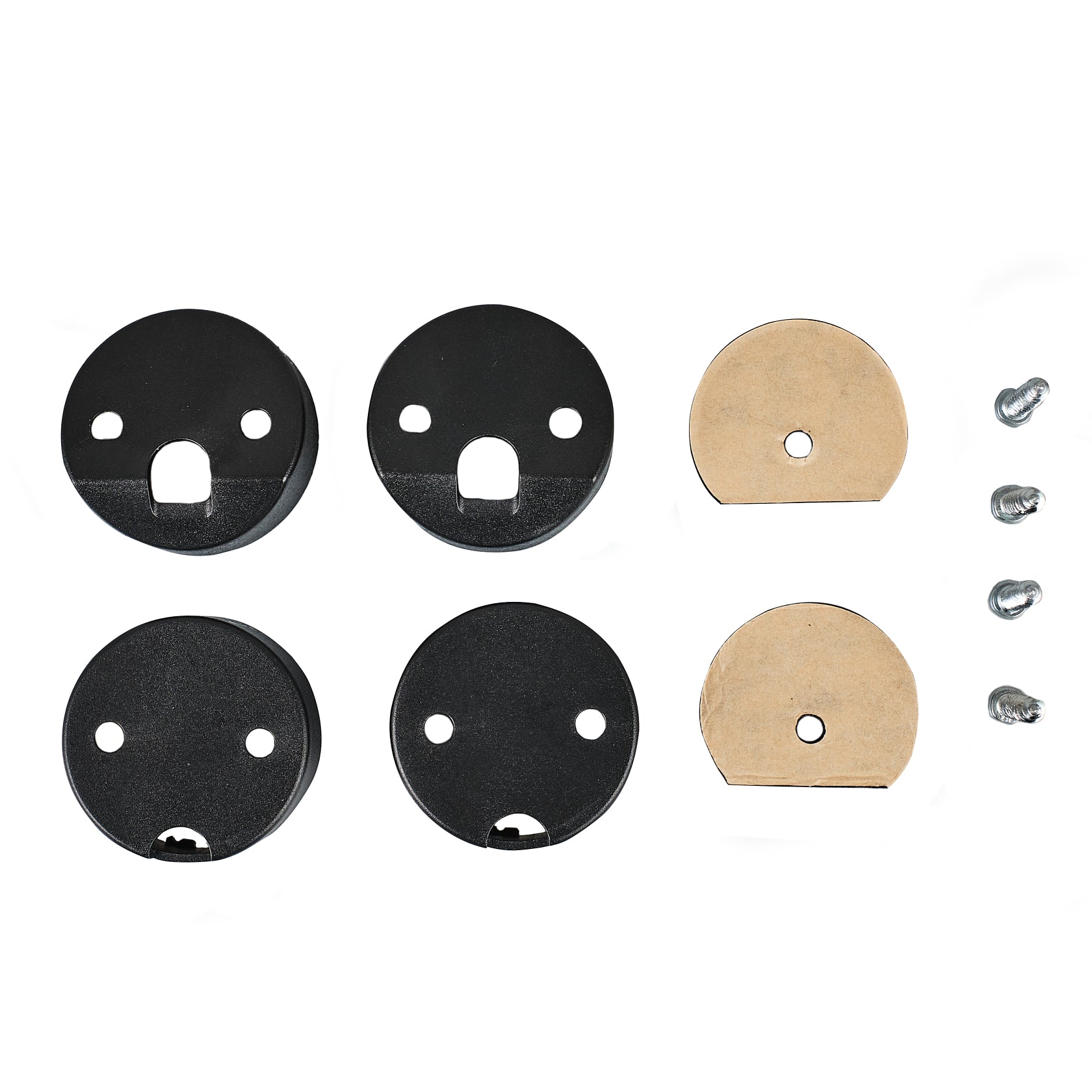

Measurements – With Angle Surface Mount Adapter
| Parameter | Details |
|---|---|
| Overall Diameter | 1.3″ / 33.5 mm |
| Overall Height | 1″ / 26.7 mm |
Measurements – Without Adapter
| Parameter | Details |
|---|---|
| Overall Diameter | 1.3″ / 33.5 mm |
| Overall Height | 0.96″ / 24 mm |
Product Overview
1.3″ Multi-Mount PEI Mini Dome Tweeter with 0.8″ Voice Coil
Boost your system’s clarity with the SQT1, the epitome of high-frequency clarity and versatility!
This 1.3″ Multi-Mount PEI Mini Dome Tweeter balances power and precision, for crisp, accurate sound reproduction across an extended frequency range from 1KHz to 20KHz. Now available in pairs, each tweeter delivers 15W AES, 30W Program, and 60W Peak Power, making it a powerhouse addition to any setup.
Built with premium PEI and ABS materials, this high-frequency tweeter offers lasting durability and reliable performance in any environment. Featuring a sensitivity of 92 dB at 1W/1M and a 4-ohm impedance, it delivers crisp, superior highs. Equipped with a powerful yet lightweight neodymium magnet, the SQT1 enhances sound without adding bulk to your setup.

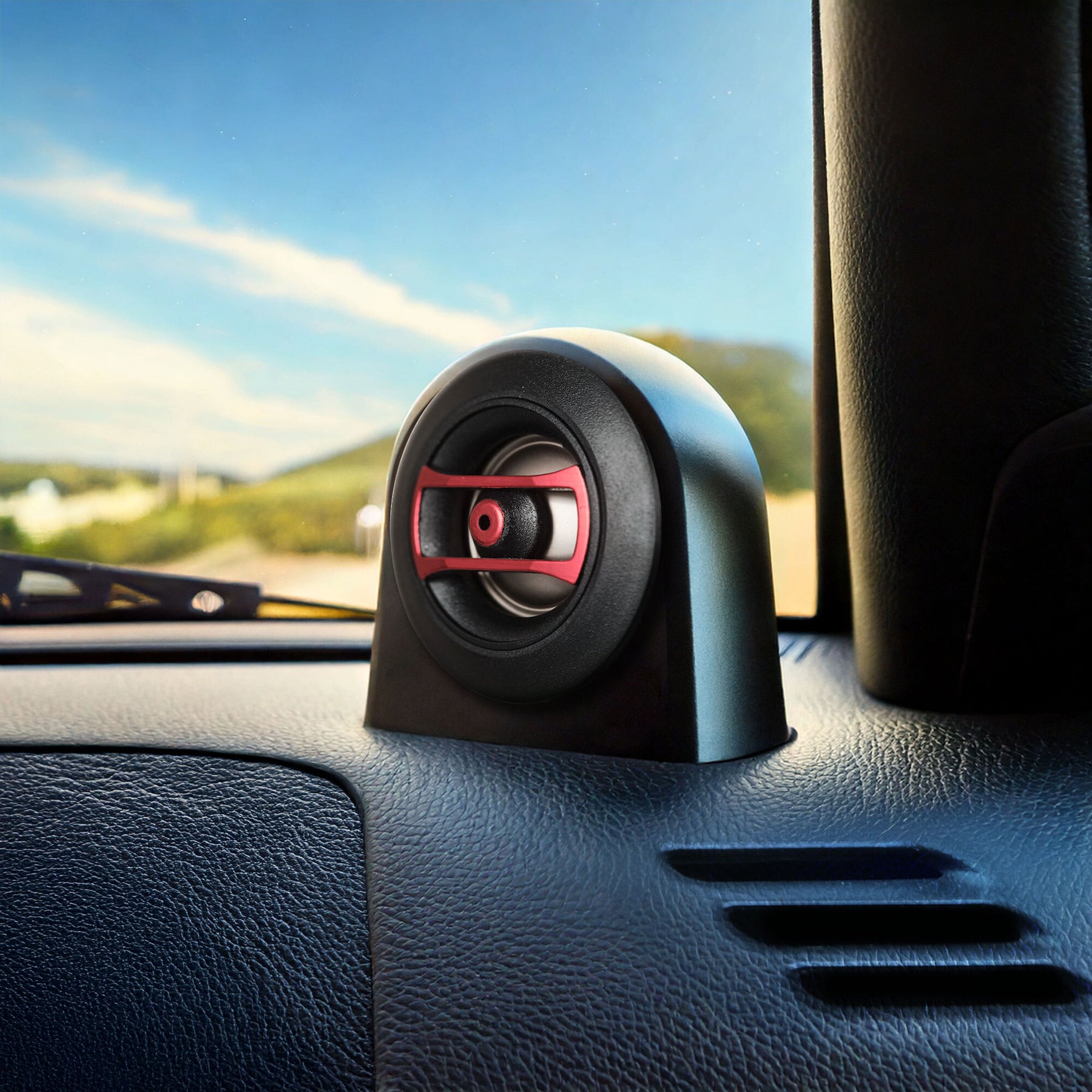

With three easy mounting options—flush, angled, and direct—installation is effortless. Perfect for car audio, the SQT1 mini dome tweeter seamlessly adapts to any setup. Unlike other tweeters, its premium build and advanced design deliver unmatched, refined treble.
Upgrade to the SQT1 today for extraordinary sound quality on every journey!
