Description
DS18 SDX-P200
The DS18 SDX‑P200 is a high‑power single‑DIN digital media car receiver with a built‑in amplifier, advanced DSP sound tuning, and multiple connectivity options. It features a vibrant 4″ LCD display with 3‑zone RGB illumination and provides Bluetooth audio streaming and hands‑free calling, USB/SD playback, AUX input, and AM/FM radio. The unit includes a 24‑band graphic equalizer, time alignment, and crossover controls to fine‑tune your audio performance. With a built‑in amplifier rated at 60 W RMS × 4 channels (180 W peak × 4), high‑level preamp outputs for subwoofers, and smartphone app control, the SDX‑P200 delivers powerful, customizable sound and modern usability in one compact dash unit.
Specifications
| Parameter | Specification |
|---|---|
| SKU | SDX-P200 |
| Nominal DIN Size | 1-DIN |
| Rated Power Voltage | 14.4V |
| Voltage Operation | 9.6–15 Volts |
| Maximum Current Consumption | 30A |
| Temperature Operation | 0~60°C / 32~140°F |
| Screen Size | 4″ / 104mm |
| Display Type | LCD Dots |
| Buttons / Controls | ABS |
| Backlight Illumination Type | RGB / 3 Zones |
| Body Material / Color / Finish | Steel / Bronze |
Audio Specifications
| Parameter | Specification |
|---|---|
| Maximum Power Output (Peak) | 4x180W |
| Continuous Power Output (RMS) | 4x60W |
| Minimum Impedance | 4 Ohms |
| Frequency Response | 20Hz–20KHz |
| Pre-Output Level (RCA) | 3V / 3.5V (Subwoofer) |
| Equalizer Bands | 24 Bands |
| Equalizer Gain | + / – 9dB |
| Crossover | 3-Way |
| Crossover Slope | 6 / 12 / 24 dB/Oct |
| Time Alignment | 0~25ms / 0~850cm |
| Audio Control | Subwoofer Level, Fader, Balance, Loudness |
| Frequency Range (FM) | 87.5–108.0 MHz |
| Frequency Range (AM) | 522–1620 KHz |
| Presets Memory | 18 FM / 12 AM |
| Region | Europe, America, Asia, Russia |
| Sensitivity Adjustment | Local / DX |
Bluetooth (BT) Specifications
| Parameter | Specification |
|---|---|
| Version | 4.2 |
| Services | Hands Free Calls, Audio Streaming, APP Remote Control |
| Audio Protocols | A2DP, AVRCP, HFP |
| Range | 32ft / 10m |
USB / SD Player Specifications
| Parameter | Specification |
|---|---|
| Type / Class | 2.0, 3.0 / FAT16, FAT32 |
| Format Files Supported | FLAC (16 Bit), WAV, AAC, APE, MP3 |
| Max Memory Size Reader | 64 Gb |
| Max Current USB Charger | 1A |
| Number of Ports | 1 (Front) |
Connectivity Specifications
| Parameter | Specification |
|---|---|
| A/V Aux Input | Yes, Front 3.5mm Jack (2V Max) |
| Microphone | Yes, Built-In / External Mic Input |
| Remote Control (SWC) | Yes, 3.5mm Jack Input |
| Remote Control (Handset) | Yes, Card Type with Rubber Buttons |
| APP Control | Yes, (Android Devices) |
Measurements
| Parameter | Specification |
|---|---|
| Overall Width (Chassis) | 7″ / 178mm |
| Overall Height (Chassis) | 1.96″ / 50mm |
| Overall Depth (Chassis) | 6.2″ / 158mm |
| Overall Width (Bezel Frame) | 7.4″ / 188mm |
| Overall Height (Bezel Frame) | 2.2″ / 58mm |
| Overall Depth (Bezel Frame) | 0.98″ / 25mm |
Product Overview
Single DIN Digital Media Receiver With DSP / Bluetooth / USB / APP / AUX & Built-In High Power Amplifier
Want big sound with bold control? DS18’s SDX-P200 packs pro-level audio features, wireless streaming, and impressive flexibility into a sleek, single DIN unit that looks just as powerful as it sounds.
Connect Your Devices
With Bluetooth 5.0 for extreme connectivity, plus 30 preset AM/FM stations, the SDX-P200 gives you instant access to everything you want to hear. The front-facing USB reader supports FLAC, WAV, AAC, APE, and MP3 files, and also lets you charge your device on the go.
Powerful Performance
The SDX-P200’s high-powered internal amplifier delivers a booming 60W RMS x 4 channels, providing LOUD, clear sound even when your system’s pushed to the max.
Customize Your Sound
Take command of your soundstage with the built-in Digital Signal Processor. You get time alignment, a 24-band graphic EQ, 2/3-way crossover options, and a dedicated subwoofer pre-out for dialed-in control.
Vibrant Display
The vibrant 4″ LCD screen delivers clean, easy-to-read visuals. Dynamic multi-color LED backlighting with 3-zone RGB illumination lets you set the vibe to match your ride.
Control at Your Fingertips

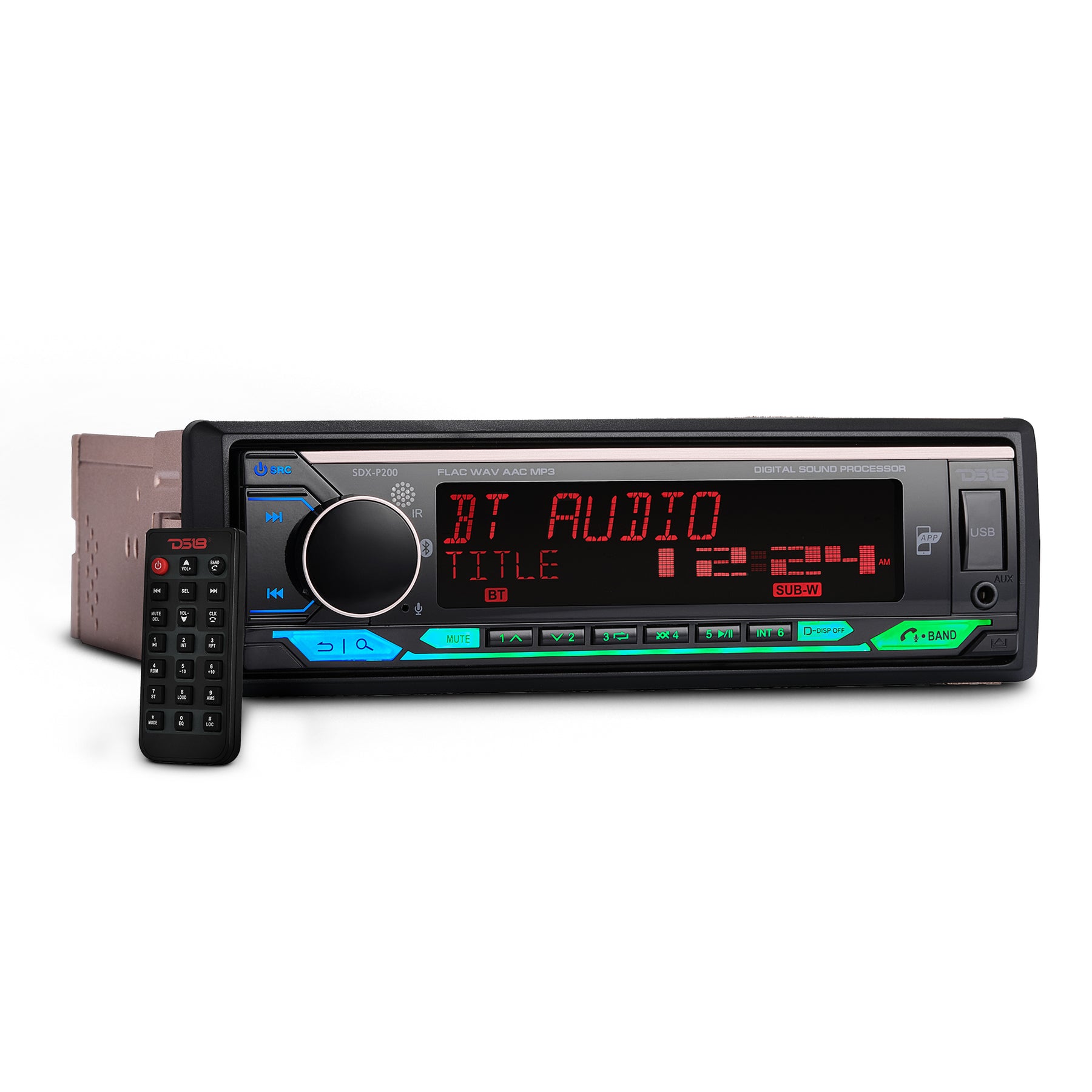

Download DS18’s SDX Remote Control App for iOS or Download DS18’s SDX Remote Control App for Android and manage your receiver settings, DSP features, and audio controls directly from your smartphone. Or, use the included wireless remote to command your setup without needing steering wheel interface systems.
Designed for easy installation and high performance, the SDX-P200 is the perfect centerpiece for your upgraded audio system.
